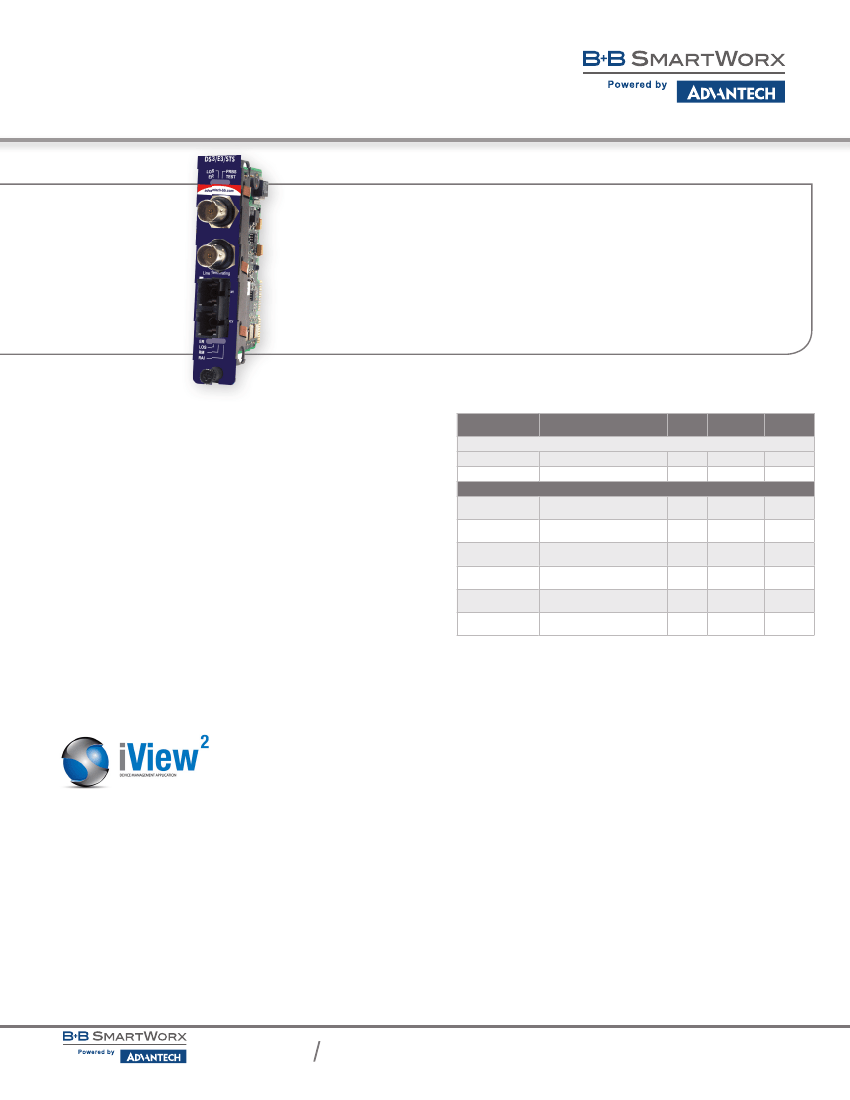

DS3/E3/STS Line Terminating Modules
- with Remote Management
iMcV-DS3/E3/STS LineTerm
www.advantech-bb.com
PRODUCT FEATURES
•
•
•
•
•
•
•
•
Operates at 45 Mbps (DS3), 34 Mbps (E3) or 52 Mbps (STS-1)
Conduct loopback tests, monitor/manage units
Remote unit supports secure, out-of-band management
Available for multi-mode, single-mode fiber, and single-strand fiber
Layer 1 modules
PRBS test patterns
Supports TDM features, including Alarm Indication Signals (AIS)
LED Line Diagnostics
iMcV-DS3/E3/STS converters are perfect for service providers and enterprise
campus networks utilizing DS3/E3/STS coaxial circuits. The modules enable
users to convert coax media to single-mode fiber and extend the distance of data
transmissions over MAN access networks up to 80 km. The modules support
premises networking applications to convert the incoming circuit to fiber for
distribution into the structured cabling system.
The Line Term modules include standards compliancy for Alarm Indication
Signals (AIS) for signal loss condition propagation, and are Layer 1 modules.
Additional alarms allow the administrator to easily troubleshoot line noise and
other problems.
The LineTerm modules are installed as a HOST-REMOTE pair and can be
remotely managed when the HOST is installed in an iMediaChassis with an
SNMP–Management Module. This enables network managers to conduct
loopback testing, to monitor, and to manage units located up to 60 km away.
Since B+B SmartWorx’ management technology functions transparently to the
user data, real-time, end-to-end management is provided at all times.
ORDERING INFORMATION
MODEL NUMBER FIBER
iMcV-DS3/E3/STS LineTerm
850-14401
MM1300-SC
850-14403
SM1310/PLUS-SC
SINGLE STRAND FIBER *
SSFX-SM1310-SC
850-14410
(1310xmt/1550rcv)
SSFX-SM1550-SC
850-14411
(1550xmt/1310rcv)
SSFX-SM1310/PLUS-SC
850-14412
(1310xmt/1550rcv)
SSFX-SM1550/PLUS-SC
850-14413
(1550xmt/1310rcv)
SSFX-SM1310/LONG-SC
850-14414
(1310xmt/1550rcv)
SSFX-SM1550/LONG-SC
850-14415
(1550xmt/1310rcv)
FIBER
PORTS
1
1
1
1
1
1
1
1
RANGE
5 km
40 km
20 km
20 km
40 km
40 km
60 km
60 km
BNC
PORTS
2
2
2
2
2
2
2
2
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B+B SmartWorx LLC single-strand fiber product.
iView2: Webserver version
Free Download
All product specifications are subject to change without notice.
iMcV-DS3/ES/STS LineTerm_1217ds
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
DS3/E3/STS Line Terminating Modules
- with Remote Management
iMcV-DS3/E3/STS LineTerm
SPECIFICATIONS
TECHNICAL
Protocol-Selectable — Operates at DS3 (45 Mbps),
E3 (34 Mbps) or STS-1 (52 Mbps) protocols
Ability to manage remote unit
Two types of loopback tests
Full bit rate for customer traffic
Jitter attenuation
Line build out
Installs in iMediaChassis or MediaChassis chassis*
Supports Webserver-based iView
2
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Available for single-strand fiber
MECHANICAL
Dimensions
Shipping Weight
ENVIRONMENTAL
Operating Temperature:
Storage Temperature:
Operating Humidity
4.19H x 0.78W x 2.75D inches
(107.4H x 20.0W x 70.5D mm)
0.30 lbs (0.11 kg)
+32 to +122 °F (0 to +50 °C)
-13 to +158 °F (-25 to +70 °C)
5 to 95% (non-condensing),
0 – 10,000 ft. altitude
REGULATORY APPROVALS
FCC Class A
UL/cUL
CE
RMEANTIME BEFORE FAILURE (MTBF)
MTBF
433,422 hours

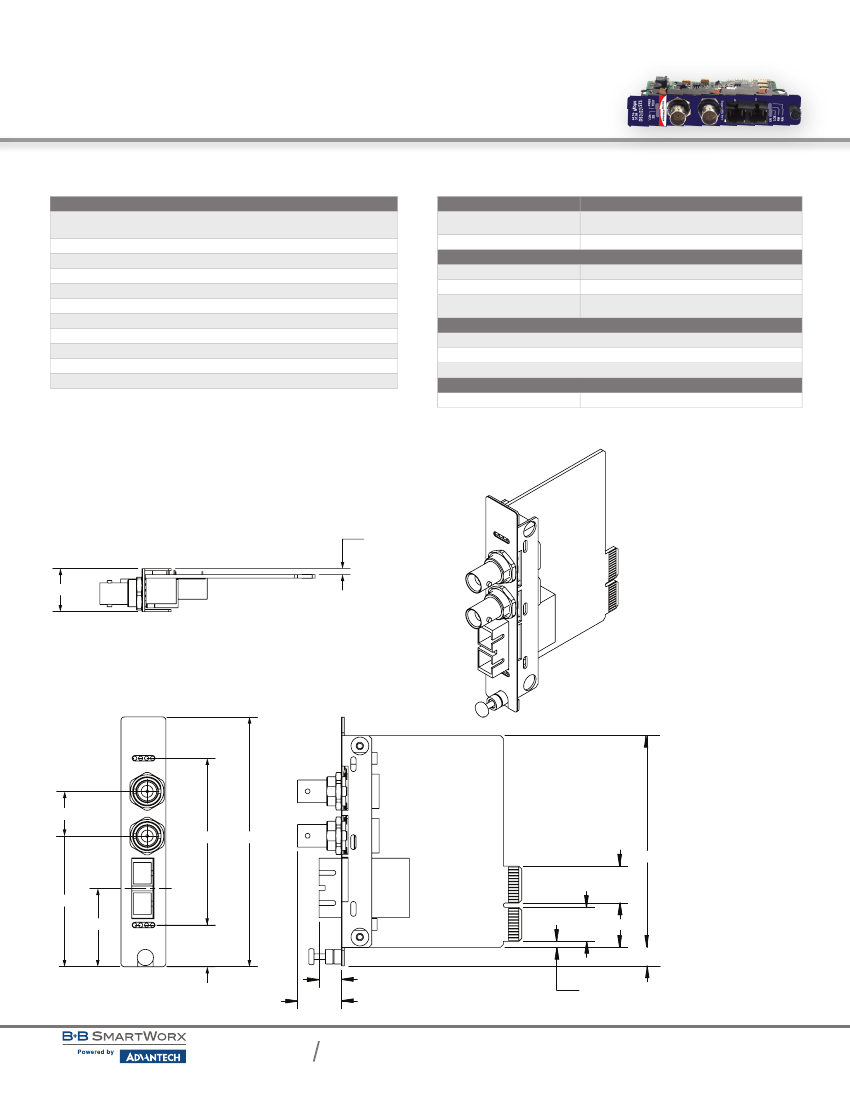

MECHANICAL DIAGRAM
(dimensions in inches)
.11
.76
.75
2.80
4.19
3.57
.62
2.19
1.31
.70
.38
.74
.57
.75
.31
.10
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
