MI945RF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Module/solution> MI945RF

MI945RF: DescriptionSingle Board Computers ITX C2Q GM45 V/2*GL S-RAID CF COM*2 PCI; CategoryModule/solution; File Size521KB，1 Pages; ManufacturerIBASE

Download Datasheet Parametric Compare View All

MI945RF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MI945RF	-	-	View	Buy Now

MI945RF Overview

Single Board Computers ITX C2Q GM45 V/2*GL S-RAID CF COM*2 PCI

MI945RF Parametric

Parameter Name	Attribute value
Product Category	Single Board Computers
Manufacturer	IBASE
RoHS	Details
Form Factor	Mini-ITX
Processor Brand	Intel
Processor Type	Intel Core 2 Duo
Frequency	2.53 GHz
Memory Size	8 GB
Interface Type	LAN, RJ-45, RS-232, RS-422, RS-485, SATA, USB
Operating Supply Voltage	12 V
Maximum Operating Temperature	+ 60 C
Dimensions	170 mm x 170 mm
Chipsets	ICH9ME
Description/Function	Socket P GM45 Mini-ITX motherboard with VGA, dual gigabit LAN and RAID
Memory Type	DDR2
Minimum Operating Temperature	0 C
Packaging	Bulk
Processor Series	Intel Core 2 Duo
Factory Pack Quantity	1

Preview

Download Datasheet

View All

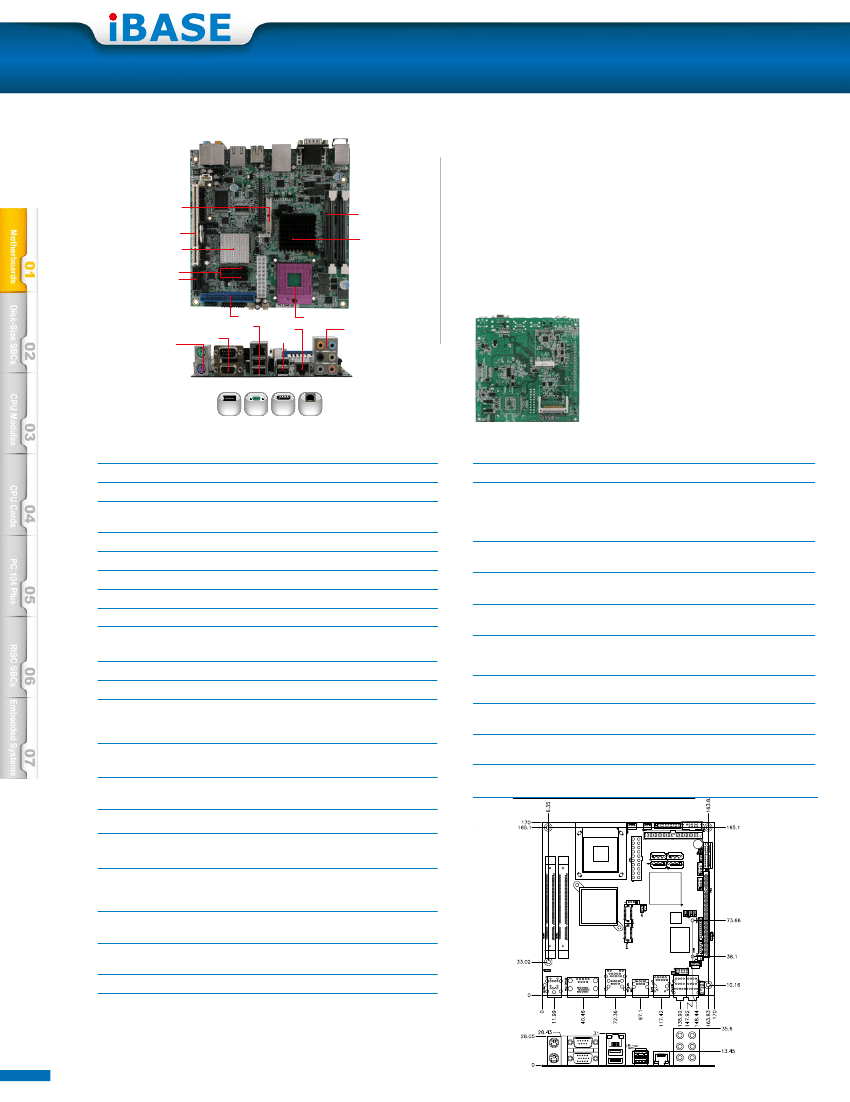

Mini-ITX Motherboard

MI945

Socket P Intel

Core™2 Duo Mini-ITX Motherboard w/

Intel

GM45 Chipset

LVDS

PCI Slot

ICH9M

SATA II

PCI -E(x1)

DDR2

SO-DIMM

Sockets

Intel

GM45

Chipset

● Supports Intel

Core™2 Duo processors

667/800/1066MHz FSB

● 2x

DDR2 SO-DIMM, Max. 8GB

● Onboard dual Gigabit LAN

● Integrated VGA for CRT & LVDS

●

4x SATA II, 8x USB 2.0, 4x COM, 1x IDE, 1x CF

●

1x PCI, 1x PCI-E(x1), 1x Mini PCI-E

Features

IDE1

RJ-45/USB

KB/Mouse

COM/VGA

RJ-45

USB

Socket P

Audio

USB

COM

SATA II

Gbe LAN

System

CPU Socket

System Memory

System Chipset

BIOS

Watchdog Timer

SSD

H/W Monitor

Expansion Slots

Socket P for Intel

Core™2 Duo processors

2x DDR2 SO-DIMM, 667/800MHz, Max. 8GB

Intel

GM45 + ICH9M (MI945F) / ICH9ME (MI945RF/

MI945AF), 667/800/1066MHz FSB

Mechanical and Environmental

Dimensions

Max. Power

Requirement

Operating

Temperature

Storage

Temperature

Relative

Humidity

170mm x 170mm (6.7“ x 6.7“)

Intel

Core™2 Duo T9400 2.53GHz

w/ 2GB DDR2-667

+12V: 2.01A, +5V: 0.45A, +3.3V: 0.82A

0°C~60°C (32°F~140°F)

-20°C~80°C (-4°F~176°F)

10%~90% (non-condensing)

Award (MI945F/MI945RF) / AMI (MI945AF)

256 levels

CF socket (solder side)

Yes

1x PCI, 1x PCI-E(x1), 1x Mini PCI-E

Graphics

VGA Controller

VGA Memory

Display Interface

Intel

GM45 integrated GMA 4500MHD

Supports DVMT 5.0; Max. shared memory - 1GB

Supports CRT & 18-bit/24-bit dual channel LVDS,

optional daughter card supports 2nd CRT and

single/dual DVI

Ordering Information

MI945F

MI945AF

MI945RF

Socket P GM45 Mini-ITX motherboard with VGA and

dual Gigabit LAN (ICH9M)

Socket P GM45 Mini-ITX motherboard with VGA,

dual Gigabit LAN, RAID, iAMT 4.0 (ICH9ME)

Socket P GM45 Mini-ITX motherboard with VGA,

dual Gigabit LAN and RAID (ICH9ME)

LAN

Controller

Connector

ICH9M integrated Intel

82567LM Gigabit LAN

Intel

82574L PCI-E Gigabit LAN for 2nd LAN

RJ-45 on board

Dimensions Drawing

Multi I/O

I/O Chipset

USB

Audio

Others

Winbond W83627DHG-P + Fintek 81216AD

1x IDE, 1x KB, 1x mouse,

3x RS232, 1x RS-232/422/485, 4x SATA II

4 ports on board

Pin header for 4 ports (USB 2.0)

Intel

ICH9M built-in HD audio w/ Realtek ALC892

codec for 7.1CH

Digital I/O (4 in, 4 out)

1-20

Remarks: 1. Specifications are subject to change without prior notice.

2. ODM/OEM is available.

3. For user’s manual & datasheet download, visit www.ibase.com.tw.

MI945RF Related Products

	MI945RF	MI945AF	MI945F-11
Description	Single Board Computers ITX C2Q GM45 V/2GL S-RAID CF COM2 PCI	Single Board Computers ITX SK-P/C2Q G41 V/2 GL S-RAID AMT	Single Board Computers ITX SK-P/C2Q GM45V/2 GL(v1.1) CF COM*2
Product Category	Single Board Computers	Single Board Computers	Single Board Computers
Manufacturer	IBASE	IBASE	IBASE
RoHS	Details	Details	Details
Form Factor	Mini-ITX	Mini-ITX	Mini-ITX
Processor Brand	Intel	Intel	Intel
Processor Type	Intel Core 2 Duo	Intel Core 2 Duo	Intel Core 2 Duo
Frequency	2.53 GHz	2.53 GHz	2.53 GHz
Memory Size	8 GB	8 GB	8 GB
Interface Type	LAN, RJ-45, RS-232, RS-422, RS-485, SATA, USB	LAN, RJ-45, RS-232, RS-422, RS-485, SATA, USB	LAN, RJ-45, RS-232, RS-422, RS-485, SATA, USB
Operating Supply Voltage	12 V	12 V	12 V
Maximum Operating Temperature	+ 60 C	+ 60 C	+ 60 C
Dimensions	170 mm x 170 mm	170 mm x 170 mm	170 mm x 170 mm
Chipsets	ICH9ME	ICH9ME	GM45 + ICH9M
Description/Function	Socket P GM45 Mini-ITX motherboard with VGA, dual gigabit LAN and RAID	Socket P GM45 Mini-ITX motherboard with VGA, dual gigabit LAN, RAID, iAMT 4.0	Socket P GM45 Mini-ITX motherboard with VGA and dual gigabit LAN
Memory Type	DDR2	DDR2	DDR2
Minimum Operating Temperature	0 C	0 C	0 C
Packaging	Bulk	Bulk	Bulk
Processor Series	Intel Core 2 Duo	Intel Core 2 Duo	Intel Core 2 Duo
Factory Pack Quantity	1	1	1
