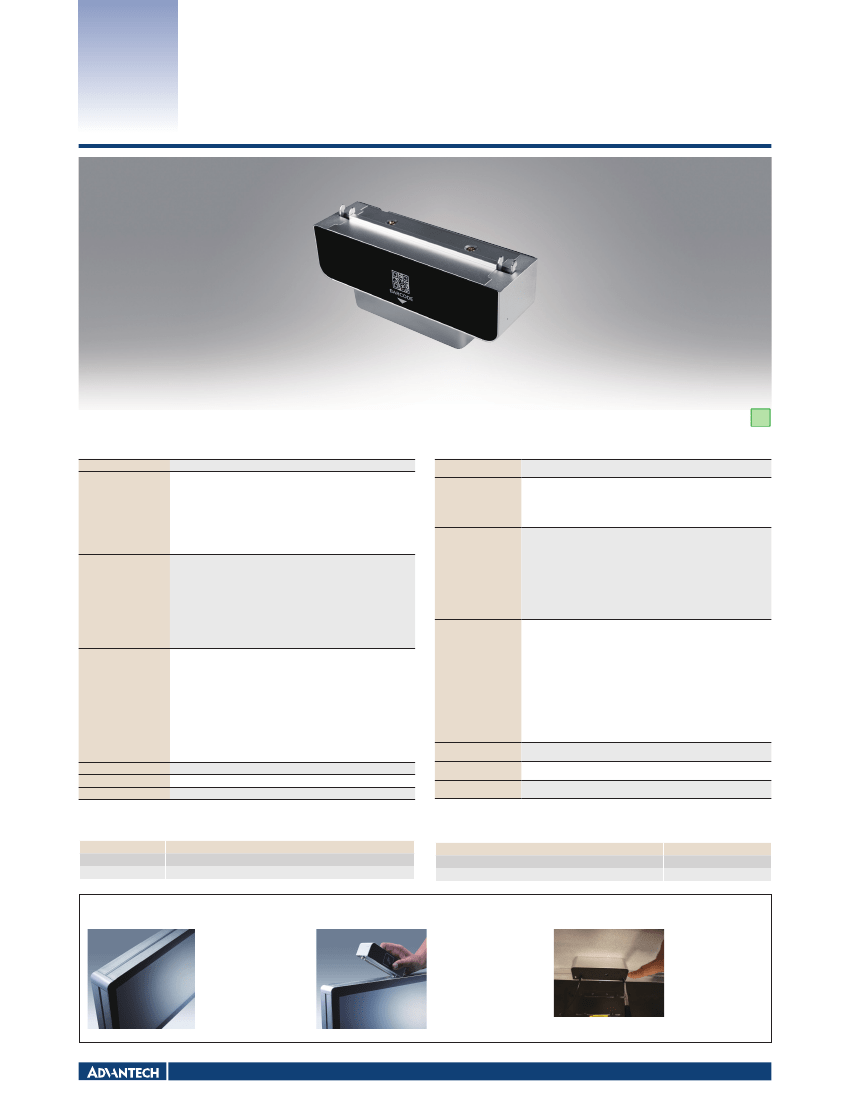

UTC-P07
2D Barcode Module for UTC-500 Series
RoHS
COMPLIANT
2002/95/EC
Specifications
Interface
USB (Cable Length:50cm)
Sensor: CMOS sensor with 640 x 480 pixel resolution
Illumination & Aiming: White LED illumination; Red LED dot aimer
Typical frame rate: 30 frames per second
Motion Tolerance: Up to 100 cm/s (4 in/s) for 13 mil UPC at optimal
focus
Field of View: Horizontal: 37.8°, Vertical: 28.8°
Scan Angles: Tilt: 360°, Pitch: ± 45°, Skew: ± 45°
Symbol Contrast: 35% minimum print contrast ratio
SYMBOLOGY / X-DIM TYPICAL RANGE*
100% UPC
55 mm to 280 mm (2.1 in to 11.0 in)
5 MIL CODE 39
61 mm to 130 mm (2.4 in to 5.1 in)
20 MIL CODE 39
60 mm to 380 mm (2.4 in to 15.0 in)
6.7 MIL PDF417
60 mm to 125 mm (2.4 in to 4.9 in)
10 MIL DATA MATRIX 60 mm to 130 mm (2.4 in to 5.1 in)
20 MIL QR
50 mm to 230 mm (2.0 in to 9.0 in)
* Typical performance may be impacted by barcode quality
and environmental conditions.
Linear: Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code
93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved
2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/
EAN-13 with Extended coupon Code, Coupon GS1 Code 32(PARAF),
EAN-UCC Emulation, GS1 Data bar
2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417
2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese
Sensible(Han Xin) code
Postal Codes: Australian Post, British Post, Canadian Post, China
Post, Japanese Post, Korea Post, Netherlands Post, Planet Code,
Postnet
Windows 7 / Windows 8*
130 x 52 x 40 mm
-10°C to 40°C
Interface
Scanning
Performance
USB (Cable Length:50cm)
Scan Rate: 2D mode: 53 images/s
Scan angle: 40° (Horizontal), 26° (Vertical)
Optical resolution: 752 (H) x 480 (V) pixels,
256 gray levels
Density
Min. Dist.
Max. Dist.
0.125 mm/5 mils 4.7 cm/1.8" 17.7 cm/7.0"
0.25 mm/10 mils 1.7 cm/0.7" 33.2 cm/13.1"
UPC/EAN
0.33 mm/13 mils 2.5 cm /1.0 " 41.9 cm/16.5"
Data Matrix 0.254 mm/10 mils 2.7 cm /1.0" 17.1 cm/6.7"
0.381 mm/15 mils 1.2 cm /0.5" 24.6 cm/9.7"
PDF 417
0.254 mm/10 mils 2.2 cm /0.9" 2.2 cm /9.4"
* Minimum distance depends on symbology length and scan angle
1D / Linear symbologies: : Autodiscriminates all standard 1D codes
including GS1DataBar™ linear codes.
2D symbologies: Aztec Code; China Han Xin Code; Data Matrix;
MaxiCode;Micro QR Code; QR Code
Postal codes : Australian Post; British Post; China Post; IMB; Japanese
Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code
(RM4SCC)
Stacked codes : EAN/JAN Composites; GS1 DataBar Composites;GS1
DataBar Expanded Stacked; GS1 DataBar Stacked;GS1 DataBar
Stacked Omnidirectional; MacroPDF;MicroPDF417; PDF417; UPC A/E
Composites
Windows 7 / Windows 8*
130 x 52 x 40 mm
0 ~ 40° C
Symbology
Code 39
Scanning
Performance
Typical Reading
Distances
Standard
Typical Reading
Distances
Standard
Symbologies
Symbologies
OS Support
Dimensions
Operating Temperature
OS Support
Dimensions
Operating Temperature
Ordering Information
P/N
UTC-P07-A1E
UTC-P07-A4E
Description
2D Barcode Module for UTC-500 Series
2D Barcode Module for UTC-500 Series
Packing List
Description
Cable Clamp
Barcode Reader Unit
Quantity
2
1
UTC-500 Peripherals Series Installation Guide
The UTC-500's
uniquely designed
Side groove creates
an attachment area
that runs all around
the frame; customer
can easily attach
Peripherals to it
where they need
Attach the
UTC-peripheral to
the UTC 500 series
side groove
Fasten the 2
screws to fix the
peripheral in place
Ubiquitous Touch Computer 5XX Modules
All product specifications are subject to change without notice.
Last updated: 8-Dec-2017
