LVDS-VGA02-R10

Description
Interface Modules
CategoryModule/solution
File Size427KB,1 Pages
ManufacturerIEI
Download Datasheet Parametric Compare View All

LVDS-VGA02-R10 Online Shopping

Suppliers Part Number Price MOQ In stock
LVDS-VGA02-R10 - - View Buy Now

LVDS-VGA02-R10 Overview

Interface Modules

LVDS-VGA02-R10 Parametric

Parameter NameAttribute value
Product CategoryInterface Modules
ManufacturerIEI
RoHSDetails
ProductConverter Boards
TypeLVDS Converter Board
Number of Channels / Ports1 Channel
Maximum Data Rate-
Operating Supply Voltage-
Maximum Operating Temperature-
Description/Function18/24 bit LVDS to VGA converter board
Dimensions40 mm x 40 mm x 12.5 mm
Interface TypeLVDS
Factory Pack Quantity1
Single Board Computer
Embedded Board
w w w.ieiworld.com

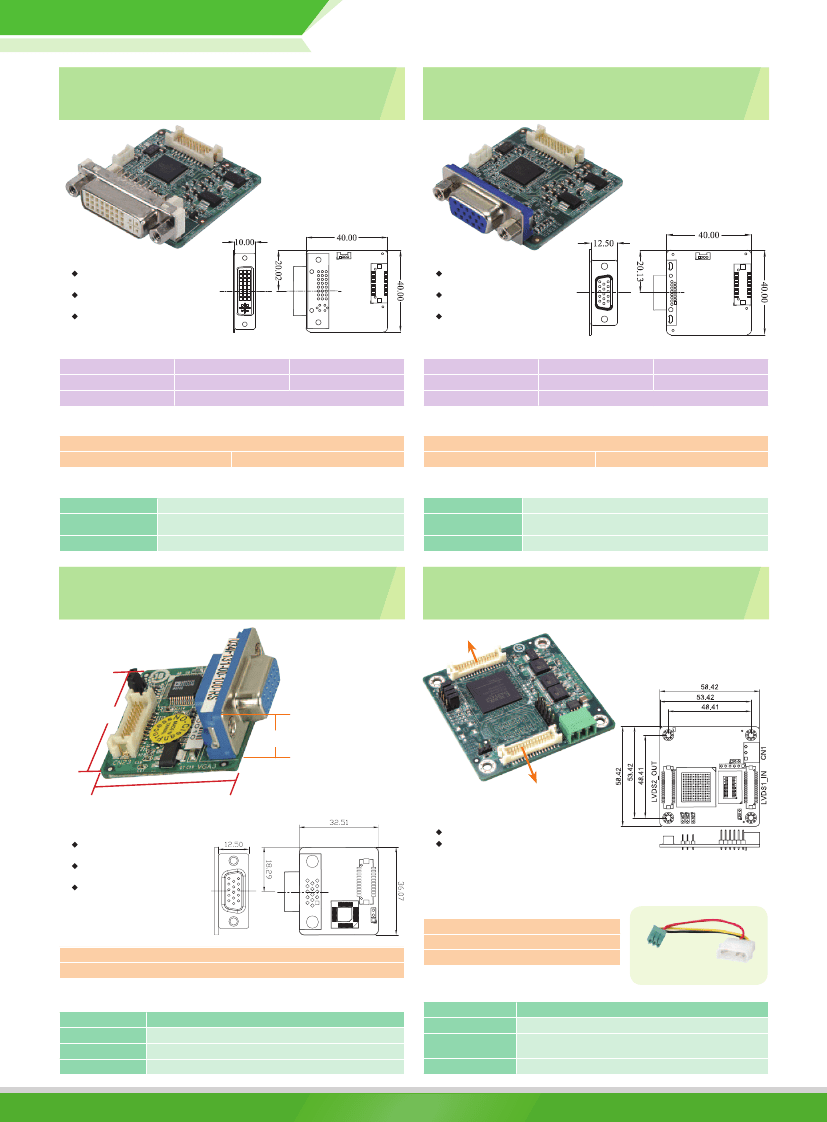

LVDS-DVI
18-bit LVDS to DVI converter board, resolution support up to 1366x768
(Support IEI Model Only)
LVDS-VGA02
18-bit LVDS to VGA converter board, resolution support up to 1366x768
(Support IEI Model Only)
Dimensions
Features
Provide DVI option for dual display
output
Resolution supported: 1366x768,
1024x768, 800x600, 640x480
18 or 24-bit LVDS to DVI converter
board
(Unit: mm)
Dimensions
Features
Provide VGA option for dual VGA
display output
Resolution supported: 1366x768,
1024x768, 800x600, 640x480
18 or 24-bit LVDS to VGA converter
board
(Unit: mm)
Supported Models
WSB-PV-D5251
KINO-PV-D5252
NANO-PV-D5252
PICOe-PV-D5251
NOVA-PV-D5251
WAFER-PV-D5252
PCISA-PV-D5251
NANO-PV-D5251
Supported Models
WSB-PV-D5251
KINO-PV-D5252
NANO-PV-D5252
PICOe-PV-D5251
NOVA-PV-D5251
WAFER-PV-D5252
PCISA-PV-D5251
NANO-PV-D5251
Packing List
1 x LVDS to DVI converter board
1 x SMBus cable
1 x QIG
Packing List
1 x LVDS to VGA converter board
1 x SMBus cable
1 x QIG
Ordering Information
LVDS-DVI-R10
32602-012200-100-RS
32602-012300-100-RS
18/24-bit LVDS to DVI converter board
20-pin to 30-pin LVDS connecting cable for WAFER-PV-D5252
only
20-pin to 20-pin LVDS connecting cable
Ordering Information
LVDS-VGA02-R10
32602-012200-100-RS
32602-012300-100-RS
18/24-bit LVDS to VGA converter board
20-pin to 30-pin LVDS connecting cable for WAFER-PV-D5252
only
20-pin to 20-pin LVDS connecting cable
LVDS-VGA-R10
Single-channel LVDS to VGA converter board (Support IEI Model Only)
LVDS24-01
18-bit to 24-bit LVDS converter board
24-bit dual-channel output
Dimensions
36.07mm
12.50mm
(Unit: mm)
32.51mm
Features
Provide 2nd VGA option for dual VGA
display
Resolution adjust by BIOS: Support
1024x768, 800x600, 640x480
18-bit LVDS to VGA converter board
Dimensions
18-bit single/
dual-channel input
(Unit: mm)
Features
Resolution supports up to 1280x1024
Support below configuration:
» Single-channel 18-bit to single-channel 24-bit
» Single-channel 18-bit to dual-channel 24-bit
» Dual-channel 18-bit to dual-channel 24-bit
* Note: The module does not support dual-channel 18-bit to single-channel 24-bit conversion.
Packing List
Packing List
1 x LVDS to VGA converter board
1 x QIG
1 x 18-bit to 24-bit LVDS converter board
1 x Power cable (P/N: 32100-130300-RS)
1 x QIG
Power cable
P/N: 32100-130300-RS
Ordering Information
Part No.
LVDS-VGA-R10
32600-112300-RS
32600-114400-RS
Description
18-bit LVDS to VGA converter board
30-pin LVDS connecting cable
20-pin LVDS connecting cable
Ordering Information
Part No.
LVDS24-01-R10
32602-007900-100-RS
Description
18-bit to 24-bit LVDS converter board
Single-channel 18-bit 20-pin to 24-bit LVDS 30-pin connection
cable
32602-008000-100-RS Dual-channel 18-bit 30-pin to 24-bit 30-pin LVDS connection cable
LVDS-DVI-2013-V11

LVDS-VGA02-R10 Related Products

LVDS-VGA02-R10 LVDS-DVI-R10
Description Interface Modules Analog to Digital Converters - ADC 16-Bit 1MSPS CMOS IC
Product Category Interface Modules Interface Modules
Manufacturer IEI IEI
RoHS Details Details
Product Converter Boards Converter Boards
Type LVDS Converter Board LVDS to DVI
Number of Channels / Ports 1 Channel 1 Channel
Description/Function 18/24 bit LVDS to VGA converter board 18/24 bit LVDS to DVI converter board
Dimensions 40 mm x 40 mm x 12.5 mm 40 mm x 40 mm x 10 mm
Interface Type LVDS LVDS
Factory Pack Quantity 1 1
