10/100/1000 mbps poE+ switching
media converter

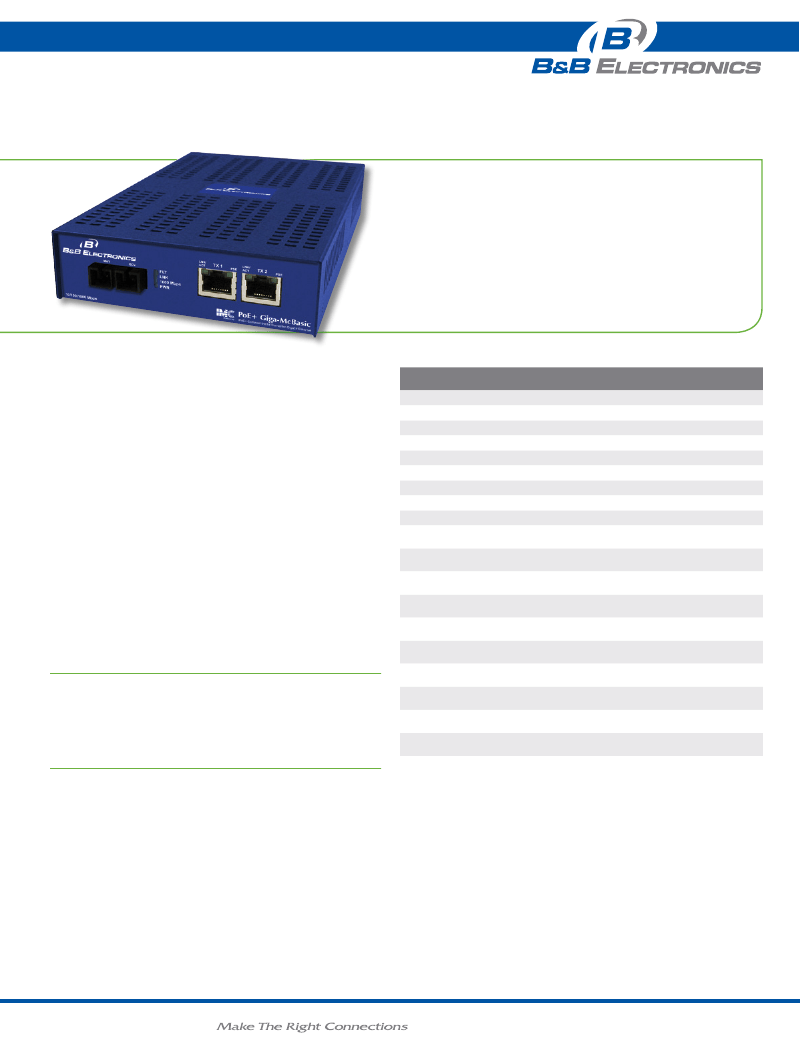

PoE+ Giga-McBasic LFPT
product FEaturEs
• Connects 10/100/1000 Mbps copper to 100 or 1000 Mbps fiber SFP
or 10/100/1000 Mbps or 1000 Mbps copper SFP
• Supports Jumbo Frames (up to 10240 bytes)
• Rugged standalone metal enclosure with internal power supply
• Features configurable PoE reset on Fiber Loss of Signal (LOS)
• Supports LFPT, a diagnostic feature that can be enabled to assist the
end user in troubleshooting a failed segment
• Supports IEEE 802.3af PoE (15.4W)
The PoE+ Giga-McBasic LFPT are the perfect solutions for network
applications that require Power over Ethernet for locations inside
buildings where PoE is required to power an Ethernet device. Their
small, table-top design and durability make them perfect for installation
anywhere space is limited. Additionally, both units are manufactured
with an internal AC power supply. An LFPT DIP Switch is available to
enable for diagnostic troubleshooting.
The PoE+ Giga-McBasic LFPT unit comes with one SFP or fixed fiber
transceiver and two PoE/PSE 10/100/1000Base-T copper. Each port
provides 25.5 Watts of power with data.
As a fiber-fed media converter, it provides both power and data to a
remote device over standard CAT5, eliminating the need for additional
power to the remote device. The copper ports Auto Negotiate to the
connected device’s speed and duplex mode: 10 Mbps, 100 Mbps or
1000 Mbps, and HDX or FDX (including Flow Control). Additionally, both
models support jumbo frames up to 10240 bytes.
accEssorIEs
895-39226
- Rackmount Bracket
895-39227
- Wallmount Brackets
895-39949
- Rackmount Shelf
ordErIng InFormatIon
Model
FiBer
FiBer
nuMBer
Ports range
Poe+ giga-McBasic lFPt *
852-11911 SFP
1
Various
852-11912
SX-MM850-SC
1
220/550 m
852-11913
LX-MM1300-SC
1
2 km
852-11914
LX-SM1310-SC
1
10 km
852-11915
LX-SM1310/PLUS-SC
1
40 km
852-11916
LX-SM1550/LONG-SC
1
80 km
852-11917
LX-SM1550/XLONG-SC
1
100 km
Poe+ giga-McBasic lFPt single-strand Fiber **
852-11920
SSLX-SM1310-SC
1
15 km
(1310 xmt/1550 rcv)
852-11921
SSLX-SM1550-SC
1
15 km
(1550 xmt/1310 rcv)
SSBX-SM1310-SC
852-11922 (1310 xmt/1490 rcv)
1
10 km
SSBX-SM1490-SC
852-11923 (1490 xmt/1310 rcv)
1
10 km
852-11924
SSLX-SM1310/PLUS-SC
1
40 km
(1310 xmt/1550 rcv)
852-11925
SSLX-SM1550/PLUS-SC
1
40 km
(1550 xmt/1310 rcv)
SSBX-SM1490/PLUS-SC
852-11926 (1490 xmt/1310 rcv)
1
30 km
SSBX-SM1310/PLUS-SC
852-11927 (1310 xmt/1490 rcv)
1
30 km
852-11928
SSLX-SM1490/LONG-
70 km
SC (1490 xmt/1550 rcv) 1
852-11929
SSLX-SM1550/LONG-
1
70 km
SC (1490 rcv)
* SFP Fiber sold separately
ethernet ethernet
Ports
ConneCtor
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
** These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
PoE+ Giga-McBasic LFPT also available in CWDM Fiber.
Call for details.
www
.
bb
-
elec
.
com
|
PoE+ Giga-McBasic LFPT_3713ds
10/100/1000 mbps poE+ switching
media converter
PoE+ Giga-McBasic LFPT
SpecificationS
Technical
IEEE 802.3 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3u Auto-Negotiation
RFC-2474
RFC-2475 DiffServ QoS
Plug-and-play operation
Accepts RJ-45 and SFP or SC connectors
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Single-strand fiber and CWDM models
FX and TX Auto Negotiation
AutoCross for MDI/MDIX
MTU: Supports Jumbo Frames up to 10240 bytes
Link Fault Pass Through (LFPT)

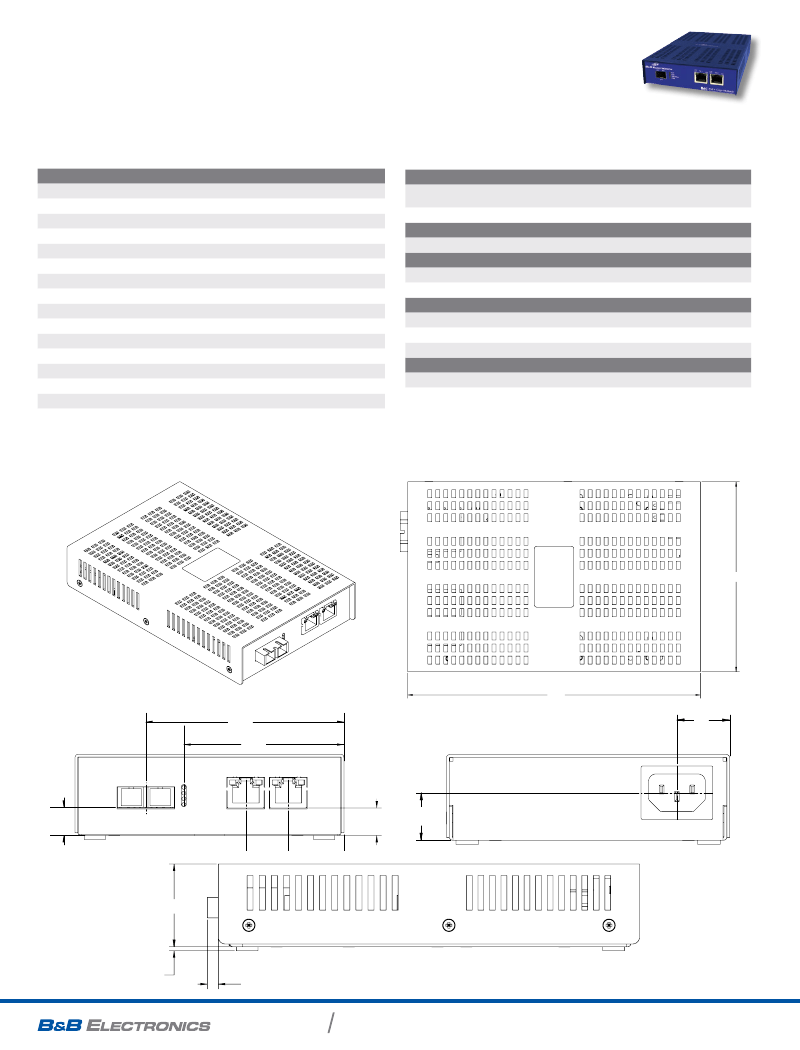

mEchanIcal dIagram
(dimensions in inches)
MeChaniCal
Dimensions
Shipping Weight
inPut sPeCiFiCations
100-240 ±10% VAC, 50/60Hz, 0.5A to 0.2A
Power CharaCteristiCs
Consumes less than 10 watts (heating) plus PSE power
IEEE802.3af Power to field < 15.5 watts
environMental
Operating Temperature
+32° to +122° F (0° to +50° C)
Storage Temperature:
-40° to +185° F (-40° to +85° C)
Operating Humidity
5% to 95% (non-condensing)
regulatory aPProvals
FCC Class A
UL/cUL, CSA, CE
1.46”H x 4.76”W x 7.32”D
(3.71 cm x 12.09 cm x 18.59 cm)
1.3 lbs (0.58 kg)
4.74
7.30
3.49
2.82
.88
.50
.75
.98
.49
.79
1.43
.07
.19
