EVALKITST7570-1
ST7570 S-FSK power line networking system-on-chip
demonstration kit
Features
■
■
■
■
■
■
■
■
Based on the ST7570 narrow-band S-FSK
power line networking system-on-chip
Suitable for point to multi-point two-way
communication over AC mains
Embedded turn-key IEC61334-5-1 compliant
PHY, MAC and MIB communication layers
Multiple configurable operating modes: Client,
Server, Sniffer and Test
Flexible architecture with transceiver
(EVALST7570-1) and power supply boards
Equipped with 110 - 240 VAC, 2 A power
supply board based on the ALTAIR4-900
USB 2.0 connection to PC
Intuitive graphical user interface (GUI) for the
Windows
®
environment with fully
programmable transceiver parameters
Suitable for CENELEC EN50065 and FCC part
15 compliant applications

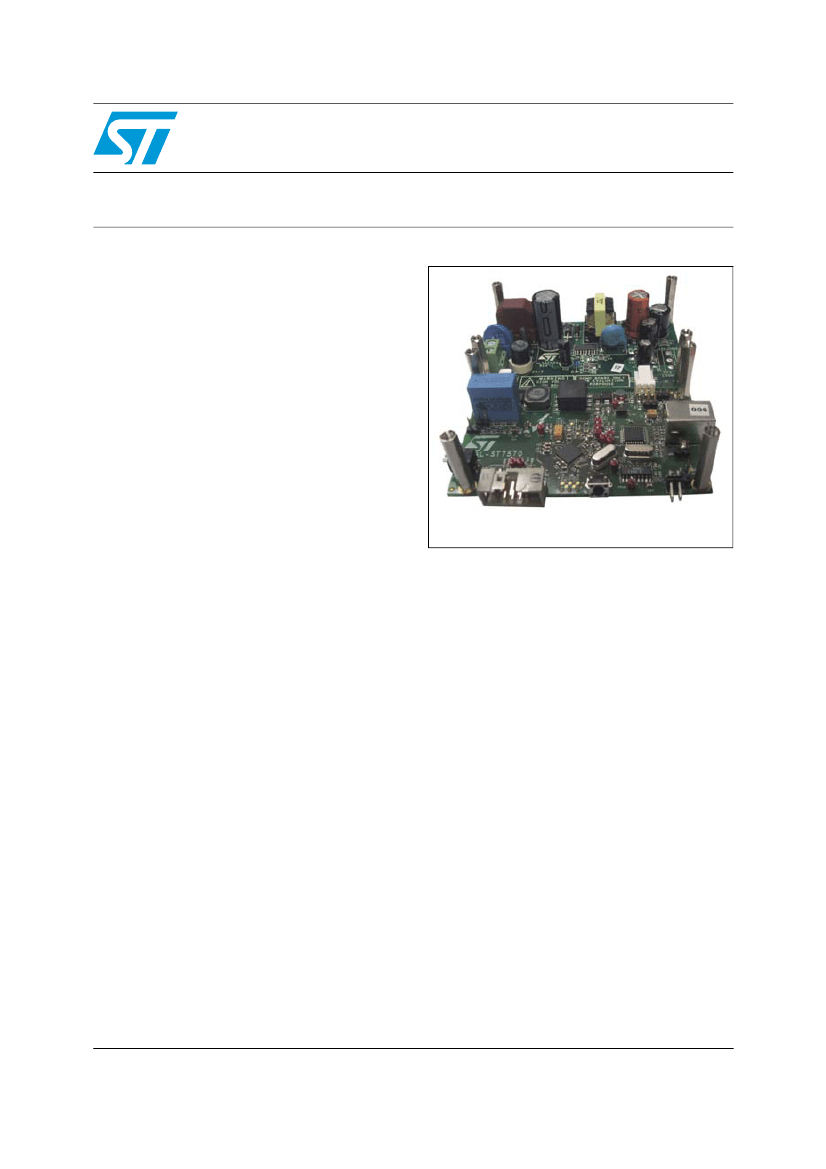

EVALKITST7570-1
■
Description
Based on the ST7570 power line networking
system-on-chip, this demonstration kit embeds all
the functions required for a “turn-key” power line
communication network: the ST7570 modem
board, the AC power supply (based on the
ALTAIR4-900 chip) and the USB port to connect
the kit to a PC.
The typical application environment consists of
two or more EVALKITST7570-1 kits connected to
an AC mains, with each kit being controlled by a
PC running the ST7570 GUI software.
