Verify the kit contents
Quick Start Guide
ConnectPort X2e Wi-Fi
Smart Energy
®
ConnectPort X2e Wi-Fi SE
Power supply
Ethernet cable
2

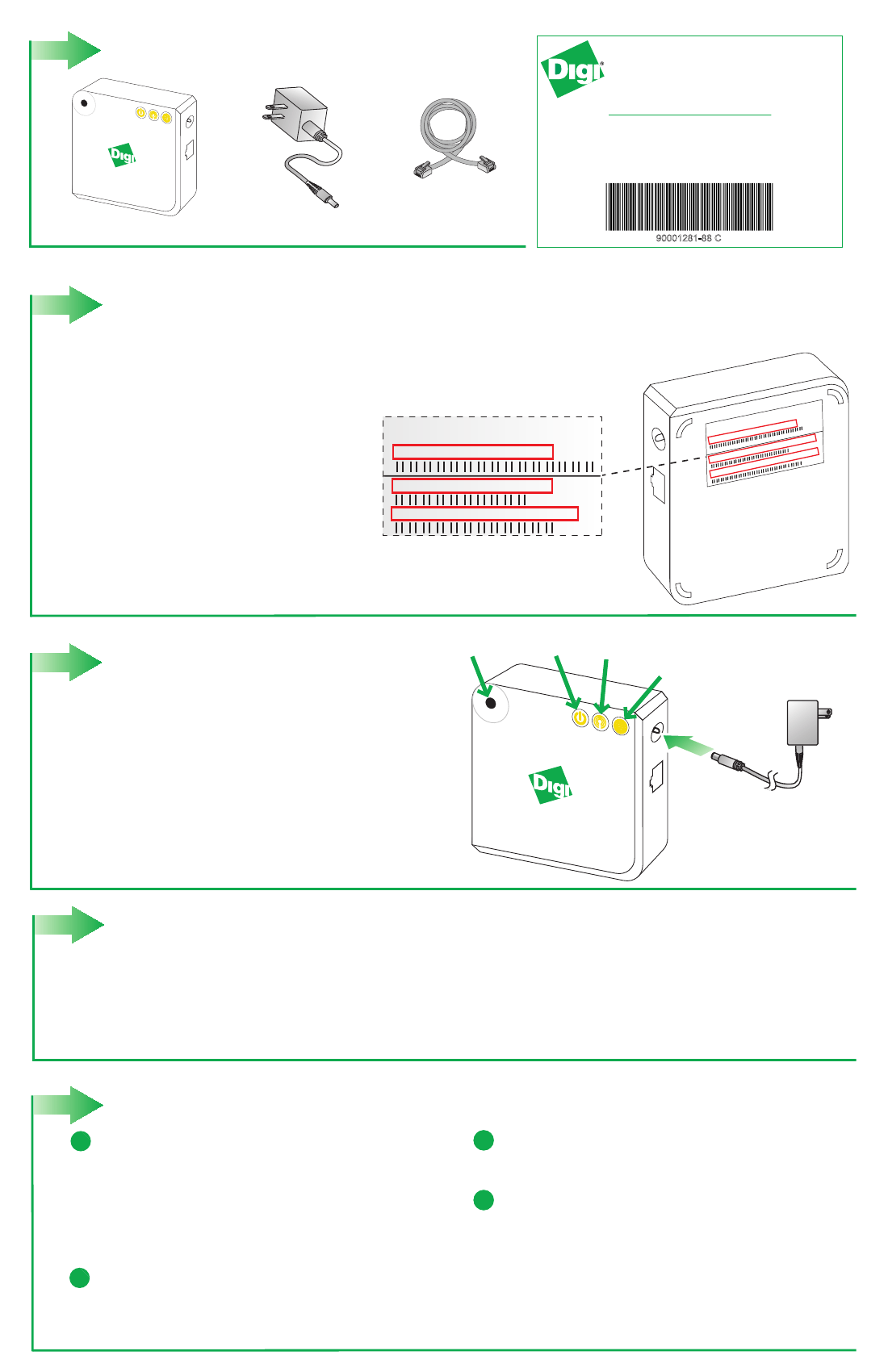

Write down device information
Write down the following information (located on the back of the device), which you will use in step 6.
Serial Number: ________________________________
EUI64: ______________________________________
Install Code: _________________________________
NOTE:
The serial number is also the
Ethernet MAC address.
Model: ConnectPort X2e SE
Part Number: X2E-Z1C-W1-A
Serial Number: 00409D
50E9BB
EUI64: 0013 A200 526B 1410
Install Code: ABCD 1234 ABCD 1234
e SE
rt X2 1-A
ectPo
Conn X2E-Z1C-W E9BB
l:
Mode mber:
9D50
Nu
0040
ber:
Part
Num
l
Seria
1410
526B
200
34
13 A
D 12
4: 00
ABC
EUI6
1234
BCD
de: A
ll Co
Insta
3
Connect the hardware
Connect the power supply. The Power LED displays
green and the Network LED blinks orange.
Button
Power
ZigBee
Network
(WAN)
b
Network LED changes to green.
NOTE:
Once the device is connected to Device Cloud, the
4
Add the router to the network (router models only)
This step is for router models only. If you have a coordinator model, proceed to step 5.
Add the router variant to the Smart Energy network. Contact the utility company or owner of the Smart Meter if you are
unsure how to add a router to the network.
NOTE:
Make sure the router is powered ON when you add it to or remove it from a Smart Energy network.
5
Configure the device using the Wi-Fi interface
a
Enable the built-in web service on your device by
pressing the button. After you press the button,
you have 10 seconds to open the web interface.
NOTE:
If the device is already configured to connect
to an access point, you must reset it to factory defaults
before you complete this procedure. Press and hold
the button for 10 seconds to reset the device.
c
From your web browser, enter the URL of the gateway:
http://192.168.100.1.
Click
Configuration > Wireless Wizard
and follow the
configuration steps in the wizard.
c
d
b
Configure the Wi-Fi interface on your laptop to connect to
the gateway’s access point. The name (SSID) of the access
point is
cpx2e-se-xxxxxxxxxxxx,
where xxxxxxxxxxxx is the
serial number of the gateway.
6
Connect to Device Cloud and form a Smart Energy network
a
b
Go to
devicecloud.digi.com.
Sign up or log into your Device Cloud account as follows:
- New users: Click
Sign Up
and create a free account. You can upgrade at any time.
- Existing users: Log in with your username and password.
To add your gateway to the device list, in Device Cloud click
Device Management > Devices.
Click
Add Devices.
From the Add Devices window:
- To automatically discover the gateway: Click
Discover
to discover gateways on the local LAN/network.
- To manually add the gateway: Next to the MAC address field, enter the gateway MAC address
(for example: 00409D:XXXXXX) and click
Add.
To form or provision a Smart Energy Network, go to
https://digi-se.appspot.com
and log in using your Device Cloud
credentials, then proceed as follows:
1
Navigate to the
Debug
tab.
2
Select a gateway from the
Gateway
drop-down menu.
3
Select the
RPC_ZigBee_Interface
menu (on the left).
4
Click
add_device.
5
Type the EUI64 address and install code for the device.
6
Click
Execute.
c
d
e
f
To display device readings and related data in App Spot, click
Network > Tree
or
Network > In-Home Display.
7
Next steps
For more details about adding devices, go to:
https://digi-se.appspot.com/edocs/getting_started/adddevices.html.
For more details about Device Cloud, go to:
- User guide:
http://ftp1.digi.com/support/documentation/html/90001150/index.html
- Programming guide:
http://ftp1.digi.com/support/documentation/html/90002008/index.html
8
ConnectPort X2e LEDs
Power
Status
OFF
Solid green
Description
No power
Device is powered
ZigBee
Status
OFF
Blinking green (slow)
Blinking green (fast)
Solid green
Description
Radio is disabled
Searching for other ZigBee devices on the network
Establishing a Smart Energy network
Connected to a Smart Energy network
Network
Status
OFF
Blinking yellow (slow)
Blinking yellow (fast)
Solid yellow
Blinking green (slow)
Blinking green (fast)
Solid green
Description
Powered OFF
Powered ON, no Wi-Fi link
Wi-Fi link, no IP address
IP address assigned
Attempting a connection to Device Cloud
Device Cloud server found, authenticating
Connected to Device Cloud
9
Regulatory information
For ConnectPort X2e Wi-Fi regulatory information and certifications, refer to the document at the following URL:
http://ftp1.digi.com/support/documentation/x2e_wifi_reg.htm
.
For help, call:
U.S. or Canada: 866.765.9885
Worldwide: +1 801.765.9885
Or visit us on the web:
Support:
www.digi.com/support/eservice
Forums:
www.digi.com/support/forum/
