XBee Multipoint
RF Modules
®
Embedded RF Modules for OEMs
Low-cost, easy-to-deploy modules provide critical
end-point connectivity to Digi’s Drop-in Networking
product family.
Overview
XBee Product Family
The XBee family of embedded RF modules provides OEMs with a
common footprint shared by multiple platforms, including multipoint
and ZigBee/Mesh topologies, and both 2.4 GHz and 900 MHz
solutions. OEMs deploying the XBee can substitute one XBee for
another, depending upon dynamic application needs, with minimal
development, reduced risk and shorter time-tomarket.
Why XBee Multipoint RF Modules?
XBee multipoint RF modules are ideal for applications requiring
low latency and predictable communication timing. Providing quick,
robust communication in point-to-point, peer-to-peer, and multipoint/
star configurations, XBee multipoint products enable robust end-point
connectivity with ease. Whether deployed as a pure cable replacement
for simple serial communication, or as part of a more complex hub-
and-spoke network of sensors, XBee multipoint RF modules maximize
wireless performance and ease of development.
Drop-in Networking End-Point Connectivity
XBee OEM RF modules are part of Digi’s Drop-in Networking family
of end-to-end connectivity solutions. By seamlessly interfacing with
compatible gateways, device adapters and extenders, XBee embedded
RF modules provide developers with true beyond-the-horizon
connectivity.

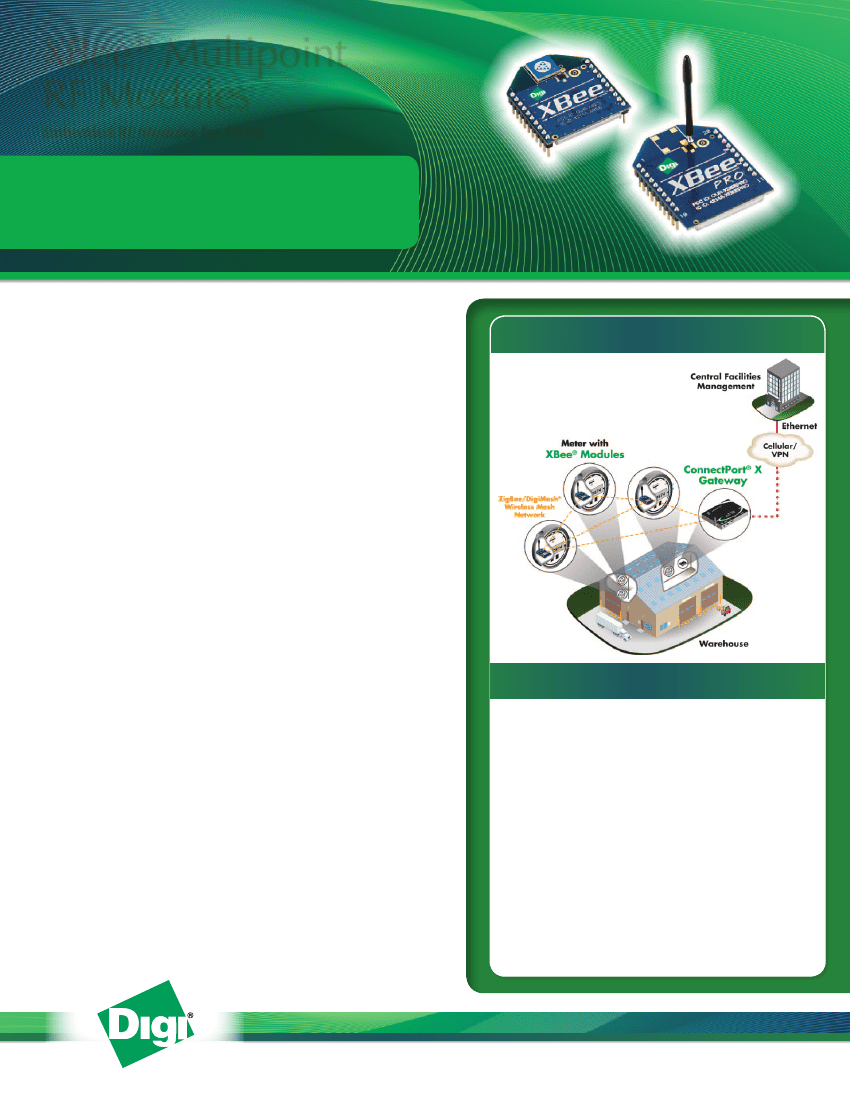

Application Highlight
Features/Benefits
• 802.15.4/Multipoint network topologies
• 2.4 GHz for worldwide deployment
• 900 MHz for long-range deployment
• Fully interoperable with other Digi Drop-in
Networking products, including gateways, device
adapters and extenders
• Common XBee footprint for a variety of RF modules
• Low-power sleep modes
• Multiple antenna options
• Industrial temperature rating (-40º C to 85º C)
• Low-power and long-range variants available
www.digi.com

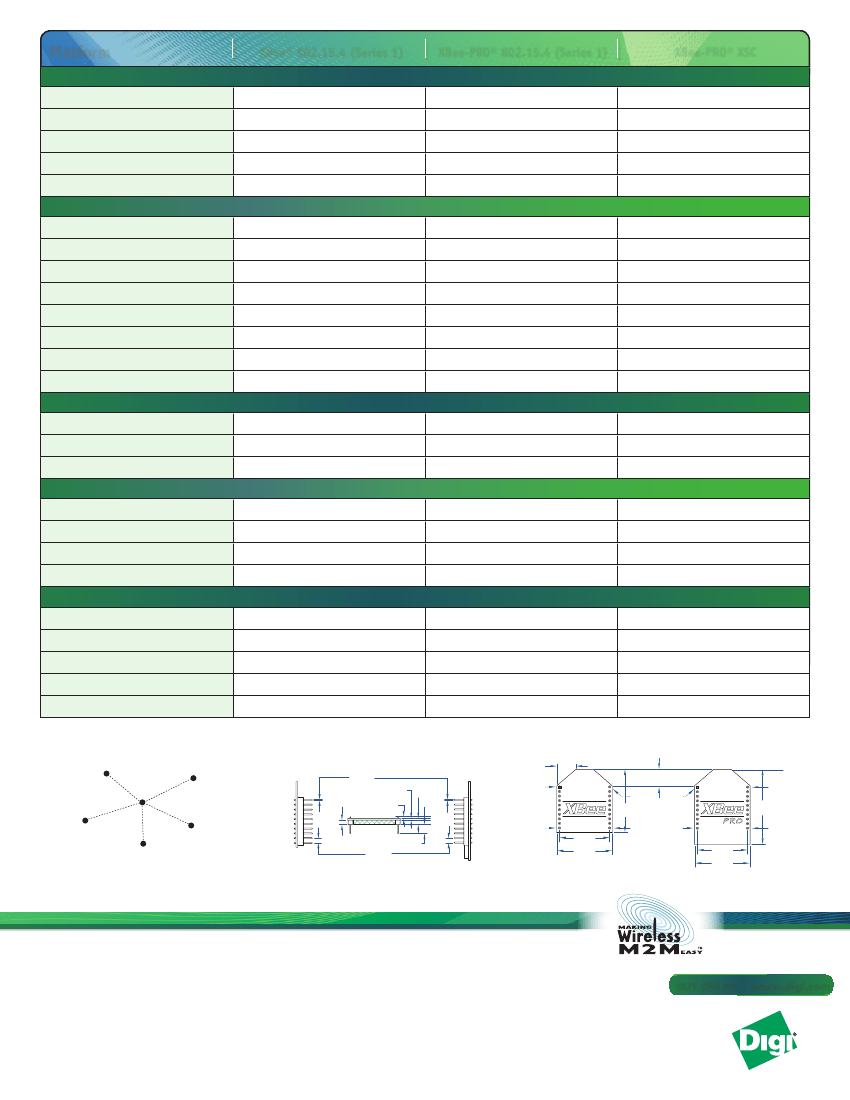

Platform
Performance
RF Data Rate
Indor/Urban Range
Outdoor/RF Line-of-Sight Range
Transmit Power
Receiver Sensitivity (1% PER)
Features
Serial Data Interface
Configuration Method
Frequency Band
Interference Immunity
Serial Data Rate
ADC Inputs
Digital I/O
Antenna Options
Networking & Security
Encryption
Reliable Packet Delivery
IDs and Channels
Power Requirements
Supply Voltage
Transmit Current
Receive Current
Power-Down Current
Regulatory Approvals
FCC (USA)
IC (Canada)
ETSI (Europe)
C-TICK Australia
Telec (Japan)
XBee® 802.15.4 (Series 1)
XBee-PRO® 802.15.4 (Series 1)
XBee-PRO® XSC
250 kbps
100 ft (30 m)
300 ft (100 m)
1 mW (+0 dBm)
-92 dBm
250 kbps
300 ft (100 m)
1 mi (1.6 km)
60 mW (+18 dBm)*
-100 dBm
10 kbps / 9.6 kbps
Up to 1200 ft (370 m)
Up to 6 mi (9.6 km)
100 mW (+20 dBm)
-106 dBm
3.3V CMOS UART
API or AT Commands, local or over-the-air
2.4 GHz
DSSS (Direct Sequence Spread Spectrum)
1200 bps - 250 kbps
(6) 10-bit ADC inputs
8
Chip, Wire Whip, U.FL, & RPSMA
3.3V CMOS UART
API or AT Commands, local or over-the-air
2.4 GHz
DSSS (Direct Sequence Spread Spectrum)
1200 bps - 250 kbps
(6) 10-bit ADC inputs
8
Chip, Wire Whip, U.FL, & RPSMA
3.3V CMOS UART (5V Tolerant)
AT Commands
902 MHz to 928 MHz
FHSS (Frequency Hopping Spread Spectrum)
1200 bps - 57.6 kbps
None
None
Wire Whip, U.FL, RPSMA
128-bit AES
Retries/Acknowledgments
PAN ID, 64-bit IEEE MAC, 16 Channels
128-bit AES
Retries/Acknowledgments
PAN ID, 64-bit IEEE MAC, 12 Channels
No
Retries/Acknowledgements
PAN ID, 32-bit Address, 7 Channels
2.8 - 3.4VDC
45 mA @ 3.3VDC
50 mA @ 3.3VDC
<10 uA @ 25º C
2.8 - 3.4VDC
215 mA @ 3.3VDC
55 mA @ 3.3VDC
<10 uA @ 25º C
3.0 - 3.6VDC
265 mA typical
65 mA typical
45 uA pin Sleep
OUR-XBEE
4214A-XBEE
Yes
Yes
Yes
OUR-XBEEPRO
4214A-XBEEPRO
Yes* Max TX 10 mW
Yes
Yes*
MCQ-XBEEXSC
1846A-XBEEXSC
No
No
No
(top view)
0.299”
(7.59mm)
802.15.4 – Star
0.257”
(6.53mm)
(top view)
XBee
(side views)
0.020”
(0.51mm)
shield-to-PCB
0.080” ±0.020
(2.03mm ±0.51)
0.031”
0.110”
(0.79mm) (2.79mm)
0.050”
(1.27mm)
XBee-PRO
(top view)
0.299”
(7.59mm)
0.257”
(6.53mm)
(top view)
XBee
PIN 1
1.087”
(27.61mm)
PIN 20
1.297”
(32.94mm)
PIN 1
1.087”
(27.61mm)
PIN 20
1.297”
(32.94mm)
PIN 20
PIN 1
PIN 20
PIN 1
shie
0.08
(2.03
PIN 10
0.866”
(22.00mm)
0.960”
(24.38mm)
PIN 11 PIN 10
0.866”
(22.00mm)
0.960”
PIN 11
0.160”
(4.06mm)
PIN 10
0.866”
(22.00mm)
0.960”
(24.38mm)
PIN 11 PIN 10
0.866”
(22.00mm)
0.960”
PIN 11
0.079”
(2.00mm)
