KINO-DQM871-i1-i5E-R10 datasheet, PDF

Datasheet> All Categories > Module/solution> KINO-DQM871-i1-i5E-R10

KINO-DQM871-i1-i5E-R10: DescriptionVideo Modules OV3640 3M USB Camera UVC 2.0, Auto Focus; CategoryModule/solution; File Size496KB，1 Pages; ManufacturerIEI

Download Datasheet Parametric View All

KINO-DQM871-i1-i5E-R10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KINO-DQM871-i1-i5E-R10	-	-	View	Buy Now

KINO-DQM871-i1-i5E-R10 Overview

Video Modules OV3640 3M USB Camera UVC 2.0, Auto Focus

KINO-DQM871-i1-i5E-R10 Parametric

Parameter Name	Attribute value
Product Category	Single Board Computers
Manufacturer	IEI
RoHS	Details
Form Factor	Mini-ITX
Processor Brand	Intel
Processor Type	Intel Core i5-4402E
Frequency	1.6 GHz
Memory Size	16 GB
Interface Type	LAN, RS-232, RS-422/485, SATA, SMBus, USB
Operating Supply Voltage	12 V
Maximum Operating Temperature	+ 60 C
Dimensions	170 mm x 170 mm
Battery Backup Switching	No Backup Battery
Cache Memory	3 MB
Chipsets	QM87
Core	Intel Core i5-4402E
Description/Function	Mini-ITX SBC supports Intel 22nm mobile Core i5-4402E on-board processor
Memory Type	DDR3
Minimum Operating Temperature	- 20 C
Factory Pack Quantity	1

Preview

Download Datasheet

View All

Single Board Computer

Industrial Motherboard

w w w.ieiworld.com

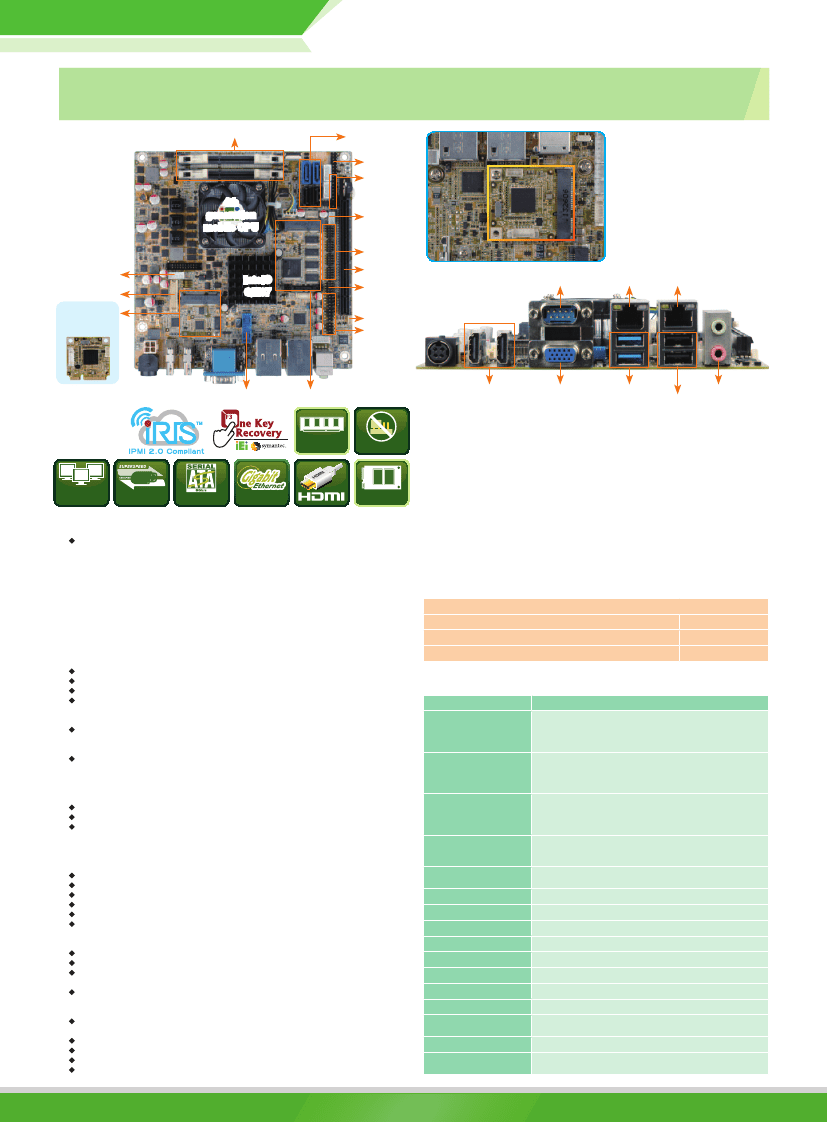

KINO-DQM871-i1

Dual-channel DDR3 1600/1333 MHz

2 x SATA 6Gb/s

2 x SATA 3Gb/s

Front panel

TPM

Mini-ITX SBC supports Intel® 22nm 4th generation mobile

processors, HDMI/VGA/LVDS/DP, Dual Intel® PCIe GbE,

USB 3.0, SATA 6Gb/s, iRIS-1010, Audio and RoHS

iRIS-1010 Key Features

● IPMI 2.0 Based Management

● Cross OS Platform Support

● Hardware Health Monitor

● Event Log

● Notifications

● Virture Media Support

● Remote Power Control

● User Management

● Serial over LAN

RS-232

GbE1

Combo RJ-45: GbE2 / IPMI

4th

generation

mobile CPU

RS-422/485

4 x RS-232

iDP

LVDS

Slot for iRIS-1010

module in the

bottom side

Intel®

QM87

PCIe x16

DIO

SMBus

6 x USB 2.0

USB 3.0

PCIe Mini (supports mSATA)

Dual HDMI

VGA

2 x USB 3.0

2 x USB 2.0

Audio

Features

DDR3

1600

Jumper-less

Triple

Display

USB

USB 3.0

SATA 6Gb/s

Dual GbE

mSATA

Specifications

CPU

Intel® mobile Core™ i7-4700EQ on-board processor with Intel® AMT 9.0 support (2.4GHz, quad-

core, 6MB cache, TDP=47W)

Intel® mobile Core™ i5-4402E on-board processor with Intel® AMT 9.0 support (1.6GHz, dual-core,

3MB cache, TDP=25W)

Intel® mobile Core™ i3-4102E on-board processor (1.6GHz, dual-core, 3MB cache, TDP=25W)

Intel® mobile Celeron® 2002E on-board processor (1.5GHz, dual-core, 2MB cache, TDP=25W)

Intel® mobile Core™ i5-4400E on-board processor with Intel® AMT 9.0 support (2.7GHz, dual-core,

3MB cache, TDP=37W) (by request)

Intel® mobile Core™ i3-4100E on-board processor (2.4GHz, dual-core, 3MB cache, TDP=37W)

(by request)

Intel® mobile Celeron® 2000E on-board processor (2.2GHz, dual-core, 2MB cache, TDP=37W)

(by request)

System Chipset: Intel® QM87

Memory: Two 204-pin 1066/1333/1600 MHz DDR3 dual-channel SO-DIMMs (support up to 16GB)

BIOS: UEFI BIOS

Ethernet

GBE1: Intel® I217LM with Intel® AMT 9.0 support

GBE2: Intel® I210-AT PCIe controller

Graphics Engine

Intel® HD Graphics Gen 7.5 supports DX11.1 and OpenCL 1.2, OpenGL 3.2

Full MPEG2, VC1, AVC Decode

Display Output

VGA (up to 1920x1200@60Hz)

18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)

Dual HDMI (up to 2500x1600@60Hz)

iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz)

Super I/O: Fintek F81866

Audio: Realtek ALC662 HD Audio codec

I/O Interface

1 x 6-pin header for KB/MS

2 x SATA power connector (4P, P=2.54)

1 x RS-422/485

4 x USB 3.0 (2 on rear I/O, 2 by pin header)

5 x RS-232

8 x USB 2.0 (2 on rear I/O, 6 by pin header)

2 x SATA 3GB/s, 2 x SATA 6Gb/s (RAID 0, 1, 5, 10 supported)

iRIS Remote Management Module: 1 x iRIS-1010 slot

Front Panel: 1 x Front panel (Power LED, HDD LED, Speaker, Power Button, Reset Button)

LAN LED: 2 x LAN LED (1x2 pin)

SMBus: 1 x SMBus (1x4 pin)

TPM: 1 x TPM (2x10 pin)

Expansion

1 x Full-size PCIe Mini card slot (supports mSATA, SATA 6GB/s signal only)

1 x PCIe x16 (Gen.3)

Watchdog Timer: Software programmable, support 1~255 sec. system reset

Digital I/O: 8-bit digital I/O (4-bit input, 4-bit output)

Fan Connector

1 x 4-pin CPU fan connector

1 x 4-pin system fan connector

Power Supply

12V DC input

1 x External DC jack (4-pin DIN)

1 x Internal 4-pin (2x2) power connector

Support AT/ATX mode

Power Consumption

12V@6.03A (Intel® Core™ i7-4770EQ, 2.4GHz CPU with 8GB (2x4GB) 1333MHz DDR3 memory)

Operating Temperature: -20°C ~ 60°C

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 170mm x 170mm

Weight: GW: 900g/NW: 450g

1. 4th generation Intel® mobile Core™ i7/i5/i3 or Celeron® on-board processor

2. DDR3 1066/1333/1600MHz dual-channel SDRAM

3. HDMI 1.4a compliant, triple independent display supported

4. 3D micro-architecture enhancements support DX11.1, OCL 1.2 and OGL3.2

5. Rich media acceleration for hardware decode and encode acceleration

6. Intel® GbE LAN with Intel® AMT 9.0 support

7. High speed I/O interface for PCIe Gen 3.0 add-on card, USB 3.0 and SATA 6Gb/s supported

8. Supports dual PCIe Mini expansion for PCIe Mini device and mSATA

9. IEI Jumper-less function

10. Support IPMI 2.0 with iRIS-1010 module

Packing List

1 x KINO-DQM871-i1 motherboard

2 x SATA with power output cable (P/N: 32801-000100-100-RS)

1 x I/O shielding

1 x Mini jumper pack

1 x CPU cooler

1 x Utility CD

1 x QIG

Ordering Information

Part No.

KINO-DQM871-i1-i7-R10

Description

Mini-ITX SBC supports Intel® 22nm Mobile Core™ i7-

4700EQ on-board Processor, HDMI / VGA / LVDS / DP, Dual

Intel® PCIe GbE, AMT 9.0, USB 3.0, SATA 6Gb/s, iRIS-1010,

Audio and RoHS

Mini-ITX SBC supports Intel® 22nm Mobile Core™ i5-4402E

on-board Processor, HDMI / VGA / LVDS / DP, Dual Intel®

PCIe GbE, AMT 9.0, USB 3.0, SATA 6Gb/s, iRIS-1010, Audio

and RoHS

Mini-ITX SBC supports Intel® 22nm Mobile Core™ i3-4102E

on-board Processor, HDMI / VGA / LVDS / DP, Dual Intel®

PCIe GbE, USB 3.0, SATA 6Gb/s, iRIS-1010, Audio and

RoHS

Mini-ITX SBC supports Intel® 22nm Celeron 2002E on-board

Processor, HDMI / VGA / LVDS / DP, Dual Intel® PCIe GbE,

USB 3.0, SATA 6Gb/s, iRIS-1010, Audio and RoHS

IPMI 2.0 adapter card with AST1010 BMC chip (W/O KVM

over IP function) for PCIe Mini socket interface

RS-232 cable with bracket

Dual USB 2.0 cable

USB 3.0 cable with bracket, 457mm

KB/MS Y cable

RS-422/485 cable, 200mm

DisplayPort converter board (for IEI iDP connector)

DisplayPort to DVI-D converter board (for IEI iDP connector)

DisplayPort to HDMI converter board (for IEI iDP connector)

DisplayPort to 24-bit dual-channel LVDS converter board

(for IEI iDP connector)

DisplayPort to VGA converter board (for IEI iDP connector)

20-Pin Infineon TPM module, software management tool,

firmware V3.17

KINO-DQM871-i1-i5E-R10

KINO-DQM871-i1-i3E-R10

KINO-DQM871-i1-CE-R10

iRIS-1010-R10

19800-000300-100-RS

19800-003100-300-RS

19800-010500-100-RS

32000-023800-RS

32205-003800-100-RS

DP-DP-R10

DP-DVI-R10

DP-HDMI-R10

DP-LVDS-R10

DP-VGA-R10

TPM-IN01-R11

KINO-DQM871-i1-2014-V13
