DS9092L
iButton Probe with LED
www.maxim-ic.com
FEATURES
Solid metal read/write panel-mount probe for the iButton
family
Integrated green LED for user-feedback signaling
Probe guides the entry of the iButton
iButton slides over the surface to self-clean contacts
Accessible shallow probe cavity simplifies removal of debris such as mud
Probe suited for panels of up to 3mm thickness
Contacts made from solid 303 stainless steel with blue nylon insulation
Metric design, pre-wired for easy installation
ORDERING INFORMATION
DS9092L+ Panel-Mount probe with LED
+Denotes a lead(Pb)-free/RoHS-compliant product.
Ground
Data
M18 x 1 Nut
320
4 LED +
3 LED -
2 Data
1 Ground
Terminal housing, mates to
2.54 mm center header pins

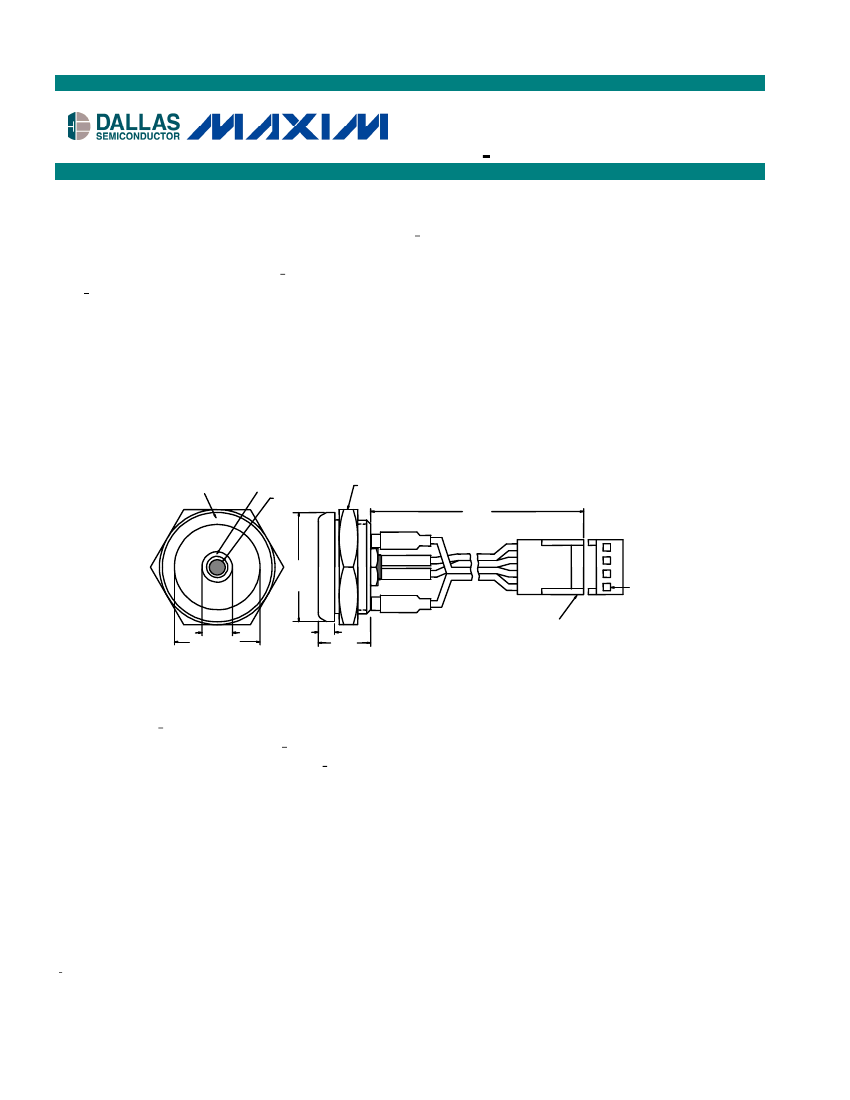

All dimensions are in millimeters.
Green LED
21.0
6.0
16.4
3.2
10.0
DESCRIPTION
The DS9092L iButton Probe with LED provides the electrical contact necessary for the transfer of data to
and from the DS19xx family of iButtons. The round probe shape provides a self-aligning interface that
readily matches the circular rim of the iButton’s MicroCan package. The solid metal contacts resist wear
and are easy to keep clean.
The DS9092L has no moving parts, making it a rugged interface for harsh environments. The round
center contact of the DS9092L houses the LED that is rated for maximum 20 mA DC at 2.7V typically.
The probe comes with a brass M18
1 nut for panel mounting. Since the body of the probe also forms the
ground contact, the panel should be of non-conducting material to avoid ground loops. The 30-cm cable
with connector is provided for easy connection to the system microcontroller. The mating connector is a
Molex Part Number 22-04-1041.
iButton is a registered trademark of Maxim Integrated Products, Inc.
