True Digital PWM Controller
(Single-Phase, Single-Rail)
ZSPM1000
Datasheet
Brief Description
The ZSPM1000 is a configurable true-digital single-
phase PWM controller for high-current, non-isolated
DC/DC supplies. It operates as a synchronous step-
down converter in a single-rail and single-phase con-
figuration.
The ZSPM1000 integrates a digital control loop, opti-
mized for maximum flexibility and stability, as well as
load step and steady-state performance. In addition,
a rich set of protection and monitoring functions is
provided. On-chip, non-volatile memory (NVM) and
2
*
an I C
™
interface facilitate configuration.
The PC-based IDT’s Pink Power Designer™ pro-
vides a user-friendly and easy-to-use interface to the
device for communication and configuration. It can
guide the user through the design of the digital com-
pensator and offers intuitive configuration methods
for additional features, such as protection and
sequencing.
Benefits
•
•
•
•
•
Fast configurability and design flexibility
Simplified design and integration
Reduced component count through system level
integration
Simplified monitoring for system power and
thermal management
Higher energy efficiency across all output loading
conditions
Available Support
•
•
Evaluation Kit
PC-based Pink Power Designer™
Physical Characteristics
•
•
•
Features
•
•
Operation temperature: -40°C to +125°C**
V
OUT
max: 5V
Lead free (RoHS compliant) 24-pin QFN package
(4 mm x 4 mm)
•
•
•
•
•
•
Programmable digital control loop
Advanced digital control techniques
•
Tru-sample Technology™
•
State-Law Control™ (SLC)
•
Sub-cycle Response™ (SCR)
Improved transient response and noise immunity
Protection features
•
Over-current protection
•
Over-voltage protection (VIN, VOUT)
•
Under-voltage protection (VIN, VOUT)
•
Overloaded startup
•
Restart and delay
Support for SMOD and ZCD drivers
Fuse-based NVM for improved reliability
Operation from a single 5V or 3.3V supply
Optional PMBus™ address selection without
external resistors

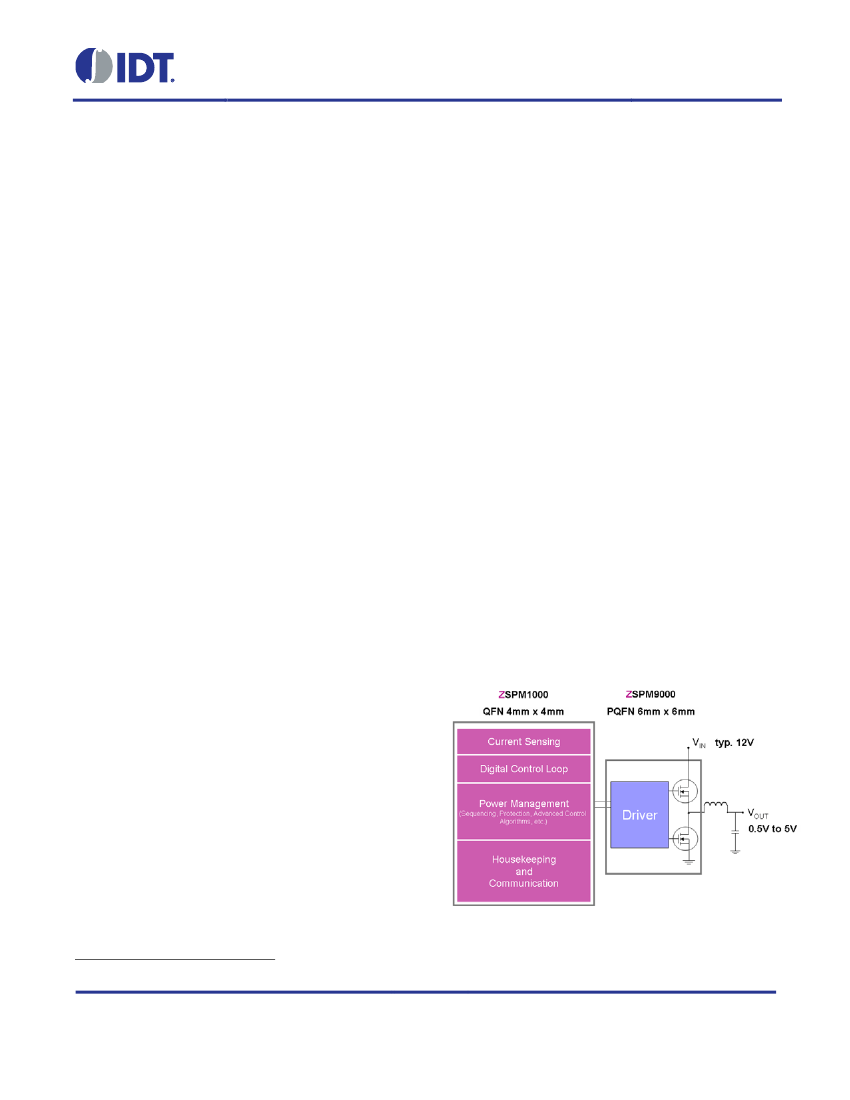

ZSPM1000 Typical Application Diagram
*
I C™ is a registered trademark of NXP.
** Subject to product type.
2
© 2016 Integrated Device Technology, Inc.
1
January 27, 2016
True Digital PWM Controller
(Single-Phase, Single-Rail)
ZSPM1000
Datasheet
ZSPM1000 Block Diagram
ISNSP
ISNSN
Current Sensing
Average Current
Sensing
Current
Limiting
Digital Control Loop
VFBP
VFBN
VFB
FLASH
ADC
DAC
OC Detection
Sequencer
OV Detection
Adaptive Digital
Controller
PWM
PWM
LSE
Typical Applications
Telecom Switches
Servers and Storage
Base Stations
Network Routers
TEMP
DAC
OT Detection
Vin OV/UV
Detection
Int. Temp
Sense
Vout UV Detection
Configurable
Error Handler
Bias
Current
Source
VREF
1.8V Reg
Analog
VREFP
AVDD18
Industrial Applications
Single-Rail/Single-Phase
Supplies for Processors,
ASICs, FPGAs, DSPs
ADDR0
ADDR1
VIN
HKADC
CPU Core
NVM
(OTP)
1.8V Reg
Digital
VDD18
GPIO
SMBus
Clock
Generation
3.3V
Reg
VDD33
SMBALERT
CONTROL
SDA
SCL
ADCVREF
Ordering Information
Sales Code
ZSPM1000ZI1R 1
ZSPM1000ZA1R 1
ZSPM8000-KIT
Description
ZSPM1000 Lead-free QFN24 — Temperature range: -40°C to +85°C *
ZSPM1000 Lead-free QFN24 — Temperature range: -40°C to +125°C *
Evaluation Kit for ZSPM1000 with PMBus™ Communication Interface
PGOOD
VDD50
GPIO0
Package
Reel
Reel
Kit
* This product is sold under a limited license from PowerOne, Inc. related to digital power technology as set forth in U.S. Patent 7000125 and other related
patents owned by PowerOne, Inc. This license does not extend to stand-alone power supply products.
