ML6102
ML6102 Series Positive Voltage Detector (Inverted Output)
Application
Memory Battery Back-up Circuits
Power Failure Detection
Power-on Reset Circuit
System Battery Life and Charge Voltage
Monitor
Features
CMOS Low Power Consumption : Typical 1.0uAat
Vin=2.0V
Selectable Detect V
oltage : 1.1V to 6.0V in 0.1V increments
HighlyAccurate : Detect V
oltage 1.1V to 1.9V + 3%
Detect V
oltage 2.0V to 6.0V + 2%
Operating V
oltage : 0.8V to 10.0V

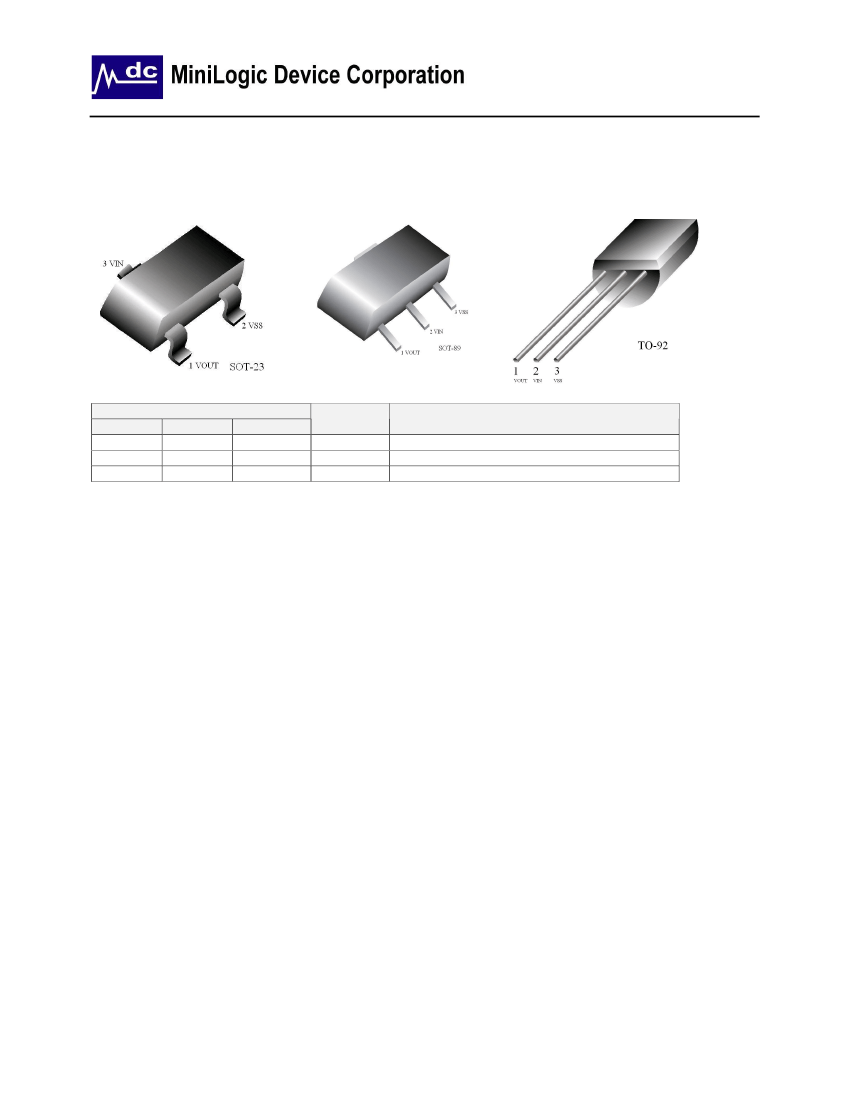

PackageAvailable : SOT23 (150mW), SOT89 (500mW)
& TO92 (300mW)
General Description
The ML6102 is a group of high-precision and low-power voltage detectors.
The ML6102 consists of a highly-accurate and low-power reference voltage source, a
comparator, a hysteresis circuit, and an output driver. Detect voltage is very accurate and
stable with N-channel open drain and CMOS, are available. Output Voltage is in inverted sense
compared with ML61 series voltage detector.

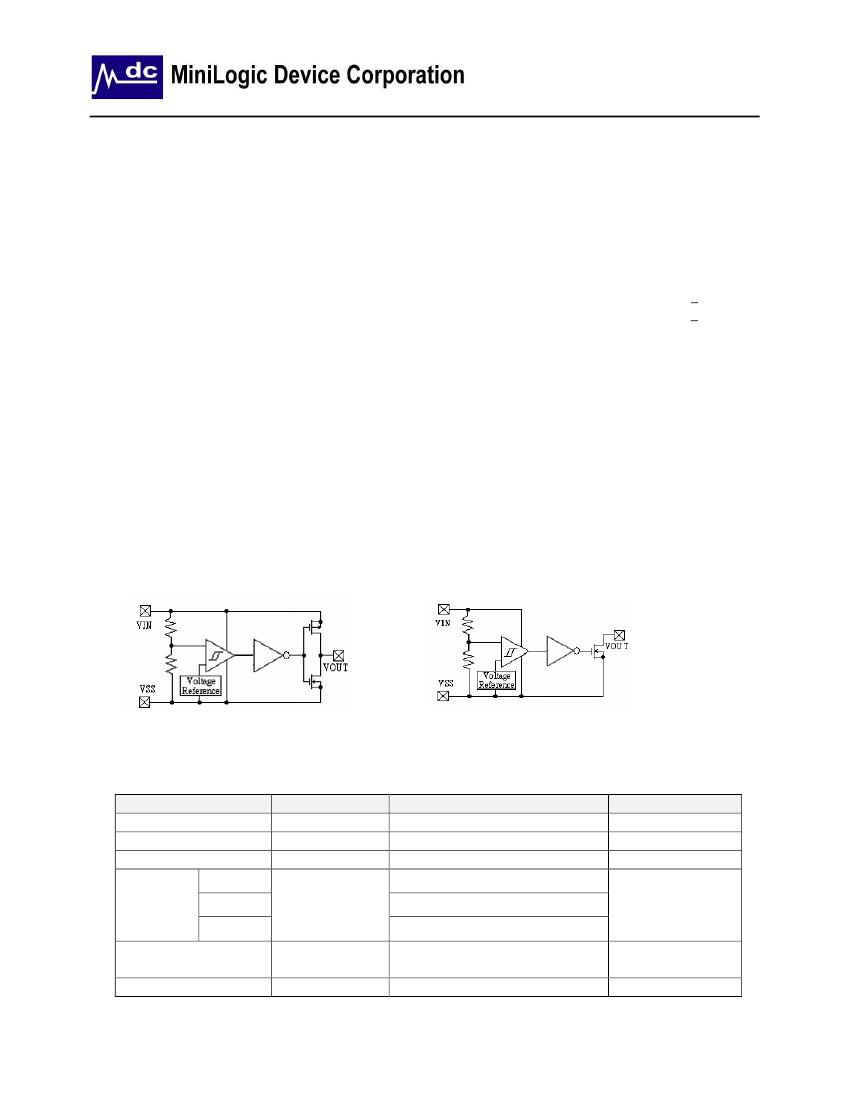

Block Diagram
(1) CMOS Output
(2) N-Channel Open Drain Output
Absolute Maximum Ratings
Parameter
Input Voltage
Output Current
Output Voltage
Continuous SOT-23
Total Power SOT-89
Dissipation TO-92
Operating Ambient
Temperature
Storage Temperature
Symbol
V
IN
I
OUT
V
OUT
P
d
Ratings
10
50
V
SS
-0.3 ~V
IN
+0.3
150
500
300
T
opr
T
stg
P1/11
-40 ~ +70
-40 ~ +70
o
o
Units
V
mA
V
mW
C
C
Preliminary, June 2005
