PoE Switching Media Converter
10/100/1000 Mbps
PoE & PoE+ Giga-MiniMc/LFPT
PRODUCT FEATURES
•
•
•
•
•
Rugged stand-alone metal enclosure with compact external power supply
Supports Jumbo Frames (up to 10240 bytes)
Multiple mounting options (Desktop, DIN Rail or Wall-mount)
Features configurable PoE Reset on Fiber LOS
Supports IEEE 802.3af PoE (15.4W) and IEEE 802.3at PoE+
(25.5W) standards
• Link Fault Pass Through
ORDERing inFORMATiOn
Model
Fiber raNge
Fiber
NuMber
Ports
Poe giga-MiniMc /lFPt
857-11811 SFP *
1
Various
857-11812 MM850-SC
1
220/550 m
857-11813 MM1300-SC
1
2 km
857-11814 SM1310-SC
1
15 km
857-11815 SM1310/PLUS-SC 1
40 km
857-11816
SM1550/LONG-SC
1
80 km
857-11817
SM1550/XLONG-SC
1
100 km
siNgle straNd Fiber sslX or ssbX **
857-11820 SM1310-SC
1
15 km
857-11821 SM1550-SC
1
15 km
857-11822 SM1310-SC
1
10 km
857-11823 SM1490-SC
1
10 km
857-11824 SM1310/PLUS-SC 1
40 km
857-11825 SM1550/PLUS-SC 1
40 km
857-11826 SM1310/PLUS-SC 1
30 km
857-11827 SM1490/PLUS-SC 1
30 km
857-11828
SM1490/LONG-SC
1
70 km
857-11829
SM1550/LONG-SC
1
70 km
Model
Fiber
Fiber
NuMber
Ports
Poe+ giga-MiniMc/lFPt
857-11911 SFP
1
857-11912 MM850-SC
1
857-11913 MM1300-SC
1
857-11914 SM1310-SC
1
857-11915 SM1310/PLUS-SC 1
857-11916
SM1550/LONG-SC
1
857-11917
SM1550/XLONG-SC
1
siNgle straNd Fiber sslX or ssbX **
857-11920 SM1310-SC
1
857-11921 SM1550-SC
1
857-11922 SM1310-SC
1
857-11923 SM1490-SC
1
857-11924 SM1310/PLUS-SC 1
857-11925 SM1550/PLUS-SC 1
857-11926 SM1310/PLUS-SC 1
857-11927 SM1490/PLUS-SC 1
857-11928
SM1490/LONG-SC
1
857-11929
SM1550/LONG-SC
1
The PoE and PoE+Giga-MiniMc/LFPT are low-cost, compact, multi-port
media converters that support both PoE and PoE+ standards. Utilizing
their flexibility and compact size, interior private network applications
can further benefit from the ever-expanding versatility of the MiniMc
product line.
Featuring 2-10/100/1000Base-T copper UTP ports and one SFP uplink
port that supports either a copper or fiber SFP, the PoE and PoE+
Giga-MiniMc are Power Source Equipment (PSE) devices. The PoE+
Giga-MiniMc is capable of powering up to two Powered Devices (PD)
over standard CAT5 cable or better, whereas the PoE Giga-MiniMc/
LFPT can power one PD device via a copper port while delivering data
over the other copper port. The PoE+ Giga-MiniMc/LFPT is able to
power high-power devices such as touch panels, PTZ (pan-tilt-zoom) IP
surveillance cameras, and RFID readers that require more power than
the typical 15.4 W provided by standard PSE devices such as the PoE
Giga-MiniMc.
The PoE and PoE+ Giga-MiniMc/LFPT models are fully compatible
with the IEEE 802.3af/at standards to ensure a seamless integration
into your network. Enhanced features include store-and-forward,
Autocross, an LFPT DIP Switch, and PoE reset on fiber loss of signal.
PoE reset is an advanced function that, when enabled, will force the
PSE output power to reset when LINK state is lost on the SFP port.
etherNet
Ports
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
etherNet
Ports
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
etherNet
CoNNeCtor
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
etherNet
CoNNeCtor
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
raNge
Various
220/550 m
2 km
15 km
40 km
80 km
100 km
15 km
15 km
10 km
10 km
40 km
40 km
30 km
30 km
70 km
70 km
ACCESSORiES
806-39105
- DIN Rail Clip
806-39800
- PoE Power Adapter for PoE Giga-MiniMc
895-39229
- Wall Mount Bracket
806-39900
- PoE+ Power Adapter for PoE+ Giga-MiniMc
806-39910
- PoE+ Isolated Power Adapter
* SFP Fiber sold separately
** These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
PoE and PoE+ Giga-MiniMc/LFPT also available in CWDM
www
.
bb
-
elec
.
com
|
PoE & PoE+ Giga-MiniMc LFPT_5013ds
PoE Switching Media Converter
10/100/1000 Mbps
PoE & PoE+ Giga-MiniMc/LFPT

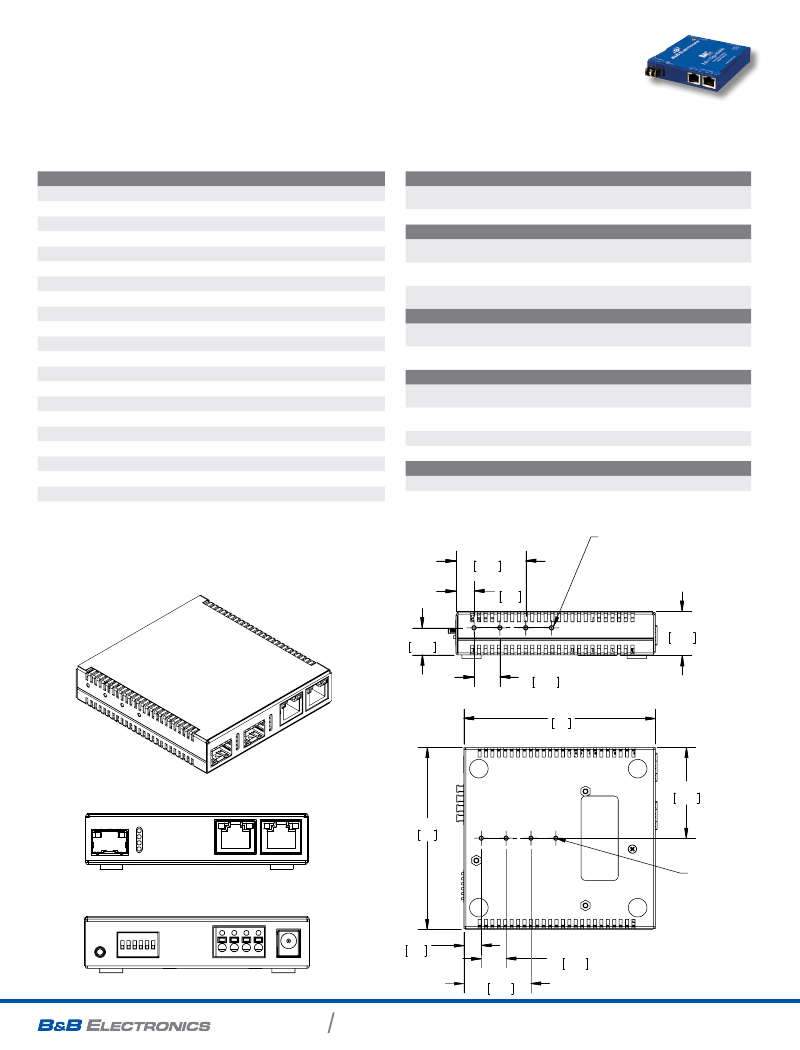

SpecificationS
Technical
IEEE 802.3 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3ab 1000Base-T twisted pair
IEEE 802.3z 1000Base-LX or SX fiber
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3u Auto-Negotiation
RFC-2474
RFC-2475 DiffServ QoS
Extreme temperature range (DC configuration)
Plug-and-play operation
Accepts RJ45, SC and SFP connectors
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Single-strand fiber and CWDM models
Country-specific, high-reliability power adapter
FX and TX Auto Negotiation
AutoCross for MDI/MDIX
MTU: Supports Jumbo Frames up to 10240 bytes
Supports DIN Rail mounting (DIN clips sold separately)
Link Fault Pass Through DIP Switch
MEChAniCAl DiAgRAM
(dimensions in inches & millimeters)
Mechanical
Dimensions
Shipping Weight
ac adapter
PoE Giga-MiniMc/LFPT
0.80” H x 3.645” W x 3.82” D
(2.032 cm x 9.258 cm x 9.7028 cm)
1.0 lbs (0.45 kg)
Input: 100 to 240 ±10% VAC, 50/60H, 0.7A *
Output: 48 VDC, 0.62A
Input: 100 to 240 ±10% VAC, 50/60H, 2A *
PoE+ Giga-MiniMc/LFPT
Output: 52 VDC, 2.31A
* Maximum input power in Watts is calculated by multiplying
the input amps by the lowest input voltage.
DC Input Voltage:
45 to 57 VDC on DC terminal block
PoE Giga-MiniMc/LFPT
48 VDC on DC jack
51 to 57 VDC on DC terminal block
PoE+ Giga-MiniMc/LFPT
51 to 57 VDC on DC jack
environMental
Operating Temperature DC
+32° F to +158° F (0° C to +70° C)
Terminal Block:
Operating Temperature AC
+32° F to +122° F (0° C to +50° C)
Adapter:
Storage Temperature:
-31° F to +167° F (-35° C to +75° C);
Operating Humidity
5% to 95% (non-condensing)
regulatory approvals
FCC Class A
UL/cUL, CSA, CE
DIN RAIL CLIP &
WALL MT BRKT
MOUNTING
4X, 2-56 THDS
MAX SCREW
LENGTH, .09 IN.
1.35
34.3
.35
8.9
.53
13.3
2X .50
12.7
3.86
98
.86
21.8
1.82
46.3
3.66
93
DIN RAIL CLIP &
WALL MT BRKT
MOUNTING
4X, 2-56 THDS
MAX SCREW
LENGTH, .09 IN.
.35
8.9
1.35
34.3
2X
.50
12.7
orders@bb-elec.com
support@bb-elec.com
