DS-270
NEW

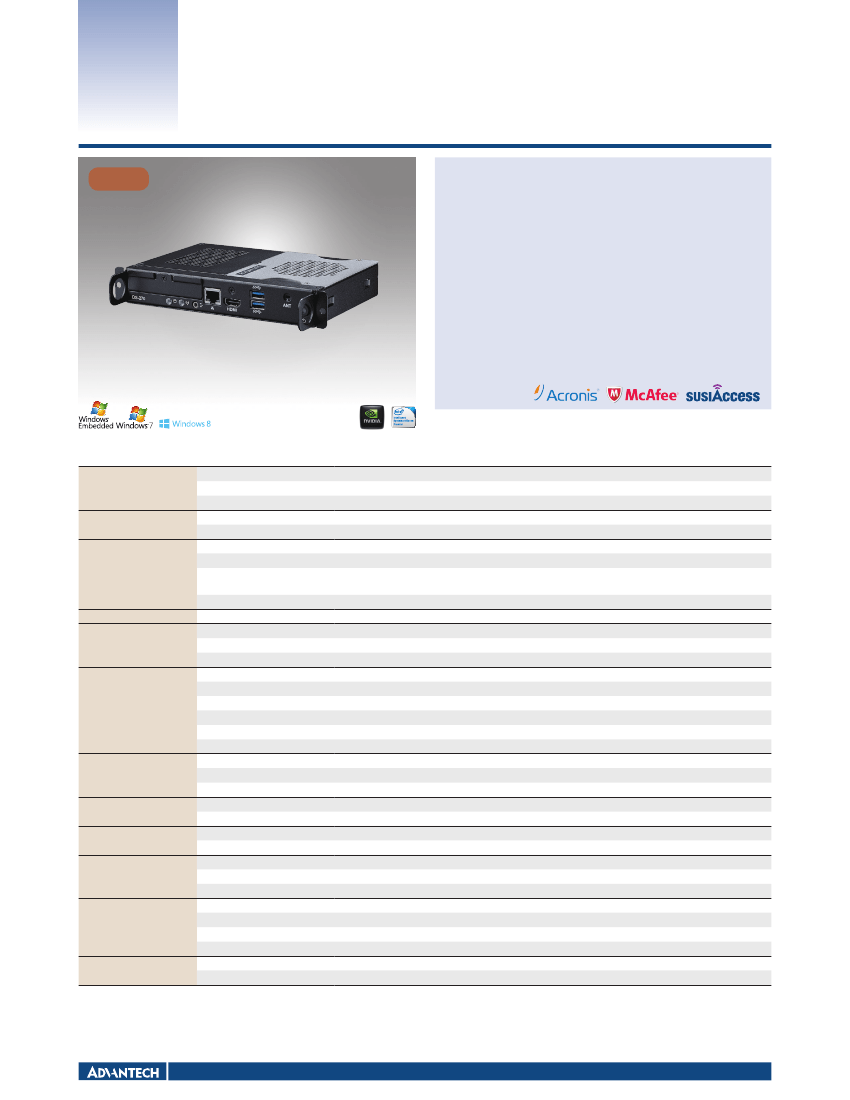

OPS Intel Celeron J1900 Quad-Core SoC
with Advanced NVIDIA GeForce GT730M
Graphics up to 4K resolution
Features
Intel Celeron J1900 low power Quad-Core SoC OPS platform
Integrated NVIDIA GeForce GT 730M to support up to 4K2K resolution
(3840 x 2160 @ 30Hz)
Designed compliant with OPS (Open Pluggable Specification)
Content management software built-in for content editing, scheduling and
remote monitoring functions
Slot-in Integration, easy maintenance
Specifications
Processor System
Memory
CPU
System Chipset
BIOS
Technology
Max. Capacity
Chipset
Memory Size
Resolution (Chipset support)
Video format
SATA Interface
Interface
Controller
Connector
JAE Connector
HDMI (front)
LAN
USB
Audio
Mini-PCIe (Internal)
Management
Power Consumption
Input Voltage
Output
Interval
Dimensions (W x H x D)
Weight
Operating Temperature
Relative Humidity
Vibration Resistance
Operating System
Remote Device Management
System Recovery
Anti-Virus
Electromagnetic
Safety
Intel Celeron J1900 QuadCore SoC 2.00GHz
Integrated in CPU
AMI uEFI 64M bit
2 x DDR3L 204-pin SO-DIMM*
8 GB (up to 4GB per each SO-DIMM)
NVIDIA GeForce GT730M
Independent display memory 1024MB
HDMI up to 3840 x 2160 @ 30Hz (Front);
HDMI/ DP up to 3840 x 2160 @ 30Hz (via OPS interconnection)
H.264, VC1, MPEG-1, MPEG-2, MPEG-4 Part 2SP, MPEG-4 ASP, WMV9, DivX3.11
1 x 2.5-inch SATA II HDD/SSD (supports 7mm height only)
Gigabit LAN Controller
Intel I211
1 x RJ-45
1 (JAE TX25 80-pin)
1
1 (RJ-45)
2 (USB 3.0 compliant)
1 x Line-out (supports Jack Sense via OS setting)
1 (full size, support mSATA)
ACPI 3.0
Typical: 11.82W (w/o expansion); Max.: 21.84W (w/o expansion)
12V -24V DC-in (via OPS interconnection)
Interrupt, system reset
Programmable by SUSIAccess
200 x 30 x 119 mm (OPS compliant)
1.5 kg (3.3 lb.)
0° C ~ 40° C (32~104° F) w/ HDD; 0° C - 50° C (32~122° F) w/ SSD
95% @ 40° C (non-condensing), operating
0.2Grms, IEC 60068-2-64, random, 5-500 Hz, 1 Oct./ min, 1hr/ axis (w/ HDD)
Windows 8 (64bit), Windows 7 (64bit), Linux (by project)
SUSIAccess
Acronis
McAfee
CE, FCC Class B, BSMI, C-Tick
UL, CB, CCC, BSMI
Display
Storage
Ethernet
I/O Interface
Power Requirement
Watchdog Timer
Physical Characteristics
Environment
Software Development Kit
Certification
*If only one RAM, please insert it into SO-DIMM 1 slot and boot up.
Digital Signage Platforms
All product specifications are subject to change without notice
Last updated : 3-Jun-2015
DS-270

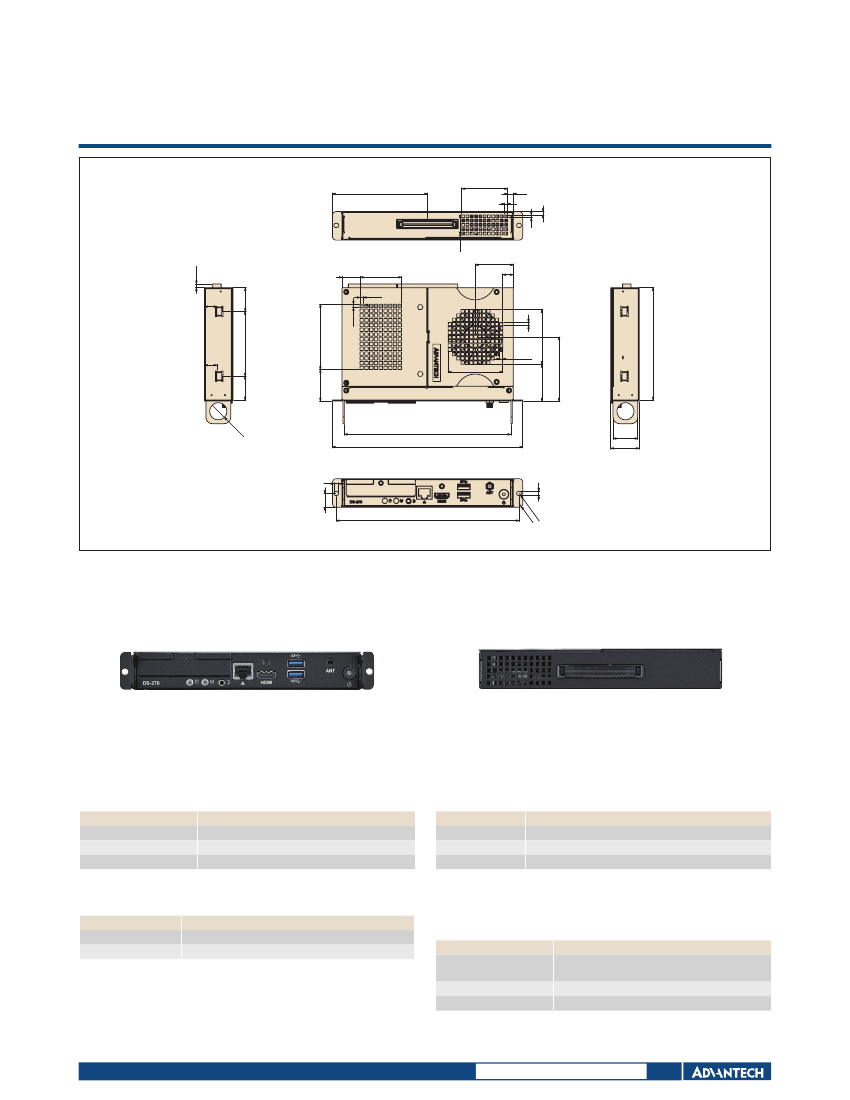

Dimensions
48
3
100.04
6.10
3
3.50
Unit: mm
21
4.02
19
13
(25)
43.50
3.50
39.75
11
3.50
68.50
3.50
57.50
Ø1
8
33.05
175
200
5
14.50
38.50
57.50
25
67.25
13
3.50
26
30
192
External I/O
Front
Back
Packing List
Part number
-
-
-
Description
1x DS-270 unit
1x China RoHS
1x Simplified user manual
Embedded OS
Part number
2070013497
2070013498
2070013455
Description
Img DS-270 (J1900) WES7E x64 5.6.8 EN, JP, TC, SC; SA
Img DS-270 (J1900) WES7P x64 5.6.6 EN, JP, TC, SC; SA
Img WE8S DS-270GQ-S6A1E x64 V6.5.2 10multi
Ordering Information
Part number
DS-270GB-S6A1E
DS-270GF-S6A1E
Description
DS-270, J1900+nV GT730M, Barebone
DS-270, J1900+nV GT730M, 2G RAM, 64G SSD
Before the OS installation, the OS selection should be set and matched what OS applied
from BIOS.
Optional Items
Part number
AMO-I013E
AMO-WIFI06E
AMO-HSDPA02E
Description
Docking Board, OPS JAE TX24/DC-in Jack/HDMI/
DP/COM/USB
Realtek/wifi 802.11bgn/miniPCIe, cable,antenna
U-blox/HSDPA 6band/miniPCIe,cable,antenna
Online Download
www.advantech.com/products
4.50
118
68
R2
.25
R4
