19-4875; Rev 2/12
DS9098P
iButton Retainer
FEATURES
Compact Receptacle for F5 iButton
®
Mounting
Fully Backward-Compatible to DS9098
Contacts are Stainless Steel with Selective 100%
Matte Tin Plating for Optimal Pb-free
Solderability to PCB
Retainer to iButton Connection is Stainless Steel
to Stainless Steel
Withstands Up to +250°C for Surface Mounting
Double Redundancy of Contacts (2 plus 2)
Contact Force Exceeds 2N for Reliable
Connection
Prevents Reversed Insertion
At Insertion, the iButton is Latched for Retention
The iButton Pops Up for Removal When Latch is
Released
Gentle Deflection of Latches Allows Removal of
the iButton
> 25 Insertion/Withdrawal Cycles with No
Performance Degradation
Compatible with Standard Pick and Place
Equipment
Cleaning Fluids Drain Freely for Quick Cleanup

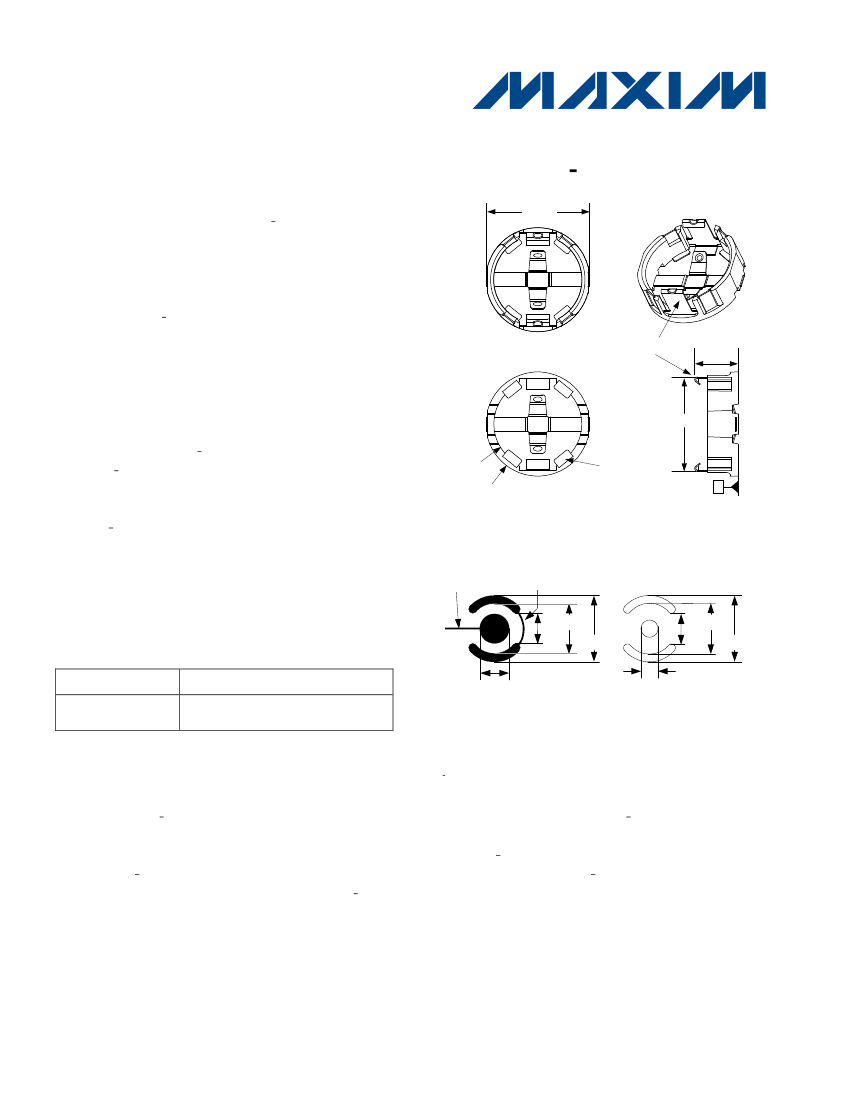

19.30
3-D View
Top View
Latch
8.12
17.60
∅16.50
∅19.50
7 tabs within
+0.10 / -0.00
of datum -A-
A
Bottom View
Recommended Printed
Circuit Board Layout
Data
Trace
Ground Trace
between Pads
Ø13.7
8.5
Ø8.0
Ø18.3
Side View
Recommended
Stencil Aperture
Ø13.8
8.5
Ø4.7
Ø18.6
ORDERING INFORMATION
PART
DS9098P-TRL+
DESCRIPTION
Tape and reel, 220 parts per
13in reel
Center – Data
Outer Ring – Ground
Stencil Thickness: 0.15
2
+Denotes
a lead(Pb)-free/RoHS-compliant package.
TRL = Tape and reel.
Copper cladding
≥
0.3 kg/m or
≥
34 µm (≥ 1oz/sq.ft) with
soldermask overlay. All dimensions are in millimeters.
iButton is a registered trademark of Maxim Integrated Products, Inc.
DESCRIPTION
The DS9098P iButton retainer is a low-cost, surface-mount device to secure an F5 iButton on a PCB. It
consists of three metal pieces (two for ground, one for data) molded into a body of black, heat-stabilized,
glass fiber reinforced liquid crystal polymer. When inserting an iButton into the DS9098P, closely align
axis of the iButton and the retainer. The retainer then latches the flange of the iButton. At removal, limit
deflection of retainer latches to just free the iButton edge from retained state. Avoid applying excess force
to latches.
The DS9098P is only available on tape and reel. The tape specifications match those of 68-lead PLCC
devices except for the deeper pockets and tape-feed sprockets on either side of the 44mm tape. Alignment
pedestals keep the part oriented on tape with the latches adjacent to the sprockets.
1 of 2
DS9098P
REVISION HISTORY
REVISION
DATE
DESCRIPTION
Added coplanarity specification of contact tabs to the data sheet
(only affects graphic)
022008
Minor formatting adjustments (only affects graphic)
Changed “30% glass fiber reinforced Nylon 46” to “glass fiber
reinforced liquid crystal polymer”
8/09
2/12
Added lead(Pb)-free status to the
Ordering Information
PART
information
Changed the third bullet in the
Features
from “tin-lead plating” to
“100% matte tin plating” for lead(Pb)-free compliance
PAGES
CHANGED
1
1
1
