VAB-800-I datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Module/solution> VAB-800-I

VAB-800-I: DescriptionSingle Board Computers Pico-ITX Board with 800MHz Freescale Cortex-A8 CPU ,Industrial Temperature: -40 C to; CategoryModule/solution; File Size552KB，2 Pages; ManufacturerVIA Technologies, Inc; Websitehttps://www.viatech.com/

Download Datasheet Parametric View All

VAB-800-I Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	VAB-800-I	-	-	View	Buy Now

VAB-800-I Overview

Single Board Computers Pico-ITX Board with 800MHz Freescale Cortex-A8 CPU ,Industrial Temperature: -40 C to

VAB-800-I Parametric

Parameter Name	Attribute value
Product Category	Single Board Computers
Manufacturer	VIA Technologies, Inc
RoHS	Details
Form Factor	Pico-ITX
Processor Brand	Freescale
Processor Type	Freescale i.MX537
Frequency	800 MHz
Memory Size	1 GB
Interface Type	Audio, CAN, HDMI, JTAG, LAN, SATA, USB
Operating Supply Voltage	5 V
Maximum Operating Temperature	+ 85 C
Dimensions	10 cm x 7.2 cm
Battery Backup Switching	No Backup Battery
Core	Freescale i.MX537
Description/Function	Pico-ITX board with 800 MHz Freescale Cortex-A8 SoC
Flash	4 GB
Memory Type	DDR3
Minimum Operating Temperature	- 40 C
Factory Pack Quantity	1

Preview

Download Datasheet

View All

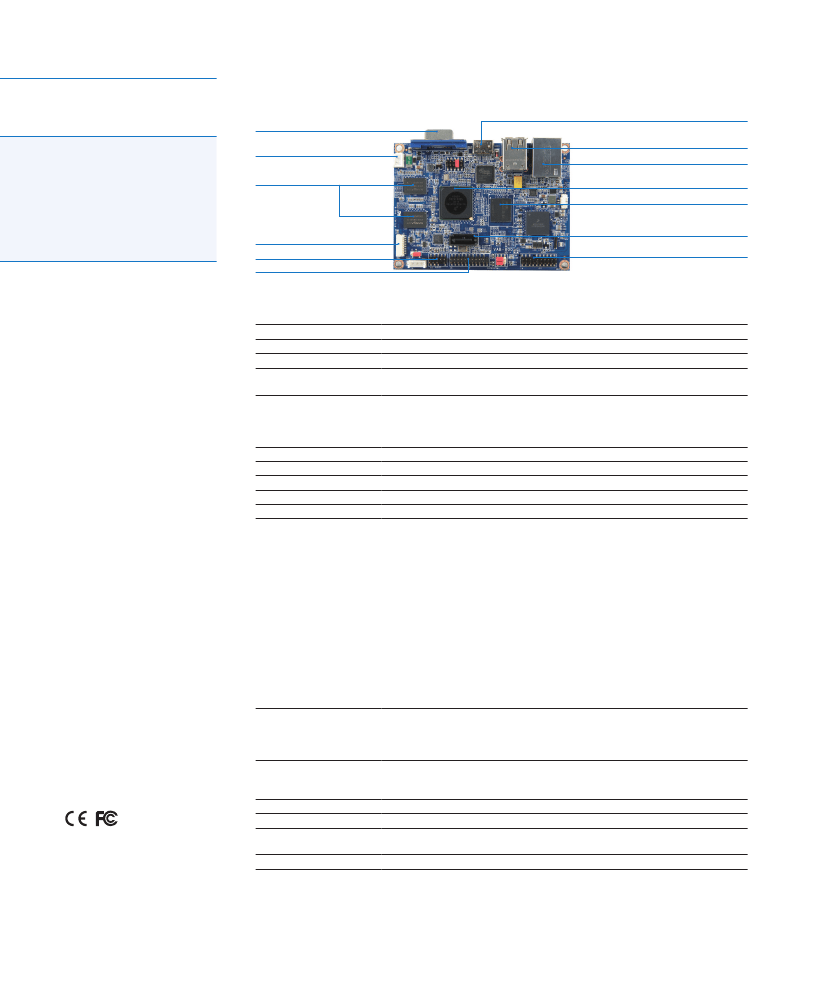

ARM-based Pico-ITX Series

Board Placement

Mini HDMI

VGA

VAB-800

VIA

DC-in

DDR3

USB 2.0

Ethernet

i.MX537 SoC

eMMC

SATA

GPIO/Touch

Ultra-reliable low power

platform for in-vehicle,

surveillance, and industrial

applications

COM

Audio

USB Host/Device /CAN bus

Features

Compact 10cm x 7.2cm

Pico-ITX form factor

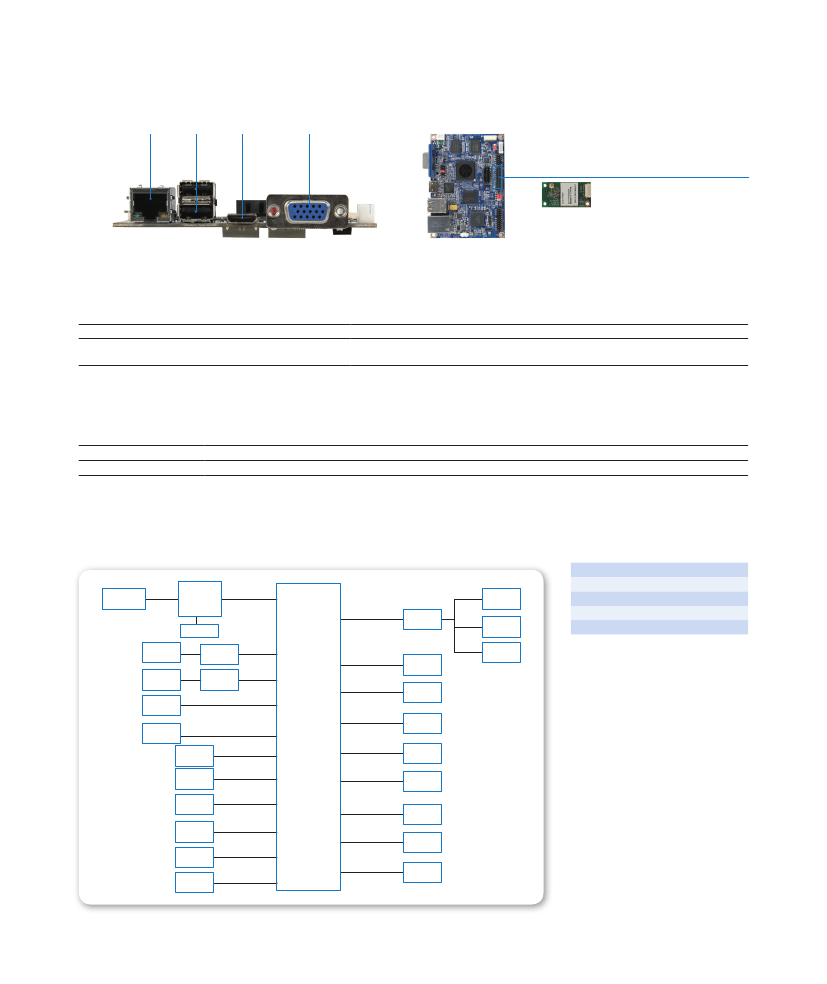

Specifications

Model Name

Processor

System Memory

Storage

Graphics

VAB-800

800MHz Freescale i.MX537 Cortex-A8 SoC

1GB DDR3 SDRAM onboard

4GB eMMC Flash memory

1 SATA connector

AMD Z430 GPU

2 integrated, independent 3D/2D graphics processing units

Graphics engine supporting OpenGL® ES 2.0 and OpenVG™ 1.1 hardware acceleration

Supports MPEG-2, VC-1 and H.264 video decoding up to 1080p

SMSC LAN8720A 10/100 PHY transceiver with HP Auto-MDIX support

Freescale SGTL5000 low power stereo codec

Silicon image SiI9024A HDMI transmitter

SMSC USB2514 USB 2.0 high speed 4-port hub controllers

TI SN65HVD1050 EMC optimized CAN transceiver

1 SATA connector with voltage select jumper for DOM

1 SATA power supply connector for 2.5" HDD/SSD

1 Miscellaneous pin header for 2 USB 2.0 ports, 1 USB device port, 2 CAN bus ports,

system power-on and reset

2 COM port connectors with power supply (one supports 8-wire DCE mode, another

supports 2-wire for debug)

1 Miscellaneous pin header for 4-wire resistive touch screen interface, I

C and

Digital I/O (4 GPI + 4 GPO)

2 Single-channel 18/24-bit LVDS panel connectors

1 Micro SD card slot

1 RTC battery connector

1 JTAG pin header (for debugging)

1 Boot Flash select pin header for eMMC or SD

1 Front audio pin header for Line-in, Line-out, Mic-in

1 DC-in connector

2 USB 2.0 ports

1 Mini HDMI port

1 VGA port

1 10/100M Ethernet port

Integrated watch dog timer supports two comparison points. Each comparison

point can interrupt ARM core, 2nd comparison point capable of generating external

interrupts on WDOG line

5V DC-in

Android 2.3, Linux kernel 2.6.35, WEC7

Commercial grade: 0°C to 60°C

Industrial grade: -40°C to 85°C (optional)

0% ~ 95% (non-condensing)

Pico-ITX (10cm x 7.2cm, 3.9" x 2.8")

800MHz Freescale i.MX537

Cortex-A8 SoC

Supports two single-channel

18/24-bit LVDS

Supports dual CAN bus and

dual COM ports

Wide operating temperature

range, -40°C ~ 85°C

Android, Linux, and WEC7

solution packs available

LAN

Audio

HDMI

USB

CAN

Onboard I/O

Back Panel I/O

Watch Dog Timer

Power Supply

Operating System

Operating Temperature

Operating Humidity

Form Factor

Recommended Resources
