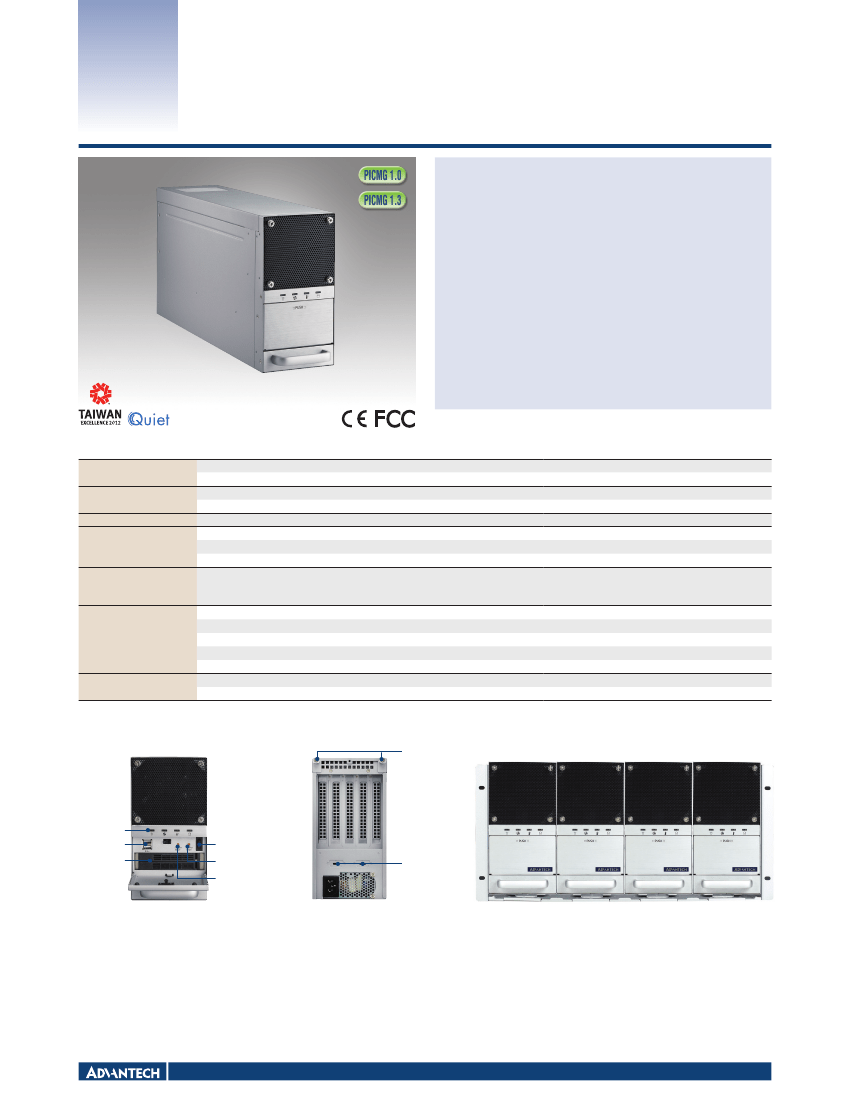

IPC-6025
5-Slot Desktop/Wallmount Chassis with
Scalability as 5U Quad-System Solution
Features
Front handle for easy withdraw in rackmount carrier
Lockable front door prevents unauthorized access
Shockproof drive bay for two 3.5" HDDs
LED indicators for system fault detection
Optional rackmount carrier for quad-system solution
Built-in Intelligent System Module enabling whole system fan control and
remote manageability
Specifications
Drive Bay
Cooling
Front I/O Interface
Miscellaneous
Intelligent System Module
Remote Monitoring
External
Internal
3.5"
1
1
Fan
1 (9 cm / 46.6 CFM)
Air Filters
Yes
USB 2.0
2
LED Indicators
Power, fan, temperature, HDD
Control
Power switch and system reset buttons
Rear Panel
Reserved Two 9-pin D-Sub openings
CPU/System fan speed , CPU/System temperature , motherboard voltage
(Only selected Advantech MBs/CPU cards with WISE-PaaS/RMM installed can fully enable these functions, check with Advantech local rep. for
detailed information.)
Operating
Non-operating
Temperature
0 ~ 40 °C (32 ~ 104 °F)
-20 ~ 60 °C (-4 ~ 140 °F)
Humidity
10 ~ 85% @ 40 °C, non-condensing
10 ~ 95% @ 40 °C, non-condensing
Vibration (5 ~ 500 Hz)
1 Grms
2G
Shock
10 G (with 11 ms duration, half sine wave)
Dimensions (W x H x D)
111 x 212 x 420 mm (4.4" x 8.3" x 16.5")
Weight
4.7 kg (10.3 lb)
Environment
Physical Characteristics
Front View
Rear View
Friendly
thumb
screws
LED Alarm
Dual USB Ports
IPC-DT-3120E
Power Switch
Alarm Reset
System Reset
Pre-punched
9-pin D-Sub
openings
Note: Hot swap drive bay module should be
bought separately.
4 IPC-6025 combined as a 5U quad-system
rackmount IPC
Industrial Chassis
All product specifications are subject to change without notice.
Last updated: 28-Aug-2017

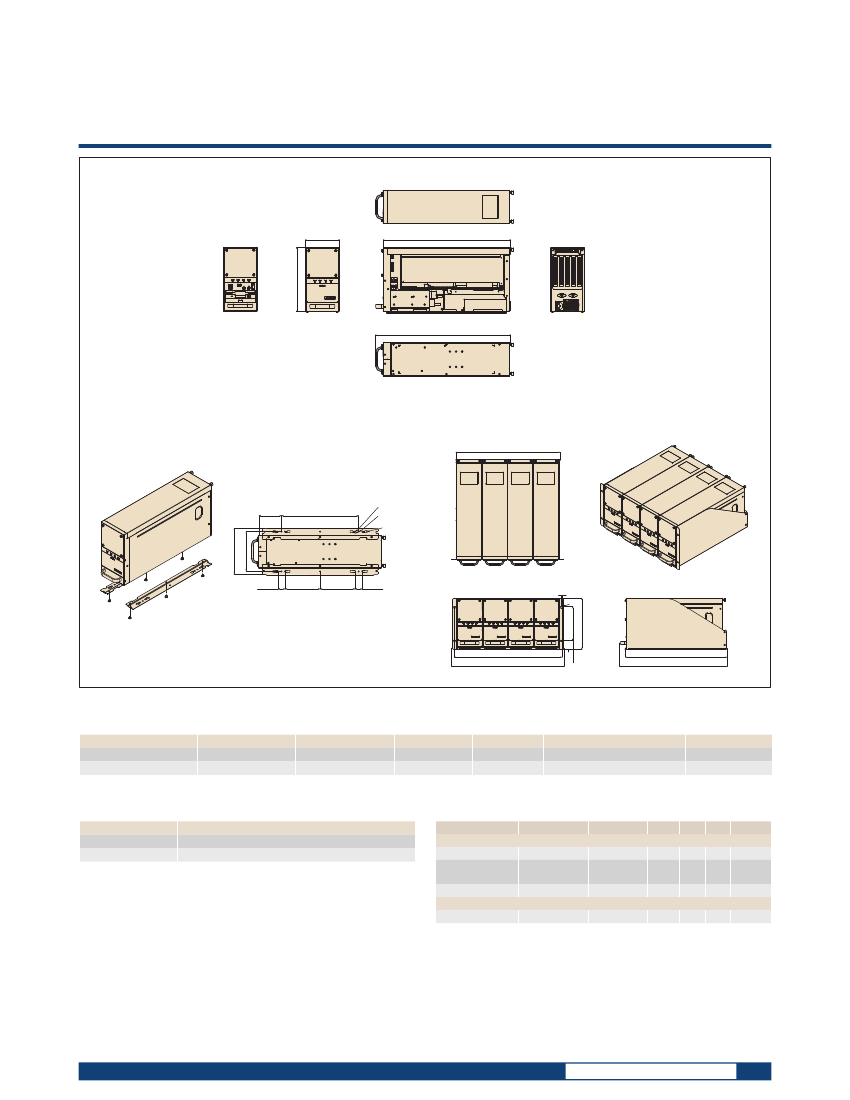

IPC-6025
Dimensions
111.0 [4.37]
420 [16.54]
Unit: mm [inch]
212 [8.35]
445.5 [17.54]
Installation
Single System
Quad System
449.00 [17.68]
Unit: mm [inch]
78.00
[3.07]
159.00 [6.26]
136.00 [5.35]
264.00
[10.39]
R2.50 [R0.10]
Ø5.00 [Ø0.20]
R5.00
[R0.20]
25.20
[0.99]
119.40
[4.70]
119.40
[4.70]
25.20
[0.99]
5.00 [0.20]
R3.25 [R0.13]
146.10 [5.75]
221.50 [8.72]
465.10 [18.31]
485.00 [19.09]
37.70
[1.48]
436.70 [17.19]
462.20 [18.20]
Ordering Information
Part number
IPC-6025BP-27ZE
IPC-6025BP-40ZE
Power Supply
96PS-A270WFX
96PS-A400WFX-2
80 Plus Grade
White
Gold
Wattage
270W
400W
Type
Single
Single
Input
AC 100 ~ 240V (Full Range )
AC 100 ~ 240V (Full Range)
Switch type
AT Switch
AT Switch
Optional Accessories
Ordering P/N
9892602501E
IPC-DT-3120E
Description
Rackmount carrier for Quad System solution
Mobile rack for dual 2.5" SATA HDDs
Backplane Options
Model
PICMG 1.3/1.0 PCIe
PCE-5000 Series
PCE-5B04-20B1E
PICMG 1.3
1 (PCIe x 16)
1 (PCIe x 16)
PCE-5B05-02A1E
PICMG 1.3
1 (PCIe x 4)
PCE-5B05-03A1E
PICMG 1.3
1 (PCIe x 16)
PCI-X PCI
2
-
-
-
-
2
3
2
ISA
-
-
-
1
PCI/ISA
-
-
-
1
PICMG 1.0
PCA-6105P3-5A1E
PICMG 1.0
-
Online Download
www.advantech.com/products
