RoSTD Compliant
CFast 2 STD
CFast 2 STD Product Specifications
August 29
th
, 2014
Version 1.0
Apacer Technology Inc.
1F, No.32, Zhongcheng Rd., Tucheng Dist., New Taipei City, Taiwan, R.O.C
Tel: +886-2-2267-8000
www.apacer.com
Fax: +886-2-2267-2261
CFast 2 STD
AP-CFAxxxxACXN-XAT
Features:
Standard Serial ATA Interface
– SATA Revision 3.1 compliance
– SATA 6.0 Gbps interface speed
– Backward compatible with SATA 1.5
and 3.0 Gbps interfaces
– ATA-compatible command set
Connector type
– 7 + 17 pin female connector
Power consumption (typical)*
– Supply voltage: 3.3V
– Active mode: 280 mA
– Idle mode: 85 mA
Performance*
–
Sustained read: Up to 80 MB/sec
– Sustained write: Up to 80 MB/sec
Capacity
– 2, 4, 8, 16, 32, 64 GB
NAND Flash Type:
SLC
MTBF:
>2,000,000 hours
*Vary from capacities. The values presented in Power consumption and Performances are typical, and may vary depending on
different settings and platforms.
Temperature ranges
– Operating:
Standard: 0° to 70°
C
C
Extended: -40° to 85°
C
C
– Storage: -40° to 100°
C
C
Flash Management
– Built-in hardware ECC, enabling up to
40-bit correction per 1K bytes
– Static/dynamic wear-leveling
– Flash bad-block management
– S.M.A.R.T.
– Power Failure Management
– ATA Secure Erase
– TRIM
RoHS Compliant
Write Protect switch (optional)
1
© 2014 Apacer Technology Inc.
Rev. 1.0
CFast 2 STD
AP-CFAxxxxACXN-XAT
Table of Contents
1. GENERAL DESCRIPTION .................................................................................................... 3
2. FUNCTIONAL BLOCK .......................................................................................................... 3
3. PIN ASSIGNMENTS ............................................................................................................... 4
4. PRODUCT SPECIFICATION ................................................................................................ 6
4.1 C
APACITY
.............................................................................................................................................................6
4.2 P
ERFORMANCE
.....................................................................................................................................................6
4.3 E
NVIRONMENTAL
S
PECIFICATIONS
.......................................................................................................................6
4.4 M
EAN
T
IME
B
ETWEEN
F
AILURES
(MTBF) ...........................................................................................................7
4.5 C
ERTIFICATION AND
C
OMPLIANCE
.......................................................................................................................7
5. FLASH MANAGEMENT ........................................................................................................ 8
5.1 E
RROR
C
ORRECTION
/D
ETECTION
.........................................................................................................................8
5.2 B
AD
B
LOCK
M
ANAGEMENT
.................................................................................................................................8
5.3 W
EAR
L
EVELING
..................................................................................................................................................8
5.4 P
OWER
F
AILURE
M
ANAGEMENT
..........................................................................................................................8
5.5 ATA S
ECURE
E
RASE
............................................................................................................................................8
5.6 TRIM ...................................................................................................................................................................9
5.7 SATA P
OWER
M
ANAGEMENT
M
ODES
.................................................................................................................9
7. ELECTRICAL SPECIFICATION ...................................................................................... 12
7.1 O
PERATING
V
OLTAGE
........................................................................................................................................12
7.2 P
OWER
C
ONSUMPTION
.......................................................................................................................................12
8. MECHANICAL SPECIFICATIONS .................................................................................. 13
8.1 W
ITH
W
RITE
P
ROTECT
S
WITCH
..........................................................................................................................13
8.2 W
ITHOUT
W
RITE
P
ROTECT
S
WITCH
...................................................................................................................14
8.3 D
ESCRIPTION OF
A
PACER
W
RITE
P
ROTECT
........................................................................................................15
9. PRODUCT ORDERING INFORMATION ........................................................................ 16
9.1 P
RODUCT
C
ODE
D
ESIGNATIONS
.........................................................................................................................16
2
© 2014 Apacer Technology Inc.
Rev. 1.0
CFast 2 STD
AP-CFAxxxxACXN-XAT
1. General Description
Apacer CFast 2 STD is the latest enhancement of conventional CFast form factor that delivers various
technological advantages. This new flash memory card comes with SATA 6.0 Gbps interface for higher
performance and is compliant with standard CFast specifications. CFast 2 STD consists of SATA-based
7-pin signal segment and 17-pin for power and control purposes. It can offer moderate capacity and
decent data transfer performance. For power efficiency, this new flash memory card leverages the
technological benefits of SATA Revision 3.1 specifications, including Device Sleep. That will greatly
reduce power consumption when the device is not in operating mode. For data integrity, the CFast card is
built with ECC engine correcting up to 40-bit. Together with its small form factor nature, Apacer CFast 2
STD is definitely the ideal solution to replace conventional PATA-based CompactFlash for applications in
industrial computing systems, mobile computers and video processing instruments.
2. Functional Block
Apacer CFast 2 STD includes a single-chip SATA 6.0 Gbbps and the flash media. The controller
integrates the flash management unit to support multi-channel, multi-bank flash arrays. Figure 2-1 shows
the functional block diagram.
Flash data bus & ECC engine
SATA 6.0
Gbps Interface
Flash
SATAI/O & PHY
Controller
Host
Interface
Flash
Figure 2-1
Apacer CFast STD block diagram
3
© 2014 Apacer Technology Inc.
Rev. 1.0
CFast 2 STD
AP-CFAxxxxACXN-XAT
3. Pin Assignments
Table 3-1 describes CFast 2 STD signal segment, and Table 3-2, its power segment.

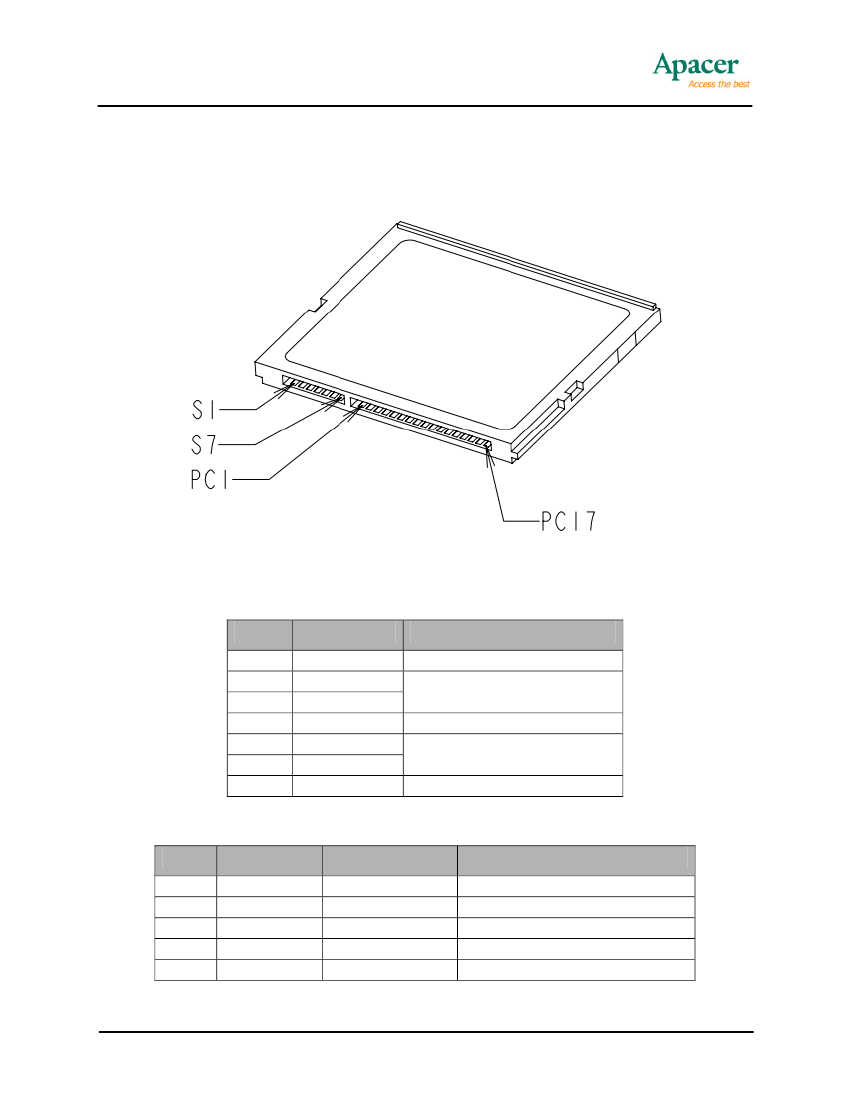

Figure 3-1
Pin Assignment
Table 3-1 Signal Segment
Pin
S1
S2
S3
S4
S5
S6
S7
Definition
GND
A+
A-
GND
B-
B+
GND
Description
Ground
SATA Differential
Signal Pair A
Ground
SATA Differential
Signal Pair B
Ground
Table 3-2 Power Segment
Pin
PC1
PC2
PC3
PC4
PC5
Definition
CDI
PGND
Type
Input
Device GND
Description
Card Detect In
Device GND
TBD
Reserved
Reserved
4
© 2014 Apacer Technology Inc.
Rev. 1.0
