IS24C02A Smart Card (#32323)

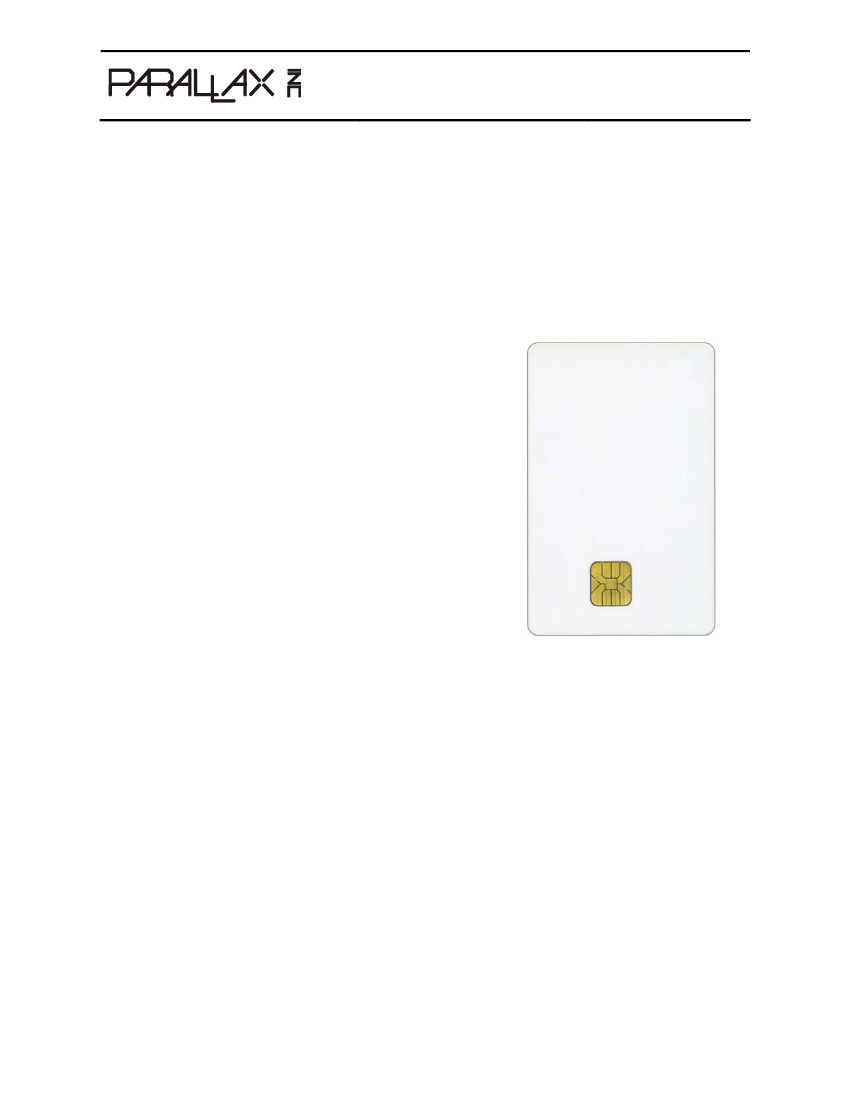

The IS24C02A Smart Card provides 256 bytes of serial EEPROM accessible by the Smart Card Reader
(#32320).
Features
Memory Organization: 256 x 8-bit
1,000,000 erase/write cycles guaranteed with
100 year data retention
5 ms max write time with auto clear
Compatible with BASIC Stamp & Propeller
microcontrollers
Key Specifications
Power Requirements: 1.8–5.5 VDC
Communication: I
2
C (CMOS)
Operating temperature: -40 to +212 °F
(-40 to +100 °C)
Dimensions: 2.5 x 3 in (6.35 x 7.62 cm)
Application Ideas
Security systems
Data storage
Tracking systems
Identity authentication
About the IS24C16A Smart Card
Smart cards are used in a variety of applications ranging from telecommunications to personal finance.
The IS24C02A smart card is 256 bytes of EEPROM memory. The pins of the IS24C16A are accessible
through the gold plated contact pads embedded in the card, and when paired with the Smart Card
Reader (#32320) can be connected to the IO pins of a microcontroller.
Copyright © Parallax Inc.
IS24C02A Smart Card (#32323)
v1.0 6/18/2010 Page 1 of 2
Connection Diagram
In order to interface with the smart card, a smart card reader must be used. The diagram below
demonstrates how to connect the Smart Card Reader (#32320) from Parallax to your microcontroller for
use with the example programs included on the IS24C02A product page. When inserting the smart card
into the reader, be sure the gold contact pads are facing down.
Resources and Downloads
Check for the latest version of this document, manufacturer’s datasheet, and example programs from the
IS24C02A Smart Card product page. Go to www.parallax.com and search 32323.
BASIC Stamp
®
Example Code
Example code for the BASIC Stamp 2 can be found on the IS24C02A product page.
demonstrates basic read and write functions to the smart card.
This code
This program also uses the Debug Terminal, which is built into the BASIC Stamp Editor software. The
software is a free download from
www.parallax.com/basicstampsoftware.
Propeller
™
P8X32A Example Code
Example code for the Propeller can be found on the IS24C02A product page. This code demonstrates
basic read and write functions to the smart card.
This program also uses the Parallax Serial Terminal to display the device output. The object and the
Parallax Serial Terminal itself are included with the with the Propeller Tool v1.2.7 or higher, which is
available from the Downloads link at
www.parallax.com/Propeller.
Copyright © Parallax Inc.
IS24C02A Smart Card (#32323)
v1.0 6/18/2010 Page 2 of 2
