Data Sheet
Rev.1.2
18.11.2010
1GB DDR2
– SDRAM UDIMM
Features:
240 Pin UDIMM
SEU01G64A3BF1SA-25R
1GB PC2-6400 in FBGA Technology
RoHS compliant
Options:
Data Rate / Latency
DDR2 800 MT/s CL6
DDR2 667 MT/s CL5
Module Density
1024MB with 8 dies and 1 rank
Standard Grade
(T
A
)
(T
c
)
0°C to 70°C
0°C to 85°C
Marking
-25
-30
240-pin 64-bit Dual-In-Line Double Data Rate
Synchronous DRAM Module
Module organization: single rank 128M x 64
V
DD
= 1.8V ±0.1V, V
DDQ
1.8V ±0.1V
1.8V I/O ( SSTL_18 compatible)
Auto Refresh (CBR) and Self Refresh 8k Refresh
every 64ms
Serial Presence Detect with EEPROM
Gold-contact pad
This module is fully pin and functional compatible to
the JEDEC PC2-6400 spec. and JEDEC- Standard
MO-237. (see
www.jedec.org)
The pcb and all components are manufactured
according to the RoHS compliance specification
[EU Directive 2002/95/EC Restriction of Hazardous
Substances (RoHS)]
DDR2 - SDRAM component SAMSUNG
K4T1G084QF DIE Rev. F
128Mx8 DDR2 SDRAM in FBGA-60 package
4-bit prefetch architecture
DLL to align DQ and DQS transitions with CK
Multiple internal device banks for concurrent operation
Programmable CAS latency (CL)
Posted CAS additive latency (AL)
WRITE latency = READ latency – 1 t
CK
Programmable burst length: 4 or 8
Adjustable data-output drive strength
On-die termination (ODT)
Environmental Requirements:
Operating temperature (ambient)
standard Grade
0°C to 70°C
Operating Humidity
10% to 90% relative humidity, noncondensing
Operating Pressure
105 to 69 kPa (up to 10000 ft.)
Storage Temperature
-55°C to 100°C
Storage Humidity
5% to 95% relative humidity, noncondensing
Storage Pressure
1682 PSI (up to 5000 ft.) at 50°C
Figure:
mechanical dimensions
1
1
if no tolerances specified ± 0.15mm
Page 1
of 14
Swissbit AG
Industriestrass 4
CH-9552 Bronschhofen
Fon: +41 (0) 71 913 03 03
Fax: +41 (0) 71 913 03 15
www.swissbit.com
eMail: info@swissbit.com
Data Sheet
Rev.1.2
18.11.2010
This Swissbit module is an industry standard 240-pin 8-byte DDR2 SDRAM Dual-In-line Memory Module
(UDIMM) which is organized as x64 high speed CMOS memory arrays. The module uses internally configured
octal-bank DDR2 SDRAM devices. The module uses double data rate architecture to achieve high-speed
operation. DDR2 SDRAM modules operate from a differential clock (CK and CK#). READ and WRITE accesses
to a DDR2 SDRAM module is burst-oriented; accesses start at a selected location and continue for a
programmed number of locations in a programmed sequence. The burst length is either four or eight locations. An
auto precharge function can be enabled to provide a self-timed row precharge that is initiated at the end of a burst
access. The DDR2 SDRAM devices have a multibank architecture which allows a concurrent operation that is
providing a high effective bandwidth. A self refresh mode is provided and a power-saving “power-down” mode. All
inputs and all full drive-strength outputs are SSTL_18 compatible.
The DDR2 SDRAM module uses the optional serial presence detect (SPD) function implemented via serial
2
EEPROM using the standard I C protocol. This nonvolatile storage device contains 256 bytes. The first 128 bytes
are utilized by the DIMM manufacturer (swissbit) to identify the module type, the module’s organization and
several timing parameters. The second 128 bytes are available to the end user.
Module Configuration
Organization
128M x 64bit
DDR2 SDRAMs used
8 x 128M x 8bit (1024Mbit)
Row
Addr.
14
Device Bank
Addr.
BA0, BA1, BA2
Column
Addr.
10
Refresh
8k
Module
Bank Select
S0#
Module Dimensions
in mm
133.35 (long) x 30(high) x 2.70 [max] (thickness)
Timing Parameters
Part Number
SEU01G64A3BF1SA-25R
SEU01G64A3BF1SA-30R
Module Density
1024 MB
1024 MB
Transfer Rate
6.4 GB/s
5.3 GB/s
Clock Cycle/Data bit rate
2.5ns/800MT/s
3.0ns/667MT/s
Latency
6-6-6
5-5-5
Pin Name
A0-9, A11 – A13
A10/AP
BA0 – BA2
DQ0 – DQ63
DM0-DM7
DQS0 - DQS7
DQS0# - DQS7#
RAS#
CAS#
WE#
CKE0
S0#
Address Inputs
Address Input / Autoprecharge Bit
Bank Address Inputs
Data Input / Output
Input Data Mask
Data Strobe, positive line
Data Strobe, negative line (only used when differential data strobe mode is enabled)
Row Address Strobe
Column Address Strobe
Write Enable
Clock Enable
Chip Select
Swissbit AG
Industriestrass 4
CH-9552 Bronschhofen
Fon: +41 (0) 71 913 03 03
Fax: +41 (0) 71 913 03 15
www.swissbit.com
eMail: info@swissbit.com
Page 2
of 14
Data Sheet
Rev.1.2
18.11.2010
CK0
CK0#
V
DD
V
REF
V
SS
V
DDSPD
SCL
SDA
SA0 – SA1
ODT0
NC
Clock Inputs, positive line
Clock Inputs, negative line
Supply Voltage (1.8V± 0.1V)
Input / Output Reference
Ground
Serial EEPROM Positive Power Supply
Serial Clock for Presence Detect
Serial Data Out for Presence Detect
Presence Detect Address Inputs
On-Die Termination
No Connection
Pin Configuration
PIN #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Front Side
V
REF
V
SS
DQ0
DQ1
V
SS
DQS0#
DQS0
V
SS
DQ2
DQ3
V
SS
DQ8
DQ9
V
SS
DQS1#
DQS1
V
SS
NC(RESET#)
NC
V
SS
DQ10
DQ11
V
SS
DQ16
DQ17
V
SS
DQS2#
DQS2
V
SS
DQ18
DQ19
V
SS
PIN #
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
Back Side
V
SS
DQ4
DQ5
V
SS
DM0 (DQS9)
NC (DQS9#)
V
SS
DQ6
DQ7
V
SS
DQ12
DQ13
V
SS
DM1 (DQS10)
NC (DQS10#)
V
SS
NC (CK1)
NC (CK1#)
V
SS
DQ14
DQ15
V
SS
DQ20
DQ21
V
SS
DM2 (DQS11)
NC (DQS11#)
V
SS
DQ22
DQ23
V
SS
DQ28
PIN #
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
Front Side
A4
V
DDQ
A2
V
DD
V
SS
V
SS
V
DD
NC (Par_In)
V
DD
A10/AP
BA0
V
DDQ
WE#
CAS#
V
DDQ
NC (S1#)
NC (ODT1)
V
DDQ
V
SS
DQ32
DQ33
V
SS
DQS4#
DQS4
V
SS
DQ34
DQ35
V
SS
DQ40
DQ41
V
SS
DQS5#
PIN #
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
Back Side
V
DDQ
A3
A1
V
DD
CK0
CK0#
V
DD
A0
V
DD
BA1
V
DDQ
RAS#
S0#
V
DDQ
ODT0
A13
V
DD
V
SS
DQ36
DQ37
V
SS
DM4 (DQS13)
NC (DQS13#)
V
SS
DQ38
DQ39
V
SS
DQ44
DQ45
V
SS
DM5 (DQS14)
NC (DQS14#)
Swissbit AG
Industriestrass 4
CH-9552 Bronschhofen
Fon: +41 (0) 71 913 03 03
Fax: +41 (0) 71 913 03 15
www.swissbit.com
eMail: info@swissbit.com
Page 3
of 14
Data Sheet
Rev.1.2
18.11.2010
PIN #
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Front Side
DQ24
DQ25
V
SS
DQS3#
DQS3
V
SS
DQ26
DQ27
V
SS
NC (CB0)
NC (CB1)
V
SS
NC (DQS8#)
NC (DQS8)
V
SS
NC (CB2)
NC (CB3)
V
SS
V
DD
CKE0
V
DD
BA2
NC(Par_Out)
V
DDQ
A11
A7
V
DD
A5
PIN #
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
Back Side
DQ29
V
SS
DM3 (DQS12)
NC (DQS12#)
V
SS
DQ30
DQ31
V
SS
NC (CB4)
NC (CB5)
V
SS
NC (DM8,DQS17)
NC (DQS17#)
V
SS
NC (CB6)
NC (CB7)
V
SS
V
DDQ
NC (CKE1)
V
DD
NC (A15)
NC (A14)
V
DDQ
A12
A9
V
DD
A8
A6
PIN #
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
Front Side
DQS5
V
SS
DQ42
DQ43
V
SS
DQ48
DQ49
V
SS
SA2
NC (TEST)
V
SS
DQS6#
DQS6
V
SS
DQ50
DQ51
V
SS
DQ56
DQ57
V
SS
DQS7#
DQS7
V
SS
DQ58
DQ59
V
SS
SDA
SCL
PIN #
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
Back Side
V
SS
DQ46
DQ47
V
SS
DQ52
DQ53
V
SS
CK2/RFU
CK2#/RFU
V
SS
DM6 (DQS15)
NC (DQS15#)
V
SS
DQ54
DQ55
V
SS
DQ60
DQ61
V
SS
DM7 (DQS16)
NC (DQS16#)
V
SS
DQ62
DQ63
V
SS
V
DDSPD
SA0
SA1
(Sig): Signal in brackets may be routed to the socket connector, but is not used on the module
Swissbit AG
Industriestrass 4
CH-9552 Bronschhofen
Fon: +41 (0) 71 913 03 03
Fax: +41 (0) 71 913 03 15
www.swissbit.com
eMail: info@swissbit.com
Page 4
of 14
Data Sheet
Rev.1.2
18.11.2010

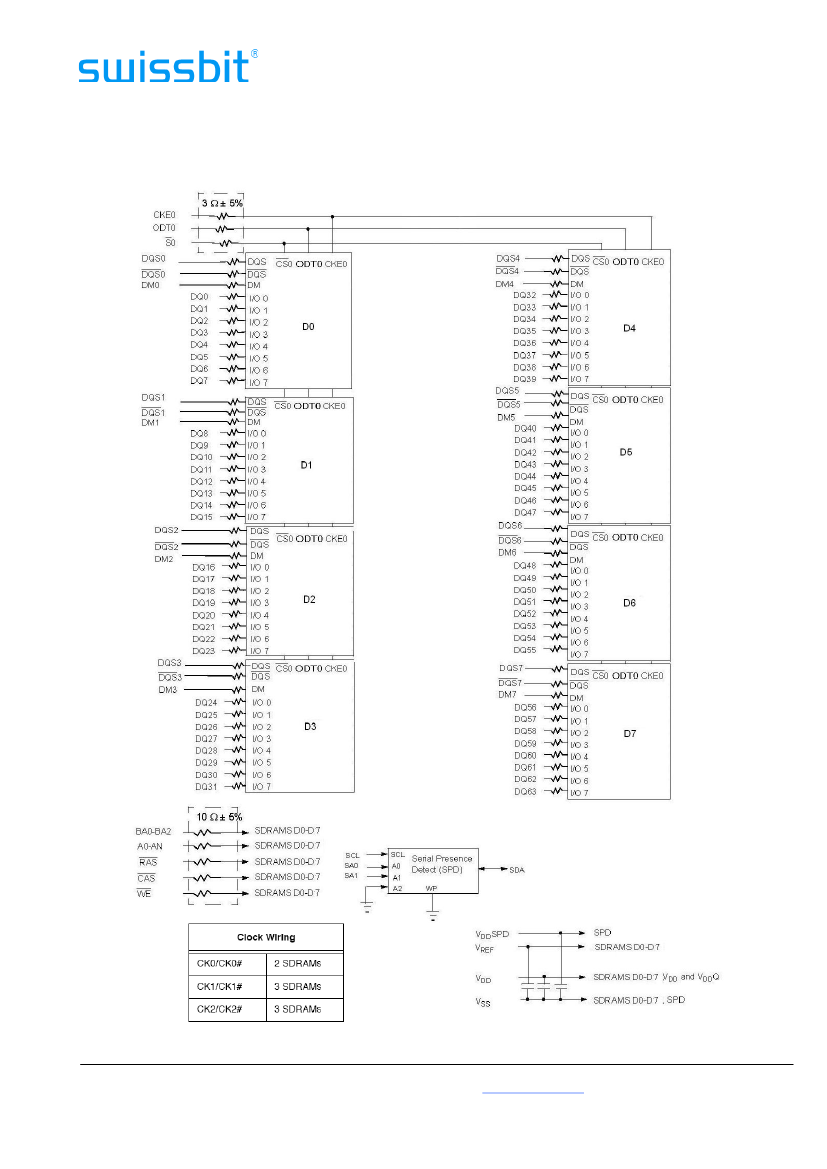

FUNCTIONAL BLOCK DIAGRAMM 1024MB DDR2 SDRAM DIMM,
1 RANK AND 8 COMPONENTS
Swissbit AG
Industriestrass 4
CH-9552 Bronschhofen
Fon: +41 (0) 71 913 03 03
Fax: +41 (0) 71 913 03 15
www.swissbit.com
eMail: info@swissbit.com
Page 5
of 14
