Smallest, Most Reliable Gigabit
Media Converter
MiniMc Gigabit
PRODUCT FEATURES
• One 1000Base-SX or 1000Base-LX fiber Port
• One 1000Base-T twisted pair port
• AutoCross automatic selection between crossover or
straight-through connection
• Status LEDs
• 18 connections in the 1.5U high IE-PowerTray/18 Chassis
Media conversion is the most cost-effective solution for extending the
productive life of legacy wiring plants and equipment while allowing
implementation of new technologies. Media conversion’s greatest
benefits are flexibility and cost savings.
Measuring less than 3.5 inches deep and 2 inches wide, the MiniMc-
Gigabit is the industry’s smallest gigabit media converter with both
data connections on the same side of the unit, and at a fraction of the
cost of other alternatives. Plug-and-play operation with a variety of
model types and powering options make the MiniMc-Gigabit easy and
convenient to use.
ACCESSORiES
806-39105 - DIN Rail Clip
806-39638 - Double-USB Power Cable, 36”/.9m
806-39650 - 12”/.3m Barrel-Connector Power Cable
850-13086 - IE-PowerTray/18-AC (-20°C to +70°C), 18-slot AC powered chassis
895-39229 - Wall Mount Bracket
ORDERinG inFORMATiOn
Model
Fiber raNge
Fiber
NuMber
Ports
MiniMc-gigabit
855-10730 SX-MM850-SC
1
220/550 m
855-10731 LX-SM1310-SC
1
10 km
LX-SM1310/
855-10732
1
40 km
PLUS-SC
855-10733 LX-SM1550/
1
80 km
LONG-SC
siNgle straNd Fiber *
855-10734 SSLX-SM1310-SC 1
15 km
855-10735 SSLX-SM1550-SC 1
15 km
855-10742 SSBX-SM1310-SC 1
10 km
855-10743 SSBX-SM1490-SC 1
10 km
SSLX-SM1310/
855-10736 PLUS-SC
1
40 km
SSLX-SM1550/
855-10737 PLUS-SC
1
40 km
855-10744 SSBX-SM1310/
1
30 km
PLUS-SC
855-10745 SSBX-SM1490/
1
60 km
PLUS-SC
855-10738 SSLX-SM1490/
1
70 km
LONG-SC
SSLX-SM1550/
855-10739 LONG-SC
1
70 km
etherNet
Ports
1
1
1
1
1
1
1
1
1
1
1
1
1
1
etherNet
CoNNeCtor
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
MiniMc-Gigabit TX/SX and TX/LX also available in CWDM
Fiber. Call for details.
www
.
bb
-
elec
.
com
|
MiniMc Gigabit_2614ds
Smallest, Most Reliable Gigabit
Media Converter
MiniMc Gigabit
SpecificationS
Technical
Plug-and-play operation
RJ45 and SC or SFP connectors
IEEE 802.3 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3ab 1000Base-T twisted pair
IEEE 802.3z 1000Base-LX or SX fiber
MTU: Supports Jumbo Frames up to 10,000 bytes
Country-specific, high-reliability power adapter
Layer 2 packet switching, store and forward (forwarding rate: 1,488,096 pps for
1000 Mbps)
Auto-Cross for MDI/MDIX
Status LEDs
Mechanical
Dimensions
Shipping Weight
Power
5 VDC, 400mA
120 VAC, 0.1A
environMental
Operating Temperature:
Storage Temperature:
Operating Humidity
regulatory aPProvals
FCC Class B
UL/cUL, CSA, CE
0.83”H x 1.80”W x 3.35”D
(2.11 x 4.57 x 8.51 cm)
0.7 lbs (.317 kg)
+32° F to +122° F (0° C to +50° C)
-13° F to +158° F (-25° C to +70° C);
5% to 95% (non-condensing)

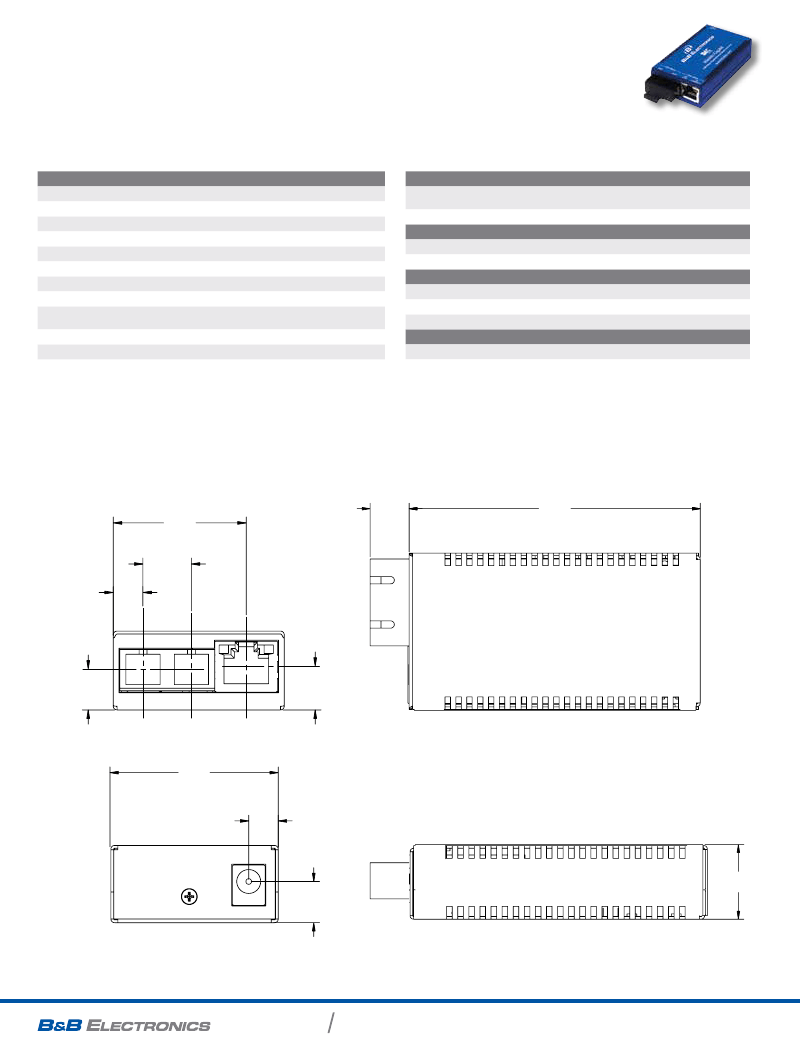

MEChAniCAl DiAGRAM
(dimensions in inches & millimeters)
1.40
(35,6)
.51
(12,9)
REF
.31
(7,9)
.45
(11,4)
3.35
(85,1)
.43
(11,0)
.46
(11,7)
1.81
(46,0)
.32
(8,1)
.44
(11,2)
.84
(21,3)
