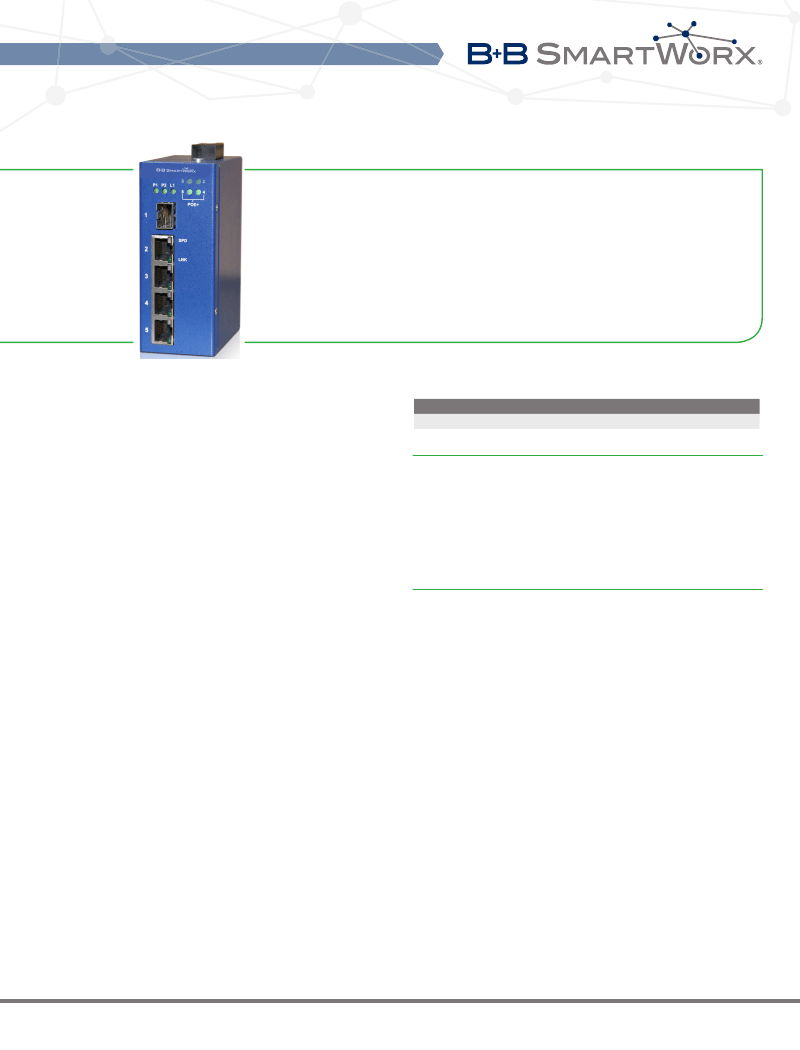

5 Port Industrial PoE+ Ethernet Switch
with SFP Port for Fast Ethernet Fiber
ESWP205-1SFP-T
PRODUCT FEATURES
• IEEE 802.3at/af PoE+ standard ports
• Up to 30 watts output per PoE+ port
• Smart PoE+ over current, over temp & short
circuit protection
• -40° to 85°C operating temperature range
• Industrial IP30 rated DIN rail enclosure
• SFP slot for Fast Ethernet Fiber
• Dual power inputs, 24 to 52 VDC
The ESWP205-1SFP-T
is an Industrial PoE+ Ethernet switch that complies
with IEEE 802.3at standards. It provides four PoE+ 10/100Mbps copper
ports supplying up to 30W of power to PD devices such as CCTV and WI-FI.
An SFP port is available to support 100Mbps fiber SFPs.
Unmanaged and easy to install in a variety of Ethernet applications, it
provides PoE+, dual power inputs, wide temperature and an SFP form
factor. The ESWP205-1SFP-T is designed to work in hard to reach and
harsh environments
Power over Ethernet
PoE+ 802.3at provides 30W of power per port and
is backwards compatible with 802.3.af devices. The switch detects and
classifies a PD device before providing the required power to the PD
device. PoE power simplifies the installation of PD devices by eliminating
the need for additional cable and power supplies.
Dual Power Input:
To reduce the risk of power failure, the ESWP205-
1SFP-T provides two 24 to 52 VDC power inputs. If the power fails, the
switch will automatically use the secondary power input.
Flexible Mounting:
The switch features a space saving IP30 metal
enclosure that can be DIN or Panel mounted.
Small Form-factor Pluggable (SFP) Port:
The SFP Port provides
flexibility when planning a network. The slot can accept any MSA-
compliant SFP module. Available in 100Mbps fiber types for SM, MM and
SSF.
Wide Operating Temperature:
With an operating temperature of -40 to
85°C (-40 to 185°F), this switch is suitable for use in some of the harshest
industrial environments.
Easy Troubleshooting:
There are two LED indicators for each copper
port that display the link status and transmission speed. There are two
LED indicators for power (P1, P2) display power status. There are LED
indicators for each copper PoE+ port that show the status of PoE+ power,
to indicate if a PD device is connected and functioning.
ORDERING INFORMATION
MODEL NUMBER
DESCRIPTION
ESWP205-1SFP-T
Industrial Fast Ethernet Switch (4 Copper, 1 SFP)
ACCESSORIES
808-38101 - IE-SFP/155-ED, MM850-LC, 2KM
808-38103 - IE-SFP/155-ED, SM1310-LC, 20KM
808-38104 - IE-SFP-155-ED, SM1310/PLUS-LC, 40KM
SDR-240-24
- DIN rail mount power supply 24VDC, 10A, 240W output power
WWW.IMCNETWORKS.COM
ESWP205-1SFP-T_3515ds
5 Port Industrial PoE+ Ethernet Switch
with SFP Port for Fast Ethernet Fiber
ESWP205-1SFP-T
SPECIFICATIONS
INTERFACE
RJ-45 Ports
4 x 10/100, Auto MDI/MDI-X
PoE Pinout
Alternative B
SFP
SFP form factor for MSA-compliant Fast Ethernet Fiber
P1 (Power 1), P2 (Power 2),
L1 LINK/ACT (SFP Port) LEDs
LED Indicators
RJ-45 Ports have 2 LEDs to indicate LINK/activity
PoE+ 2 ~5 - Indicate PD status
POWER
Input Voltage
Dual 24 to 52 VDC Inputs
Power Connection
Removable Terminal Block
Wire Size
12 to 24 AWG
Power Budget
125 Watts
ENVIRONMENTAL
Operating Temperature - 40 to 85°C (-40 to 185°F)
Storage Temperature
- 40 to 85°C (-40 to 185°F)
Operating Humidity
5 to 95% (Non-condensing)
MECHANICAL
Enclosure
Slim IP30 Metal Enclosure
Mounting
DIN Rail or Panel Mount Attachments
Dimensions
11.0 x 7.6 x 4.5 cm (4.33 x 2.99 x 1.77 in)
Weight
452g
CERTIFICATIONS
Safety
EMI
EMS

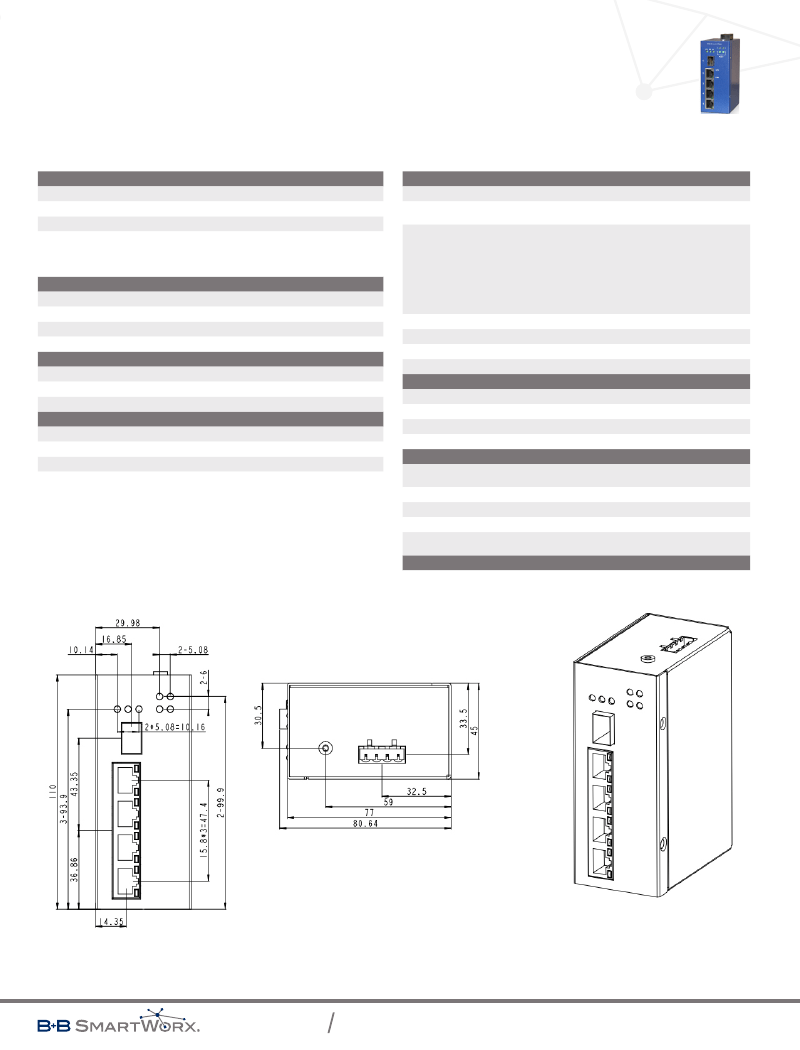

MECHANICAL DIAGRAM
Free Fall
Shock
Vibration
RoHS, REACH, WEEE
IEEE STANDARDS
IEEE 802.3
802.3. 10Base-T Ethernet
IEEE 802.3u
100Base-TX and 100Base-FX Fast Ethernet
IEEE 802.3af/at
Power-over-Ethernet
IEEE 802.3x
Flow Control and Back Pressure
NETWORK SPECIFICATIONS
14,880 pps Ethernet Port
Transfer Rate
148,800 pps Fast Ethernet Port
Buffer
64 Kbits
MAC Table
1K
Jumbo Frame
Up to 1536 bytes
Broadcast Storm Control: Disabled
Other
CSMA/CD
WARRANTY
Limited Lifetime
IEC/UL/EN60950-1
CE, FCC Part 15, EN55022: Class A
CE EN61000-6-4 (Industrial)
CE EN61000-4-2 (ESD)
CE EN61000-4-3 (RS)
CE EN61000-4-4 (EFT)
CE EN61000-4-5 (Surge)
CE EN61000-4-6 (CS)
CE EN61000-4-8
CE EN61000-4-11
CE EN61000-6-2 (Industrial)
IEC60068-2-32
IEC60068-2-27
IEC60068-2-6
