74VHCT240A Octal Buffer/Line Driver with 3-STATE Outputs
May 2007

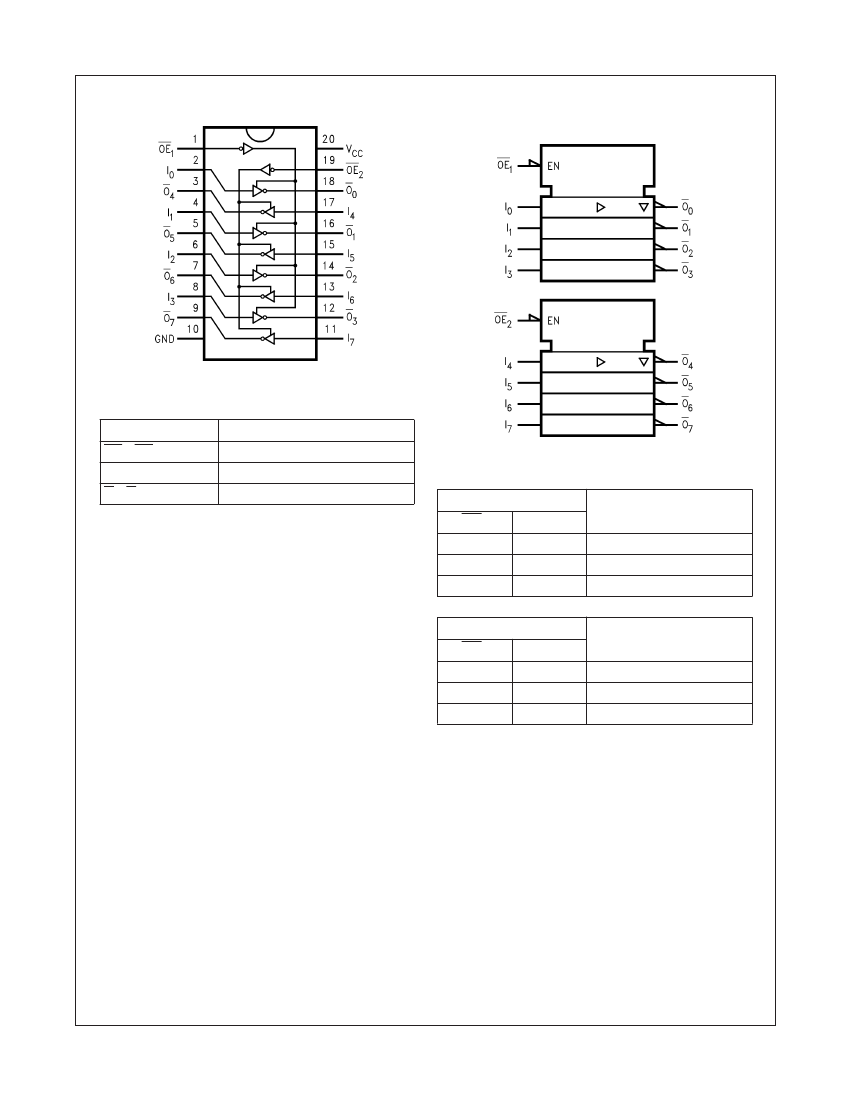

74VHCT240A
Octal Buffer/Line Driver with 3-STATE Outputs
Features
■
High Speed: t
PD
=
5.6ns (Typ.) at V
CC
=
5V
■
Power down protection is provided on inputs and
tm
General Description
The VHCT240A is an advanced high speed CMOS octal
bus transceiver fabricated with silicon gate CMOS
technology. It achieves high speed operation similar to
equivalent Bipolar Schottky TTL while maintaining the
CMOS low power dissipation. The VHCT240A is an
inverting 3-STATE buffer having two active-LOW output
enables. This device is designed to be used as 3-STATE
memory address drivers, clock drivers, and bus oriented
transmitter/ receivers.
Protection circuits ensure that 0V to 7V can be applied to
the input and output
(1)
pins without regard to the supply
voltage. These circuits prevent device destruction due to
mismatched supply and input/output voltages. This
device can be used to interface 5V to 3V systems and
two supply systems such as battery back up.
Note:
1. Outputs in OFF-State
outputs
■
Low power dissipation: I
CC
=
4
µ
A (Max.) @ T
A
=
25°C
■
Pin and function compatible with 74HCT240
Ordering Information
Order Number
74VHCT240AM
74VHCT240ASJ
74VHCT240AMTC
Package
Number
M20B
M20D
MTC20
Package Description
20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300" Wide
20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
20-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm
Wide
Surface mount packages are also available on Tape and Reel. Specify by appending the suffix letter “X” to the
ordering number. Pb-Free package per JEDEC J-STD-020B.
