26.9 x 13.0 x 2.5 mm SMT Bluetooth Module
FCC ID# A8RABBTM2-4G
FEATURES:
• Bluetooth Spec v2.0+EDR Compliant
• Class 2, up to 10-meter range
• Complete 2.4GHz Bluetooth
®
System
• Power management: low power 1.8V operation for Bluetooth
®
core
• Compact size: 26.9mm (L) x 13 (W) mm x 2.5mm (H)
• Bluetooth
®
Profile Supported: SPP
• Internal antenna
• On-board flash memory (8Mbits)
• Surface mount module for embedded applications
• Several firmware options
• Rewritable flash memory for easy upgrade route
• Custom firmware production available
ABBTM-2.4GHz-T
Compliant to MSL level 3
Pb
RoHS
Compliant
26.9 x 13.0 x 2.5 mm SMT
| | | | | | | | | | | | | | |
APPLICATIONS:
• Hand-held devices
• Printers
• Personal Navigation Devices
• PDAs and other portable terminals
GENERAL DESCRIPTION
Abracon's
ABBTM
is a complete Bluetooth® solution. It is built on
CSR
BC04-External Core and 8Mbit Flash memory. It’s a short range,
compact and cost effective module. Designed to be embedded into electronic devices needing Bluetooth® connectivity.
The
ABBTM
module is a power class2 Bluetooth® device, and is in compliance with version 2.0+EDR of the Bluetooth® specification. It
includes
CSR
BC04-External Core and 8Mbit Flash memory, internal antenna, supporting circuitry, together with higher-level software proto-
cols and applications such as L2CAP, SDP and GAP are resident in the flash memory.
Operating Frequency Band
Bluetooth Specification
Output
Power
Class
Operating
Voltage
Host Interface
Audio Interface
Flash
Memory
Size
2.4GHz ~ 2.48GHz Unlicensed ISM Band
V2.0 +
EDR
Class
2
+3.3V
UART
PCM
Interface
8 MB
ELECTRICAL SPECIFICATIONS:
Absolute Maximum Ratings
Minimum
-40ºC
-0.4V
VSS-0.4V
Maximum
+150ºC
5.6V
VDD+0.4V
Storage
temperature
Supply
voltage: VBAT
Other
terminal voltages
Recommended Operating Conditions
Minimum
Operating
temperature range
-40ºC
Guaranteed RF
performance range
-40ºC
Supply
voltage: VBAT
2.2V
Maximum
+85ºC
+85ºC
4.2V
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CERTIFIED
LLC
2 Faraday, Suite#
B
|
Irvine
|
CA 92618
Revised: 05.01.15
Ph. 949.546.8000
|
Fax.
949.546.8001
Visit
www.abracon.com
for Terms and Conditions of
Sale
26.9 x 13.0 x 2.5 mm SMT Bluetooth Module
FCC ID# A8RABBTM2-4G
POWER CONSUMPTION
ABBTM-2.4GHz-T
Pb
RoHS
Compliant
Connection
Type
-
Master
Master
Master
Slave
Master
Slave
-
UART Rate
(kbps)
115.2
115.2
115.2
38.4
38.4
38.4
38.4
38.4
Average
0.42
4.60
10.3
0.37
0.42
19.8
19.0
40
Unit
mA
mA
mA
mA
mA
mA
mA
µA
26.9 x 13.0 x 2.5 mm SMT
| | | | | | | | | | | | | | |
Operation Mode
Page scan
ACL No traffic
ACL With file transfer
ACL 1.28s sniff
ACL 1.28s sniff
SCO HV3 30ms sniff
SCO HV3 30ms sniff
Standby Host connection
Note:
Low power mode on the linear regulator is entered and exited automatically when the chip enters/leaves Deep Sleep mode.

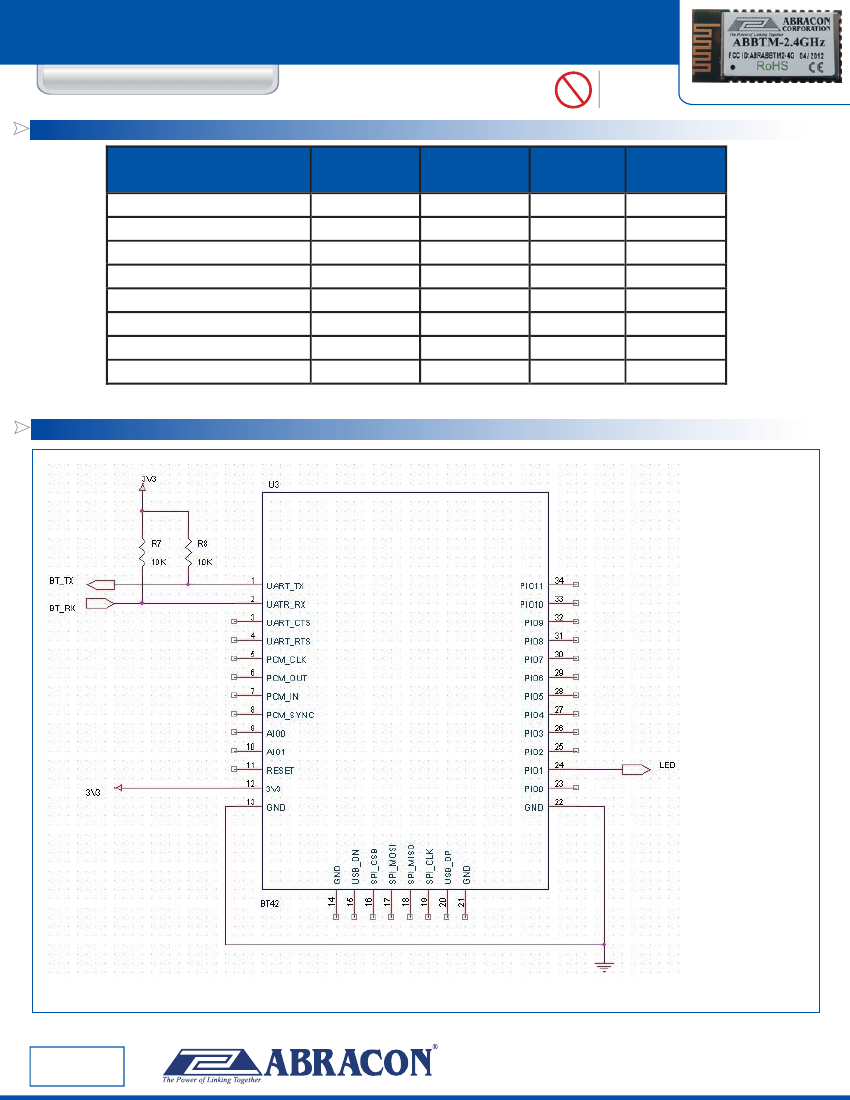

REFERENCE CIRCUIT
BT_TX
BT_RX
3V3
LED
BlueTooth UART Tx
BlueTooth UART RX
Module Power
State indication
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CERTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 05.01.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
26.9 x 13.0 x 2.5 mm SMT Bluetooth Module
Firmware Configuration
a) UART Baud:
b) BlueTooth Name:
c) Pin Code:
Software Description
1.
2.
3.
4.
5.
After Power on 3V3, the module is connectable and Pairing
ABBTM-2.4GHz-T can be found with the name “ABBTM” via any Bluetooth device
Input the Pincode “0000”, you can pair with the module named “ABBTM”
Then the ABBTM can be connected
Data can be transferred between the ABBTM and any other Bluetooth device
100mS High Level per 2S
always on
FCC ID# A8RABBTM2-4G
115200 , N, 8, 1
ABBTM
0000
ABBTM-2.4GHz-T
Pb
RoHS
Compliant
26.9 x 13.0 x 2.5 mm SMT
| | | | | | | | | | | | | | |
State Indicator
a) Connectable and discoverable LED:
b) Connected LED:

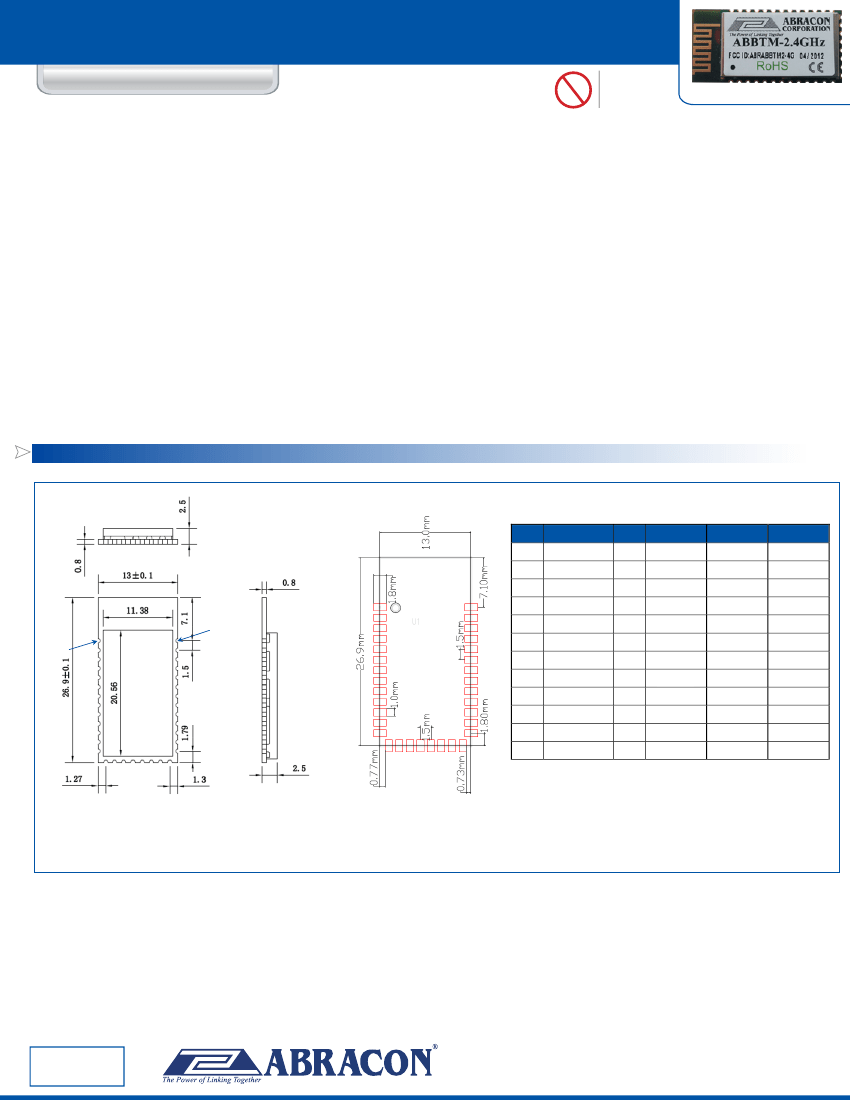

MECHANICAL DIMENSIONS
Recommended Land Pattern
No.
1
2
3
4
Pin # 34
Pin # 1
Pin Name
UART-TX
UART-RX
UART-CTS
UART-RTS
PCM-CLK
PCM-OUT
PCM-IN
PCM-SYNC
AI0 (0)
AIO (1)
RESET
+3.3V
No.
13
14
15
16
17
18
19
20
21
22
23
24
Pin Name
GND
GND
NC
SPI-CSB
SPI-MOSI
SPI-MISO
SPI-CLK
NC
USB D+
GND
GND
PIO (0)
PIO (1)
No.
25
26
27
28
29
30
31
32
33
34
Pin Name
PIO (2)
PIO (3)
PIO (4)
PIO (5)
PIO (6)
PIO (7)
PIO (8)
PIO (9)
PIO (10)
PIO (11)
5
6
7
8
9
10
11
12
Note: Specified dimensions without tolerance are listed for reference purposes only.
Dimensions: mm.
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CERTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 05.01.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
26.9 x 13.0 x 2.5 mm SMT Bluetooth Module
FCC ID# A8RABBTM2-4G
PIN DESCRIPTION
Pin
#
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Name
UART-TX
UART-RX
UART-CTS
UART-RTS
PCM-CLK
PCM-OUT
PCM-IN
PCM-SYNC
AIO(0)
AIO(1)
RESETB
3.3V
GND
GND
USB D-
NC
SPI-CSB
SPI-MOSI
SPI-MISO
SPI-CLK
USB D+
NC
GND
GND
PIO(0)
Type
CMOS Output
CMOS Input
CMOS Input
CMOS Output
Bi-directional
CMOS Output
CMOS Input
Bi-directional
Bi-directional
Bi-directional
CMOS Input
POWER
GND
GND
Bi-directional
NC
CMOS Input
CMOS Input
CMOS Output
CMOS Input
Bi-directional
NC
GND
GND
Bi-directional with
programmable
strength
Bi-directional with
programmable
strength
Bi-directional
Bi-directional
Bi-directional with
programmable
strength
Bi-directional with
programmable
strength
Bi-directional with
programmable
strength
Bi-directional
Bi-directional
Bi-directional
Bi-directional
Bi-directional
Function
UART Data Output
UART Data Input
UART Clear To Send Active Low
UART Request To Send Active Low
Synchronous Data Clock
Synchronous Data Output
Synchronous Data Input
Synchronous Data Sync
Programmable Input/Output Line
Programmable Input/Output Line
Reset if low.Input debounced so must be
low for>5ms to cause a reset
+3.3V Supply
Ground
Ground
USB Data Minus
Chip Select For Synchronous Serial Interface
Serial Peripheral Interface Data Input
Serial Peripheral Interface Data Output
Serial Peripheral Interface Clock
USB Data Plus with selectable internal 1.5KΩ
Ground
Ground
Control output for external LNA (if fitted)
ABBTM-2.4GHz-T
Pb
RoHS
Compliant
26.9 x 13.0 x 2.5 mm SMT
| | | | | | | | | | | | | | |
24
25
26
27
PIO(1)
PIO(2)
PIO(3)
PIO(4)
Control output for external PA (if fitted)
Programmable Input/Output Line
Programmable Input/Output Line
Programmable Input/Output Line or
optional
BT_Priority/CH_Clk output for co-
Programmable Input/Output Line or
optional
BT_Active output for co-existence
Programmable Input/Output Line or
optional
WLAN_Active/Ch_Data input for co-
Programmable Input/Output Line
Programmable Input/Output Line
Programmable Input/Output Line
Programmable Input/Output Line
Programmable Input/Output Line
28
PIO(5)
29
30
31
32
33
34
PIO(6)
PIO(7)
PIO(8)
PIO(9)
PIO(10)
PIO(11)
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CERTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 05.01.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
26.9 x 13.0 x 2.5 mm SMT Bluetooth Module
FCC ID# A8RABBTM2-4G

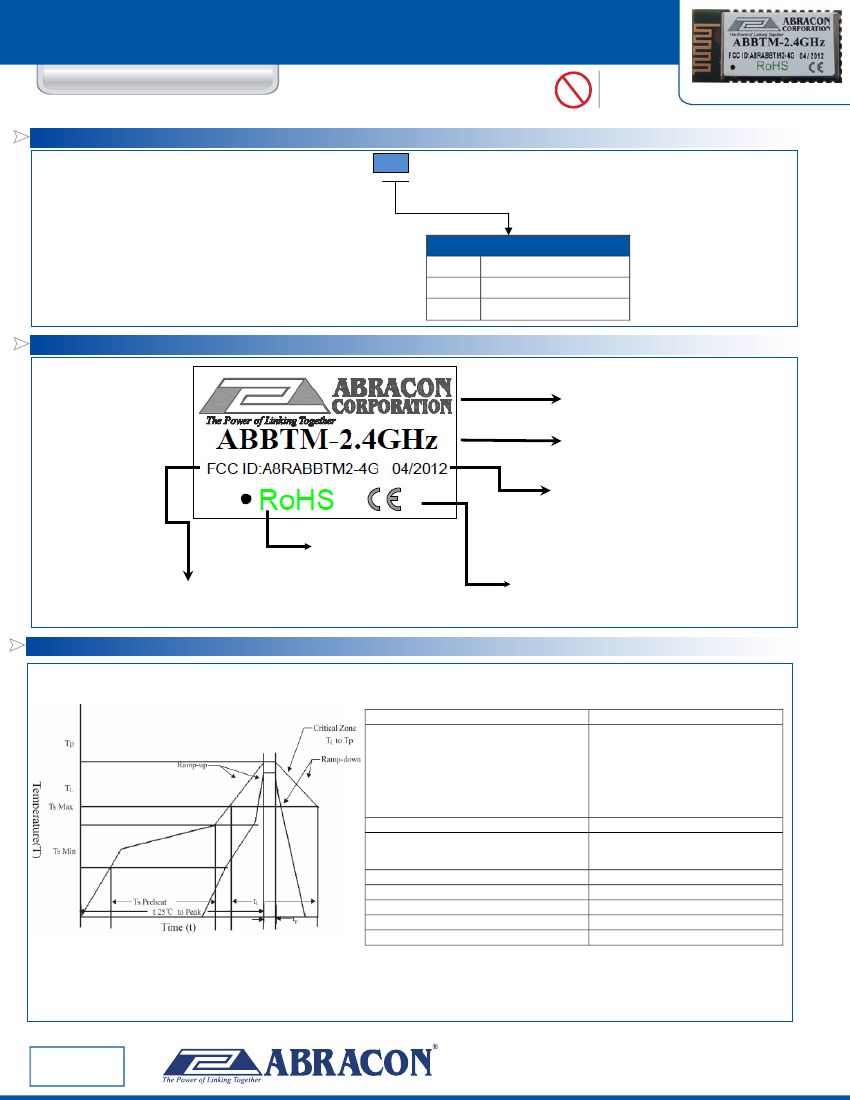

PART IDENTIFICATION:
ABBTM-2.4GHz-T
Pb
RoHS
Compliant
26.9 x 13.0 x 2.5 mm SMT
| | | | | | | | | | | | | | |
ABBTM-2.4GHz -
Packaging Options
Blank
Bulk
T
500 units per reel
T2
250 units per reel
MARKING
Line #1:
Abracon Logo
Line #2:
Abracon Part #
Line #3:
Date Code
(wk / year)
Line #4:
RoHS
Line #4:
CE Certification Symbols
Line # 3:
FCC ID
REFLOW PROFILE
T
S
max to T
L
(Ramp-up Rate)
Preheat
Temperature Min. (T
S
Min.)
Temperature Typical (T
S
Typ.)
Temperature Max. (T
S
Max.)
Time (t
S
)
Ramp-up rate (T
L
to T
p
)
Time Maintained Above:
--Temperature (T
L
)/Time (T
L
)
Peak Temperature (T
p
)
Target Peak Temperature (T
p
Target)
Time within 5°C of actual peak (t
p
)
Ramp-down Rate
Tune 25°C to Peak Temperature (t)
3°C/second max.
150°C
175°C
200°C
60 ~ 180 seconds
3°C/second max.
217°C/60 ~ 150 seconds
250°C max. for 10 seconds
250°C +0/-5°C
20 ~ 40 seconds
6°C/second max.
8 minutes max.
