MeshConnect™
Module Series
Module and Extended Range Module
Integrated Transceiver Modules for IEEE 802.15.4
Development Kits available: ZICM2410P0-KIT2-1, ZICM2410P2-KIT1-1
N
O
T
FO R
EC
R
N O
EW M
M
D EN
ES D
IG ED
N
DESCRIPTION
CEL's MeshConnect™ Module Series provides high performance
and low cost 2.4 GHz IEEE 802.15.4 modules for a broad range
of wireless networks. The MeshConnect certified and quali-
fied modules, enable customer to accelerate time to market by
greatly reducing design and certification phases of development.
CEL's MeshConnect™ radio modules leverage the advanced
features of the MeshConnect™ Integrated Circuit (IC). The
IC is a true single-chip solution, compliant with IEEE 802.15.4
specifications, a complete wireless solution for all applications.
The IC consists of an RF transceiver with baseband modem,
a hardwired MAC and an embedded 8051 microcontroller with
internal Flash memory. The device provides numerous general-
purpose I/O pins, peripheral functions such as timers and UARTs
and is one of the first devices to provide an embedded Voice
CODEC. This device is also ideal for low power applications.
The original MeshConnect module delivers excellent performance
at a surprisingly low cost. The module’s +6dBm output power
means better range, more reliable transmission and fewer nodes
in your network. It also makes these modules ideal for applica-
tions where cost and power constraints do not allow for external
power amplifiers or peripheral range extension components.
MeshConnect
™
Module Series
•
•
•
•
•
•
•
•
The MeshConnect Extended Range module adds a power ampli-
fier (PA) and low noise amplifier (LNA) to increase range to over
two miles - plus more reliable transmission and fewer nodes in
your network. It is especially useful for open outdoor applica-
tions where the nodes are physically far apart, or for indoor use
where the nodes have to operate in a noisy RF environment.
The Extended Range Module’s outstanding +123 dB budget link
ensures high quality connections even in such harsh environments.
APPLICATIONS
• High RF performance:
- Up to 123 dB RF Link Budget
- RX Sensitivity: -97 dBm and -103.0 dBm
- RF TX Power:+6 dBm and +20 dBm
• Scalable Data Rate: 250 kbps, 500 kbps and 1Mbps
• Small footprint: 1” x 1.413” (25.4 mm x 35.9 mm)
• Voice Codec Support: µ-law/a-law/ADPCM
• 4 Level Power Management Scheme w/ Deep Sleep Mode (0.3 µA)
• Integrated PCB trace antenna
• 16 RF channels
• Range:
- ZICM2410P0: 2000+ feet (609+ meters)
- ZICM2410P2: 16000+ feet (4876+ meters)
• AES 128-bit encryption
• Extended software support:
- SNAP™
- SMAC, MAC
- Audio
• FCC, CE and IC certifications
• ROHS compliant
FEATURES
96 kB FLASH Memory
8 kB SRAM
8051 MCU core
up to 22 GPIO Pins
SPI (Master/Slave) + UARTs
I
2
S/PCM Interface with two 128-byte FIFOs
µ-law/a-law/ADPCM Voice Codec
4-channel 8-bit ADC
Industrial Controls
ORDERING INFORMATION
Part Number
ZICM2410P0-1
• Food processing controls
• Traffic Management
• Sensor Networks
• Asset Management
• Barcode reader
• Patient Monitoring
• Glucose monitor
Home &
Building Automation
• Security
• HVAC control
• Lighting control
• Thermostats
Order Number
Description
Mins/Mults
140 / 140
14 0 / 140
140 / 140
14 0 / 140
1/1
140 /140
14 0 / 140
140 /140
14 0 / 140
1/1
Page 1
+6 dBm Output power, PCB Trace antenna
MeshConnect™
Module
ZICM2410P0-1-SN
ZICM2410P0-1C
+6 dBm Output power, PCB Trace antenna, SNAP OS with MAC address
+6 dBm Output power, with u.FL Connector for external antenna
+6 dBm Engineering Development Kit
+20 dBm Output power, PCB Trace antenna
ZICM2410P0-1C-SN
ZICM2410P0-KIT2-1
ZICM2410P2-2
ZICM2410P2-2-SN
ZICM2410P2-2C
ZICM2410P2-2C-SN
ZICM2410P2-KIT1-1
+6 dBm Output power, with u.FL Connector for external antenna, SNAP OS with MAC address
MeshConnect™
Extended Range
Module
+20 dBm Output power, PCB Trace antenna, SNAP OS with MAC address
+20 dBm Output power, with u.FL Connector for external antenna
+20 dBm Output power, with u.FL Connector for external antenna, SNAP OS with MAC address
Evaluation board for +20 dBm module
The information in this document is subject to change without notice, please confirm data is current
Document No: 0007-00-07-00-000 (Issue E)
Date Published: June 14, 2012
MeshConnect™
Module Series

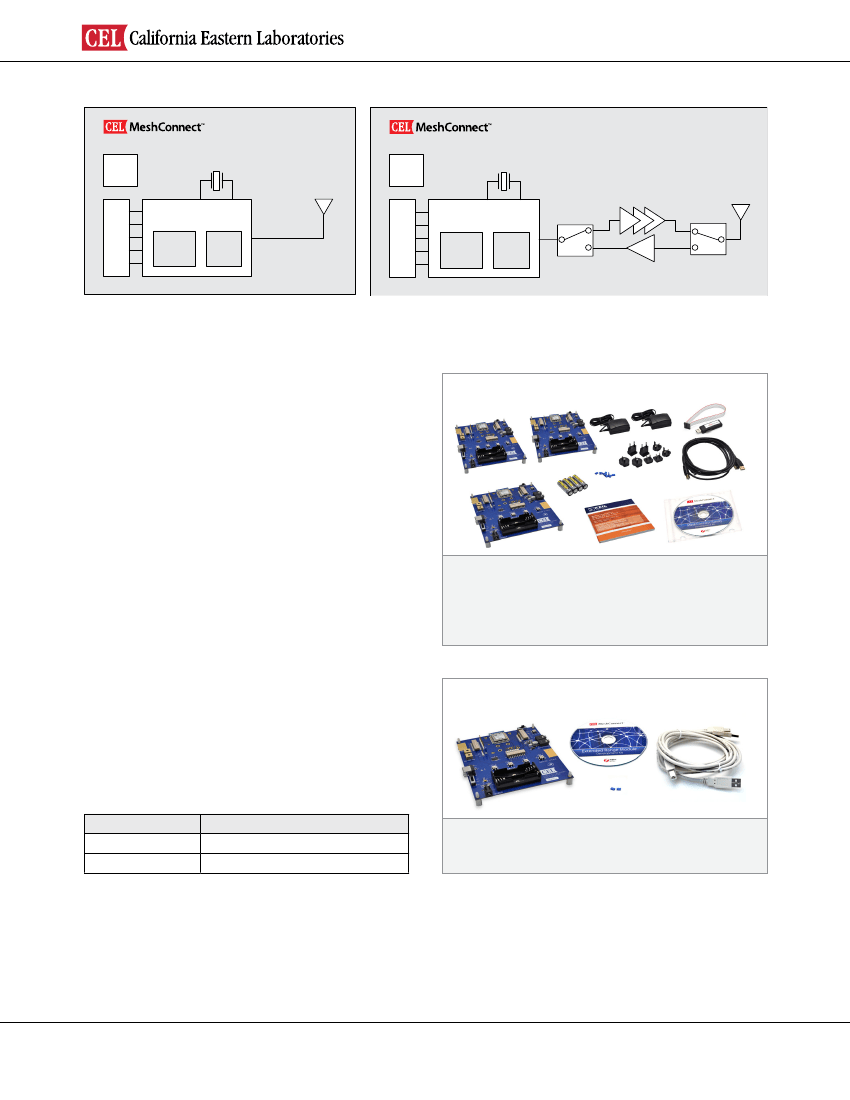

MODULE BLOCK DIAGRAM
