SBC81206VGG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Module/solution> SBC81206VGG

SBC81206VGG: DescriptionSingle Board Computers; CategoryModule/solution; File Size126KB，1 Pages; ManufacturerAxiomtek; Websitehttp://www.axiomtek.com/

Download Datasheet Parametric Compare View All

SBC81206VGG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SBC81206VGG	-	-	View	Buy Now

SBC81206VGG Overview

Single Board Computers

SBC81206VGG Parametric

Parameter Name	Attribute value
Product Category	Single Board Computers
Manufacturer	Axiomtek
Form Factor	PICMG 1.0
Processor Brand	Intel
Processor Type	Intel Core 2 Duo/Pentium D/Pentium 4/Celeron
Frequency	2.4 GHz, 3.3 GHz, 3.33 GHz
Memory Size	2 GB
Interface Type	Audio, Ethernet, IDE, PS/2, RS-232, RS-422, RS-485, SATA, USB, VGA
Operating Supply Voltage	3.3 V, 5 V, +/- 12 V
Maximum Operating Temperature	+ 60 C
Dimensions	338 mm x 122 mm x 1.6 mm
Battery Backup Switching	Backup Battery
Chipsets	945GC, ICH/7R
Core	Intel Core 2 Duo, Intel Pentium D, Intel Pentium 4, Intel Celeron
Description/Function	LGA775 socket PICMG 1.0 full size CPU card with VGA, 2 10/100/1000 Mbps ethernet
Memory Type	DDR2
Minimum Operating Temperature	0 C
Processor Series	Intel Core 2 Duo, Intel Pentium D, Intel Pentium 4, Intel Celeron
Factory Pack Quantity	1

Preview

Download Datasheet

View All

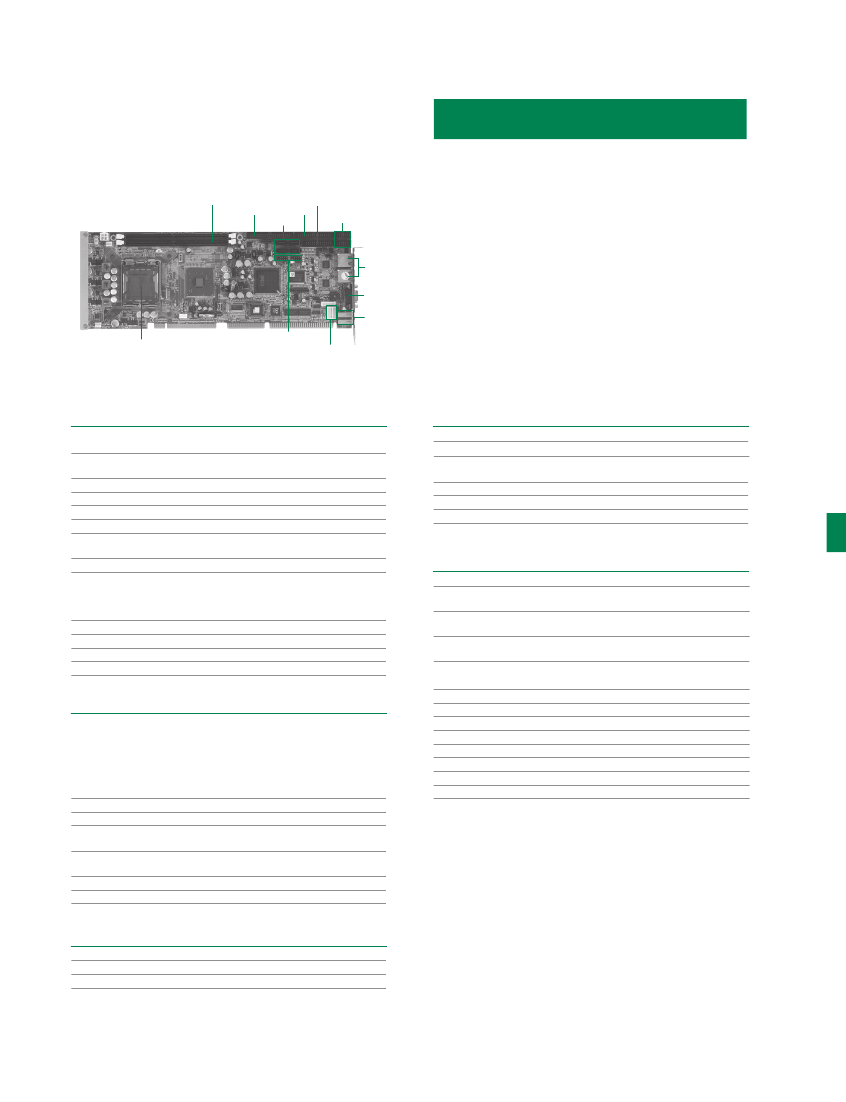

SBC81206

LGA775 Intel

Core™2 Duo PICMG 1.0

Full-size CPU Card with Intel

945GC +

ICH7/7R Chipset, VGA and Dual LANs

DDR2 DIMM

LPT

PATA-100

FDD

COM 1/2

SATA-300

Features

●

LGA775 for Intel Core™2 Duo/ Pentium D/ Pentium 4/

Celeron

processors with 533/800 MHz

●

2 DDR2 DIMM support up to 2 GB memory capacity

●

With Intel GMA 950 high performance integrated

graphics controller

●

ISA with up to 500mA high drive supported

SBC

Services

and Solutions

Systems

Modules

Embedded

SBCs

>EPIC

Embedded

SBCs

>3.5" Capa

Embedded

SBCs

>Nano-ITX

Ethernet

VGA

USB

LGA775

USB

Internal K/B+M/S

System

CPU

System Memory

Chipset

BIOS

SSD

Watchdog Timer

Expansion Interface

Battery

Power Requirements

LGA775 socket for Intel

Core™2 Duo/ Pentium

Pentium

/Celeron

processors with FSB 533/800 MHz

2 x 240-pin DIMM support DDR2-400/533/667 max.

up to 2 GB

Intel

945GC + ICH7/7R

Phoenix-Award

IDE DoM

255 levels, 1~255 sec.

4 x 32-bit PCI bus masters

16-bit ISA bus

Lithium 3V/220 mAH

Intel

Core™2 Duo E4500 @2.2 GHz, 1 GB DDR2

+5V_SBY @ 24mA, +3.3V @ 130mA, +5V @ 1.486A,

+12V (System) @ 951mA, -12V @ 44mA, +12V (CPU)

@ 2.002A

338 x 122 mm

1.6 mm

0° ~ +60°C (32°F ~ 140°F), operation

10% ~ 95% relative humidity, non-condensing

Packing List

Standard

Quick installation guide, user's manual/utility CD and cable

Cable

Part Number

59380502000E

593826A0000E

Embedded

SBCs

>Pico-ITX

Embedded

SBCs

>PC/104

Description

COM+Print cable w/ bracket

SATA signal cable 500 mm

Qty

Industrial

Mother-

boards

Slot

CPU

Cards

Accessories

Ordering Information

Standard

SBC81206VGG

(P/N: E381206100)

SBC81206VGGR

(P/N: E381206101)

SBC81206VG

(P/N: E381206102)

LGA775 socket PICMG 1.0 full-size CPU card with VGA,

2 10/100/1000Mbps Ethernet

LGA775 socket PICMG 1.0 full-size CPU card with VGA,

2 10/100/1000Mbps Ethernet and RAID

LGA775 socket PICMG 1.0 full-size CPU card with VGA,

10/100/1000Mbps Ethernet

Appendix

Size

Board Thickness

Temperature

Relative Humidity

I/O

MIO

1 x IDE; PATA-100

1 x FDD

1 x PS/2 keyboard

1 x PS/2 mouse

1 x LPT; with SPP/EPP/ECP supported

1 x RS-232 (COM 1)

1 x RS-232/422/485 (COM 2)

4 x SATA-300; with RAID 0/1/10/5 (optional with ICH7R)

Detect CPU/system temperature, voltage and fan speed

2 ports as 10/100/1000Mbps support Wake-on-LAN,

RPL/PXE Boot ROM with Realtek RTL8111B

HD Codec audio as MIC-in/Line-in/Line-out/speaker-out

with audio kit AX93242 (optional)

6 x USB 2.0

System Management Bus for advanced monitoring/control

SATA

Hardware Monitoring

Ethernet

Audio

USB

SMBus

Optional

E9C900B003

CPU LGA775 cooler (for 2U/4U/Shoebox)

E9C900B004

CPU LGA775 cooler 4 pin H=61.4 mm (for 2U/4U/Shoebox)

E9C900B005

CPU LGA775 cooler H=27 mm P=2.0 (for 1U Chassis)

E9C900B006

LGA775 cooler 3p H=66.8 mm (for 2U/4U/Shoebox)

E9C900B007

LGA775 slim cooler H=25 mm (for 1U Chassis)

5938A808010E

2 x USB cable with bracket, P=2.54 mm, L=190 mm

59380000290E

PS/2 keyboard & mouse cable with bracket

E93242100

AX93242-RC HD audio converter kit

* This product must use a proprietary CPU cooler.

we strongly recommend purchasing from Axiomtek.

Display

Chipset

Memory Size

Display Interface

Intel

GMA 950 graphics Core

Intel

DVMT 3.0 compliant

1 x VGA

* All specifications and photos are subject to change without notice.

a x io m te k .c om

210

SBC81206VGG Related Products

	SBC81206VGG	SBC81206VG
Description	Single Board Computers	Single Board Computers
Product Category	Single Board Computers	Single Board Computers
Manufacturer	Axiomtek	Axiomtek
Form Factor	PICMG 1.0	PICMG 1.0
Processor Brand	Intel	Intel
Processor Type	Intel Core 2 Duo/Pentium D/Pentium 4/Celeron	Intel Core 2 Duo/Pentium D/Pentium 4/Celeron
Frequency	2.4 GHz, 3.3 GHz, 3.33 GHz	2.4 GHz, 3.3 GHz, 3.33 GHz
Memory Size	2 GB	2 GB
Interface Type	Audio, Ethernet, IDE, PS/2, RS-232, RS-422, RS-485, SATA, USB, VGA	Audio, Ethernet, IDE, PS/2, RS-232, RS-422, RS-485, SATA, USB, VGA
Operating Supply Voltage	3.3 V, 5 V, +/- 12 V	3.3 V, 5 V, +/- 12 V
Maximum Operating Temperature	+ 60 C	+ 60 C
Dimensions	338 mm x 122 mm x 1.6 mm	338 mm x 122 mm x 1.6 mm
Battery Backup Switching	Backup Battery	Backup Battery
Chipsets	945GC, ICH/7R	945GC, ICH/7R
Core	Intel Core 2 Duo, Intel Pentium D, Intel Pentium 4, Intel Celeron	Intel Core 2 Duo, Intel Pentium D, Intel Pentium 4, Intel Celeron
Description/Function	LGA775 socket PICMG 1.0 full size CPU card with VGA, 2 10/100/1000 Mbps ethernet	LGA775 socket PICMG 1.0 full size CPU card with VGA, 10/100/1000 Mbps ethernet
Memory Type	DDR2	DDR2
Minimum Operating Temperature	0 C	0 C
Processor Series	Intel Core 2 Duo, Intel Pentium D, Intel Pentium 4, Intel Celeron	Intel Core 2 Duo, Intel Pentium D, Intel Pentium 4, Intel Celeron
Factory Pack Quantity	1	1
