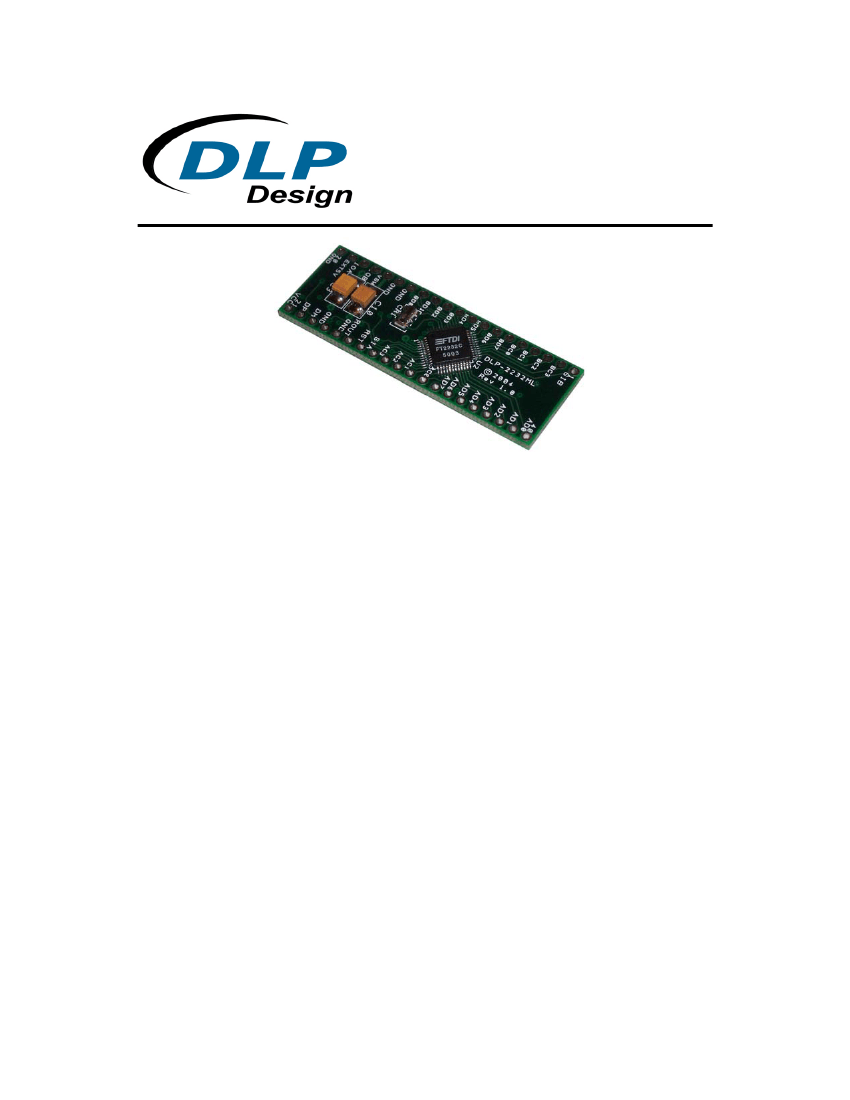

DLP-2232ML LOW-PROFILE USB MODULE
1.0 Introduction
The DLP-2232ML utilizes FTDI's third-generation USB UART/FIFO I.C., the FT2232C.
This low-cost development tool features two Multi-Purpose UART/FIFO controllers that
can be configured individually in several different modes. In addition to the UART
interface, FIFO interface, and Bit-Bang IO modes of the second-generation FT232BM
and FT245BM devices, the FT2232C offers a variety of additional modes of operation
including a Multi-Protocol Synchronous Serial Engine interface designed specifically for
synchronous serial protocols such as JTAG and SPI bus.
The DLP-2232M features a quality four-layer printed circuit board with a solid ground
plane, an integral 93C56 EEPROM on board for easy OEM customization and a standard
40-pin, 0.6in wide footprint. Integral power control and on-board MOSFET power
switch make the DLP-2232M a perfect choice for USB bus-powered, high-power designs
as well as self- and low-powered products.
NOTE: With the exception of the mechanical connectors, mechanical dimensions and the
host connection interface signals, the DLP-2232ML and DLP-2232M are the same
product. The supporting electronics for the USB connector are already on the DLP-
2232ML board, just add a type B connector to your design and you’re ready to go.
For a complete list of features and specifications please refer to the datasheet for the
DLP-2232M.
Rev 1.1 (July 2004)
1
DLP-2232ML
DLP Design, Inc.
2.0 Module Pin-Out
1
40
20
C
32
22
FT
21

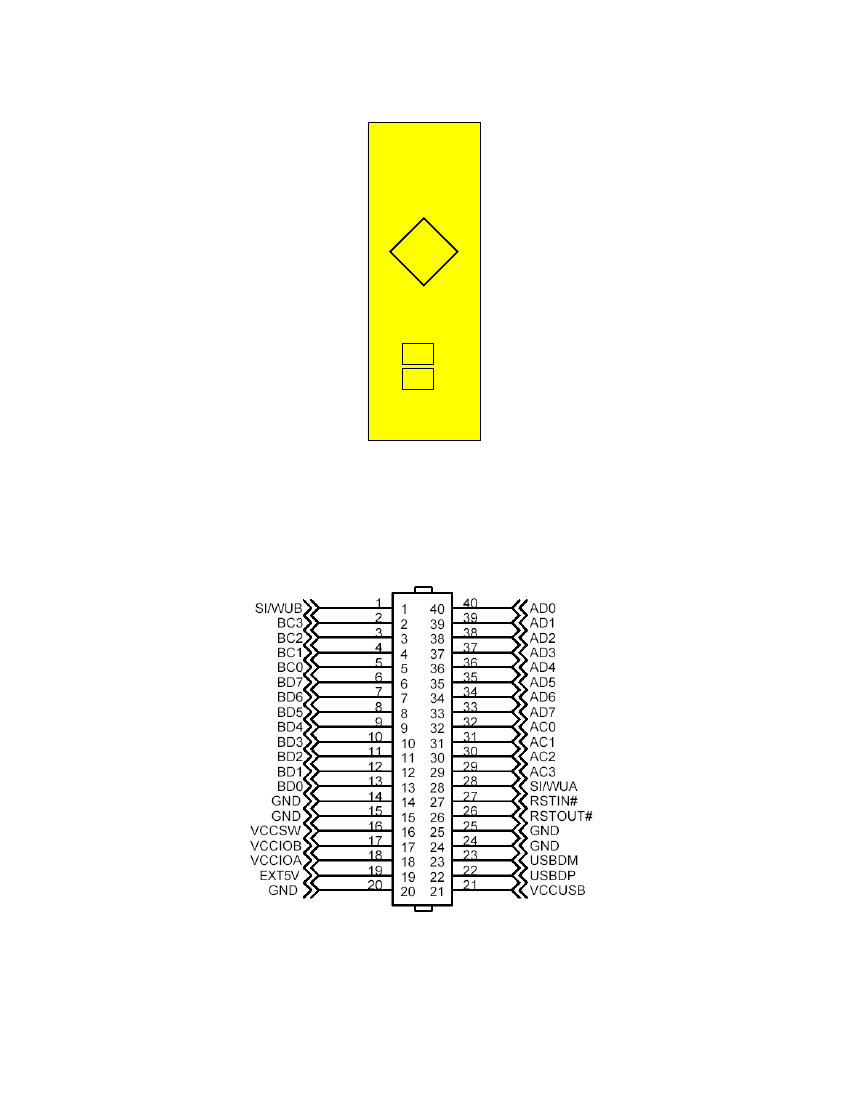

Figure 2. Pin-Out (40 Pin DIP Header )
2.1 Pin Definitions
Since the DLP-2232ML does not have a USB connector, the USBDM and USBDP signal
lines are brought out on pins 23 and 22 as shown here.
With the exception of the 2 USB communications lines (USBDP and USBDM) the
pinout for the DLP-2232ML is the same as the DLP-2232M module. Please refer to the
datasheet for the DLP-2232M for a complete description of the pinout.
Rev 1.1 (July 2004)
2
DLP-2232ML
DLP Design, Inc.
3.0 Mechanical Dimensions
Inches (mm)
>>> Preliminary <<<
0.05 typ.
( 1.3typ.)
2.0 typ.
(50.8 typ.)
0.05 typ.
(1.3 typ.)
0.1 typ.
(2.54 typ.)
.040” ID – Compatible with
.025” square post headers
0.063 typ.
(1.6 typ.)
**
**Components on top and
bottom of PCB
0.7 typ.
(17.8 typ.)
0.17 typ.
(4.4 typ.)
Rev 1.1 (July 2004)
3
DLP-2232ML
DLP Design, Inc.
4.0 Document Revision History
DLP-2232ML Version 1.0 – Initial document created 7-28-2004.
5.0 Disclaimer
© DLP Design, Inc., 2002 / 2004
Neither the whole nor any part of the information contained in, or the product described
in this manual, may be adapted or reproduced in any material or electronic form without
the prior written consent of the copyright holder.
This product and its documentation are supplied on an as-is basis and no warranty as to
their suitability for any particular purpose is either made or implied. DLP Design, Inc.
will not accept any claim for damages howsoever arising as a result of use or failure of
this product. Your statutory rights are not affected. This product or any variant of it is not
intended for use in any medical appliance, device or system in which the failure of the
product might reasonably be expected to result in personal injury.
This document provides preliminary information that may be subject to change without
notice.
6.0 Contact Information
DLP Design, Inc.
1605 Roma Ln.
Allen, TX 75013
Phone: 469-964-8027
Fax: 415-901-4859
E-Mail ( Sales ) :
sales@dlpdesign.com
E-Mail ( Support ) :
support@dlpdesign.com
Web Site URL :
http://www.dlpdesign.com
Rev 1.1 (July 2004)
4
DLP-2232ML
DLP Design, Inc.
