10/100/1000 mbps poE switching
media converter
PoE Giga-McBasic LFPT
product FEaturEs
• Connects 10/100/1000 Mbps copper to 100 or 1000 Mbps fiber SFP
or 10/100/1000 Mbps or 1000 Mbps copper SFP
• Supports Jumbo Frames (up to 10240 bytes
• Rugged standalone metal enclosure with internal power supply
• Features configurable PoE reset on Fiber Loss of Signal (LOS)
• Supports LFPT, a diagnostic feature that can be enabled to assist the
end user in troubleshooting a failed segment
• Supports IEEE 802.3af PoE (15.4W)
The PoE Giga-McBasic LFPT are the perfect solutions for network
applications that require Power over Ethernet for locations inside
buildings where PoE is required to power an Ethernet device. Their
small, table-top design and durability make them perfect for installation
anywhere space is limited. Additionally, both units are manufactured
with an internal AC power supply. This feature significantly increases
reliability over products that use awkward, external AC/DC power
transformers.
The PoE Giga-McBasic LFPT unit comes with one SFP or fixed fiber
transceiver, one PoE/PSE 10/100/1000Base-T copper port that provides
15.4 Watts of power with data, and one 10/100/1000 Mbps copper
port to connect a non-PoE unit to the same fiber uplink. A Link
Fault Pass Through DIP Switch is available, to enable a link LED
troubleshooting feature.
As a fiber-fed media converter, it provides both power and data to a
remote device over standard CAT5, eliminating the need for additional
power to the remote device. The copper ports Auto Negotiate to the
connected device’s speed and duplex mode: 10 Mbps, 100 Mbps or
1000 Mbps, and HDX or FDX (including Flow Control). Additionally, both
models support jumbo frames up to 10240 bytes.
accEssorIEs
895-39226
- Rackmount Bracket
895-39227
- Wallmount Brackets
895-39949
- Rackmount Shelf
ordErIng InFormatIon
Model
FiBer
FiBer
nuMBer
Ports range
Poe giga-McBasic lFPt *
852-11811 SFP
1
Various
852-11812
SX-MM850-SC
1
220/550 m
852-11813
LX-MM1300-SC
1
2 km
852-11814
LX-SM1310-SC
1
10 km
852-11815
LX-SM1310/PLUS-SC
1
40 km
852-11816
LX-SM1550/LONG-SC
1
80 km
852-11817
LX-SM1550/XLONG-SC
1
100 km
Poe giga-McBasic lFPt single-strand Fiber **
852-11820
SSLX-SM1310-SC
1
15 km
(1310 xmt/1550 rcv)
SSLX-SM1550-SC
852-11821 (1550 xmt/1310 rcv)
1
15 km
852-11822
SSBX-SM1310-SC
1
10 km
(1310 xmt/1490 rcv)
852-11823
SSBX-SM1490-SC
1
10 km
(1490 xmt/1310 rcv)
852-11824
SSLX-SM1310/PLUS-SC
1
40 km
(1310 xmt/1550 rcv)
SSLX-SM1550/PLUS-SC
852-11825 (1550 xmt/1310 rcv)
1
40 km
852-11826
SSBX-SM1490/PLUS-SC
1
30 km
(1490 xmt/1310 rcv)
852-11827
SSBX-SM1310/PLUS-SC
1
30 km
(1310 xmt/1490 rcv)
SSLX-SM1490/LONG-SC
852-11828 (1490 xmt/1550 rcv)
1
70 km
SSLX-SM1550/LONG-SC
852-11829 (1550 xmt/1490 rcv)
1
70 km
* SFP Fiber sold separately
ethernet ethernet
Ports
ConneCtor
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
** These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
PoE Giga-McBasic LFPT also available in CWDM Fiber.
Call for details.
www
.
bb
-
elec
.
com
|
PoE Giga-McBasic LFPT_3713ds
10/100/1000 mbps poE switching
media converter
PoE Giga-McBasic LFPT
SpecificationS
Technical
IEEE 802.3 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3u Auto-Negotiation
RFC-2474
RFC-2475 DiffServ QoS
Plug-and-play operation
Accepts RJ-45 and SFP or SC connectors
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Single-strand fiber and CWDM models
FX and TX Auto Negotiation
AutoCross for MDI/MDIX
MTU: Supports Jumbo Frames up to 10240 bytes
Link Fault Pass Through (LFPT)

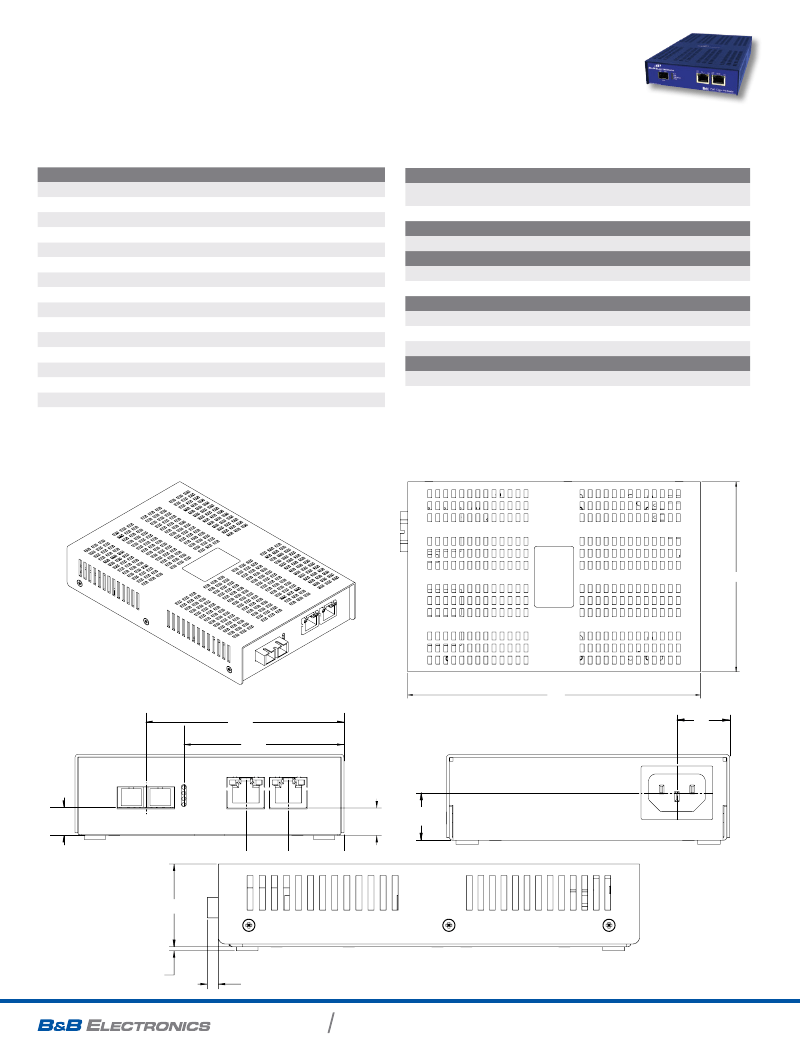

mEchanIcal dIagram
(dimensions in inches)
MeChaniCal
Dimensions
Shipping Weight
inPut sPeCiFiCations
100-240 ±10% VAC, 50/60Hz, 0.5A to 0.2A
Power CharaCteristiCs
Consumes less than 10 watts (heating) plus PSE power
IEEE802.3af Power to field < 15.5 watts
environMental
Operating Temperature
+32° to +122° F (0° to +50° C)
Storage Temperature:
-40° to +185° F (-40° to +85° C)
Operating Humidity
5% to 95% (non-condensing)
regulatory aPProvals
FCC Class A
UL/cUL, CSA, CE
1.46”H x 4.76”W x 7.32”D
(3.71 cm x 12.09 cm x 18.59 cm)
1.3 lbs (0.58 kg)
4.74
7.30
3.49
2.82
.88
.50
.75
.98
.49
.79
1.43
.07
.19
orders@bb-elec.com
support@bb-elec.com
