DynaCOR 10-00
• EN 50155 qualified
• Rugged and low power
• Based on Intel
®
Atom™
• Built-in GPS
• Wi-Fi, 3G, Gigabit Ethernet
• Wide range power supply
• ESF and EDC Ready
Connected, Rugged
Mobile Computer
F EATU RE S
Rugged and compact –
The DynaCOR 10-00 is very powerful,
yet compact mobile computer. With extended temperature range
and rugged circular connectors, it is the ideal platform for harsh
environments both in mobile and industrial applications.
Certified to Perform
– Designed to meet the transportation
market requirements, the DynaCOR 10-00 is EN50155 compliant
and supports features such as opto-isolation on I/O and transient
and surge protection on the wide range power supply.
Connected
– With a wide choice of wireless and wired
communication interfaces, it is simple to integrate this platform
in any vehicle or industrial application.
Low Power and Fanless
– Designed with high efficiency in
mind, the DynaCOR 10-00 delivers exceptional performance and
low power consumption.
M2M Ready
– Ideally suited for Industrial & Rugged M2M
applications to connect data with the business enterprise to
make intelligent and actionable decisions.
ESF & EDC Support
– Available with Everyware Software
Framework (ESF) to speed up application software development
on the device. Also, enjoy the benefits of the Everyware Device
Cloud (EDC) to dramatically cut Time-to-Market when building
scalable, robust applications that integrate devices to business
applications.
The DynaCOR 10-00 is a rugged mobile computer platform that targets
demanding vehicle and industrial installations such as those in heavy industry
machinery, rail networks and rolling stock, buses, etc. Thanks to the very
compact yet rugged design and integration, the system withstands the
mechanical and temperature stresses encountered in harsh environmental
conditions while providing an exceptional set of communication options
needed in diverse use cases.
The DynaCOR 10-00 provides the computational power of the Intel Atom CPU,
the connectivity through Wi-Fi and 3G cellular networks, Dual Gigabit Ethernet,
a high performance GPS and plenty of transportation specific features such as
opto-isolated I/Os, serial ports, USBs and a wide range power supply section.
Being low power, fanless, very compact and EN 50155 certified, the DynaCOR
10-00 is off-the-shelf ready to be integrated in industrial, railway, automotive
and similar applications. In addition, the device is IP65 protected and features
high-end rugged connectors making the DynaCOR 10-00 easy to maintain and
providing long-term reliability in harsh environments.
The DynaCOR 10-00 can leverage Everyware Software Framework (ESF) for
fast and reliable device application development and the Everyware Device
Cloud (EDC) that provides the entire infrastructure to instantly integrate
devices and data into the business enterprise.

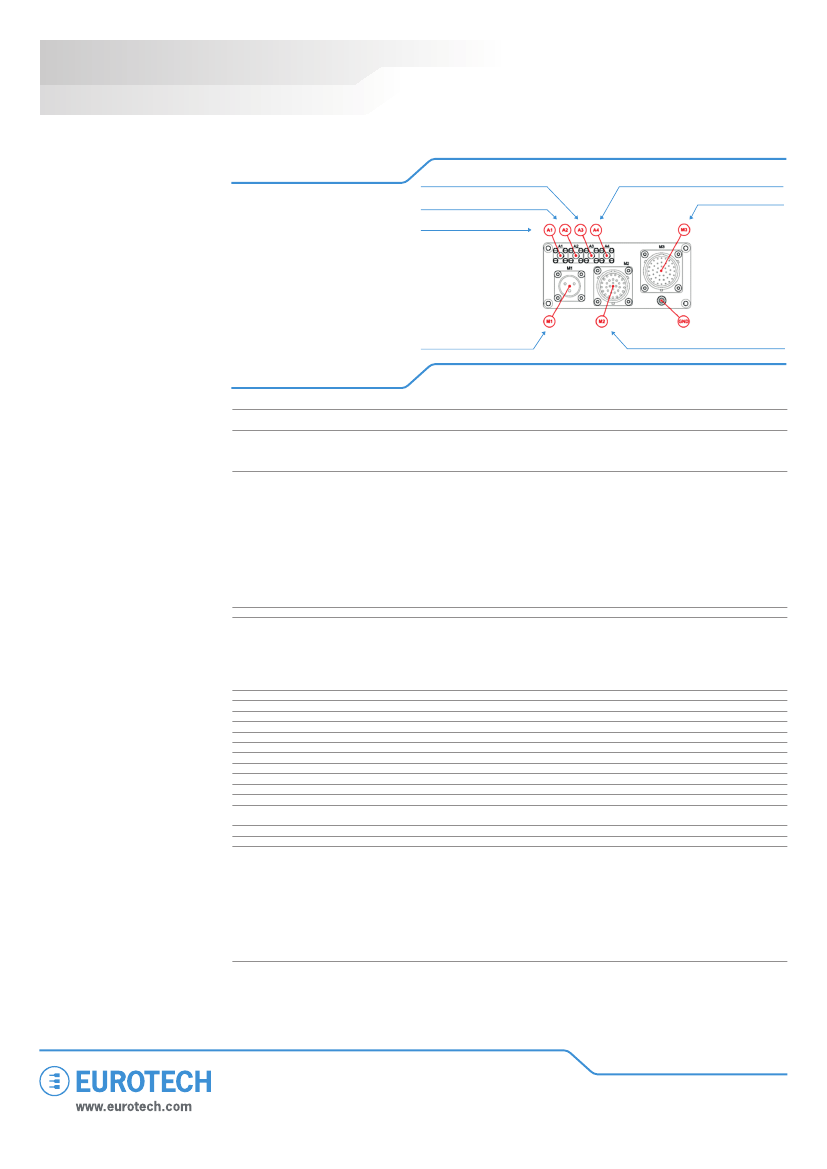

Dyna CO R 1 0 -00
Specifications
Connected, Rugged
Mobile Computer
Mechanical Drawing
Wi-Fi Secondary Antenna
Wi-Fi Primary Antenna
GPS Antenna
HSDPA/GPRS/GSM Antenna
Bus Data Connector
Power Connector
Bus Data Connector
System Architecture
CPU MODULE
MASS STORAGE
WIRELESS
Eurotech Catalyst XL Intel Atom Z510P, 1.1GHz, 512MB RAM soldered on board
2 GB flash disk SSD soldered on board
1 Removable microSDHC card slot for data storage (Maintenance Interface)
A1:
GPS 50 channels Galileo ready, SMA connector
A2:
Wi-Fi 802.11 a/b/g/n Primary, SMA connector
A3:
Wi-Fi 802.11 a/b/g/n Secondary, SMA connector
A4:
HSUPA/HSDPA/UMTS/GPRS modem (data only), SMA connector
M1:
Power IN +24VDC (+, - and earth chassis)
Key Input
M2:
1 x USB 2.0 port (maintenance)
5 x Opto-isolated Digital Output
10 x Opto-isolated Digital Input
1 x Opto-isolated Digital Input Odometer
Audio Ports:
• 1x Stereo Microphone Input
• 1x Stereo Headphones Output
• 1x Speakers Output
M3:
2 x Gigabit Ethernet ports
1x Opto-isolated RS232 serial port
1x Opto-isolated RS422/RS232/RS485 serial port, software configurable
M4 Screw - System ground connection
1x serial interface RS232
2x USB 2.0
1x SIM Card Slot
1x microSDHC slot
4x LED
1x VGA output,
1x Reset pushbutton
10.5 ÷ 36 VDC (Optionally 110 and 72 nominal VDC)
24 hours at 25°C (typical)
19 W
Wind River Linux
Yes
Yes
254 x 129 x 57 mm (L x W x H)
1.5 Kg
-25°C ÷ 55°C EN50155 Class T1 (70°C for 10 min)
-30°C ÷ 80°C
95% relative humidity at +45°C non condensing
Black ultra-light extruded aluminum alloy enclosure
IP65 rating
Fanless design (no moving parts)
> 40000 h (MIL-HDBK-217F GM-25°C)
CE
EN 50155 (Railway applications)
EN 61373 (Vibrations & Shocks)
EN 60950 (Safety)
EN 61000 (Burst Immunity test)
EN 60068 (Temperature test)
Designed to meet:
- DIN-5510-2 (German Fire and Smoke) and ISO-11170 (Italian Fire and Smoke)
- Load Dump (for 24V In): ISO 7637-2 (2004-06)
- AREMA Class C operating temperature requirements on the configurations not including the 3G
modem feature
Cable set with standard connectors for an easy peripherals and I/O connection
INTERFACE
GROUND
MAINTENANCE INTERFACE
POWER SUPPLY
REAL TIME CLOCK
POWER CONSUMPTION
OS SUPPORT
ESF READY
EDC READY
DIMENSIONS
WEIGHT
OPERATING TEMPERATURE
STORAGE TEMPERATURE
HUMIDITY
ENCLOUSURE
COOLING
MTBF
COMPLIANCE EN
PERIPHERALS & ACCESSORIES
Note: The information in this document is subject to change without notice and should not be construed as a commitment by EUROTECH.
While reasonable precautions have been taken, EUROTECH assumes no responsibility for any error that may appear in this document.
All trademarks or registered trademarks are the properties of their respective companies.
ETH_DynaCOR 10-00_DS_05/2016
