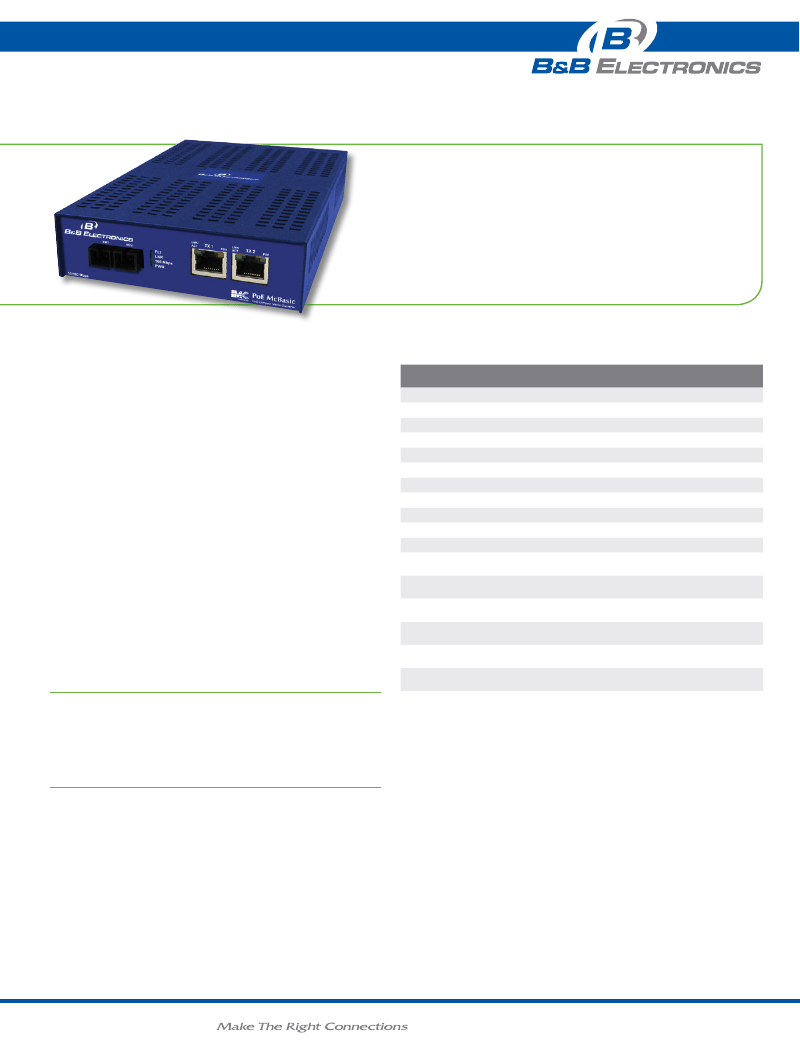

10/100 mbps poE media converter
PoE McBasic LFPT
product FEaturEs
• 3 convenient ports - one 100 Mbps fixed fiber uplink port, one
10/100Base-T PoE/PSE port, and one 10/100 Mbps copper port
• Supports Jumbo Frames (up to 10240 bytes)
• Features configurable PoE reset on Fiber Loss of Signal (LOS)
• Supports LFPT, a diagnostic feature that can be enabled to assist the
end user in troubleshooting a failed segment
• Supports IEEE 802.3af PoE (15.4W) standards
The PoE McBasic LFPT is the perfect solution for network applications
that require Power over Ethernet for locations inside buildings where
PoE is required to power an Ethernet device. The PoE McBasic LFPT
offers three ports - a 100 Mbps fiber uplink for the network connection,
one PoE/PSE 10/100Base-T copper port that provides Power over
Ethernet, and one 10/100 Mbps copper port to connect a non-PoE unit
to the same fiber uplink.
As a fiber-fed media converter, it provides both power (up to 15.4
Watts) and data to a single remote device over standard CAT5,
eliminating the need for additional power to the device. The copper
ports Auto Negotiate to the connected device’s speed and duplex
mode: 10 Mbps or 100 Mbps, and HDX or FDX (including Flow Control).
Additionally, the PoE McBasic LFPT supports jumbo frames up to
10240 bytes.
The PoE McBasic’s LFPT small, table-top design and durability makes
it ideal for installation anywhere space is limited. Additionally, the PoE
McBasic comes with an internal AC power supply. A Link Fault Pass
Through DIP Switch is located on the bottom of the unit, to enable for
link LED troubleshooting.
ordErIng InFormatIon
Model
FiBer
FiBer
nuMBer
Ports
Poe McBasic lFPt
852-11712 MM850-ST
1
852-11713 MM850-SC
1
852-11714 MM1300-ST
1
852-11715 MM1300-SC
1
852-11716 SM1310/PLUS-ST
1
852-11717 SM1310/PLUS-SC
1
852-11718 SM1310/LONG-ST
1
852-11719 SM1310/LONG-SC
1
852-11720 SM1550/LONG-SC
1
Poe McBasic lFPt single-strand Fiber *
852-11730
SSFX-M1310-SC
1
(1310 xmt/1550 rcv)
852-11731
SSFX-SM1550-SC
1
(1550 xmt/1310 rcv)
852-11732
SSFX-SM1310/PLUS-SC
1
(1310 xmt/1550 rcv)
SSFX-SM1550/PLUS-SC
852-11733 (1550 xmt/1310 rcv)
1
852-11734
SSFX-SM1310/LONG-SC
1
(1310 xmt/1550 rcv)
852-11735
SSFX-SM1550/LONG-SC
1
(1550 xmt/1310 rcv)
range ethernet ethernet
Ports
ConneCtor
2 km
2 km
5 km
5 km
40 km
40 km
80 km
80 km
80 km
20 km
2
2
2
2
2
2
2
2
2
2
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
20 km 2
40 km
2
40 km 2
60 km
60 km
2
2
accEssorIEs
895-39226
- Rackmount Bracket
895-39227
- Wallmount Brackets
895-39949
- Rackmount Shelf
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
PoE McBasic LFPT also available in CWDM Fiber. Call for
details.
www
.
bb
-
elec
.
com
|
PoE McBasic LFPT_3713ds
10/100 mbps poE media converter
PoE McBasic LFPT
SpecificationS
Technical
IEEE 802.3 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3af Power over Ethernet
IEEE 802.3u Auto-Negotiation
RFC-2474
RFC-2475 DiffServ QoS
Plug-and-play operation
Accepts RJ-45, SC and ST connectors
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Single-strand fiber and CWDM models
FX and TX Auto Negotiation
AutoCross for MDI/MDIX
MTU: Supports Jumbo Frames up to 10240 bytes
Link Fault Pass Through DIP Switch

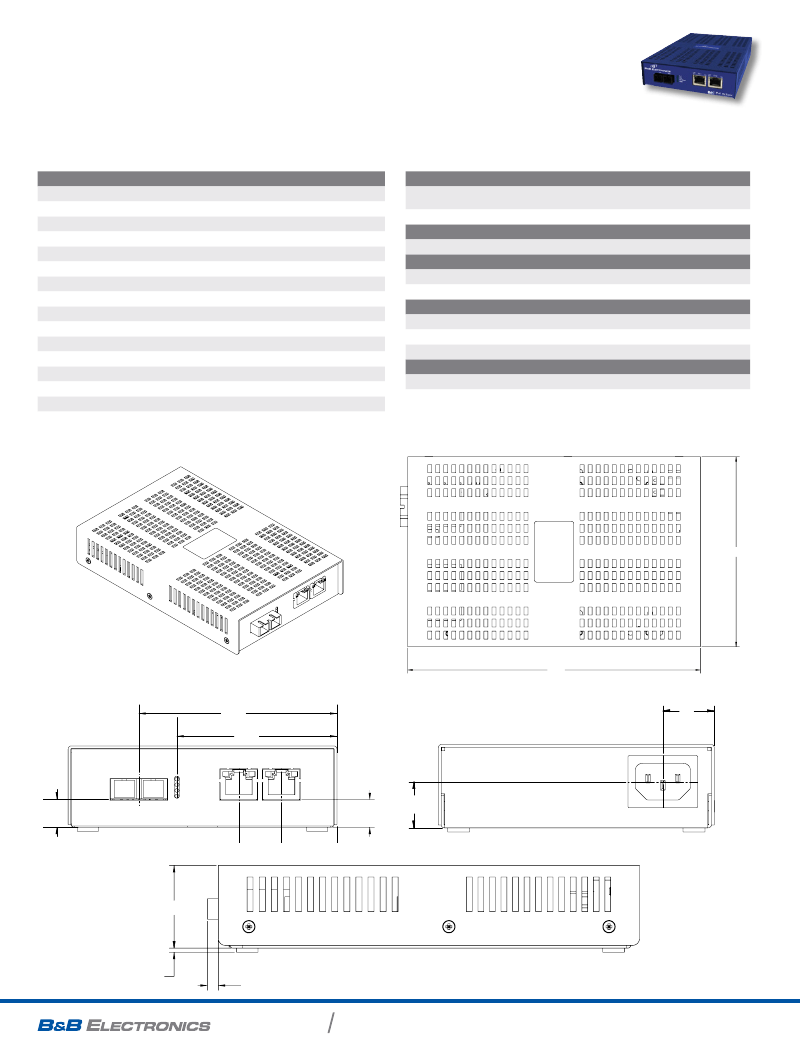

mEchanIcal dIagram
(dimensions in inches)
Mechanical
Dimensions
Shipping Weight
input specifications
100-240 ±10% VAC, 50/60Hz, 0.5A to 0.2A
power characteristics
Consumes less than 10 Watts (heating) plus PSE power
IEEE802.3af Power to field <15.4 Watts
environMental
Operating Temperature
+32° to +122° F (0° to +50° C)
Storage Temperature:
-40° to +185° F (-40° to +85° C)
Operating Humidity
5% to 95% (non-condensing)
regulatory approvals
FCC Class A
UL/cUL, CSA, CE
1.46”H x 4.76”W x 7.32”D
(3.71 cm x 12.09 cm x 18.59 cm)
1.3 lbs (0.58 kg)
4.74
7.30
3.49
2.82
.88
.50
.75
.98
.49
.79
1.43
.07
.19
