Rev: 012208

DS3106 Demo Kit

General Description

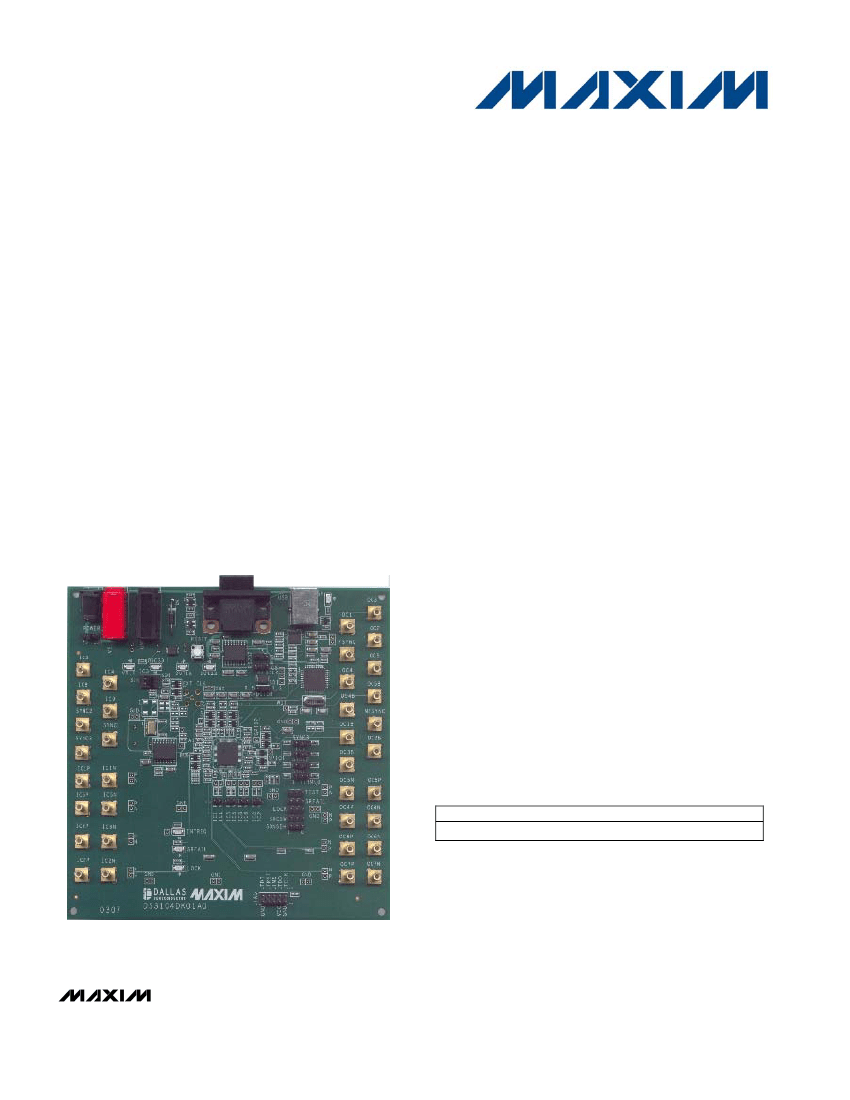

The DS3106DK is an easy-to-use demo and

evaluation kit for the DS3106 line card timing IC. A

surface-mounted DS3106 and careful layout provide

maximum signal integrity. An on-board Maxim 8051-

compatible microcontroller and included software

give point-and-click access to configuration and

status registers from a Windows®-based PC. LEDs

on the board indicate interrupt, power-supply

function, and lock status. Single-ended and

differential clocks are accessed via SMB connectors.

All LEDs and connectors are clearly labeled with

silkscreening to identify associated signals.

♦

Features

Soldered DS3106 for Best Signal Integrity

SMB Connectors and Termination Ease

Connectivity

Careful Layout for Analog Signal Paths

On-Board Stratum 3 Oscillator with Footprints

for Stratum 3E and Stratum 4 Oscillators

On-Board Maxim Microcontroller and

Included Software Provide Point-and-Click

Access to the DS3106 Register Set

LEDs for Interrupt, Power Supplies, and Lock

Status

Banana Jack VDD and GND Connectors

Support Use of Lab Power Supplies

Easy-to-Read Silkscreen Labels Identify the

Signals Associated with All Connectors,

Jumpers, and LEDs

Software Provides GUI Fields for Most

Commonly Used Features Plus Full

Read/Write Access to the Entire Register Set

Software Support for Creating and Running

Configuration Scripts Saves Time During

Evaluation

♦

Demo Kit Contents

DS3106DK Board

CD-ROM Includes:

DS3106 Software

DS3106 Initialization File

DS3106DK Data Sheet

DS3106 Data Sheet/Errata Sheet

♦

Minimum System Requirements

♦

PC Running Windows XP or Windows 2000

Display with 1024 x 768 Resolution or Higher

Available USB or Serial (COM) Port

USB Cable or DB-9 Serial Cable

Ordering Information

PART

DS3106DK

DESCRIPTION

Demo kit for DS3106

Windows is a registered trademark of Microsoft Corp.

_______________________________________________

Maxim Integrated Products 1

For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,

or visit Maxim’s website at www.maxim-ic.com.

_________________________________________________________________________________________DS3106DK

1.1

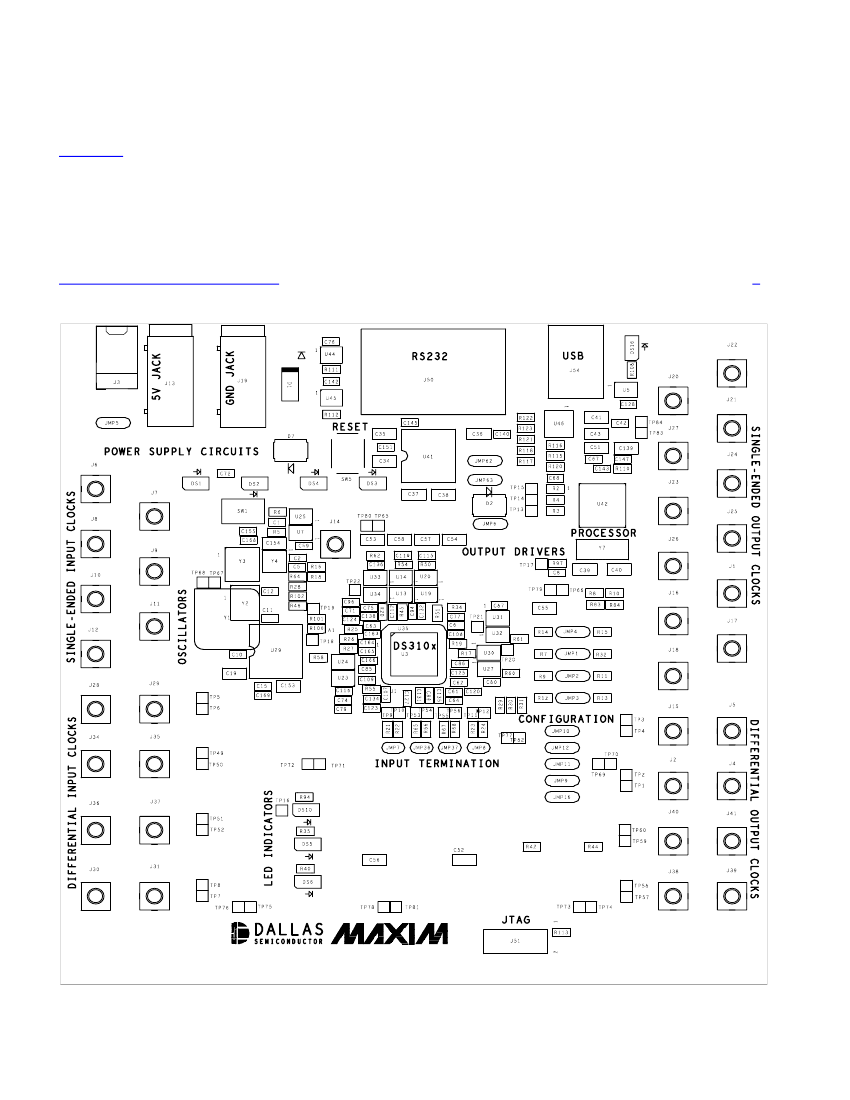

Input and Output Clocks

There are two SMB connectors at the left of the board labeled IC3 and IC4 that provide a single-ended clock input

to the DS3106. These clock inputs are connected to the DS3106 with a 50Ω characteristic impedance trace and

terminated with 50Ω at the device.

On the other side of the PCB are three SMB clock output connectors labeled OC3, FSYNC, and MFSYNC. All

single-ended clock outputs are buffered at the DS3106 and connected to the SMB connector via a 50Ω

characteristic impedance trace. Two additional SMB connectors labeled OC6P and OC6N provide connections to

the OC6 differential output from the DS3106.

1.2

Jumpers, Headers, and Switch Settings

Jumpers JMP9 to JMP12 and JMP16 (lower right of board) provide the means to pull up or pull down the

O3F1/SRFAIL, O3F2/LOCK, SRCSW, SONSDH, and TEST pins of the DS3106. Labels specify which position is

used to pull each pin to a 1 or a 0 (if jumper is not installed pin is left to float to accommodate a pin’s output

function). Jumpers JMP1 to JMP4 (middle right of board) provide access to the IPF0/SYNC1, IPF1/SYNC2,

IPF2/IC9, and O3F0/SYNC3 pins of the DS3106. Labels specify the position to install the jumper to pull the pin up

(signified by “1”) or pull it down through a 50Ω resistor (signified by “TERM\0”). The 50Ω resistor is used as a

termination resistor when the pin is used as a input clock signal. Jumper JMP6 (labeled VDDIOB) is not used in the

DS3106DK. Jumpers JMP62 and JMP63 select the computer interface to be USB or RS232. Jumper JMP5 (upper

left) selects whether the board should be powered from the USB connector or from the power-supply jacks (J3 or

J13/J19). LEDs DS1–DS4 (upper left) indicate the labeled power supply is operational. LED DS16 (upper right)

indicates the microprocessor is operational. LEDs DS5, DS6, and DS10 (lower middle) indicate the status of

SRFAIL, LOCK, and INTREQ pins, respectively. Switch SW1 is used to select a squaring circuit to accommodate a

sinusoidal input on IC3. Header J51 provides access to the JTAG port of the DS3106. Test points are provided for

differential the differential output (OC6), SPI port pins, ground plane connection, and pings O6F0/GPIO1,

O6F1/GPIO2, O6F2/GPIO3.

1.3

Microcontroller

The DS87C520 microcontroller has factory-installed firmware in on-chip nonvolatile memory. This firmware

translates memory access requests from the RS232 serial port or USB port into register accesses on the DS3106.

When the microcontroller starts up it turns on DS16 to indicate that the controller is working correctly. A pushbutton

switch labeled RESET near the RS232 connector resets the microcontroller as well as the DS3106.

1.4

Power-Supply Connectors

A 5V lab power supply can be connected across the red (J13) and black (J19) banana jacks. Optionally the board

can be powered from the USB connector by placing jumper JMP5 in the USB position. The 5V input from any of

these sources is then regulated to 3.3V, 2.5V, and 1.8V and distributed to board components.

Note that the board cannot be USB powered through some USB hubs. Before trying to power the board through a

USB hub, check the voltage at JMP5 to ensure the board is getting 5V from the hub.

Rev: 012208
