RoHS Recast Compliant
SATA-Disk Module 5A-M
SDM5A-M 7P/180D Low Profile Product Specifications
15nm)
(Toshiba
February 25, 2016
Version 1.2
Apacer Technology Inc.
1F, No.32, Zhongcheng Rd., Tucheng Dist., New Taipei City, Taiwan, R.O.C
Tel: +886-2-2267-8000
www.apacer.com
Fax: +886-2-2267-2261
SATA-Disk Module 5A
APSDMxxxGX2AN-CTM1XX
Features:
Standard Serial ATA 3.1 Revision
–
SATA 6.0 Gbps interface
–
ATA-8 command set
–
Backward compatible with SATA 1.5/3.0
Gbps
Capacity
–
Standard type: 4, 8, 16, 32 GB
–
High-Speed type: 32, 64 GB (cable-less
type only)
Performance*
–
Burst read/write: 600 MB/sec
Standard Type:
–
Sustained read: up to 125 MB/sec
–
Sustained write: up to 40 MB/sec
High-Speed Type:
–
Sustained read: up to 435 MB/sec
–
Sustained write: up to 80 MB/sec
Flash Management
–
Built-in hardware ECC
–
Static/dynamic wear-leveling
–
Flash bad-block management
–
S.M.A.R.T.
–
Power failure management
–
ATA secure erase
–
TRIM
NAND Flash Type:
MLC
MTBF:
>1,000,000 hours
Temperature Range
–
Operating:
Standard: 0°C to 70°C
Extended: -40°C to 85°C
–
Storage: -40°C to 100°C
Supply Voltage
–
5.0 V 5%
Power Consumption*
Standard Type:
–
Active mode: 160 mA
–
Idle mode: 80 mA
High-Speed Type:
–
Active mode: 225 mA
–
Idle mode: 70 mA
Connector Type
–
7-pin SATA signal connector
–
Power segment options: 2 metal pins on
each side of SATA connector or power
cable connector
Form Factor
–
SATA Disk Module: 7-pin/180 degree
–
Dimensions (without housing):
30.00x27.80x8.20, unit:
30.00x27.80x7.40, unit:
–
Dimensions (with housing):
32.50x29.40x8.53, unit:
Shock & Vibration****
–
Shock:1,500 G
–
Vibration: 15 G
RoHS Recast Compliant
–
Complies with 2011/65/EU standard
*Varies from capacities. The values for performances and power consumptions presented are typical and may vary depending on flash configurations
or platform settings. The term idle refers to the standby state of the device.
**Standard type
***High-speed type
****Non-operating
1
© 2016 Apacer Technology Inc.
Rev. 1.2
SATA-Disk Module 5A
APSDMxxxGX2AN-CTM1XX
Table of Contents
1. General Descriptions ............................................................................ 3
2. Pin Assignments .................................................................................... 3
3. Product Specifications.......................................................................... 5
3.1 Capacity ............................................................................................................................................... 5
3.2 Performance ........................................................................................................................................ 5
3.3 Environmental Specifications .............................................................................................................. 6
3.4 Mean Time Between Failures (MTBF) ................................................................................................ 6
3.5 Certification and Compliance .............................................................................................................. 6
4. Flash Management ................................................................................ 7
4.1 Error Correction/Detection ................................................................................................................... 7
4.2 Bad Block Management ...................................................................................................................... 7
4.3 Wear Leveling ...................................................................................................................................... 7
4.4 Power Failure Management ................................................................................................................ 7
4.5 ATA Secure Erase ............................................................................................................................... 7
4.6 TRIM .................................................................................................................................................... 8
4.7 SATA Power Management .................................................................................................................. 8
5. Software Interface ................................................................................ 9
5.1 Command Set ...................................................................................................................................... 9
5.2 S.M.A.R.T. ........................................................................................................................................... 9
6. Electrical Specifications .................................................................... 11
7. Physical Characteristics ..................................................................... 12
7.1 Standard ............................................................................................................................................ 12
7.1.1 W/O Housing............................................................................................................................... 12
7.1.2 W/ Housing ................................................................................................................................. 13
7.2 High-speed ........................................................................................................................................ 14
7.2.1 W/O Housing............................................................................................................................... 14
7.2.2 W/ Housing ................................................................................................................................. 15
8. Product Ordering Information ............................................................. 16
8.1 Product Code Designations ............................................................................................................... 16
8.2 Valid Combinations ............................................................................................................................ 17
2
© 2016 Apacer Technology Inc.
Rev. 1.2
SATA-Disk Module 5A
APSDMxxxGX2AN-CTM1XX
1. General Descriptions
Apacer’s
SDM5A-M (SATA Disk Module 5A - M) is our next generation disk-on-module (DOM) series that
offers elevated speed boost and higher error correction capabilities. Built with SATA 6 Gb/s interface,
SDM5A-M delivers exceptional performance in data transfer.
With its SATA interface compliance and compact size, this high-speed disk module defines an ideal
balance of performance, capacities, reliability and cost. SDM5A-M comes in moderate capacities that are
suitable to boot industrial applications and light operating systems for specific operations, while with some
extra memory space for data storage. The architectural nature of SATA disk module provides higher
resistance to external environmental influences and better flexibility for motherboard space.
Regarding data reliability, SDM5A-M is built in with powerful ECC engine that can correct up to 40-bit per
1KB data. In addition, the controller unit of this DOM device supports wear-leveling, SMART and power
failure management for data integrity. Wit its trustable reliability, performance and cost effectiveness,
Apacer’s SDM5A-M is definitely the ideal storage or cache solution for embedded and industrial
computers, servers and thin clients.
2. Pin Assignments

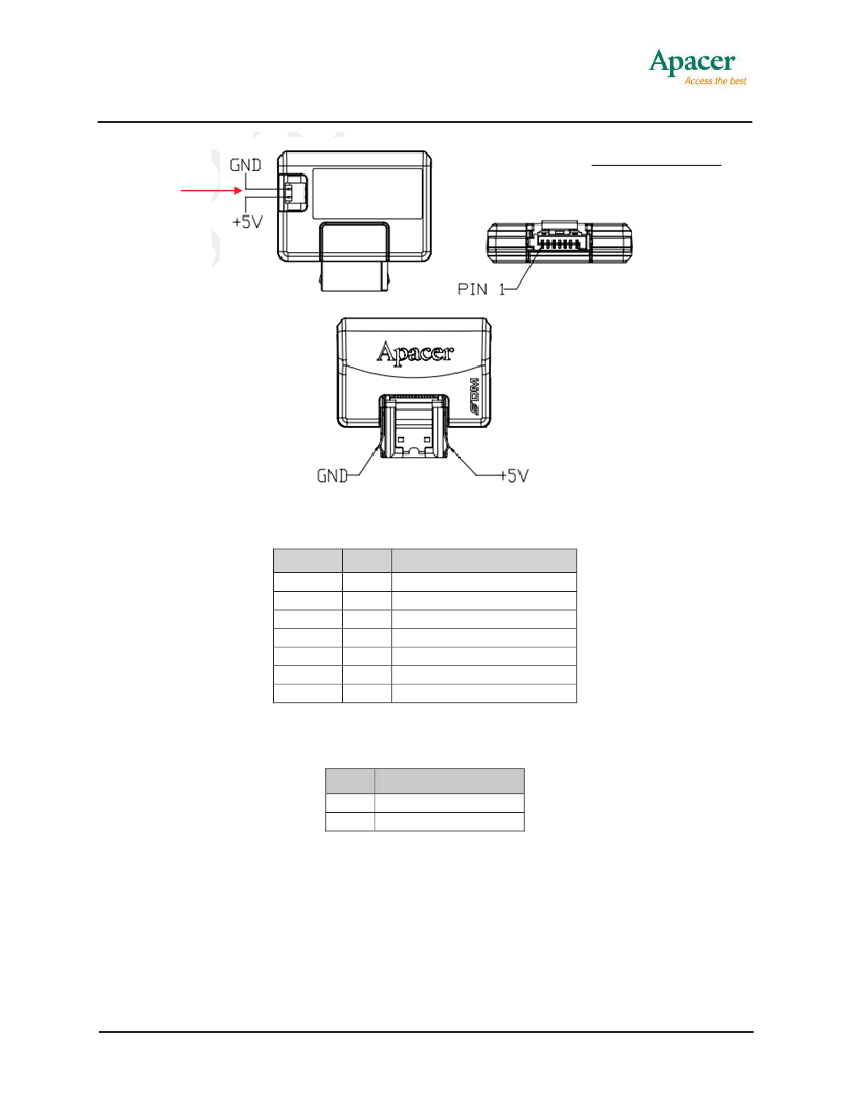

7P/180D w/o Housing
Power Pin1 (Vcc)
Signal Pin 1
Power cable
connector (optional)
3
© 2016 Apacer Technology Inc.
Rev. 1.2
SATA-Disk Module 5A
APSDMxxxGX2AN-CTM1XX

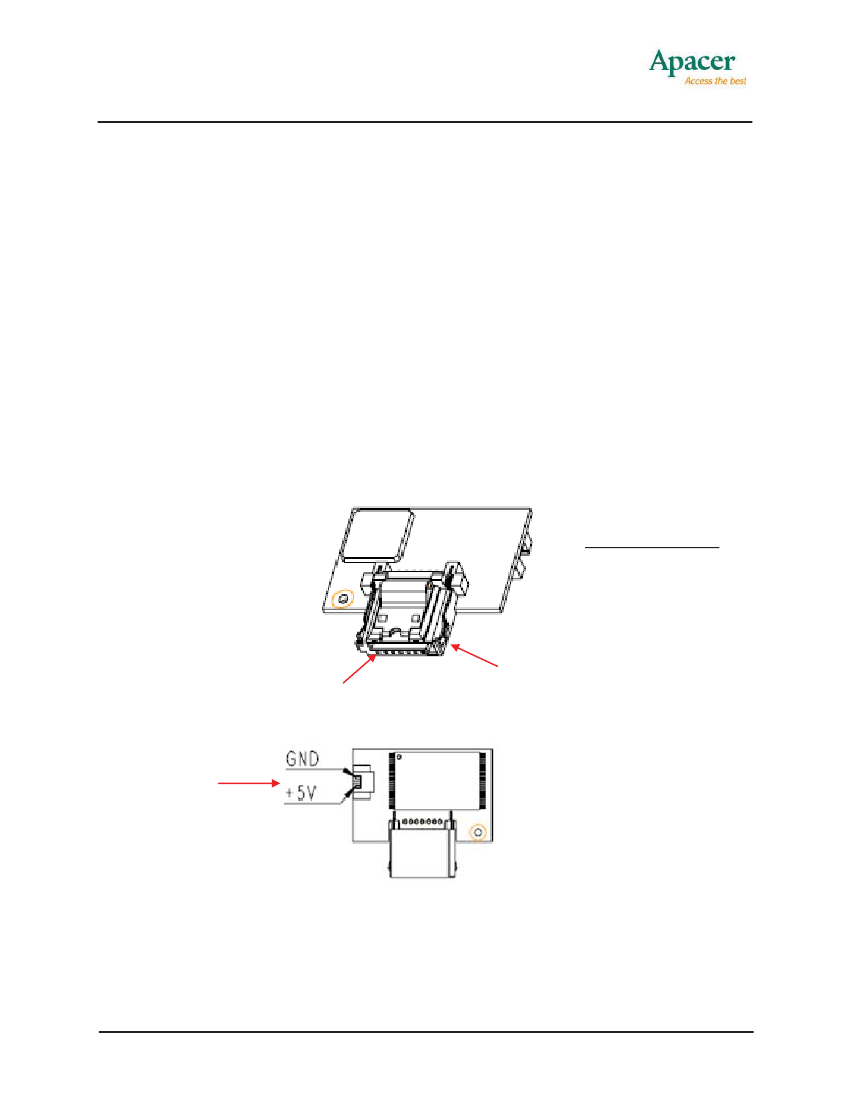

7P/180D W/ Housing
Power cable
connector
(optional)
Table 2-1
Signal Segment
Pin
S1
S2
S3
S4
S5
S6
S7
Type
GND
RxP
RxN
GND
TxN
TxP
GND
Description
+ Differential Receive Signal
- Differential Receive Signal
- Differential Transmit Signal
+ Differential Transmit Signal
Table 2-2
Power Segment
Pin
P1
P2
Signal/Description
VCC (5V)
GND
4
© 2016 Apacer Technology Inc.
Rev. 1.2
