SINGLE-BOARD
COMPUTER
RABBIT SBC
BL4S100 SERIES
Digi’s BL4S100 series single-board computers offer a cost-
competitive solution for control and communication that
dramatically reduces your time to market.
The series is designed to support the rapidly-increasing
use of ZigBee connectivity for companies looking to deploy
wireless networking. Digi International’s ZigBee RF modules
are compatible with ZigBee PRO compliant devices from other
manufacturers, providing great flexibility in choices of nodes
to include in the network. Build feature-rich web pages that
allow control and monitoring of ZigBee enabled networks by
using ZigBee AT and API command libraries. With two available
Integrated hardware and software platform to easily implement a
ZigBee enabled Ethernet gateway ideal for monitoring and control
RS-232 ports, eight analog inputs and 20 Digital I/O lines, the
BL4S100 is well suited to handle a wide range of applications
requiring ZigBee connectivity.
Digi also offers a plastic enclosure and mesh networking
add-on kit to support further design requirements.
BENEFITS
– Rabbit 4000 running at 40 MHz
– On-board Rabbit RIO® device for exceptional I/O
functionality and flexibility
– Web server functionality
– Easy implementation of mesh networking with
known good hardware
– Dynamic C® software environment to reduce
development time
APPLICATION EXAMPLE
REMOTE
OFFICE
Ethernet
SOLAR COLLECTOR
BL4S100
SINGLE-BOARD COMPUTER
Analog
Temperature
Sensor
DIGI XBEE® MODULE
Inside
Solar Collector
RELATED PRODUCTS
Power
Line
Power Grid
Rabbit®
SBC BL2100
Series
Rabbit® SBC
BL2600
Series
Rabbit® SBC
BL4S200
Series
Rabbit RIO
Programmable I/O
Application Kit
Dynamic C®
PWM

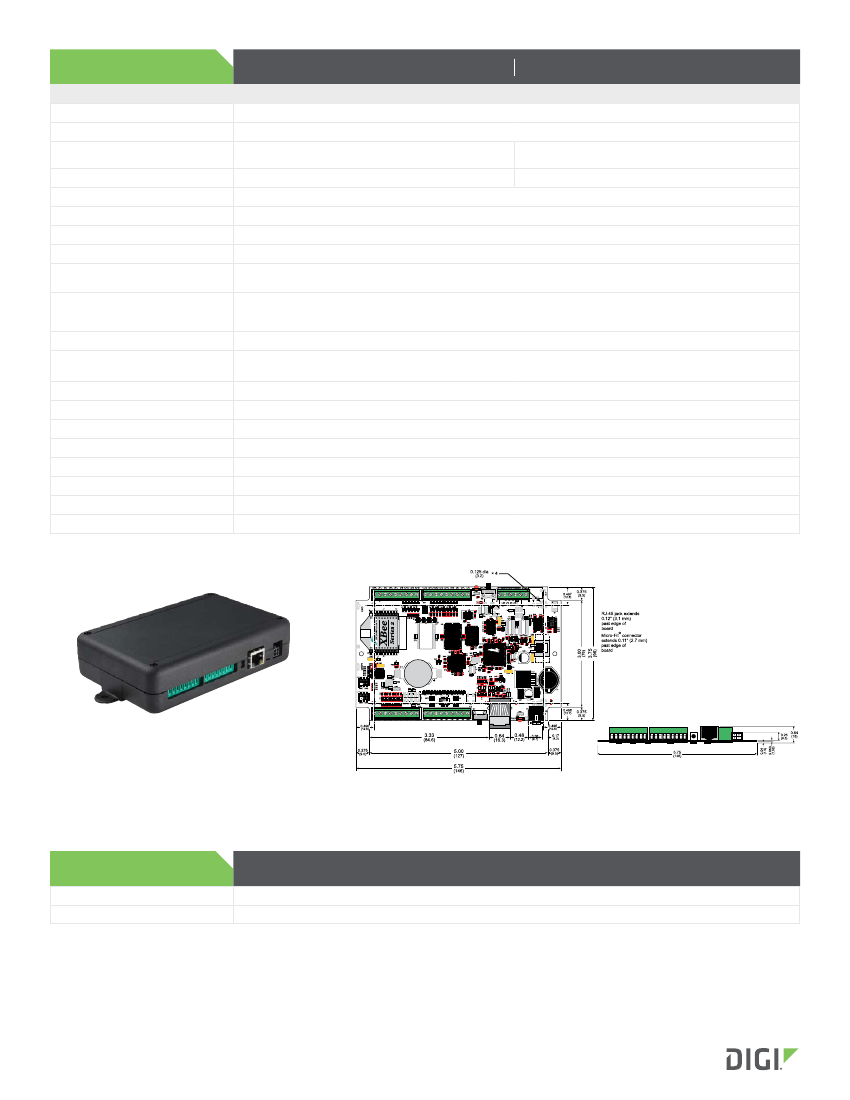

SPECIFICATIONS
FEATURE
BL4S110
Rabbit® 4000 at 40 MHz
10Base-T
1 MB
512 KB
512 KB
BL4S160
MICROPROCESSOR
ETHERNET INTERFACE
SERIAL FLASH MEMORY
(PROGRAM)
PROGRAM EXECUTION SRAM
DATA SRAM
BACKUP BATTERY
DIGITAL INPUTS
DIGITAL OUTPUTS
ANALOG INPUTS
SERIAL PORTS
SERIAL RATE
HARDWARE CONNECTORS
ETHERNET NETWORK CONNECTOR
REAL-TIME CLOCK
TIMERS
WATCHDOG/SUPERVISOR
POWER
OPERATING TEMPERATURE
HUMIDITY
BOARD SIZE
2 MB
1 MB
Panasonic CR2032 or equivalent 3V lithium coin type, 235 mA·h standard, socket-mounted
12: protected to ±36 VDC, switching threshold 1.4 V/1.9V typical
8: sink up to 200 mA each, 36 VDC max
Eight 11-bit res. channels, software-selectable ranges unipolar: 1, 2, 2.5, 5, 10, 20VDC
4 channels can be hardware-configured for 4–20 mA; 1 MΩ input impedance, up to 4,100 samples/s
3 serial ports:
• 2 RS-232 or 1 RS-232 (with CTS/RTS)
• 1 serial port dedicated for programming/debug
Max. asynchronous rate = CLK/8, Max. synchronous rate = CLK/2
Micro-Fit® connector: 1 polarized 2 × 2 with 3 mm pitch (power); Screw-terminal connectors
(accept up to 14 AWG/1.5 mm2 wire): four 1 × 9 (I/O), one 1 × 6 (serial); Programming port: 2 × 5 IDC, 1.27 mm pitch
1 RJ-45 Ethernet
Yes
Ten 8-bit timers (6 cascadable, 3 reserved for internal peripherals), one 10-bit timer with 2 match registers
Yes
9–36 VDC, 2 W max.
-40° C to +85° C
5–95%, non-condensing
3.75” × 5.75” × 0.64” (96 mm × 146 mm × 16 mm)
Plastic enclosure: Part number 101-1279
The plastic enclosure, consisting of a base and a cover, provides a
secure way to protect your BL4S100 series single-board computer.
PART NUMBERS
20-101-1256
20-101-1258
DESCRIPTION
BL4S110 512K
BL4S160 1M
