RoHS Recast Compliant
SATA-Disk Module 5
SDM5 7P/180D Low Profile 2 Product Specifications
November 26
th
, 2014
Version 1.3
Apacer Technology Inc.
1F, No.32, Zhongcheng Rd., Tucheng Dist., New Taipei City, Taiwan, R.O.C
Tel: +886-2-2267-8000
www.apacer.com
Fax: +886-2-2267-2261
SATA-Disk Module 5
APSDMxxxxL3XD-XXX
Features:
Standard Serial ATA 3.1 Revision
–
SATA 6.0 Gbps
–
ATA-8 command set
–
Backward compatible with SATA 1.5/3.0
Gbps
Capacities
–
8, 16, 32 GB
Performance*
–
Interface burst read/write: 600 MB/sec
–
Sustained read: up to 290 MB/sec
–
Sustained write: up to 265 MB/sec
Intelligent endurance design
–
Built-in hardware ECC
–
Static/dynamic wear-leveling
–
Flash bad-block management
–
S.M.A.R.T.
–
Power Failure Management
–
ATA Secure Erase
–
TRIM
NAND Flash Type:
SLC
Temperature ranges
–
Operating:
Standard:
0°C to 70°C
Extended: -40°C to 85°C
–
Storage: -40°C to 100°C
Supply voltage
–
5.0 V
±
5%
Power consumption (typical)*
–
Active mode: 275 mA@5.0 V
–
Idle mode: 85 mA@5.0 V
Connector type
–
7-pin SATA signal connector
–
2-pin power connector for external power
cable
Form factor
–
SATA Disk Module: 7-pin/180 degree
–
Dimensions: 33.00x29.30x1.00**unit: mm
Shock & Vibration***
–
Shock:1500 G
–
Vibration: 15 G
MTBF:
>2,000,000 hours
Write Protect switch (optional)
RoHS Recast compliant
–
Complies with 2011/65/EU standard
*Varies from capacities. The values for performances and power consumptions presented are typical and may vary depending on flash configurations
or platform settings. The term idle refers to the standby state of the device.
**1.00mm indicates the thickness of the module only.
***Non-operating
1
© 2014 Apacer Technology Inc.
Rev. 1.3
SATA-Disk Module 5
APSDMxxxxL3XD-XXX
Table of Contents
1. GENERAL DESCRIPTION .................................................................................................... 3
2. PIN ASSIGNMENTS ............................................................................................................... 3
3. PRODUCT SPECIFICATIONS .............................................................................................. 5
3.1 C
APACITY
............................................................................................................................................................. 5
3.2 P
ERFORMANCE
.....................................................................................................................................................5
3.3 E
NVIRONMENTAL
S
PECIFICATIONS
.......................................................................................................................5
3.4 M
EAN
T
IME
B
ETWEEN
F
AILURES
(MTBF) ...........................................................................................................6
3.5 C
ERTIFICATION AND
C
OMPLIANCE
.......................................................................................................................6
4. FLASH MANAGEMENT ....................................................................................................... 7
4.1 E
RROR
C
ORRECTION
/D
ETECTION
.........................................................................................................................7
4.2 B
AD
B
LOCK
M
ANAGEMENT
.................................................................................................................................7
4.3 W
EAR
L
EVELING
..................................................................................................................................................7
4.4 P
OWER
F
AILURE
M
ANAGEMENT
........................................................................................................................... 7
4.5 ATA S
ECURE
E
RASE
............................................................................................................................................7
4.6 TRIM ...................................................................................................................................................................8
5. SOFTWARE INTERFACE .................................................................................................... 9
5.1 C
OMMAND
S
ET
.....................................................................................................................................................9
5.2 S.M.A.R.T............................................................................................................................................................ 9
6. ELECTRICAL SPECIFICATION ...................................................................................... 11
7. MECHANICAL SPECIFICATIONS .................................................................................. 12
7.1 D
IMENSIONS
....................................................................................................................................................... 12
7.2 W
RITE
P
ROTECT
S
WITCH
.................................................................................................................................... 13
8. PRODUCT ORDERING INFORMATION ........................................................................ 14
8.1 P
RODUCT
C
ODE
D
ESIGNATIONS
......................................................................................................................... 14
8.2 V
ALID
C
OMBINATIONS
....................................................................................................................................... 15
2
© 2014 Apacer Technology Inc.
Rev. 1.3
SATA-Disk Module 5
APSDMxxxxL3XD-XXX
1. General Description
Apacer’s SDM5 (SATA Disk Module 5) is Apacer’s next generation disk-on-module (DOM) series that
offers elevated speed boost and higher error correction capabilities. Built with SATA 6.0 Gb/s interface,
SDM5 delivers high performance and wide compatibility.
With its SATA interface compliance and compact size, this high-speed disk module defines an ideal
balance of performance, capacities, reliability and cost. SDM5 is suitable in industrial applications and
light operating systems for specific operations. The architectural nature of SATA disk module provides
higher resistance to external environmental influences and better flexibility for motherboard space.
Regarding data reliability, SDM5 is built in with powerful ECC engine that can correct up to 40-bit per 1KB
data. In addition, the controller unit of this DOM device supports wear-leveling, SMART and power failure
management for data integrity. With its trustable reliability, performance and cost effectiveness, Apacer’s
SDM5 is definitely the ideal storage or cache solution for embedded and industrial computers, servers
and thin clients.
2. Pin Assignments

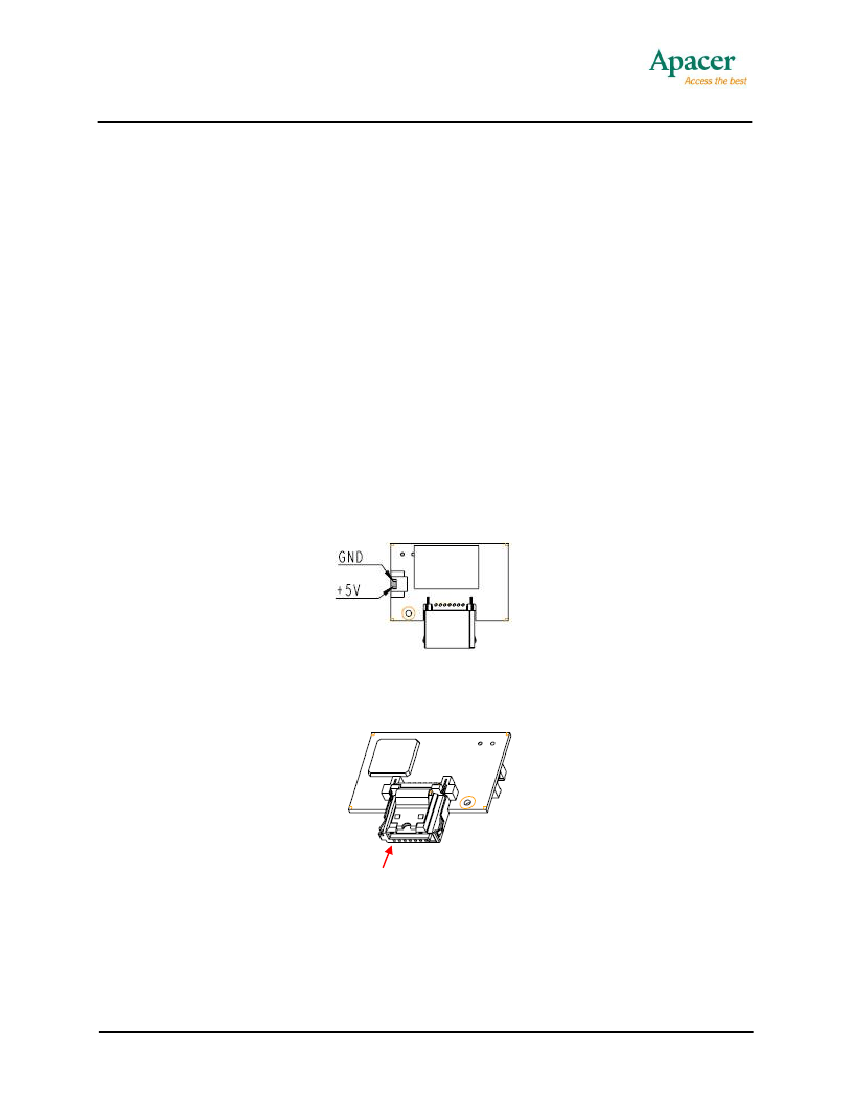

Without housing:
S1
3
© 2014 Apacer Technology Inc.
Rev. 1.3
SATA-Disk Module 5
APSDMxxxxL3XD-XXX
Table 1-3:
Signal segment
Pin
S1
S2
S3
S4
S5
S6
S7
Type
GND
RxP
RxN
GND
TxN
TxP
GND
+ Differential Receive Signal
- Differential Receive Signal
- Differential Transmit Signal
+ Differential Transmit Signal
Description
Table 1-4:
Power segment
Pin
P1
P2
Signal/Description
VCC (5V)
GND
4
© 2014 Apacer Technology Inc.
Rev. 1.3
