EmETX-a55E0
AMD Fusion G-T56N, G-T40N ETX CPU Module
Features
•
•
•
•
Soldered Onboard AMD Fusion G-T56N/ G-T40N Processor
Support LVDS, Analog RGB and DDI Port
SATA RAID Supported
Extended Operating Temp.: -20 ~ 70°C
System
CPU
Memory
Chipset
BIOS
Watchdog Timer
AMD Fusion G-T56N 1.65GHz or G-T40N 1.0GHz
processor
1 x 204-pin DDR3 SO-DIMM socket, supporting
1066/1333MHz SDRAM up to 4GB
AMD FCH A55E
AMI UEFI BIOS
1~255 levels reset
Mechanical & Environmental
Power Requirement
Power Consumption
Operating Temp.
Operating Humidity
Dimension (L x W)
+5V, 5VSB
3.23A@+5V (Typical) w/ G-T56N
-20 ~ 70ºC (-4 ~ 158ºF)
10 ~ 95% @ 70ºC (non-condensing)
114 x 95 mm (4.5” x 3.7”)
I/O
Super IO Chipset
Serial Port
Parallel Port
USB Port
KB/MS
Expansion Bus
Storage
Ethernet Chipset
Audio Interface
Fintek F71869ED
2 x COM ports
SPP/EPP/ECP mode selectable
4 x USB 2.0 ports

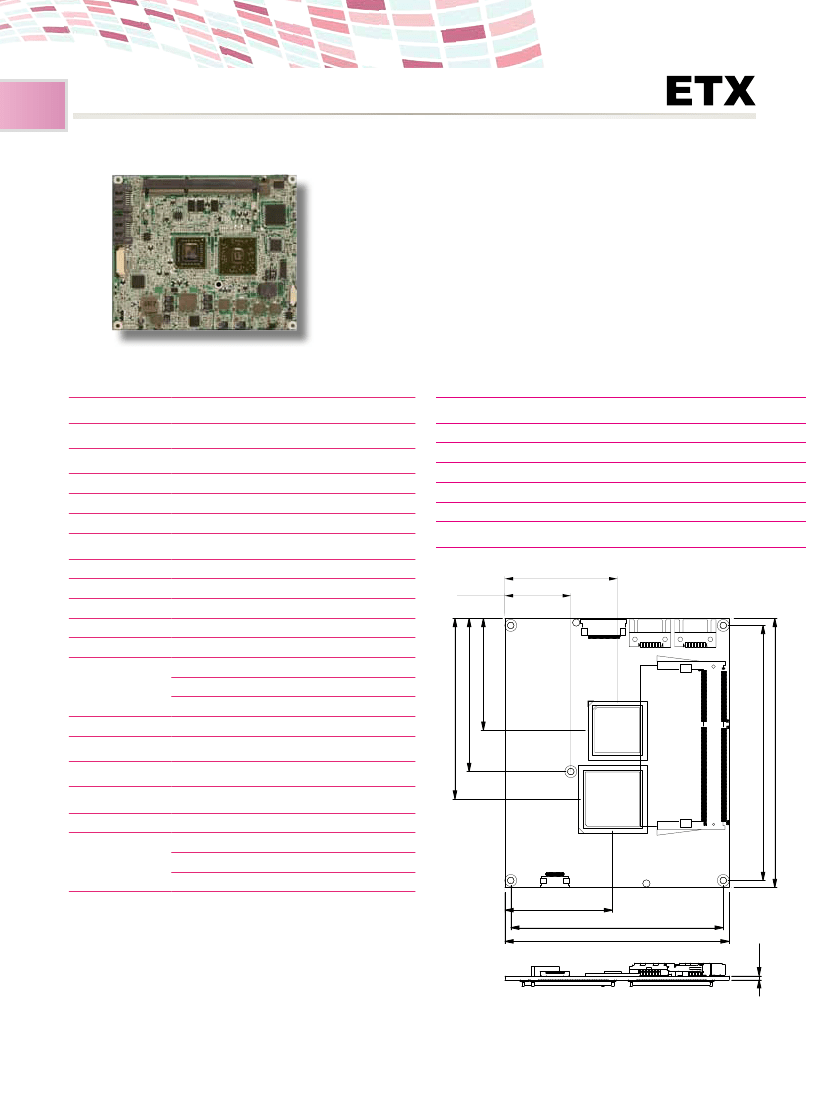

Dimensions
47.63
27.94
PCI (4 x PCI masters) and ISA bus
LPC (Low Pin Count) connector
SPI interface
2 x Serial ATA ports with 600MB/s HDD transfer rate
1 x Realtek 8105E PCIe 10/100Base-T Ethernet
controller
Realtek ALC886 7.1 Channel HD Audio CODEC,
Mic-in/ Line-in/Line-out
1
74 72
Display
Graphics Chipset
Graphics Interface
Integrated in AMD G-series processor
Analog RGB supports resolution up to 2560x1600
LCD: Dual Channels 24-bit LVDS
1
14
1 x DDI port
45.59
90
95
1.6
Unit: mm
48
All specifications are subject to change without notice.
A2
NO COMPONET
NO COMPONET
B1
203
204
7
2
1
7
1
PS/2 interface for keyboard and mouse
B99
B100
26
47.37
A1
A99
A100
64.9
76.52
114
108
B2

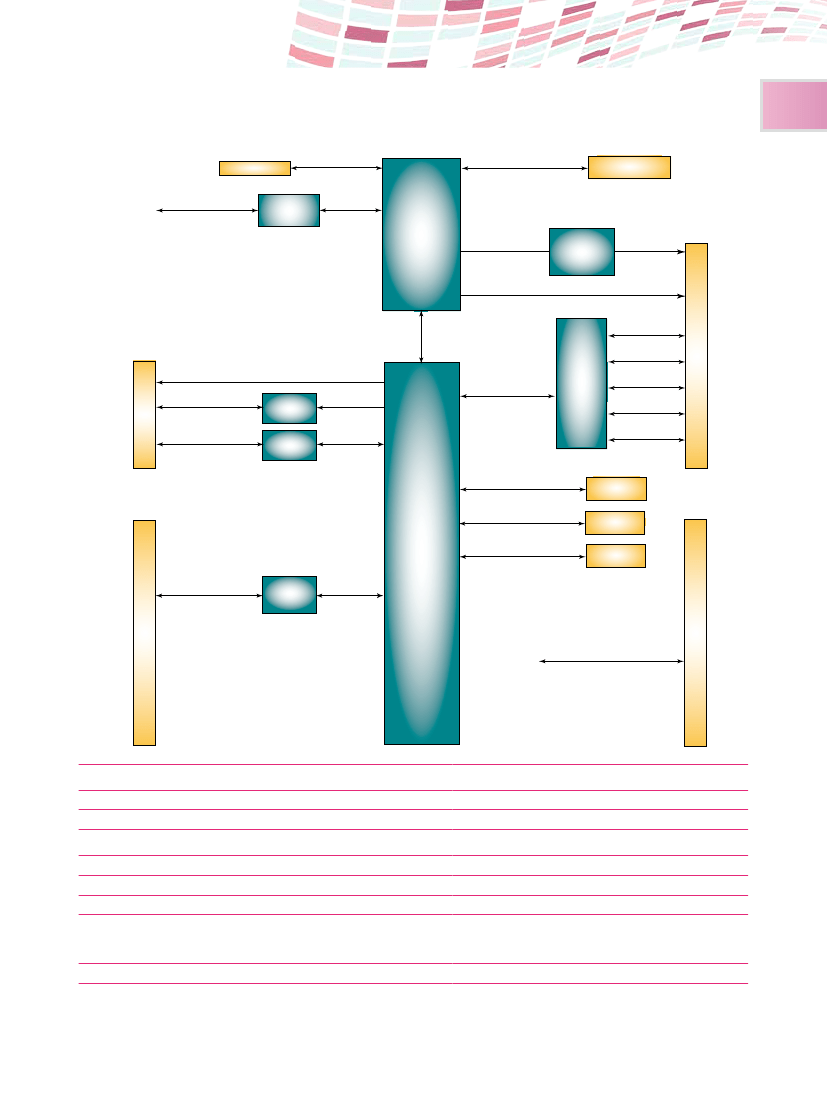

Block Diagram
1 x SO-DIMM socket
Single Channel DDR3
1066/1333MHz
DP1
DDI connector
Realtek
RTL8105E
LAN controller
10/100
Mbps
1xPCIex1
AMD APU
G-series
G-T56N
G-T40N
DDI0 (as eDP)
Chrontel
CH7511
eDP to LVDS
transmitter
Analog R.G.B.
Dual Chnnels
24-bit LVDS
UMI x4
COM1
COM2
Connector ETX3
Connector ETX4
4 x USB ports
Connector ETX1
Audio
HD CODEC
ALC886
4 x PCI masters
PCI Arbiter
IT8209R
PCI Bus
HD Link
LPC I/F
Fintek
F71869ED
LPT1
IrDA,
KB, MS
AMD
A55E
FCH
LPC I/F
LPC Conn.
Serial ATA I/F
2 x SATA
SPI I/F
SPI ROM
ISA Bus
Connector ETX2
IT8888
PCI to ISA
Bridge
PCI
10/100
Mbps
Ordering Information
AMD
EmETX-a55E0-T56N
Processors
G-T56N Dual Core ETX CPU module
AMD Fusion G-series
AMD
EmETX-a55E0-T40N
Dual Core 18W
G-T40N
Radeon HD 6310
CPU module
G-T48N 1.4GHz
AMD
Dual Core ETX
G-T56N 1.65GHz Dual Core 18W
AMD Radeon HD 6320
G-T40N 1.0GHz Dual Core 9W
AMD Radeon HD 6320
G-T40E 1.0GHz Dual Core 6.4W
AMD Radeon HD 6290
G-T52R 1.5GHz Single Core 18W
AMD Radeon HD 6310
G-T44R 1.2GHz Single Core 9W
Radeon HD
Heat spreader (114x95x8mm)
HS-55E0-F2
1.0GHz Single Core 5.5W AMD Radeon HD 6250
G-T40R
AMD
6250
1 x VGA up to 2560x1600@ 60Hz & 30bpp
Universal evaluation heatsink kit w/ thermal pad (dimension: 125x95x22mm, only used on a flat type heatspreader)
HS-0000-W4
DVI/ HDMI up to 1920x1080@60Hz & 36bpp or DiaplsyPort up to 2560x1600@60Hz & 30bpp(Configurable)
1 x Dual
1 x LVDS
ETX evaluation board in ATX form
Page
PBE-1000 R2.1
(Single channel 24-bit
®
up to 1440x900 @ 60Hz & 18bpp)
factor
2 x DDR3 SO-DIMM up to 1333MHz
4 x PCIex1 (configurable to 1xPCIex4/ 2xPCIex2/ 4xPCIex1)
Cable kit
Optional Accessories
66
CBK-05-1000-00
A55E (2.7 ~ 4.7W)
14 x USB 2.0
2 x USB 1.1
FAN,
10
CPF-0000-C1
6GB/s w/ RAID 0, 1, 5,
4500RPM,
6 x SATA
Integrated Ethernet MAC
HD link
4 x PCIex1 (Not configurable)
4 x PCI masters
port
•
3 x COMcablecables
1 x USB
•
2 x IDE cables
•
60x60x20mm
All specifications are subject to change without notice.
49
