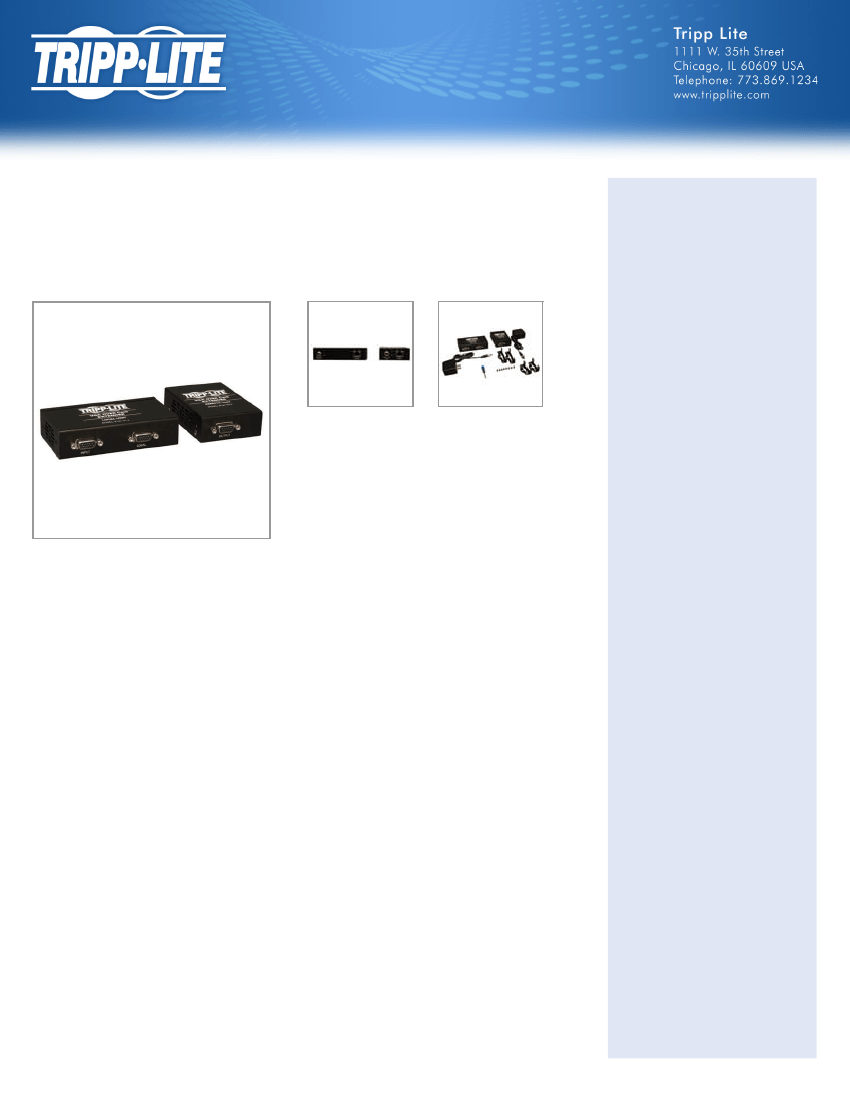

VGA over Cat5/Cat6 Extender Kit, Box-Style
Transmitter & Receiver with EDID, 1920x1440 at
60Hz, Up to 1000-ft., TAA
MODEL NUMBER:
B130-101-2
Highlights
q
Extends a 1920 x 1440 (60Hz)
video signal up to 500 ft., or a
1024 x 768 (60Hz) video signal
up to 1,000 ft., when using
24Awg, Solid Wire Cat5e/6
cable, such as Tripp Lite's
N022-01K-GY (Cat5) and N222-
01K-GY (Cat6)
q
Can further expand the range
and number of monitors by
adding B132-110A (Video Only)
repeaters
q
EDID copy feature ensures
optimal display compatibility
q
For optimal image quality
between 500 and 1,000 ft., use
Description
Tripp Lite's B130-101-2 allows you to extend a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x
768 (60Hz) video signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's
N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors can be further
expanded by adding B132-110A (Video Only) repeater units. Connect up to 3 repeaters, with the B130-
101-2 receiver at the end of the chain, for a total of 4 monitors. A 1920 x 1440 (60Hz) signal can be
extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal
can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver. For optimal image
quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter
unit features functionality that allows for the EDID information from a connected display to be copied and
sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-
in Equalization and Gain controls to adjust the video image. Includes mounting hardware for both local
and remote units, allowing them to be wallmounted, rackmounted or pole mounted. Ideal for digital
signage situations, such as retail, schools, churches, etc.
q
q
Zero-Skew cable, such as Tripp
Lite P524-01K
Compliant with the Federal
Trade Agreements Act (TAA) for
GSA Schedule purchases
System Requirements
q
For international use, a power
supply with the appropriate plug
type must be purchased
separately.
Package Includes
Local (Transmitter) unit 1 x 4.5 x
2.5 (in.)
q
Features
q
Extends a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to
1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and
N222-01K-GY (Cat6)
Remote (Receiver) unit 1 x 2.5 x
3.5 (in.)
q
Mini-Screwdriver for EQ/Gain
adjustment
q
EDID copy feature ensures optimal display compatibility
Can further expand the range and number of monitors by adding B132-110A (Video Only) repeaters
Connect up to 3 repeaters, with the B130-101-2 receiver at the end of the chain, for a total of 4
monitors.
q
q
(x2) Mounting Hardware Kits
(x2) External Power Supplies
with NEMA 1-15P Plug(Input:
q
q
q
A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last
1/3
receiver. A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain
to the last receiver.
q
100-240V, 50/60Hz, 0.5A
Output: 5V, 2A, 5 ft.)
q
For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-
01K
Owner's Manual
q
The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image
Includes mounting hardware for both local and remote units, allowing them to be wallmounted,
rackmounted or pole mounted
q
q
Ideal for digital signage situations, such as retail, schools, churches, etc.
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
q
Specifications
OVERVIEW
UPC Code
AC Adapter
037332178367
Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.
PHYSICAL
Shipping Dimensions (hwd / in.)
Shipping Dimensions (hwd / cm)
Shipping Weight (lbs.)
Shipping Weight (kg)
Color
2.20 x 8.40 x 6.50
5.59 x 21.34 x 16.51
1.80
0.82
Black
COMMUNICATIONS
Max 1024 x 768 Range (ft)
Max 480P Range (ft)
Max 1440 x 900 Range (ft)
Max 1080i Range (ft)
Max 1080P Range (ft)
Max 1920 x 1440 Range (ft)
Max 480i Range (ft)
Max 640 x 480 Range (ft)
Max 800 x 600 Range (ft)
Max 1600 x 1200 Range (ft)
Max 1920 x 1200 Range (ft)
Max 720P Range (ft)
1000
1000
500
500
500
500
1000
1000
1000
500
500
500
2/3
