RoHS Recast Compliant
Serial ATA Flash Drive
SAFD 25P-M Specifications
May 13
th
, 2013
Version 2.0
Apacer Technology Inc.
4 Fl., 75 Hsin Tai Wu Rd., Sec.1, Xizhi, New Taipei City, Taiwan 221
Tel: +886-2-2698-2888
Fax: +886-2-2698-2889
th
www.apacer.com
Serial ATA Flash Drive
APS25P6Bxxxx- 5CMX
Features:
Standard Serial ATA 2.6
–
Serial ATA 2.6
–
SATA II, 3.0 Gbps
–
ATA-compatible command set
–
ATA modes support
Capacities
–
16, 32, 64, 128, 256, 512 GB
Performance*
–
Burst read/write: 300 MB/sec
–
Sustained read: up to 260 MB/sec
–
Sustained write: up to 220 MB/sec
Intelligent endurance design
–
Built-in hardware ECC, enabling up to
16/24 bit correction per 1024 bytes
–
Static wear-leveling scheme together
with dynamical block allocation to
significantly increase the lifetime of a
flash device and optimize the disk
performance
–
Flash bad block management
–
S.M.A.R.T.
–
Power Failure Management
–
ATA Secure Erase
–
TRIM
NAND Flash Type:
MLC
MTBF (hours):
>1,000,000
Temperature ranges
–
Operation:
Standard: 0° to 70° (32 ~ 158°
C
C
F)
Extended: -40 ~ +85°C (-40° ~ 185°
F)**
–
Storage: -40° to 100° (-40° ~ 212°
C
C
F)
Supply voltage
–
5.0 V 5%
Power consumption (typical)*
–
Active mode: 872 mA@5.0 V
–
Idle mode: 203 mA@5.0 V
Form factor
–
2.5 inch (100 x 69.9 x 9.3, unit: mm)
Connector
–
7-pin SATA male connector
–
15-pin SATA power connector
Endurance***
–
16 GB: 9.39 TBW
–
32 GB: 18.78 TBW
–
64 GB: 37.57 TBW
–
128 GB: 75.15 TBW
–
256 GB: 150.30 TBW
–
512 GB: 300.50 TBW
Shock & Vibration
–
Shock: 1500 G (non-operating)
–
Vibration: 15 G (non-operating)
RoHS Recast compliant****
*Varies from capacities. The values presented for Performances and Power Consumption are typical and may vary depending on different
configurations and platforms.
**Only available in 32, 64, 128, 256 and 512GB capacities. For details, please see “Product Ordering Information”.
***Endurances of our SSD devices are estimated based on TBW (Terabytes Written) and measured by following JEDEC standard.
****Complies with 2011/65/EU standard
1
© 2013 Apacer Technology Inc.
Rev. 2.0
±
Serial ATA Flash Drive
APS25P6Bxxxx- 5CMX
Table of Contents
1. Product Description ................................................................................................. 3
1.1 Introduction .................................................................................................................................................3
1.2 Functional Block Diagram..........................................................................................................................3
1.3 ATA Mode Support.....................................................................................................................................4
1.4 Capacity Specification.................................................................................................................................4
1.5 Performance.................................................................................................................................................4
1.6 Pin Assignments ..........................................................................................................................................5
2. Software Interface .................................................................................................... 7
2.1 Command Set ..............................................................................................................................................7
2.2 S.M.A.R.T. ...................................................................................................................................................8
3. Flash Management ................................................................................................... 9
3.1 Error Correction/Detection ........................................................................................................................9
3.2 Flash Block Management ...........................................................................................................................9
3.3 Wear Leveling..............................................................................................................................................9
3.4 Power Failure Management .......................................................................................................................9
3.5 ATA Secure Erase .......................................................................................................................................9
3.6 TRIM..........................................................................................................................................................10
4. Environmental Specifications ............................................................................... 11
4.1 Environments.............................................................................................................................................11
4.2 Mean Time Between Failures (MTBF)....................................................................................................11
4.3 Certification and Compliance ..................................................................................................................11
4.4 Endurance ...................................................................................................................................................12
5. Electrical Characteristics ...................................................................................... 13
5.1 Operating Voltage .....................................................................................................................................13
5.2 Power Consumption..................................................................................................................................13
6. Physical Characteristics........................................................................................ 14
6.1 Metal Housing............................................................................................................................................14
7. Product Ordering Information ............................................................................... 15
7.1 Product Code Designations ......................................................................................................................15
7.2 Valid Combinations...................................................................................................................................16
2
© 2013 Apacer Technology Inc.
Rev. 2.0
Serial ATA Flash Drive
APS25P6Bxxxx- 5CMX
1. Product Description
1.1
Introduction
Apacer’s Serial ATA Flash Drive (SAFD) is a standard 2.5-inch solid-state drive (SSD) designed for
embedded applications in demanding environments. SAFD 25P-M drive is designed with a single-chip
controller and provides full support for the SATA II high-speed interface standard. The device supports
capacities up to 512GB and is able to operate at sustained access rates at an ideal speed up to 260 MB/s,
which is much faster than any other traditional SATA-based hard disk drive currently available on the market.
Though built with MLC, this SSD can work in highly demanding environment as it can withstand ambient
temperature from -40° to +85° (for certain capacities).
C
C
In addition, SAFD 25P-M adopts the global wear-leveling scheme to allow uniform use of all storage blocks,
ensuring that the lifespan of a flash media can be significantly increased and the disk performance is
optimized as well. SAFD 25P-M provides the S.M.A.R.T. feature that follows the SATA Rev. 2.6, ATA/ATAPI-7
specifications and uses the standard SMART command B0h to read data from the drive. This feature protects
the user from unscheduled downtime by monitoring and storing critical drive performance.
1.2
Functional Block Diagram
SAFD 25P-M drive includes a single-chip SATA II Controller and the flash media, as well as the SATA
standard interface. The controller integrates the flash management unit with the controller itself to support
multi-channel, multi-bank flash arrays. Figure 1-1 shows the functional block diagram.

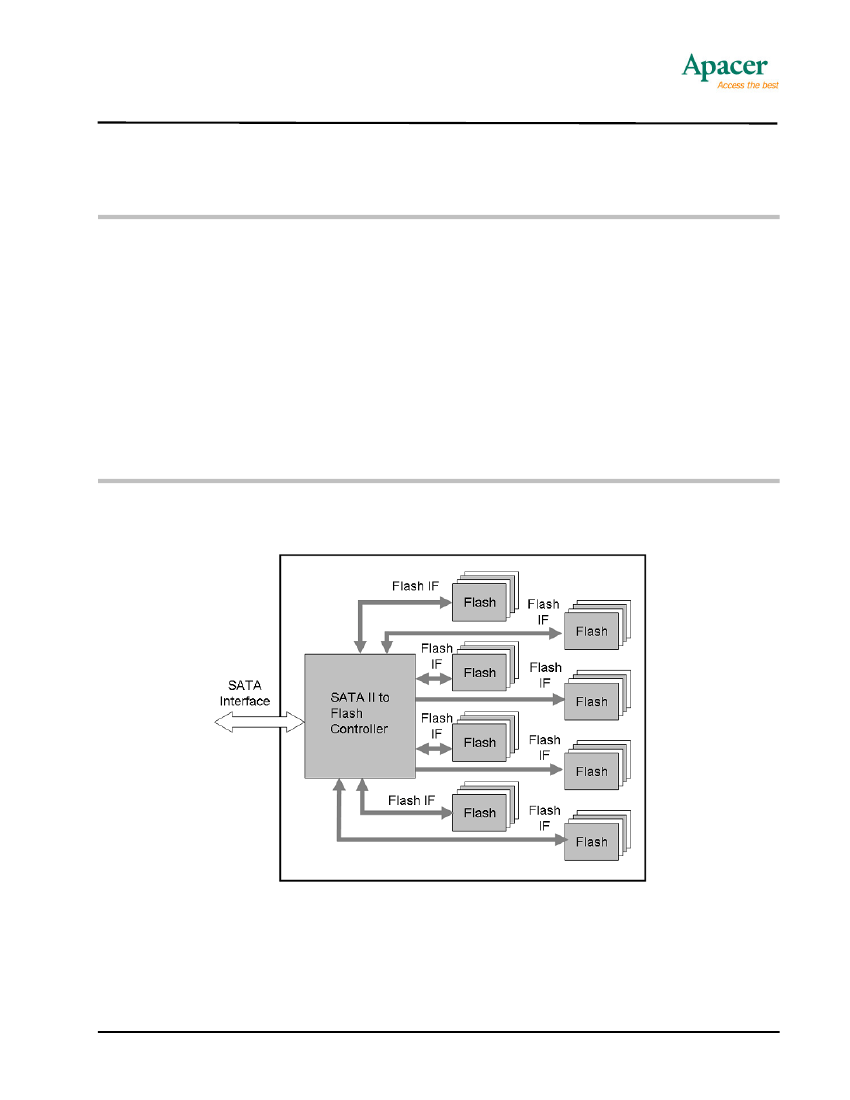

Figure 1-1
Apacer SAFD 25P-M block diagram
3
© 2013 Apacer Technology Inc.
Rev. 2.0
Serial ATA Flash Drive
APS25P6Bxxxx- 5CMX
1.3
ATA Mode Support
Up to PIO mode-4
Up to Multiword DMA mode-2
Up to UDMA mode-4
SAFD 25P-M provides ATA mode support as follows:
1.4
Capacity Specification
Capacity specification of SAFD 25P-M product family is available as shown in Table 1-1. It lists the specific
capacity, the default numbers of logical cylinders and heads, and the number of logical sectors per track for
each product line.
Table 1-1
Capacity specification
Capacity
16 GB
32 GB
64 GB
128 GB
256 GB
512 GB
Total Bytes*
16,013,942,784
32,017,047,552
64,023,257,088
128,035,676,160
256,060,514,304
512,110,190,592
Cylinders
16383
16383
16383
16383
16383
16383
Heads
16
16
16
16
16
16
Sectors
63
63
63
63
63
63
Max LBA**
31,277,232
62,533,296
125,045,424
250,069,680
500,118,192
1,000,215,216
*Display of total bytes varies from file systems.
**Cylinders, heads or sectors are not applicable for these capacities. Only LBA addressing applies.
***Notes: 1 GB = 1,000,000,000 bytes; 1 sector = 512 bytes.
LBA count addressed in the table above indicates total user storage capacity and will remain the same throughout the lifespan of
the device. However, the total usable capacity of the SSD is most likely to be less than the total physical capacity because a small
portion of the capacity is reserved for device maintenance usages.
1.5
Performance
Performance of SAFD 25P-M is shown in Table 1-2.
Table 1-2
Performance specifications
Capacity
Performance
Sustained Read
(MB/s)
Sustained Write
(MB/s)
16 GB
205
50
32 GB
225
50
64 GB
250
100
128 GB
260
150
256 GB
260
220
512GB
260
180
Note:
1. Results may vary depending on host system configurations.
2. Sequential Read/Write: The read/write performances are measured by CrystalDiskMark under Windows operating system.
4
© 2013 Apacer Technology Inc.
Rev. 2.0
