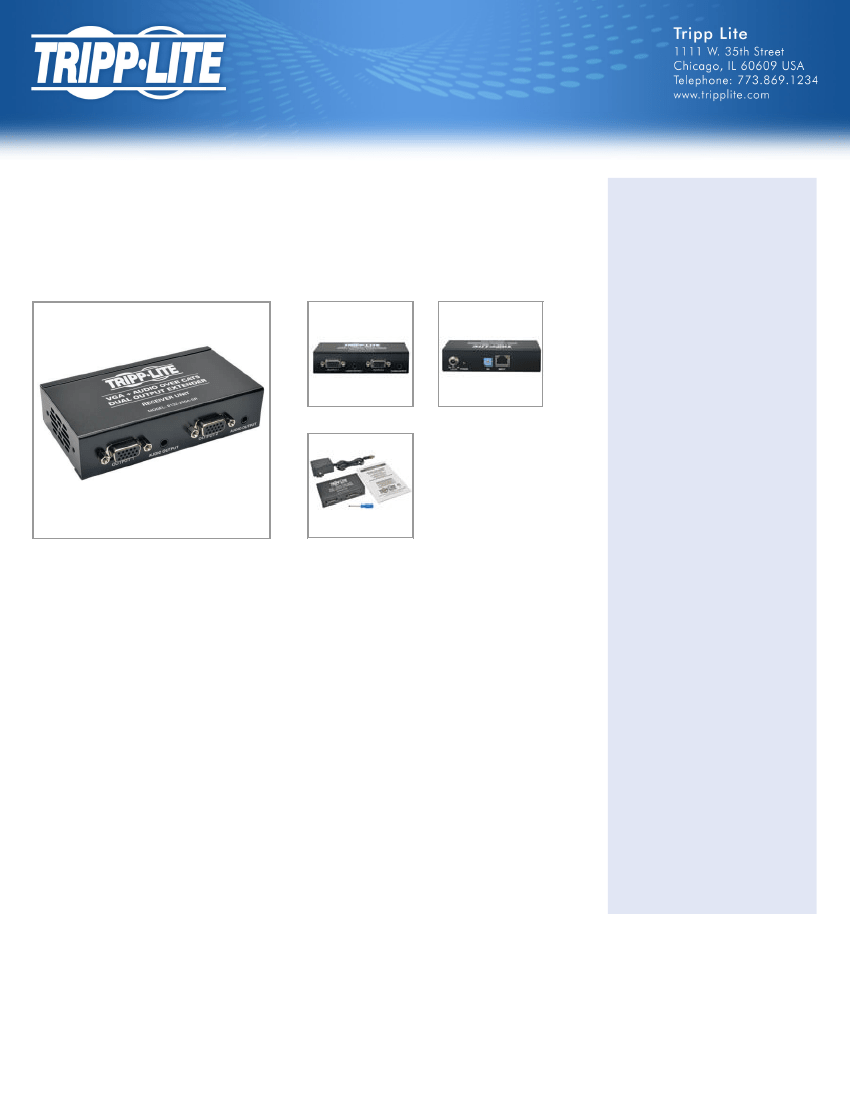

Dual VGA with Audio over Cat5/Cat6 Extender,
Box-Style Receiver, 1440x900 at 60Hz, Up to 300-
ft., TAA
MODEL NUMBER:
B132-200A-SR
Highlights
q
Features dual VGA and audio
ports for the connection of two
sets of monitors and speakers
q
Works with a B132-002A-2 or
B132-004A-2 Transmitter Unit to
extend a VGA video and audio
signal up to 300-ft. from the
source
q
Extends a 1440 x 900 video and
audio signal up to 150-ft, or a
1024 x 768 video and audio
signal up to 300-ft.
q
Plug and play, no software or
drivers required
q
Compliant with the Federal
Trade Agreements Act (TAA) for
Extends a VGA and audio signal to two sets of monitors and speakers up to 300-ft. from the source
GSA Schedule purchases.
Description
Tripp Lite's B132-200A-SR Dual VGA with Audio over Cat5 Extender Receiver Unit is designed to work
with Tripp Lite's B13 and B13 VGA with Audio over Cat5 Extender / Splitter Transmitter Units. Unlike the
B13 Receiver Unit (which supports distances up to 1,000-ft.), or the B132-100A-MR (which supports
distances up to 750-ft.) the B132-100A-SR is a cost effective solution for distances up to 300-ft. It extends
a 1440 x 900 video and audio signal up to 150-ft. from the source, or a 1024 x 768 video and audio signal
up to 300-ft. It also features dual VGA and audio ports for the connection of two sets of monitors and
speakers. An Equalization control is provided to adjust the video image. Audio connections are made with
standard 3.5 (not included). Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule
purchases.
System Requirements
q
For international use, a power
supply with the appropriate plug
type must be purchased
separately.
Package Includes
q
B132-200A-SR
External Power Supply with
NEMA 1-15P Plug (Input: 100-
240V, 50/60Hz, 0.5A; Output:
5V, 2A, 4.5 ft.)
q
Features
q
Features dual VGA and audio ports for the connection of two sets of monitors and speakers
Works with a B13 or B13 Transmitter Unit to extend a VGA video and audio signal up to 300-ft. from the
q
q
source
q
q
Screwdriver for EQ adjustment
Owner's Manual
Extends a 1440 x 900 video and audio signal up to 150-ft, or a 1024 x 768 video and audio signal up to
300-ft.
q
24AWG, Solid Wire Cat5e/6 cable (such as Tripp Lite's N20 Cat6 cables) is required to achieve
maximum distance and resolution
q
Features a built-in equalization control to adjust the video image
All operating systems supported
Plug and play; no software or drivers required
HDCP and EDID compliant
1/3
q
q
q
q
Ideal for digital signage installations for retail, schools, churches, etc.
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
q
Specifications
OVERVIEW
UPC Code
AC Adapter
037332185570
Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 4.5 ft.
PHYSICAL
Shipping Dimensions (hwd / in.)
Shipping Dimensions (hwd / cm)
Shipping Weight (lbs.)
Shipping Weight (kg)
Unit Dimensions (hwd / in.)
Unit Dimensions (hwd / cm)
Unit Weight (lbs.)
Unit Weight (kg)
Color
2.20 x 6.20 x 7.20
5.59 x 15.75 x 18.29
1.10
0.50
1.1 x 4.5 x 2.5
2.7 x 11.5 x 6.24
0.5
0.23
Black
COMMUNICATIONS
Max 1024 x 768 Range (ft)
Max 480P Range (ft)
Max 1440 x 900 Range (ft)
Max 480i Range (ft)
Max 640 x 480 Range (ft)
Max 800 x 600 Range (ft)
Max 720P Range (ft)
300
300
150
300
300
300
150
CONNECTIONS
Ports
Side A - Connector 1
Side B - Connector 1
Side B - Connector 2
2
RJ45 (FEMALE)
(2) HD15 (FEMALE)
(2) 3.5MM (FEMALE)
FEATURES & SPECIFICATIONS
