conga-QA-Z510-1G Overview

Computer-On-Modules - COM QSEVEN INTEL ATOM Z510 1.1GHz

conga-QA-Z510-1G Parametric

Parameter Name	Attribute value
Product Category	Computer-On-Modules - COM
Manufacturer	congatec
RoHS	Details
Form Factor	Qseven
Processor Brand	Intel
Processor Type	Intel Atom Z510
Chipsets	US15W
Frequency	1.1 GHz
Memory Size	1 GB
Interface Type	Ethernet, I2C, PCI, SATA, USB
Operating Supply Voltage	5 V
Maximum Operating Temperature	+ 60 C
Dimensions	70 mm x 70 mm
Battery Backup Switching	Backup Battery
Cache Memory	512 KB
Description/Function	Qseven module with Intel Atom Z510 and Intel system controller hub US15W processor 1.1 GHz, 512 KB L2 cache, 400 MHz FSB, 1 GB DDR2 memory onboard 2 GB commercial SSD (MLC) and SATA
Memory Type	DDR2, L2 Cache
Minimum Operating Temperature	0 C
Power Consumption	5 W
Processor Series	Intel Atom Z500
Factory Pack Quantity	1

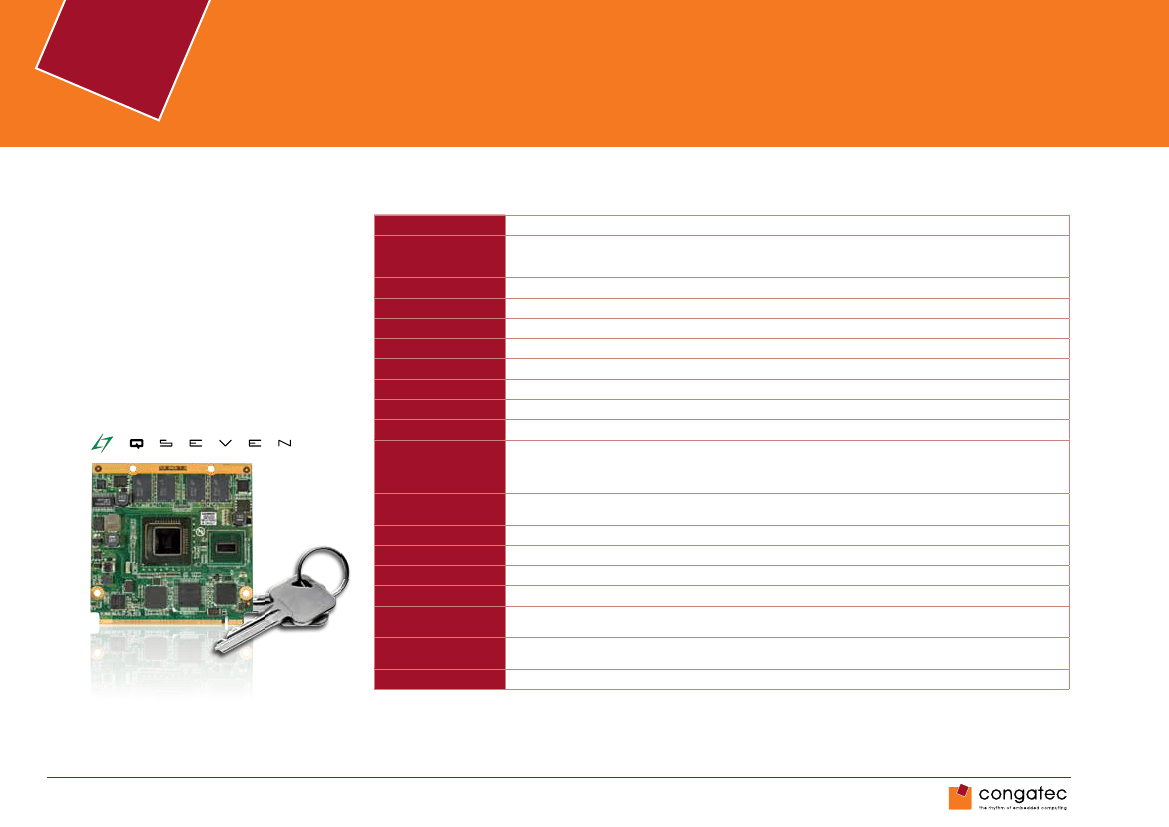

Preview

Download Datasheet

View All

w .c

ong

ate

c.c

Qseven

™

Module

Ultra Mobil

Ultra compact Qseven™ module based on Intel

Atom™ Processor Z5xx

conga-QA

Module for ultra mobile

applications

Lowest power consumption

Fast serial differential interfaces

for high data bandwidth

Formfactor

CPU

Qseven Form Factor, 70x70 mm

guarantee of correctness is implied or expressed. Intel and Intel Atom are trademarks of Intel Corporation in the US and other countries.

Intel

Atom™ processor Z530 1.6 GHz, 533 MHz FSB and memory bus speed, 512k L2 cache, 45 nm,

with Hyper-Threading Technology

Intel

Atom™ processor Z510 1.1 GHz, 400 MHz FSB and memory bus speed, 512k L2 cache, 45 nm

Up to 1 GByte on-board DDR2 memory with 400/533 MT/s

Intel

SCH US15W

Gigabit Ethernet Realtek RTL8111

8x USB 2.0, 1x SATA, 1x SDIO, 1x PCIe, I²C Bus, 1x USB client, LPC bus

On-board ATA Solid State Drive up to 4 GByte (optional)

Intel

High Definition Audio (Intel

HD Audio)

Intel

Graphics Media Accelerator 500 (Intel

GMA 500), up to 256 MByte frame buffer supporting Direct X 9.0E and Open GL 2.0

Full hardware acceleration for MPEG2, H.264, WMV9 and VC1

Single channel 112MHz LVDS transmitter, support for flat panels with 1x18 and

1x24 bit data mapping up to resolutions of 1366x768 pixel

Single channel SDVO interface, supports resolutions up to 1280x1024 pixel

Dual independent display support

Multi Stage Watchdog, non-volatile User Data Storage, Manufacturing and Board information, Board Statistics,

I²C bus (fast mode, 400 kHz, multi-master), Power Loss Control

OEM Logo, OEM CMOS Defaults, LCD Control, Display Auto Detection, Backlight Control, Flash Update, based on AMIBIOS8

ACPI 3.0 compliant, Smart Battery Management

Windows

XP Windows

XP embedded, Windows

CE 6.0, LINUX, QNX

Typ. application ~5 Watt @ 5V

Operating:

Storage:

Operating:

Storage:

0 to +60°C

-20 to +80°C

10 to 90% r. H. non cond.

5 to 95% r. H. non cond.

DRAM

Chipset

Ethernet

I/O Interfaces

Mass Storage

Sound

Graphics

Video Decode Acceleration

Motion Video Support

congatec Board Controller

Embedded BIOS Features

Power Management

Operating Systems

Power Consumption

Temperature

Humidity

Size

70 x 70 mm (2¾" x 2¾")

congatec AG, Auwiesenstraße 5, 94469 Deggendorf, Germany

Phone +49 (991) 2700-0, Fax +49 (991) 2700-111, info@congatec.com

w w w.congatec.com
