1 Introduction
The purpose of this tool is to provide an evaluation platform for the SX8674/55/56/57/58, a family of haptics enabled
4/5-wire resistive touchscreen controllers with proximity sensing. Typical applications are mobile phones, game
machines, portable music players, POS/POI terminals, etc.
M
HAPTICS DRIVER
NRST
SX8674
MULTITOUCH
CONTROL
I2C
NIRQ
Host
Controller
PROXIMITY SENSING
Figure 1: SX8674 Typical Application
SX8674 main features include:
•
Low Voltage Operation
2.3V to 3.6V Supply
Integrated Low Drop Out (LDO) Regulator
Low Power Consumption
30uA@2.3V 8ksps (ESR)
0.4uA Shut-Down Current
4/5-Wire Touchscreen Interface
Precision, Ratiometric 12-bit ADC
Up to 5000 (X-Y) coordinates/second (c/s)
Programmable Digital Filtering/Averaging
Touch Pressure Measurement (4-Wire)
Integrated Capacitive Proximity Sensing
No Additional Components Required
Uses Resistive Touchscreen or a Simple Conductive Area as the Sensor
>5 cm Detection Distance
8uA @ 200ms Scan Period
Haptics Driver for LRA and ERM Micro Motors
Haptics Waveform Generation Control (I2C or PWM Input)
Short Circuit Protection
Early Warning and Over-Temperature Monitoring and Protection
400kHz I2C Serial Interface
Hardware, Software, and Power-On Reset
15kV HBM & IEC ESD Protection
th
•
•
•
•
•
•
•
Rev 1 – 12 October 2011
4
www.semtech.com
User’s Guide
SX8674 Evaluation Kit
ADVANCED COMMUNICATIONS & SENSING
2 Getting Started
2.1 Kit Contents
As illustrated in the figure below, the SX8674 Evaluation kit is composed of:
SX8674EVK board
SX8674EVK CDROM including all necessary PC software and documentation (requires min Windows XP)
Mini USB cable to connect the SX8674EVK board to the PC

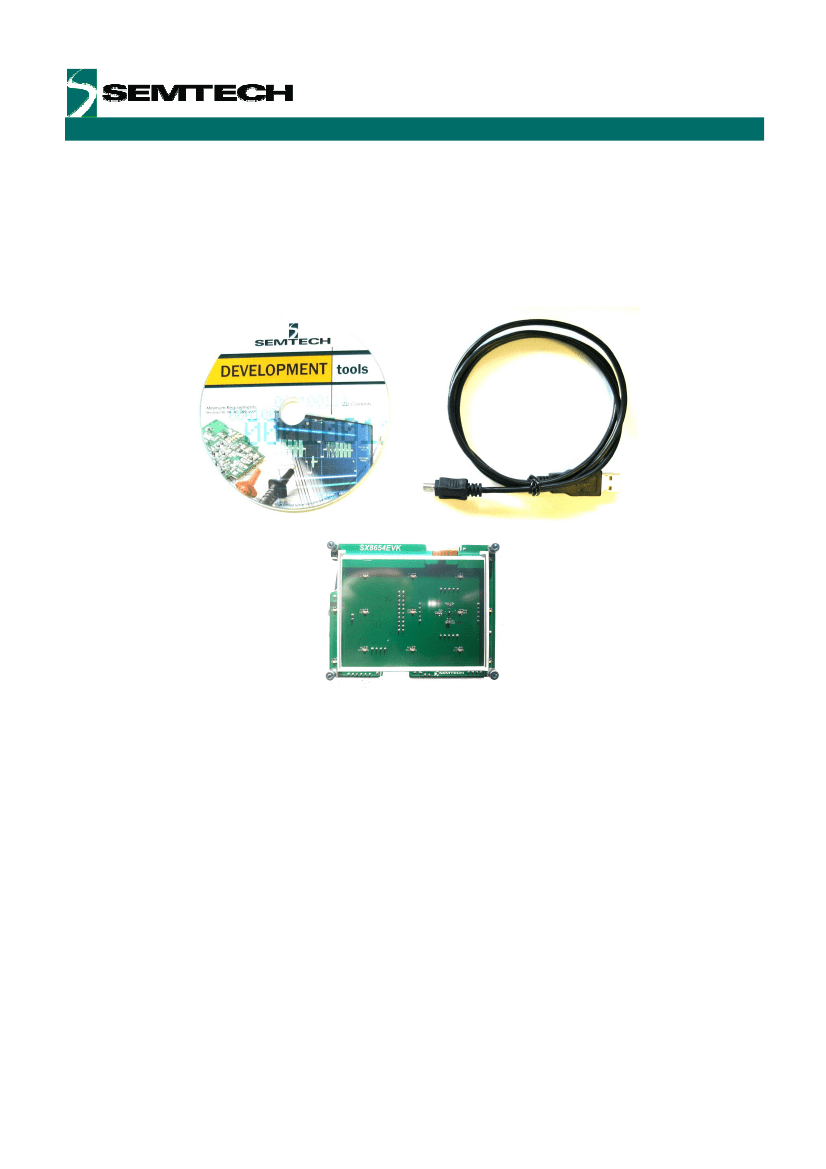

Figure 2: SX8674EVK Contents
2.2 Installation
2.2.1 Stand-Alone Demo
1- Connect the SX8674EVK board to a USB port/supply via the cable provided.
2- Wait for a few seconds.
3- SX8674EVK is now ready to be used! (see §4 for more details).
2.2.2 PC Software
1- Put the CDROM in your computer. If the installation does not start automatically, launch
“SX8654_74EvaluationKitSetup.exe” manually.
2- Follow installation guidelines until the process is completed. Please note that .NET Framework 3.5 will be
automatically downloaded and installed if not detected on your computer.
3- Connect the SX8674EVK board to the PC via the mini USB cable.
4- Launch “Semtech->SX8654_74Evaluation->SX8654_74Evaluation” from Start menu.
5- SX8674EVK is now ready to be used! (see §5 for more details).
Rev 1 – 12 October 2011
th
5
www.semtech.com
