STEVAL-ILL019V1
32 W offline RGGB LED driver with individual
LED channel brightness regulation
Data brief
Features
■
■
■
■
■
■
■
■
■
■
■
Line voltage range: 88 to 265 VAC
4-channel LED driver
Constant LED current: 350 mA
Load: 5 to 13 LEDs per channel
Rated output power: 32 W (wide voltage range)
Rated output power: 42 W (EU voltage range)
Isolated SMPS
Individual RGGB brightness regulation
EN55015 and EN61000-3-2 compliant
PCB: double-side, 145 x 75 x 27 mm
RoHS compliant
STEVAL-ILL019V1
Description

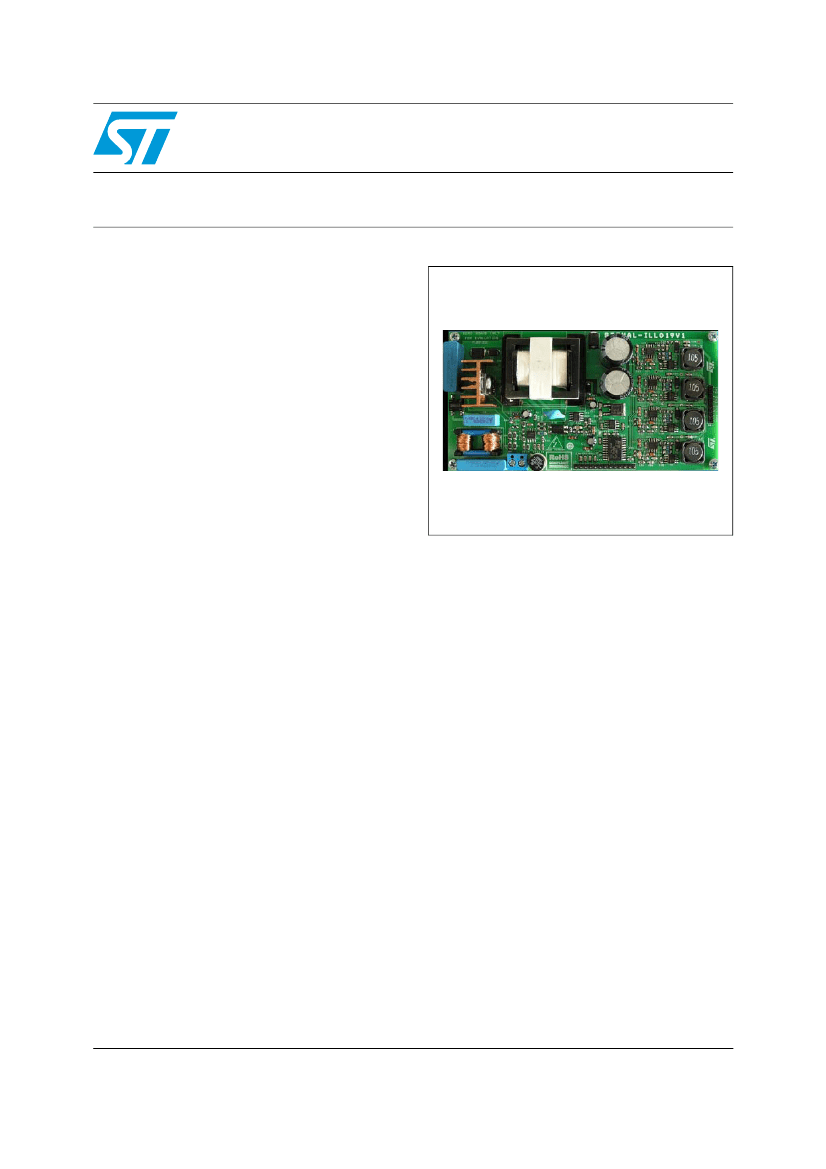

The STEVAL-ILL019V1 demonstration board
implements an isolated high-PF flyback converter
based on the L6562A transition-mode PFC
controller, capable of supplying 4 constant-current
outputs for 4 different RGGB LED modules.
Each module can contain 5 to 13 LEDs, with each
current channel set to 350 mA.
It is possible to choose between automatic color
change mode or manual color adjustment mode
(in the latter case some external components are
required).
January 2010
Doc ID 16992 Rev 1
1/5
www.st.com
5
