10/100/1000 mbps managed Optical
Demarcation module
iMcV-Giga-FiberLinX-III
PRODUCT FEATURES
• Single wide module, allowing maximum use of slots in
multi-port chassis
• 3 mode of Operation, to ease the use of installation
• SFP port model supports both copper and fiber SFPs
• Backwards compatible with the iMcV-Giga-FiberLinX-III
• Offers up to 64 VLANs
The iMcV-Giga-FiberLinX-III intelligent media converter connects a
Host/Remote Ethernet network over a fiber optic or CAT 5 copper
connection. It combines media conversion with an advanced-feature
set for network management and troubleshooting, including OAM
(Operations, Administration and Maintenance), Extra-Tagging and
EtherType control functionality. With the iMcV-Giga-FiberLinX-III,
administrators can observe the end-points over the fiber segment
between them, as a single management entity. Bandwidth scalability
and support for MIBs II makes this modular device a versatile gigabit
solution, now available as a single wide module.
iMcV-Giga-FiberLinX-III allows for remote configuration and alerts
administrators to any potential problems on the long-haul fiber run,
provides vital information on link condition and reports data traffic
statistics.. In addition to the iMcV-Giga-FiberLinX-III's support for
Host/Remote environments, the product also has built-in support for
the Unified Management Agent (UMA). With UMA, the central location
can manage all Host/Remote pairs installed in an iMediaChassis with
the single IP address of the chassis.
Optional single- or dual-SFP port versions or all copper (RJ-45) port
versions are also available for complete network flexibility. The iMcV-
Giga--FiberLinX-III SFP requires one or two MSA-compliant fiber optic
SFP modules (sold separately) to operate. [Copper SFPs are
not supported.]
ORDERing inFORmATiOn
Model
Fiber
Fiber
NuMber
Ports
iMcV-giga-FiberlinX-iii tX/sFP
856-14201
TX/SFP
1
iMcV-giga-FiberlinX-iii
856-14205 SX-MM850-SC
1
856-14206 LX-SM1310-SC
1
856-14207 LX-SM1310/PLUS-SC
1
856-14208 LX-SM1550/LONG-SC
1
856-14209 LX-SM1550/XLONG-SC
1
siNgle straNd Fiber *
856-14220 SSLX-SM1310-SC
1
(1550 rcv)
856-14221 SSLX-SM1550-SC
1
(1310 rcv)
856-14222 SSBX-SM1310-SC
1
(1490 rcv)
856-14223 SSBX-SM1490-SC
1
(1310 rcv)
SSLX-SM1310/PLUS-SC
856-14224 (1550 rcv)
1
856-14225 SSLX-SM1550/PLUS-SC 1
(1310 rcv)
856-14226 SSBX-SM1310-SC (1490 1
rcv)
SSBX-SM1490-SC (1310
856-14227
rcv)
1
SSLX-SM1490/LONG-SC
856-14228 (1550 rcv)
1
856-14229 SSLX-SM1550/LONG-SC 1
(1490 rcv)
raNge
Various
220/550 m
10 km
40 km
80 km
100 km
15 km
15 km
10 km
10 km
40 km
40 km
30 km
30 km
70 km
70 km
etherNet etherNet
Ports
CoNNeCtor
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B+B IMC LLC single-strand fiber product.
iMcV-Giga-FiberLinX-III also available in CWDM
Fiber. Call for details.
iView: Windows 2000/XP/Vista/Win7
www.bb-smartworx.com
|
Enabling connEctEd intElligEncE
iMcV-Giga-FiberLinX-III_2815ds
10/100/1000 mbps managed Optical
Demarcation module
iMcV-Giga-FiberLinX-III
SpecificationS
General
Preserves complete end-to-end fiber connection integrity
Supports Extra Tagging (Q-in-Q)
Supports 802.3ah OAM (Operation, Administration & Management)
Bi-directional bandwidth control
Read/write IEEE 802.1Q VLAN-tags
QoS: IEEE 802.1p-based packet prioritization (2 queues [high/low] with 8 levels of
priority)
Layer 2 packet switching, store and forward operation
Forwarding rate: 14,881 pps for 10 Mbps; 148,810 pps for 100 Mbps; 1,488,100
pps for 1000 Mbps
Features Auto Negotiation and Selective Advertising
Supports up to 64 VLANs operation
MTU: Supports over-sized (Jumbo) packets up to 10240 bytes
Security
Password Control
Multiple Access Levels: User Assigned Accounts & Access Levels
ManaGeMent
SNMP V1 and V2c compatible
Includes GUI-based iView² software for remote management (WIN and WebServer
versions)
Monitors far-end (remote) status without a physical presence or separate
connection
IEEE 802.3x Flow Control
Includes DHCP and TFTP clients
Supports Telnet
Includes loopback test modes (MAC swap)
Includes Link Fault Pass Through
Supports Unified Management Agent (UMA)
Includes status LEDs
ethernet ProtocolS SuPPorted
IEEE 802.3ab 1000Base-T twisted pair
IEEE 802.3z 1000Base-X fiber
IEEE 802.3x Flow Control
IEEE 802.3i 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair

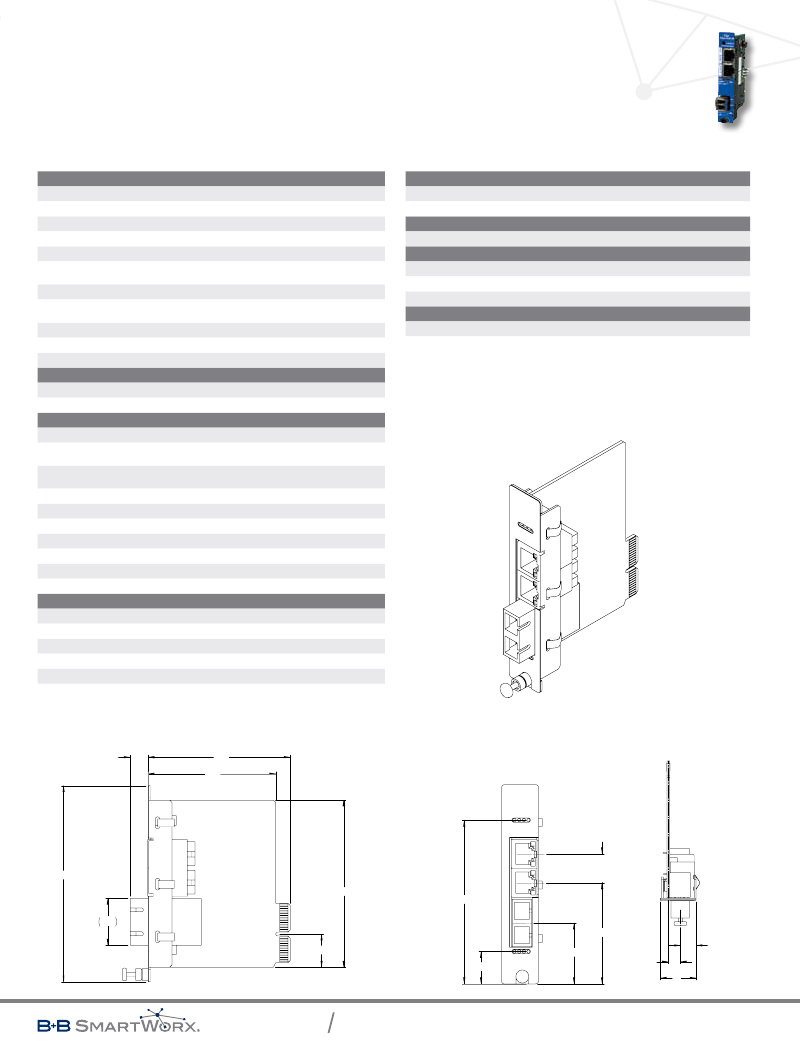

mEChAniCAl DiAgRAm
(dimensions in inches)
.38
3.04
2.73
Mechanical
Dimensions
Shipping Weight
Power consuMPtion
731mA at 5V
environMental
Operating Temperature:
Storage Temperature:
Humidity:
regulatory aPProvals
FCC Class A
UL/cUL, CSA, CE
Standard single-slot chassis module
0.3 lbs (0.136078 kg)
+32° to +122° F (0° to +50° C)
-13° to +158° F (-25° to +70° C)
5% - 95% (non-condensing)
4.19
3.57
.61
3.45
1.00
2.13
.71
1.28
.68
.78 .27
