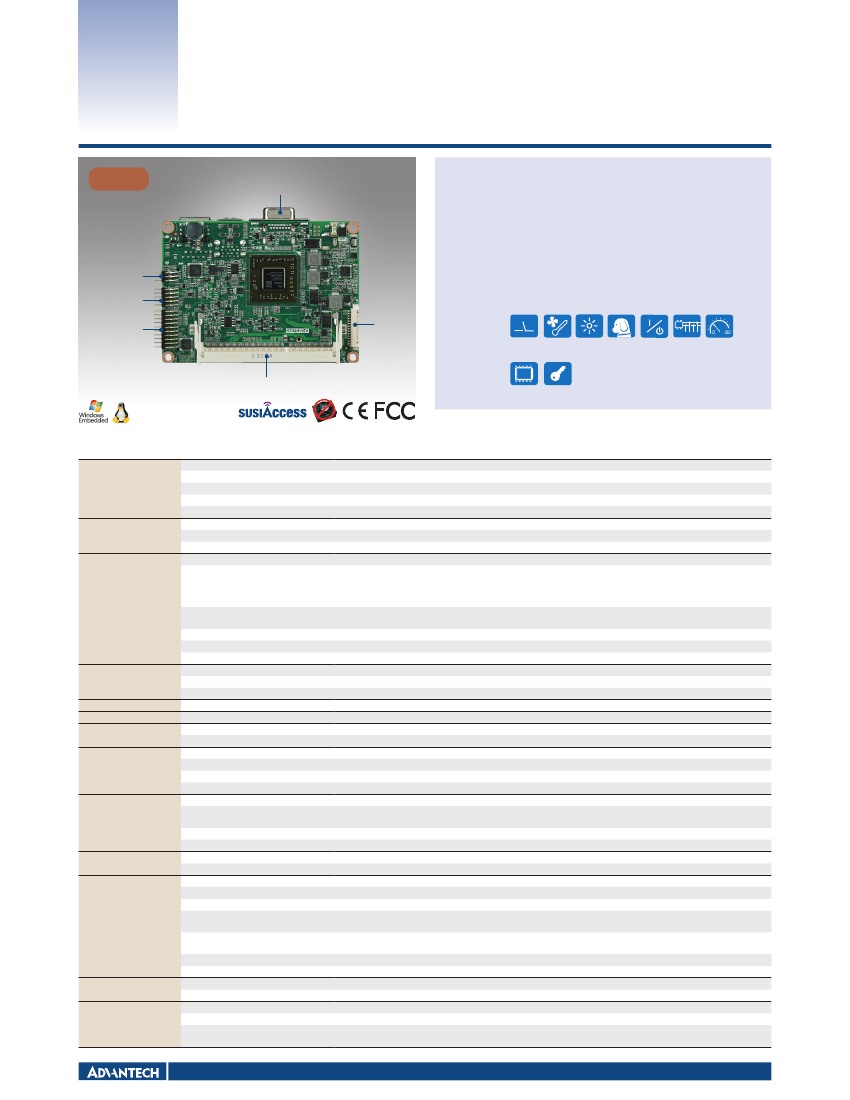

MIO-2270
NEW
VGA
Power button/
HDD LED/
Power LED
HD Audio
Line-in, Line-out
1 x RS-232
1 x RS-232/422/485
18-bit LVDS
AMD
®
G-Series SoC GX-415GA/ GX-210JA
Pico-ITX SBC, DDR3, 18-bit LVDS, VGA or
HDMI, 1GbE, Half-size Mini PCIe, 4 USB,
2COM, SMBus,mSATA & MIOe
Features
Embedded AMD
®
G-Series SoC GX-415GA/ GX-210JA processor design,
DDR3/ DDR3L 1600MHz support up to 8GB
Outstanding graphic performance with DirectX
®
11.1 support, dual
independent display by 18-bit LVDS + VGA or 18-bit LVDS + HDMI
Flexible design using integrated multiple I/O: MIOe to approach vertical
applications & keep domain knowhow
Rich I/O interface with 2 COM, 1 SATA, USB3.0, PCIe Mini Card and mSATA
Supports SUSIAcccess and Embedded Software APIs
Software APIs:
GPIO
H/W Brightness Watchdog Backlight
Monitor
On/Off
SMBus CPU Speed
DDR3 SO-DIMM
Utilities:
BIOS Flash
Embedded
Security ID
Specifications
Processor System
CPU
Frequency
L2 Chche
System Chipset
BIOS
Technology
Max. Capacity
Socket
Chipset
Graphic Engine
Display
LVDS
VGA
HDMI
Dual Display
Speed
Controller
Connector
Chipset
mSATA
SATA
Ethernet
VGA
USB
DC Power Jack
USB
Serial
SMBus
GPIO
Mini PCI Express
MIOe
Power Type
Power supply voltage
Total Peripheral power supply output
Power Consumption (Typical)
Power Consumption (Max, test in HCT)
Power Management
Battery
Operation
Non-Operation
Dimensions (L x W)
Weight
Total Height
AMD
®
G-Series SoC GX-210JA
AMD
®
G-Series SoC GX-415GA
Quad-Core 1.5 GHz
Dual-Core 1.0 GHz
2 MB
1 MB
AMD
®
G series SoC processor integrated
AMI EFI 32 Mbit
DDR3/ DDR3L 1600 MHz
DDR3/ DDR3L 1066 MHz
8 GB
1 x 204-pin SODIMM (Support 1.5V DDR3 and 1.35V DDR3L)
AMD
®
G series SoC
DirectX
®
11.1 graphic with UVD4.2, Open GL4.1/ Open CL 1.2
2D/ 3D Acceleration, Motion Video Acceleration
Hardware decode (UVD) for H.264, MPEG2/4, VC1, MVC
Graphic engine HD 8330E for GX-415GA, HD 8180 for GX-210JA
Supports single channel 18-bit LVDS
Resolution: 1600 x 900 at 60 Hz/ 18bpp
Up to 2048x1536 at 60Hz
Supports 1920x1200 at 60 Hz/ 24bpp
Yes (VGA+LVDS or HDMI+LVDS)
10/100/1000 Mbps
GbE Realtek RTL8111E 10/100/1000 Mbps
RJ45 on rear I/O
Realtek ALC888S, High Definition Audio (HD), Line-in, Line-out
Output system reset, Programmable counter from 1~255 minutes/ seconds
1 x half size mini PCIe slot (Integrates USB signal, supports either mSATA or USB interface module)
1 x SATA III (Max. Data Transfer Tate 600MB/s) support 5V HDD only
1 (10/100/1000 Mbps)
1
2 x USB 3.0 compatible with USB 2.0
1 (Support by request)
2 x USB 2.0
1 x RS-232 from COM2 (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV)
1 x RS-232/422/485 from COM1 with auto-flow control
1
8-bit general purpose input/ output
1 x Half-size
SMBus, 2 x USB2.0, LPC, 2 x PCIe x1, line out, DisplayPort/HDMI*, +5 Vsb/+12 Vsb power, Power On, Reset
Single 12V DC power input (Supports DC power hot plug)
Supports single 12V input, ±10%
5V @ 3A for CPU board and MIOe module totally, 12V @ 2A for MIOe module
MIO-2270QH-S5A1E: w/ DDR3 1.05A @ 12V (12.6W), w/ DDR3L 1.02A @ 12V (12.24W)
MIO-2270DV-S0A1E: w/ DDR3 0.494A @ 12V (5.93W), w/ DDR3L 0.491A @ 12V (5.89W)
MIO-2270QH-S5A1E: w/ DDR3 1.26A @ 12V (15.12W), w/ DDR3L 1.21A @ 12V (14.52W)
MIO-2270DV-S0A1E: w/ DDR3 0.85A @ 12V (10.2W), w/ DDR3L 0.83A @ 12V (9.96W)
ACPI
3V/ 210mAH
0 ~ 60˚ C (32 ~ 140˚F) (Operational humidity: 40˚ C @ 95% RH Non-Condensing)
-40˚C ~ 85˚ C and 60˚ C @ 95% RH non-condensing
100 x 72 mm (3.9" x 2.8")
0.45 kg (0.99 lb), weight of total package
33.59mm for MIO-2270D
40.89mm for MIO-2270Q
Memory
Ethernet
Audio
Watchdog Timer
Storage
Rear I/O
Internal I/O
Expansion
Power
Enviornment
Physical Characteristics
MI/O Extension SBCs, Modules and Chassis
All product specifications are subject to change without notice
Last updated : 2-Oct-2014

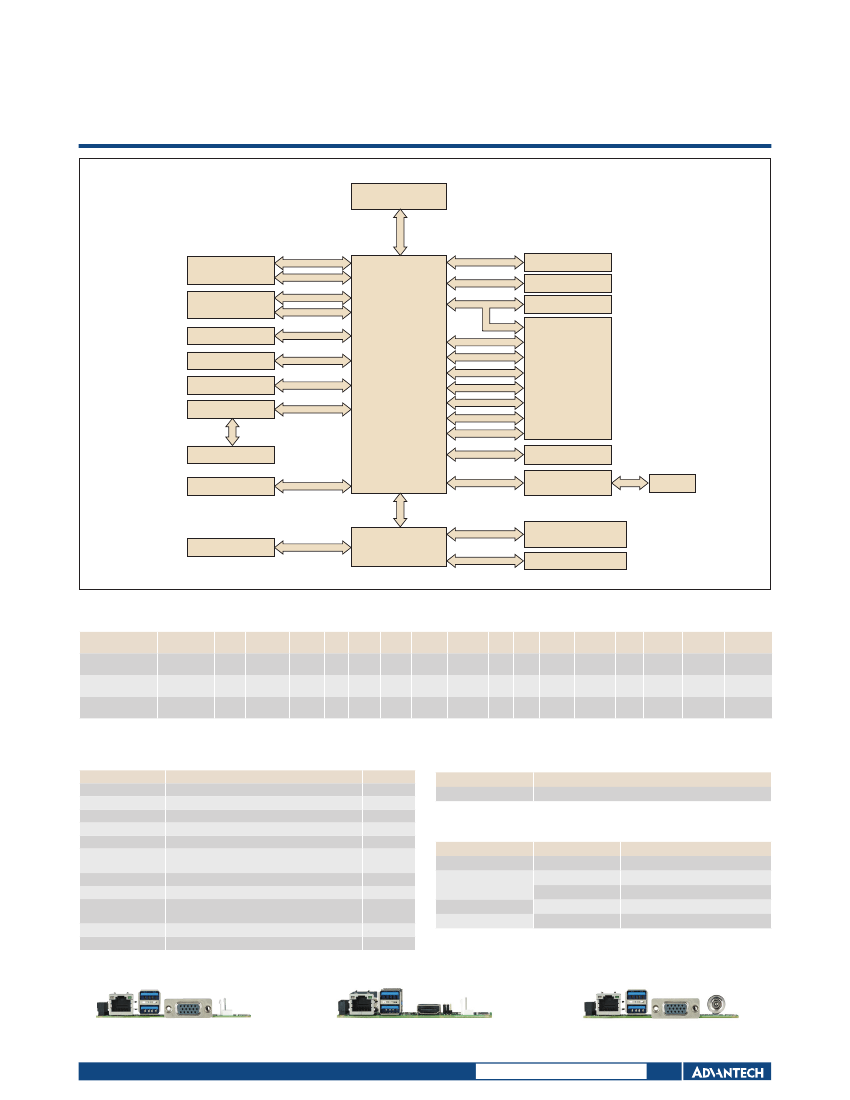

MIO-2270
Block Diagram
DDR3/DDR3L SDRAM
204-pin SO-DIMM
Channel
Single
Half-size Mini PCIe
Half-size mSATA
1 x SATAIII
2 x USB3.0
32Mbit BIOS
Realtek ALC888S
PCIe x 1
USB2.0
SATAIII 600MB/s
USB2.0
SATAIII 600MB/s
USB3.0/USB2.0
SPI
HD Audio
RGB
DDI Port 1
DDI Port 0
DP/HDMI
SMBus
VGA
HDMI
18-bit LVDS
AMD
G-series SoC
GX-415GA/GX-210JA
2 PCIe x1
HD Auido Line-out
LPC
2 USB2.0
12Vsb/5Vsb
Reset
MIOe
Line-in, Line-out
2 x USB2.0
USB2.0
LPC
PCIe x1
SMBus
Realtek GbE
RTL8111E-GR
RJ45
8-bit GPIO
Super I/O
COM1: RS-232/422/485
COM2: RS-232
Watchdog Timer
Ordering Information
Part Number
MIO-2270QV-S5A1E
MIO-2270QH-S5A1E
MIO-2270DV-S0A1E
CPU
L2
Memory
Cache
SO-DIMM
SO-DIMM
SO-DIMM
LVDS
18-bit
18-bit
18-bit
VGA HDMI
Yes
-
Yes
-
Yes
-
Audio
Yes
Yes
Yes
RS-232
1
1
1
RS-232/
422/485
1
1
1
USB
3.0
2
2
2
USB
2.0
2
2
2
mSATA
Yes
Yes
Yes
SATA III
1
1
1
MIOe
Yes
Yes
Yes
Mini
PCIe
Half-size
Half-size
Half-size
Thermal
solution
Active
Active
Passive
Operating
Temp
0~60˚C
0~60˚C
0~60˚C
GX-415GA,
2MB
1.5 GHz, 15W
GX-415GA,
2MB
1.5 GHz, 15W
GX-210JA, 1.0
1MB
GHz, 6W
GX-210JA with HDMI supported by request
Packing List
Part No.
1700006291
1700019656
1701200220
1700022444-01
1700002172
1700019705
9666226300E
1960063062T001
1960063455T011
Description
MIO-2270 SBC
Startup Manual
SATA cable 30cm
SATA power cable 5P-1.25/5P-2.0+SATA 5P 15 cm
RS-232 x 2 ports 2.0mm pitch 22cm
Audio cable 2.0 mm pitch 20 cm
(line-in & line-out)
USB cable 2.0 mm pitch USB-A(F) 17 cm
AT power cable 12 cm
Screw and stud pack (2 screw for Mini PCIe,
4 M3 studs and scresw for heatsink)
CPU cooler for MIO-2270QV/QH
CPU Heatsink for MIO-2270DV/DH
Quantity
1
1
1
1
1
1
1
1
1
1
1
Optional Accessories
Part No.
1960065075N001
Description
MIO-2270 Heat spreader (99.5x70.5x11.2 mm)
Embedded OS/API
Embedded OS/API
Win CE
WES
Linux
Software
Part No.
2070013053
2070012828
2070012881
Description
CE7.0 ENG
WES2009 X32 V4.5 MUI24
WES7E X64 V5.6.7 EN/TC/SC/JP
Ubuntu 13.04
SUSI V3.0
Rear I/O view
MIO-2270QV-S5A1E
MIO-2270DV-S0A1E
MIO-2270QH-S5A1E
MIO-2270 w/ DC Jack (by request)
Online Download
