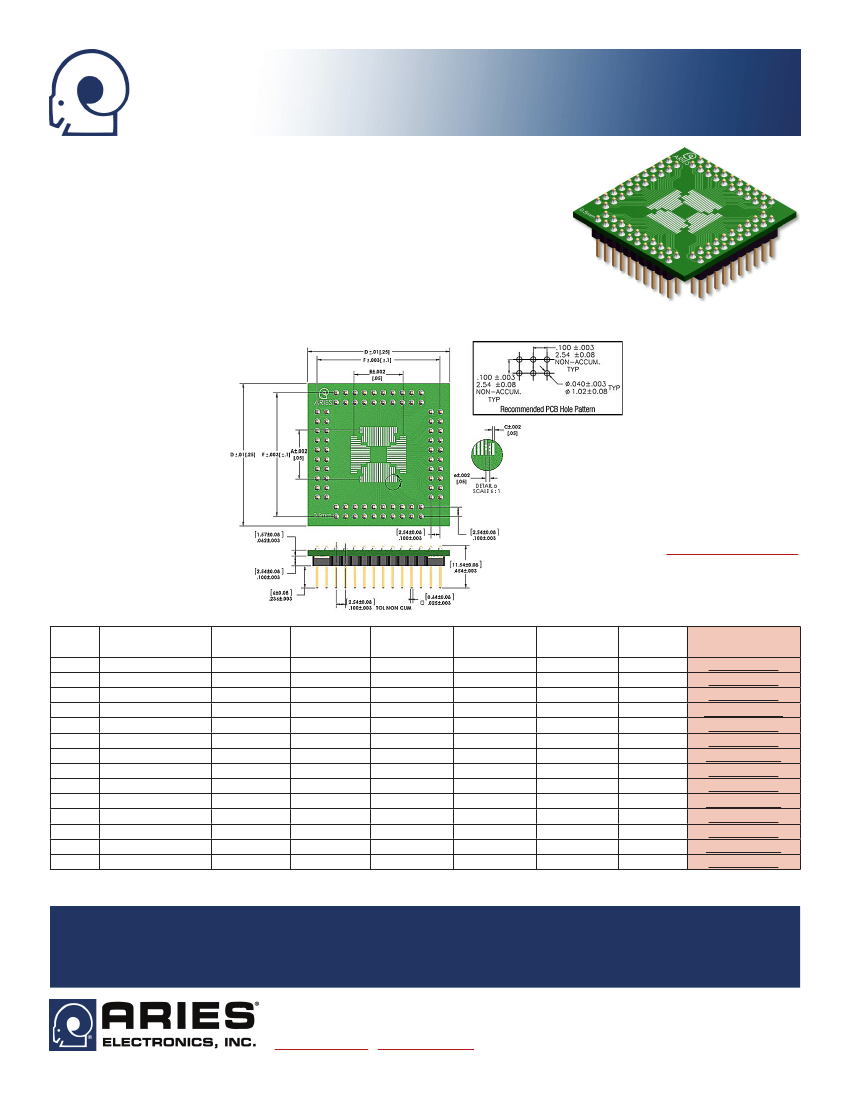

Aries Low Cost, Quick Turn
QFP Prototyping Adapters
FEATURES
• Mates common QFP packages to standard breadboard and breakout boards for rapid
and easy prototyping
• Panelized adapters available upon request
GENERAL SPECIFICATIONS
• BOARD MATERIAL: 0.062 [1.58] thick FR-4, UL 94V-0 with 1/2-oz. Cu traces
• PIN INSULATOR: Polyester, UL 94V-0
• PINS: Brass 360 1/2-hard per UNS C36000 ASTM-B16-00
• PIN PLATING: Au Flash
• OPERATING TEMPERATURE: -55°C to +125°C
ORDERING INFORMATION
Indicate desired P/N
t
P/N
Pads
32
32
40
40
44
52
52
60
64
64
64
80
80
80
Device Body Size inch
[mm]
0.197 x 0.197 [5 x 5]
0.276 x 0.276 [7 x 7]
0.197 x 0.276 [5 x 7]
0.276 x 0.276 [7 x 7]
0.394 x 0.394 [10 x 10]
0.276 x 0.394 [7 x 10]
0.394 x 0.394 [10 x 10]
0.276 x 0.394 [7 x 10]
0.394 x 0.394 [10 x 10]
0.472 x 0.472 [12 x 12]
0.551 x 0.551 [14 x 14]
0.472 x 0.472 [12 x 12]
0.551 x 0.551 [14 x 14]
0.551 x 0.787 [14 x 20]
Dim. “A”
inch [mm]
0.244 [6.2]
0.339 [8.6]
0.244 [6.2]
0.323 [8.2]
0.472 [12]
0.323 [8.2]
0.472 [12]
0.323 [8.2]
0.441 [11.2]
0.559 [14.2]
0.630 [16]
0.520 [13.2]
0.630 [16]
0.638 [16.2]
Dim. “B”
inch [mm]
0.244 [6.2]
0.339 [8.6]
0.323 [8.2]
0.323 [8.2]
0.472 [12]
0.441 [11.2]
0.472 [12]
0.441 [11.2]
0.441 [11.2]
0.559 [14.2]
0.630 [16]
0.520 [13.2]
16 [0.016]
0.874 [22.2]
Dim. “C”
inch [mm]
0.012 [0.30]
0.016 [0.40]
0.012 [0.30]
0.016 [0.40]
0.020 [0.50]
0.012 [0.30]
0.016 [0.40]
0.012 [0.30]
0.012 [0.30]
0.016 [0.40]
0.020 [0.50]
0.012 [0.30]
0.016 [0.040]
0.020 [0.50]
Dim. “D”
inch [mm]
1.50 [38.10]
1.70 [43.18]
1.50 [38.10]
1.50 [38.10]
1.70 [43.18]
1.50 [38.10]
1.50 [38.10]
1.50 [38.10]
1.50 [38.10]
1.50 [38.10]
1.70 [43.18]
1.50 [38.10]
1.50 [38.10]
1.70 [43.18]
Dim. “F”
inch [mm]
1.30 [33.02]
1.50 [38.10]
1.30 [33.02]
1.30 [33.02]
1.50 [38.10]
1.30 [33.02]
1.30 [33.02]
1.30 [33.02]
1.30 [33.02]
1.30 [33.02]
1.50 [38.10]
1.30 [33.02]
1.30 [33.02]
1.50 [38.10]
Dim. “e”
inch [mm]
0.020 [0.50]
0.031 [0.80]
0.020 [0.50]
0.020 [0.50]
0.031 [0.80]
0.020 [0.50]
0.026 [0.65]
0.020 [0.50]
0.020 [0.50]
0.026 [0.65]
0.031 [0.80]
0.020 [0.50]
0.026 [0.65]
0.031 [0.80]
LCQT-QFP0.5-32
LCQT-QFP0.8-32
LCQT-QFP0.5-40
LCQT-QFP0.5-40-1
LCQT-QFP0.8-44
LCQT-QFP0.5-52
LCQT-QFP0.65-52
LCQT-QFP0.5-60
LCQT-QFP0.5-64
LCQT-QFP0.65-64
LCQT-QFP0.8-64
LCQT-QFP0.5-80
LCQT-QFP0.65-80
LCQT-QFP0.8-80
• ALL DIMENSIONS: INCHES [MILLIMETERS] • ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED • CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION. SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE FURNISHED,
DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
19001
Rev. 1.1
1 of 1
