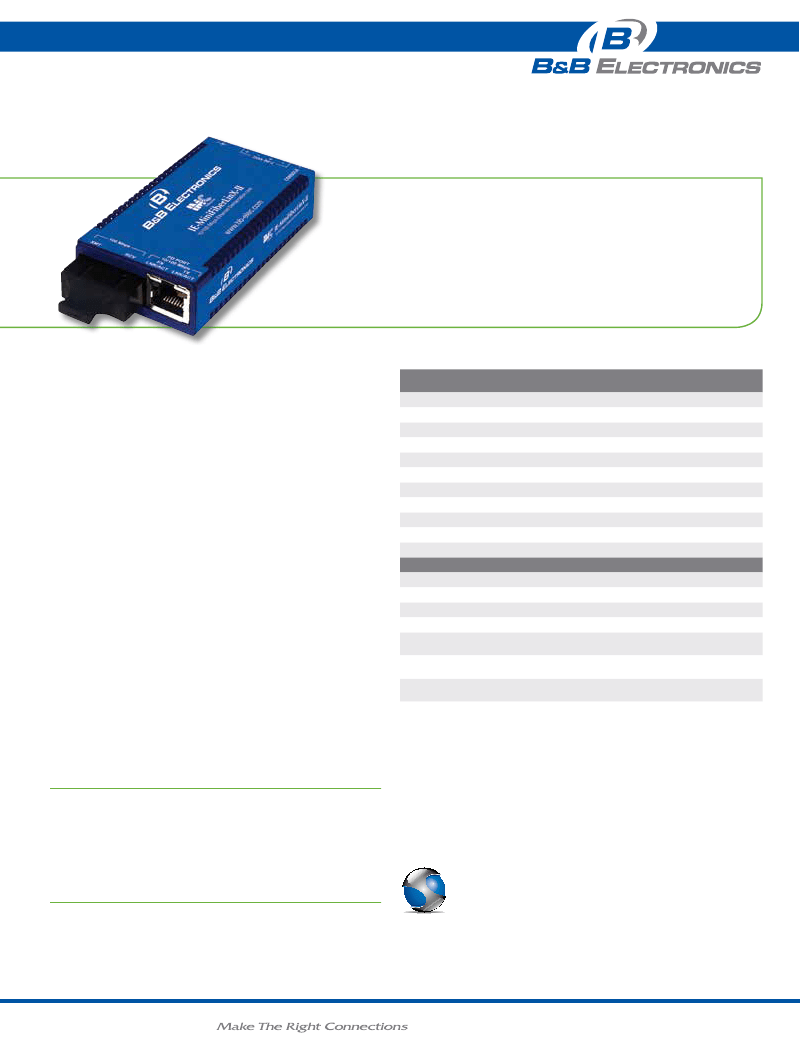

10/100 mbps managed Optical Demarcation
Compact CPE Device
IE-MiniFiberLinX-II
PRODUCT FEATURES
•
•
•
•
•
•
Loopback troubleshooting
SNMP Manageable
Power options: AC, DC and 802.3af Power over Ethernet (PoE)
Bi-directional Bandwidth control
MTU: Supports over-sized packets up to 1916
Supports passive 802.3ah OAM (Operation, Administration
& Management
The compact IE-MiniFiberLinX-II provides point-to-point fiber optic
connections with a unique management tool to monitor the entire link
between two locations. IE-MiniFiberLinX-II CPE for fiber optic networks
allows service providers to deliver “triple-play” voice, video and data
services to customer premises.
As a copper-to-fiber converter, the IE-MiniFiberLinX-II supports
multiple fiber types including multi-mode, single-mode, single-strand
fiber (SSF), and Course Wavelength Division Multiplexing (CWDM)
functionality to increase the capacity of existing fiber. As a remote, CPE
device, it can be connected via the fiber segment to an iMcV-FiberLinX-
II Host module to support Host/Remote management.
Equipped with one 100 Mbps fiber data port, one 10/100 twisted pair
port for data and management, as well as an auxiliary port designed to
function as a serial port (when used with the included adapter), the IE-
MiniFiberLinX-II also offers multiple powering options: AC power (with
included adapter), DC (through a 4-terminal power block), as well as
Power over Ethernet, acting as a Powered Device (PD) to draw power
when connected to 802.3af compliant Power Sourcing Equipment
(PSE). Telco versions that support -48 VDC are also available.
Combining copper-to-fiber conversion, extended temperature
performance, plug-and-play operation, miniature size and multiple
power options, the IE-MiniFiberLinX-II is one of the most versatile fiber
optic CPE devices available.
ORDERing inFORmATiOn
Model
Fiber raNge
Fiber
NuMber
Ports
ie-MiniFiberlinX-ii **
856-19717
MM850-ST
1
2 km
856-19718
MM850-SC
1
2 km
856-19722
MM1300-ST
1
5 km
856-19723
MM1300-SC
1
5 km
856-19724 SM-1310/PLUS-ST
1
40 km
856-19725 SM1310/PLUS-SC
1
40 km
856-19726 SM1310/LONG-ST
1
80 km
856-19727 SM1310/LONG-SC
1
80 km
856-19730 SM1550/LONG-SC
1
80 km
856-19728 SM1550/XLONG-SC
1
100 km
siNgle straNd Fiber *
856-19750
SSFX-MM1310-SC
1
2 km
856-19751
SSFX-MM1550-SC
1
2 km
856-19752
SSFX-SM1310-SC
1
20 km
856-19753
SSFX-SM1550-SC
1
20 km
SSFX-SM1310/
856-19754
1
40 km
PLUS-SC
856-19755
SSFX-SM1550/
1
40 km
PLUS-SC
856-19756
SSFX-SM1310/
1
60 km
LONG-SC
SSFX-SM1550/
856-19757 LONG-SC
1
60 km
**
For a complete list of modules without an AC Adapter, contact IMC Networks
etherNet
Ports
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
etherNet
CoNNeCtor
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
ACCESSORiES
806-39105 - DIN Rail Clip
806-39638 - Double-USB Power Cable, 36”/.9m
806-39650 - 12”/.3m Barrel-Connector Power Cable
806-39753 - IE-Power/5V Module, AC to DC DIN Rail Power Adapter
IE-MiniFiberLinX-II also available in CWDM Fiber.
Call for details.
iView
DEVICE MANAGEMENT APPLICATION
2
iView: Windows 2000/XP/Vista/Win7
www
.
bb
-
elec
.
com
|
IE MiniFiberLinX-II_3713ds
10/100 mbps managed Optical
Demarcation Compact CPE Device
IE-MiniFiberLinX-II
SpecificationS
General
Preserves complete end-to-end fiber connection integrity
Bi-directional bandwidth control (per port, per direction, per VLAN)
Read/write IEEE 802.1Q VLAN-tags
Extra Tagging with Q-in-Q mode (802.1p)
Supports passive 802.3ah OAM (Operation, Administration & Management)
QoS: IEEE 802.1p-based packet prioritization (2 queues [high/low] with 8 levels of
priority)
VLAN filtering up to 32 values
Layer 2 packet switching, store and forward operation
Forwarding rate: 14,881 pps for 10 Mbps; 148,810 pps for 100 Mbps
AutoCross for MDI/MDIX
Features Auto Negotiation and Selective Advertising
Supports Half and Full-Duplex operation
MTU: Supports over-sized packets up to 1916 bytes per packet
Security
Password Control
Multiple Access Levels: User Assigned Accounts & Access Levels
ManaGeMent
SNMP V1 and V2c compatible
Includes GUI-based iView² software for remote management and upgrades
Monitors far-end (remote) status without a physical presence or separate
connection
IEEE 802.3x Flow Control
Includes DHCP and TFTP clients
Supports Telnet
Includes loopback test modes (MAC swap)
Includes LinkLoss and FiberAlert
Remote capabilities with built-in support for UMA (IP-less management)
RS-232 (Craft) interface for local management
Serial cable for direct connection to a PC’s Serial Port
EthErnEt Protocols suPPortEd
EEE 802.3i 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3u 100Base-FX or SX fiber
MEchanical
0.83”H x 1.80”W x 3.35”D
Dimensions
(2.11 x 4.57 x 8.51 cm)
PowEr
AC Wall Adapter: 100 to 240 VAC ±10% input, 5 VDC output, 2A max.
DC Input Voltage: 12 to 48 VDC *, 1 to .02A, 7 to 50 VDC, 1 to 0.1A
IEEE 802.3af Power over Ethernet
EnvironMEntal
Operating Temperature
+14° to +122°F (-10° to +50°C) AC Adapter
-13° to +167°F (-25° to +75°C) DC Adapter
Storage Temperature
-49° to +185° F (-45° to +85° C)
Operating Humidity
5 to 95% Non-condensing
rEgulatory aPProvals
FCC Class A
UL/cUL, CE, CSA, CB
3.35
(85,1)

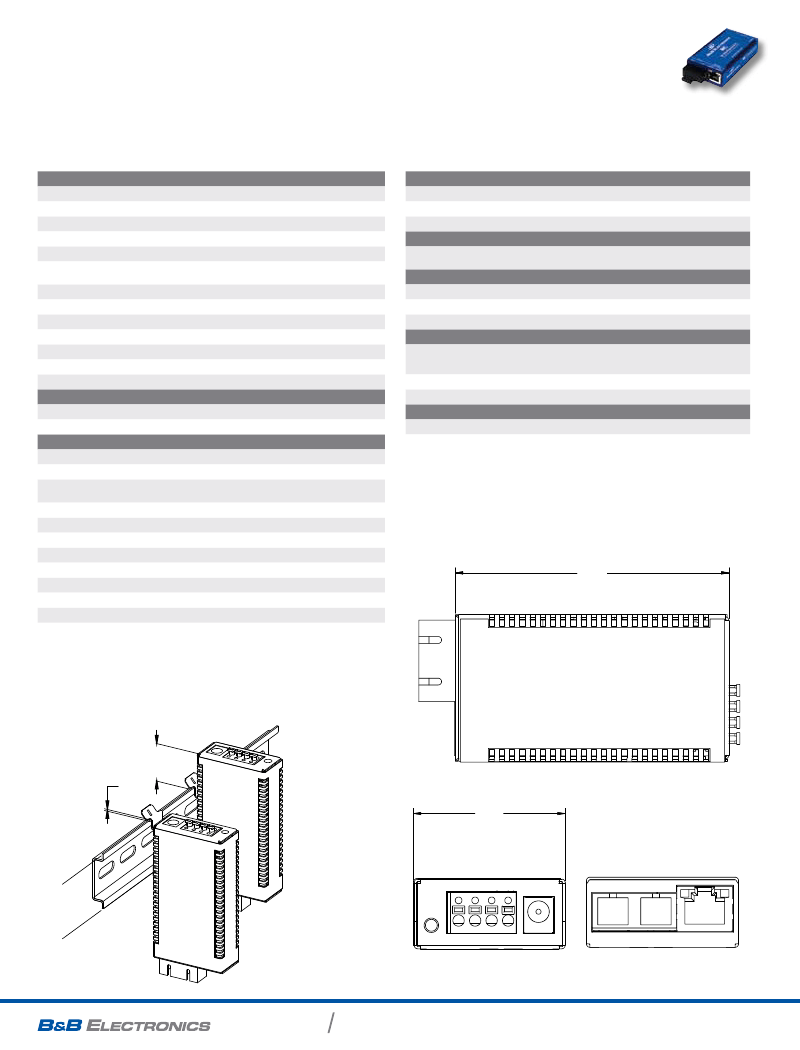

mEChAniCAl DiAgRAm
(dimensions in inches & millimeters)
1.04
(26,4)
.04
(1.0)
1.81
(46,0)
1.25
(31,75)
orders@bb-elec.com
support@bb-elec.com
