DS-570GF-U4A1E: DescriptionEmbedded Box Computers Intel Celeron J1900, w/ 2GB RAM, 500GB HDD; CategoryModule/solution; File Size685KB，2 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/

Download Datasheet Parametric Compare View All

DS-570GF-U4A1E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DS-570GF-U4A1E	-	-	View	Buy Now

DS-570GF-U4A1E Overview

Embedded Box Computers Intel Celeron J1900, w/ 2GB RAM, 500GB HDD

DS-570GF-U4A1E Parametric

Parameter Name	Attribute value
Product Category	Embedded Box Computers
Manufacturer	Advantech
RoHS	Details
Processor Brand	Intel
Processor Type	Intel Celeron J1900
Frequency	2 GHz
Memory Size	2 GB
Interface Type	Audio, Ethernet, HDMI, RS-232, SATA, Serial, USB
Operating Supply Voltage	19 V
Maximum Operating Temperature	+ 40 C
Dimensions	220 mm x 150 mm x 44.2 mm
Cache Memory	2 MB
Description/Function	DS-570, J1900 + GeForce GT730M, 2GB RAM, 500G HDD
Memory Type	DDR3L
Minimum Operating Temperature	0 C
Power Consumption	9.7 W
Factory Pack Quantity	1

Preview

Download Datasheet

View All

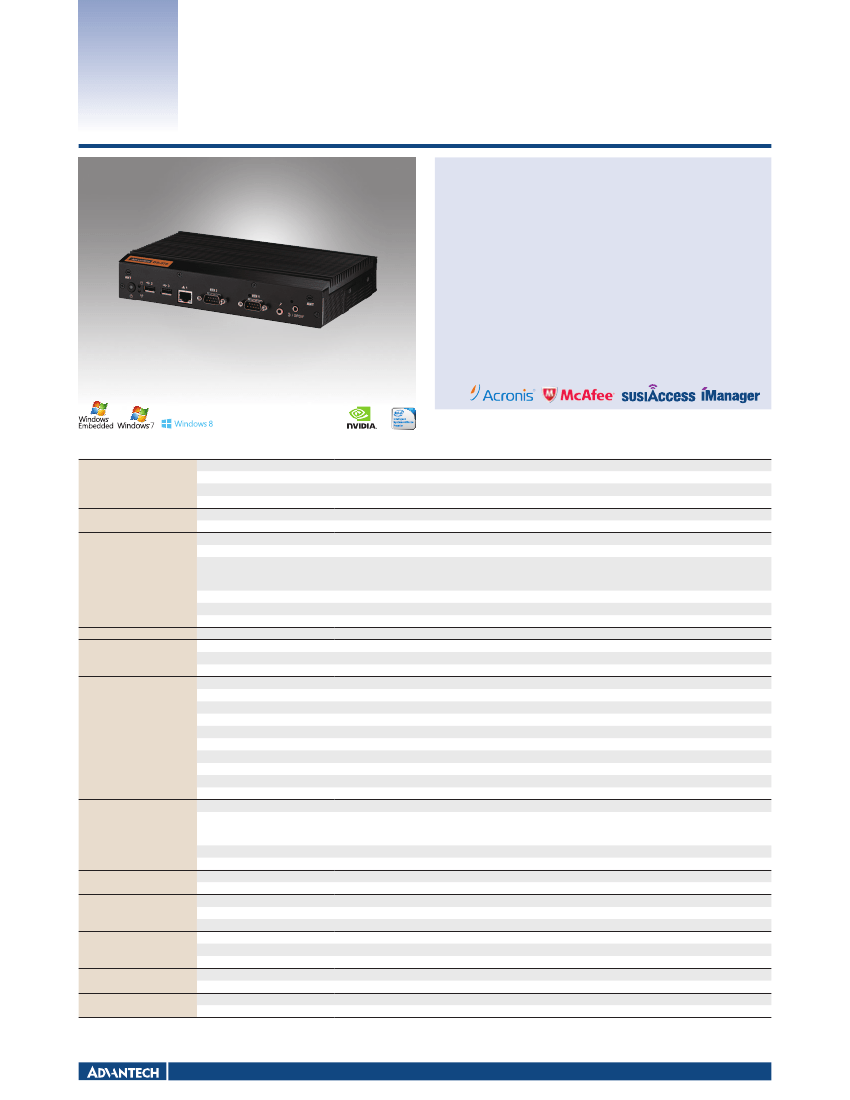

DS-570

Intel

Celeron

N2930/ J1900 Quad-Core™

SoC with Advanced (NVIDIA GeForce GT 730M)

Graphics Digital Signage Platform

Features

Intel Celeron N2930/ J1900 low power Quad-Core SoC platform (FANLESS)

Integrated NVIDIA GeForce GT 730M graphic module for UHD/FHD playback

Supports simultaneous multi-display output (any 2,3 or 4 outputs)

Compact size mechanical design for easy installation in application field

Highly expandable via internal Mini-PCIe interface (e.g. WLAN, 3G or TV

tuner)

2 COM (RS-232) ports for system integration and application

Consumer Electronic Control (CEC*) implemented on one of HDMI port

Content management software built-in for content editing, scheduling and

remote monitoring functions

Specifications

Processor System

CPU

System Chipset

L2 Cache

BIOS

Technology

Max. Capacity

Chipset

Memory Size

Resolution

Output

Multi display

Video format

SATA

Interface

Controller

Connector

HDMI

DP++

VGA

LAN

USB 2.0

USB 3.0

Audio

Serial

Mini-PCIe (Internal)

Power input

Management

Power Consumption Input Voltage

Input Voltage

Others

Output

Interval

Mounting

Dimensions (W x H x D)

Weight

Operating Temperature

Relative Humidity

Vibration Resistance

Operating System

Linux

Electromagnetic

Safety

Intel Celeron N2930 Quad Core 1.86GHz/ J1900 Quad Core 2.0GHz

Integrated in CPU

2 MB

AMI uEFI 64 Mbit

2 x DDR3L 204-pin DIMM**

8GB (up to 4GB per each SODIMM)

NVIDIA GeForce GT 730M

Independent display memory 1024 MB

VGA: up to 2048 x 1536 @ 60Hz

HDMI: up to 3840 x 2160 @ 30Hz

DP++: up to 3840 x 2160 @ 60Hz

2 x HDMI, 1x DP++, 1 x VGA

Any 2, 3 or 4 outputs

H.264, VC1, MPEG-1, MPEG-2, MPEG-4 Part 2SP, MPEG-4 ASP, WMV9, DivX 3.11

1 x 2.5-inch SATA II HDD/SSD (only support 7 mm height)

Gigabit LAN Controller

2 x Intel I211

2 x RJ-45

2 (HDMI 1 support CEC only)

1 (D-sub 15-pin)

2 (RJ-45)

1x audio phone jack for Mic-in, 1x SPDIF/ Line-Out (support jack-sense via OS setting)

2 x COM (RS-232)

2 (full-size for optional expansion modules)

1 (DC-in jack)

ACPI 3.0

CPU N2930:

CPU J1900:

- Typical: 10.5W (w/o expansion)

- Typical: 9.7W (w/o expansion)

- Max.: 15.7W (w/o expansion)

- Max: 22.6W (w/o expansion)

19V DC-in (ATX/AT mode, default ATX)

Supports boot on power back and schedule boot up function

Interrupt, system reset

Programmable by SUSIAccess

Easy mounting kits for LCD or Plasma

220 x 44.2 x 150 mm

1.7 kg

0 ~ 40° C (32 ~ 104° F) (w / HDD); 0° C~ 70° C (32 ~ 158° F) (w/ extend temp. Memory & SSD)

95% @ 40° C (non-condensing)

1.0 Grms, IEC 60068-2-64, random, 5~500 Hz, 1Oct./min, 1hr/axis

Supports Microsoft Windows 8.1/ 8/ 7, WES7P, WES7E

TBD

CE, FCC Class B, BSMI

UL, CCC, BSMI, CB, LVD

Memory

Display

Storage

Ethernet

I/O Interface

Power Requirement

Watchdog Timer

Physical Characteristics

Environment

Software Development Kit

Certification

*1 CEC pin definition reserved in HDMI, needs software to enable it

** If only one RAM, please insert it into SO-DIMM 1 slot and boot up.

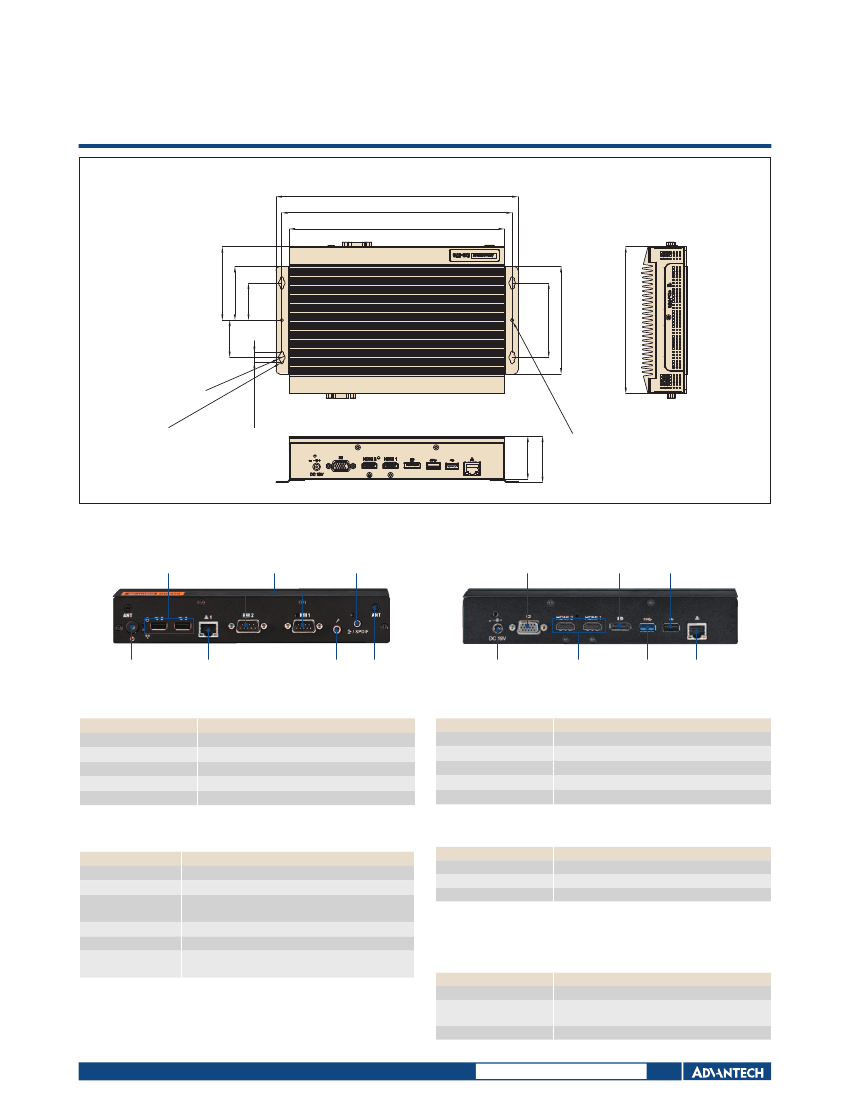

Digital Signage Platforms

All product specifications are subject to change without notice

Last updated : 26-Nov-2014
