The
N-TRON
®

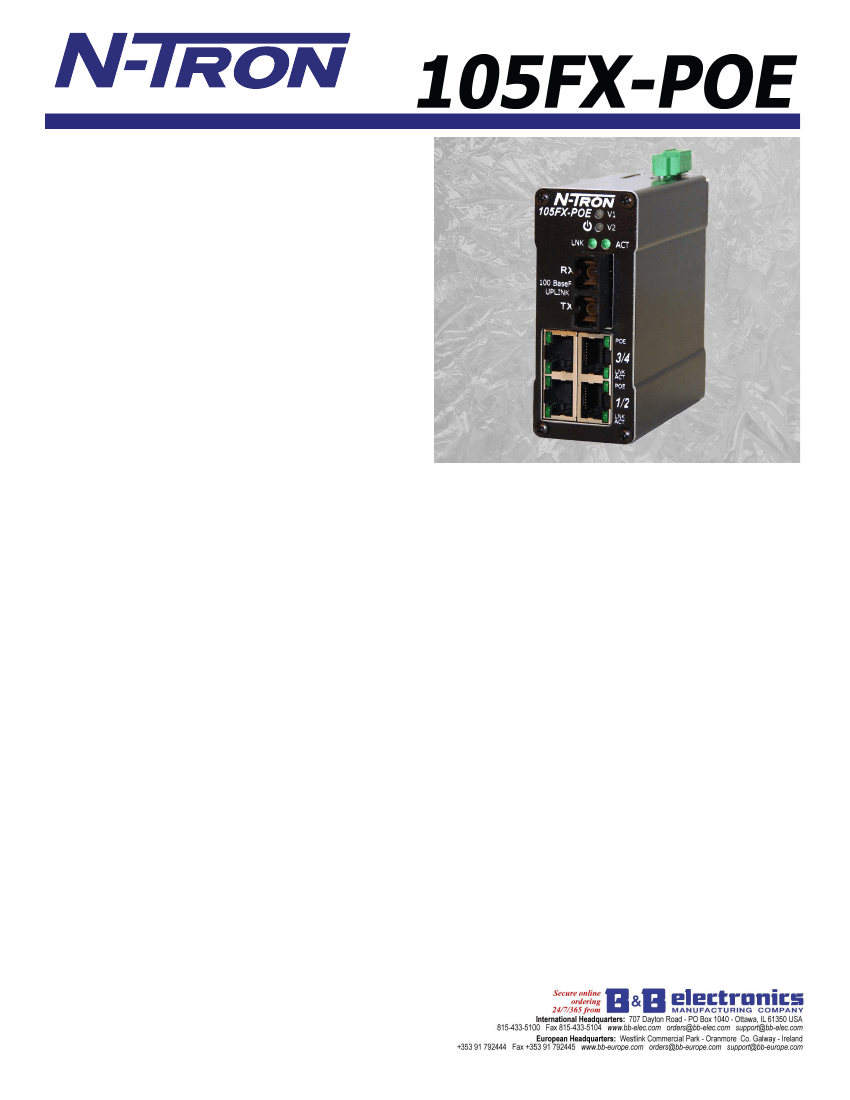

105FX-POE
Unmanaged Industrial Ethernet
Switch is designed to transmit power along with data over
an Ethernet network. It is ideal for PoE capable devices
where running an AC power feed is either not possible or cost
effective. This allows an end user to power a PoE camera,
wireless access point, or any other PoE capable device without
the need for running separate wires for power. This also
makes it possible to utilize a centralized battery backup for
all these devices.
PRODUCT FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Compact, Space Saving Package
Full IEEE 802.3 and 802.3af Compliance
American Bureau of Shipping (ABS) Type Approval
EN50155 for Railway applications
Four 10/100BaseTX RJ-45 Ports (4 PoE Ports)
One 100BaseFX Port with ST or SC Connectors
Unmanaged Operation
Extended Environmental Specifications
•-40ºC to 85º Operating Temperature
Automatic Detection of Connected PoE Devices
Support for Full/Half Duplex Operation
Auto-sensing Duplex, Speed, and MDIX (RJ-45)
Up to 1.0 Gb/s Maximum Throughput
Full Wire Speed Communications
Supports 15.4 Watts per port
(13 Watts at the PD)
Redundant Power Inputs (46-49 VDC)
Power Fault Status LED's
LED Link/Activity Status Indication
LED PoE Status Indication
Hardened Metal DIN-Rail Enclosure
The
105FX-POE
auto-negotiates the speed and flow control
capabilities of the four TX port connections, and configures
itself automatically.
The
N-TRON 105FX-POE
also supports up to 2,000 MAC
addresses, enabling these products to support extremely
sophisticated and complex network architectures.
The
105FX-POE
automatically detects any PoE device
that is connected and powers it accordingly. If a PoE fault is
detected on a specific port the Auto-disconnect feature
disables PoE power on that port, allowing only data
communications to pass, reducing the risk of damaging costly
equipment.
The
105FX-POE
is an ideal candidate for providing data
and power to wireless LAN access points, network cameras,
VoIP, and other PoE capable devices. The product also helps
reduce costs by eliminating the need for electrical wiring and
electrician expenses.
The
105FX-POE
has extended operating environmental
specifications to meet the harsh needs of the industrial
environment. For cost savings and convenience the network
switch can be DIN-Rail mounted alongside Ethernet I/O or
other Industrial Equipment.
To increase reliability the
105FX-POE
provides dual
redundant power inputs. Two power LED's are also
provided on this unit indicating a valid power source on both
the redundant power inputs and also indicating when a power
fault bus occurs.
PRODUCT OVERVIEW
The
105FX-POE
Industrial Network Switch is designed
to meet the most demanding industrial communications
requirements by providing high throughput and minimum
downtime while also providing power to PoE capable devices
over the Ethernet network.
The
105FX-POE
provides four RJ-45 auto sensing10/100BaseTX
ports. All ports are full/half duplex capable, using "state of
the art" Ethernet switching technology. All four RJ-45 ports
also act as PoE ports allowing power to pass through four of
the eight strands of CAT5 cable. Each PoE port supports up
to 15.4 watts of power. The 5th port is a 100BaseFX fiber
optic uplink utilizing industry standard ST or SC duplex
connectors.
THE INDUSTRIAL NETWORK COMPANY
105FX-POE SPECIFICATIONS

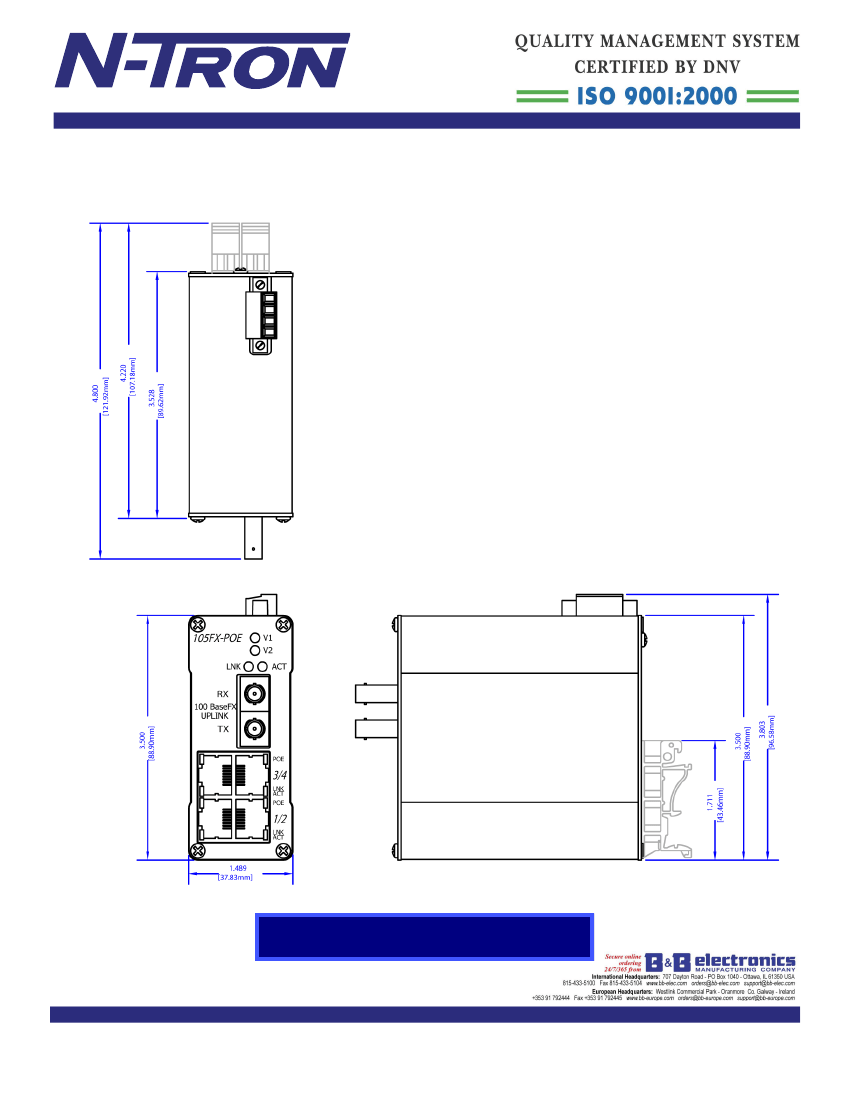

Case Dimensions
Height:
Width:
Depth
Weight:
DIN-Rail:
Electrical
Input Voltage:
Steady Input Current
Steady Input Current with
Inrush:
Environmental
Operating Temperature:
Storage Temperature:
Operating Humidity:
Operating Altitude:
Network Media
10BaseT:
100BaseTX:
100BaseFX Multimode
100BaseFX Singlemode:
3.5"
1.5"
3.6"
0.7 lbs.
35mm
(9.7cm)
(3.8 cm)
(9.0cm)
(0.3 kg)
BENEFITS
PoE Industrial Network Switch
• Compact Size / Small Footprint
• Ability to Power Devices via LAN
• Eliminates need for Costly Electrical Wiring
• Extended Environmental Specifications
• Hardened Metal DIN-Rail Enclosure
• High Performance
• High MTBF >2M Hours
• ESD Protection Diodes on RJ-45 Ports
• Surge Protection Diodes on Power Inputs
Ease of Use
• Plug & Play Operation
• Auto Sensing 10/100BaseTX
• Auto Sensing Full/Half Duplex
• MDIX Auto Cable Sensing
• Unmanaged Operation
• Auto-Detection of PoE Capable Devices
• Redundant Power Status LED's
Increased Performance
• Full Wire Speed Capable
• Full Duplex Capable
• Eliminates Network Collisions
• Increases Network Determinism
• Auto-Disconnect of PoE Port if Fault is Detected
46-49 VDC
1.6 A@48V
Under Full Load
65mA@48V
No PoE, Switch Full Load
26Amp/1.3ms@48V
-40
o
C to 85
o
C
-40
o
C to 85
o
C
10% to 95%
(Non Condensing)
0 to 10,000 ft.
>Cat3 Cable
>Cat5 Cable
50-62.5/125
μm
7-10/125
μm
100 Mb Fiber Transceiver Characteristics
Fiber Length
TX Power Min
RX Sensitivity Max
Wavelength
2km*
-19dBm
-32dBm
1310nm
15km**
-15dBm
-29dBm
1310nm
40km**
-5dBm
-34dBm
1310nm
80km**
-5dBm
-34dBm
1550nm
* Multimode Fiber Optic Cable
** Singlemode Fiber Optic Cable
Connectors
10/100BaseTX+PoE:
100BaseFX:
Four (4) RJ-45
TX/PoE Copper Ports
One (1) ST or SC
Duplex Port
Regulatory Approvals
FCC Title 47 Part 15 Class A
ICES-003- Class A
CE: EN61000-6-2,4; EN61000-4-2,3,4,5,6
EN55011
UL Listed (US and Canada) per ANSI/ISA-12.12.01-2000,
Class I, Div 2, Groups A,B,C,D,T4A;
ABS Type Approval for Shipboard Applications
DNV Type Approval Certification
EN50155 for Railway Applications
GOST-R Certified; RoHS Compliant
Designed to comply with:
IEEE 1613 for Electric Utility Substations
and NEMA TS1/TS2 for Traffic Control Equipment
Recommended Wiring Clearance
Front:
4" (10.16 cm)
Top:
1" (2.54 cm)
Ordering Information
105FX-XX-POE
Four10/100BaseTX Ports (4 PoE)
One 100BaseFX Multimode Port
105FXE-XX-YY-POE
Four10/100BaseTX Ports (4 PoE)
One 100BaseFX Singlemode Port
NTPS-48-5
DIN-Rail Power Supply
48V@ 5 Amp
Contact Information
N-TRON
Corp.
N-TRON
Europe GmbH
820 S. University Blvd., Suite 4E
Alte Steinhauserstr 19
Mobile, AL 36609 USA
6330 Cham / Zg Switzerland
TEL: (251) 342-2164
TEL: +41 41 7406636
FAX: (251) 342-6353
FAX: +41 41 7406637
Website: www.n-tron.com
Email: N-TRON_info@n-tron.com
REV 090805
® 2009
N-TRON
, Corp.
N-TRON
and the
N-TRON
logo are trademarks of
N-TRON
, Corp. Product names mentioned herein are for identification purposes only and
may be trademarks and/or registered trademarks of their respective company. Specifications subject to change without notice.
The responsibility for the use and application
of
N-TRON
products rests with the end user.
N-TRON
makes no warranties as to the
fi
tness or suitability of any
N-TRON
product for any specific application.
N-TRON
Corporation
shall not be liable for any damage resulting from the installation, use, or misuse of this product.
Printed in USA.
