SWITCHED USB
EXPANSION HUBS
HUBPORT
®
Industrial grade switched hubs offer instant
Plug and Play USB connectivity
Hubport offers a simple solution for adding USB ports to a PC,
server or thin client for instant peripheral device connectivity.
This external, user installable solution plugs into a standard
USB port to provide additional USB ports in a compact
chassis. The switched USB architecture guarantees maximum
performance on all ports simultaneously.
Models include AC or DC powered hubs that accept power
from standard AC wall plugs or a range of 5.5-30 VDC power
sources, such as vehicle batteries. The Industrial grade
compact chassis is small enough to fit nearly anywhere. With a
high USB port count, the rack mount option is perfect for data
center applications.
Feature-rich design, extensive operating system support and
reliable performance make Hubport ideal for mission-critical
environments. Applications include connecting devices to a
hub powered by car or truck battery for mobile applications;
providing multiport USB connectivity in a kiosk or other
compact environments; and connecting USB peripheral
devices at an office workstation.
BENEFITS
– Industrial USB 2.0 or 3.1 hubs for instant USB expansion
– Compact chassis with 4 or 7 port options
– Rack-mountable 14-port USB 2.0 model
– AC models for indoor applications
– Variable range DC models for outdoor/mobile
applications
– Switched USB ensures maximum performance on all
ports
– Locking or Terminal power connector on compact
models
– Individual port power management
APPLICATION EXAMPLE
HUBPORT®
USB
Modem
PC
USB
Printer
EDGEPORT®
RELATED PRODUCTS
RS-232
Scale
Edgeport®
AnywhereUSB
XStick USB
Adapter
XBee 802.15.4
Adapters
Camera
USB FEATURES
SPECIFICATIONS
Hubport Compact USB 3.1
®
7 USB 3.1 Type A
Hubport Compact USB 2.0
®
4 or 7 USB 2.0 Type A
Hubport Rack
®
14 USB 2.0 Type A
PORTS
DATA RATE
GENERAL FEATURES
5 Gbps
480 Mbps; Multi-TT switched USB architecture guarantees a full 12 Mbps simultaneously
on all downstream ports, even if a high-speed 480 Mbps transfer is active
POWER
Individual port power management; 500 mA downstream power available per port
Linux®*, Windows Server 2016, Windows 10®, Windows Server® 2012, Windows 8®, Windows® 7, Windows Vista®, Windows Server® 2008,
Windows XP®, Windows® XP Embedded, Windows NT® 4.0**, Windows NT Embedded**, Windows CE, Windows Server® 2003,
Windows 2000
1 System status LED
7 Port Status LEDs; Yellow=Full/High
speed, Blue=Super Speed, Off=Port not in
operation
2.61 in x 3.00 in x 1.00 in (6.63 cm x 7.62
cm x 2.54 cm); 6.20 oz (175.80 g)
1 System Status LED
14 Port Status LEDs; Green=Port operation-
al, Blinking Green=Port needs attention,
Off = Port not in operation
4.97 in x 17.00 in x 1.74 in (12.62 cm x 43.18
cm x 4.42 cm); 35.00 oz (1134 g)
OPERATING SYSTEMS
LEDS
1 System status LED
4 or 7 Port Status LEDs; Green=Port
operational, Off = Port out of operation
2.61 in x 3.00 in x 1.00 in (6.63 cm x 7.62
cm x 2.54 cm); 6.20 oz (175.80 g)
DIMENSIONS (L X W X H) & WEIGHT
OTHER
POWER REQUIREMENTS
No additional IRQ or memory address requirements; Hot-swappable; 14 port is 1U Rack-Mountable (mounting ears included); Plug and
Play; USB ports are backwards compatible to USB 2.0, 1.1 and 1.0
POWER INPUT (AC MODELS)
N/A
Variable power DC products are 6V to
28V Max power of 35W (Terminal Block
connector)
Ships with plug-mounted 120-230VAC
50-60 Hz at 5VDC @ 3Amps max
Variable power DC products are 5.5V to
30V @ 15W (Locking Power connector
pigtail included)
Single 120-230 VAC 50/60 Hz power input
IEC 60320 inlet. Max power 40W
POWER INPUT (DC MODELS)
ENVIRONMENTAL
N/A
OPERATING TEMPERATURE
RELATIVE HUMIDITY
REGULATORY APPROVALS
-40°C to +70°C (-40°F to 158°F) (Industrial)
Hubport/7c (AC model) 0°C to 55°C or
Hubport/4c DC and Hubport/7c DC -40°C
to +70°C
0°C to 55°C (32°F to 131°F)
0% to 95% (non-condensing)
SAFETY
EMISSIONS/IMMUNITY
EN60950, UL 1950, CSA 2.2 No. 950, IEC 950
CE, FCC Part 15 Class B, EN55022 Class B, EN55024

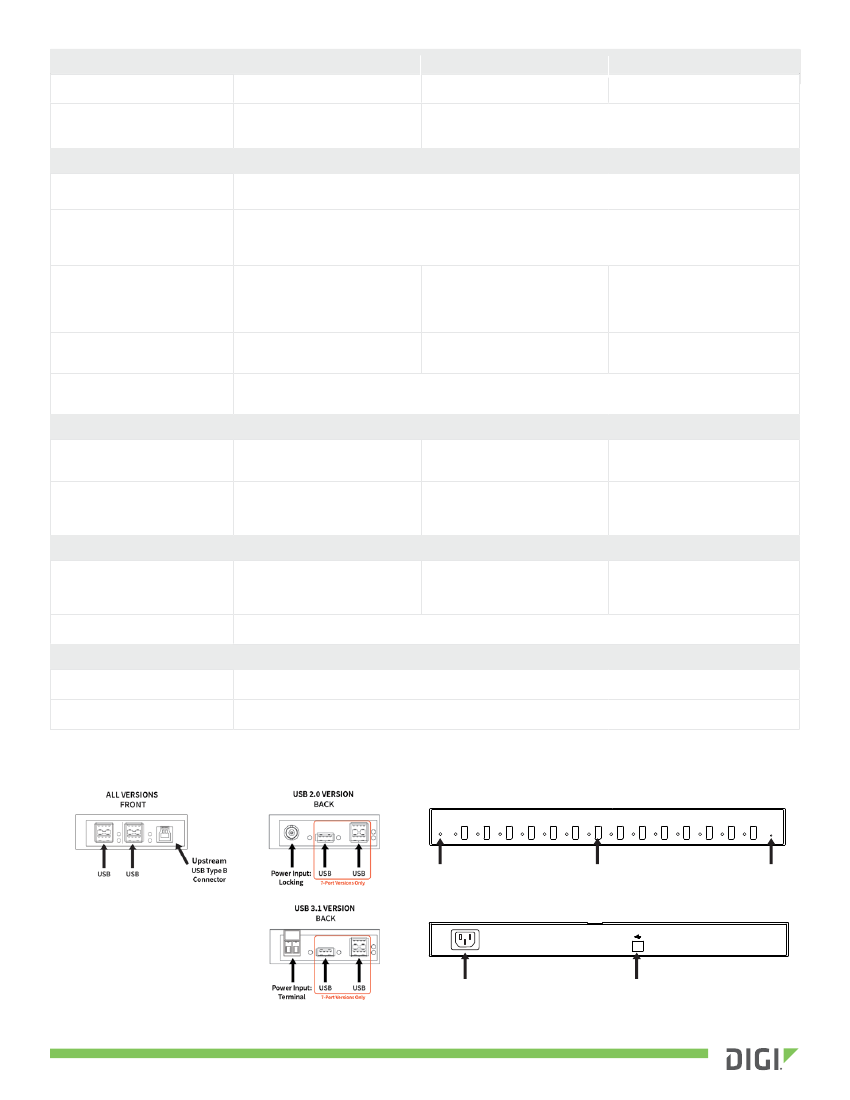

HUBPORT/14 - FRONT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
System
Status
USB
Reset
HUBPORT/14 - BACK
Power
Input
Upstream
USB Type B
Connector
*Third-party support only.
**Supported when connecting Digi products.
WWW.DIGI.COM
PART NUMBERS
HP-USB-14
301-2010-27
301-3010-71
301-1010-44
301-1010-74
301-3010-71
DESCRIPTION
Hubport/14 - 14-port USB 2.0 hub 19” rack 1U
Hubport/7c - 7-port switched USB 2.0 hub (Worldwide)
Hubport/7c - USB 3.1 SuperSpeed 6-28U DC (international)
Hubport/4c 5.5-30V DC powered USB 2.0 hub, 4 type A and 1 type B USB connectors
Hubport/7c 5.5-30V DC powered USB 2.0 hub, 7 type A and 1 type B USB connectors
Hubport/7c USB 3.1 SuperSpeed 6-28V DC, with terminal power connector
FOR MORE INFORMATION
PLEASE VISIT
WWW.DIGI.COM
