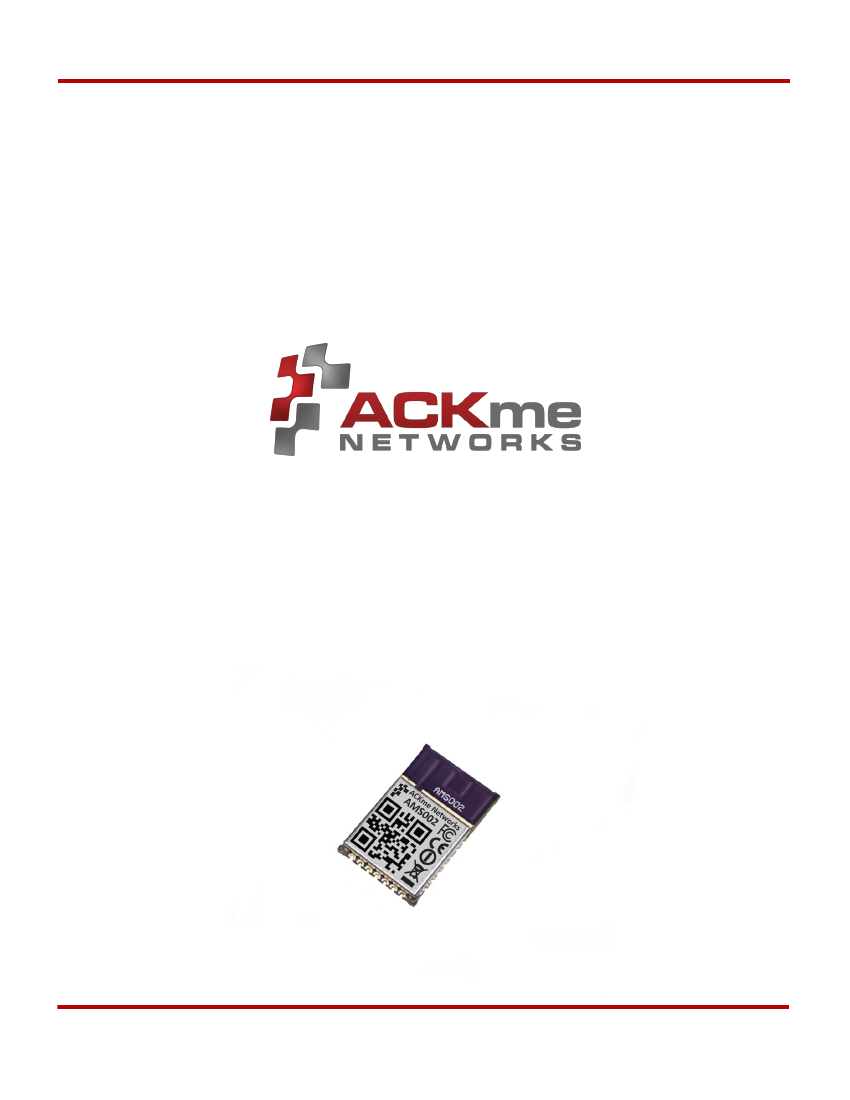

AMS00x
•
Embedded Bluetooth Low Energy Solutions
AMS001 / AMS002
Data Sheet
ADS-MS00x-107R
•
Preliminary Data Sheet
©2014-2015 ACKme Networks. http://ack.me
September 14, 2015
AMS00x
•
Embedded Bluetooth Low Energy Solution
Disclaimer
While the information provided in this document is be-
lieved to be accurate, it is under development and
ACKme Networks reserves the right to make changes
without further notice to the product described herein
to improve reliability, function, or design, and makes no
guarantee or warranty concerning the accuracy of said
information, nor shall it be responsible for any loss or
damage of whatever nature resulting from the use of,
or reliance upon, such information. ACKme Networks
makes no warranties of any kind, whether express, im-
plied or arising by custom or course of trade or perfor-
mance, and specifically disclaims the implied warranties
of title, non-infringement, merchantability, or fitness for
a particular purpose.
No part of this document may be copied, reproduced,
stored in a retrieval system, or transmitted, in any form
or by any means, electronic, mechanical, photographic,
or otherwise, or used as the basis for manufacture or
sale of any items without the prior written consent of
ACKme Networks.
Contact
http://ack.me/contact
About this Data Sheet
This document provides information on the family of
AMS00x Bluetooth Low Energy (Bluetooth Smart) mod-
ules from ACKme Networks.
Organization
This data sheet is organized into the following sections:
Features & Applications
General Description, Section 1
Block Diagram, Section 2
Electrical Specifications, Section 3
Bluetooth RF Specifications, Section 4
Pinout and Signal Descriptions, Section 5
Design Guidelines, Section 6
Regulatory Certification, Section 7
Packaging, Handling & Storage, RoHS, Section 8
Ordering Information, Section 9
Revision History & Glossary, Section 11
Trademarks
ACKme Networks and the ACKme Networks logo are
trademarks of ACKme Networks. WICED™ is a trade-
mark of Broadcom® Corporation, Inc. Bluetooth® is a
trademark of the Bluetooth SIG. Other trademarks in
this document belong to their respective owners.
Copyright © 2014-2015 ACKme Networks.
All rights reserved.
Document Number: ADS-MS00x-107R
Release Date: September 14, 2015
ADS-MS00x-107R
•
Preliminary Data Sheet
©2014-2015 ACKme Networks. http://ack.me
Page | i
September 14, 2015
AMS00x Family Data Sheet
Embedded Bluetooth Low Energy Solution
Features
Bluetooth Low Energy (Bluetooth Smart) modules
fully certified to meet Bluetooth version 4.1.
Integrated 8 Mbit SPI-serial flash supports firm-
ware updates and multiple on-board applications
On-board PCB-style antenna
ARM® Cortex™ M3-based microprocessor core
Adaptive Frequency Hopping (AFH)
Programmable RF transmit power control
Operation directly from a battery or mains supply
Small size enables integration into most sensor
products and applications
Secure Over-the-Air (OTA) software update using
industry-standard AES-128 security
Easily integrated into existing or new products us-
ing TruConnect, ACKme’s configurable Bluetooth
Low Energy application (pre-installed on every
module)
Multiple services including ACKme TruConnect,
Beacon, iBeacon, plus more …
Interfaces*
A/D converter: 7 channels with 4 modes providing
variable resolution (10-13 ENOBs), sampling rate
(5.9-187 kHz) and conversion latency (5-171 µs)
USART: 1 x 4-wire up to 1.5 Mbit/s for general use,
1 x 2-wire for in-circuit programming
SPI: 1 x master, 1 x slave at
≤12
Mbit/s
I
2
C: 1 x I
2
C master interface up to 1 MHz
GPIO: Up to 12 GPIOs (overlaid with peripherals),
programmable pull-up/pull-down resistors with
16 mA drive strength at 3.3V (2 mA standard).
4 x PWM channels each with a 10-bit counter
clocked at 128 kHz.
Wake-up: Wake from GPIO for ultra-low power
operation.
*
Operational & Radio
Operational voltage : 1.8V - 3.6V
Operational Temperature Range: -30°C to +85°C
Size : 17.6 x 11.4 x 2.4mm (0.70” x 0.45” x 0.10”)
Weight : 0.04 oz (1.2g)
Current consumption @ 3.0V, 25°C
-
Deep Sleep : 1.65µA (typ.)
-
Sleep : 12 µA
-
AMS001
Active Receive : 12.8 mA
Active Transmit : 10.8 mA
-
AMS002
Active Receive : 26.6 mA
Active Transmit : 22.0 mA
RF Transmit Power: +4 dBm (max.)
Receive Sensitivity : -94 dBm
Applications
Health & Fitness
-
Fitness Equipment
-
Heart rate monitors
-
Weight scales
-
Thermometers
-
Pedometers
-
Glucose meters
-
Blood pressure monitoring
Retail
-
Advertising and Beaconing
-
Proximity detection
-
Point-of-sale
Home & Industrial Control and Automation
-
Appliance control and monitoring
-
Doors/Window monitoring
-
Alarms
-
Wireless cable replacement
-
Environmental & Energy monitoring
-
Wireless sensing, remote data logging
Consumer
-
Toys
-
Robots
Remote controls
Some interfaces share module pins
ADS-MS00x-107R
•
Preliminary Data Sheet
©2014-2015 ACKme Networks. http://ack.me
Page | ii
September 14, 2015
AMS00x
•
Embedded Bluetooth Low Energy Solution
Contents
1
2
3
General Description ............................................... 1
Block Diagram ........................................................ 2
Electrical Specifications.......................................... 3
3.1
3.2
Absolute Maximum Ratings ............................ 3
Recommended Operating Conditions ............ 3
DC Operating Conditions ........................ 3
Environmental Conditions ...................... 4
3.3
3.4
3.5
4
Power Consumption ....................................... 4
Input/Output Pins ........................................... 5
ADC Specifications .......................................... 5
7.3
7.2
Labeling
and
User
Information
Requirements....................................................... 14
RF Exposure .......................................... 15
External Antenna .................................. 15
Further Information .............................. 15
Canada .......................................................... 15
Labeling
and
User
Information
Requirements....................................................... 15
External Antenna Types ........................ 16
Further Information .............................. 16
Europe .......................................................... 17
Bluetooth RF Specifications ................................... 6
4.1
4.2
4.3
Summary RF Specifications ............................. 6
Receiver Specifications ................................... 6
Transmitter Specifications .............................. 7
Labeling
and
User
Information
Requirements....................................................... 17
External Antenna Requirements .......... 17
Further Information .............................. 17
7.4
Australia ........................................................ 18
External Antenna Requirements .......... 18
Further Information .............................. 18
7.5
New Zealand ................................................. 19
External Antenna Requirements .......... 19
Further Information .............................. 19
8
Packaging, Handling & Storage, RoHS ................. 20
8.1
8.2
8.3
8.4
9
10
Packaging ...................................................... 20
Tape and Reel Specifications ........................ 20
Handling & Storage ....................................... 22
RoHS Directive .............................................. 22
5
Pinout and Signal Descriptions .............................. 8
5.1
5.2
Pinout.............................................................. 8
Pin Description................................................ 8
6
Design Guidelines.................................................10
6.1
6.2
6.3
6.4
6.5
Recommended PCB Footprint ......................10
Routing Recommendations ..........................10
Soldering Information ...................................11
AMS00x Photograph .....................................11
Application Examples....................................12
UART Application for Configuration and
Streaming .............................................................12
6.6
Operation using TruConnect ........................12
Bootup Configuration ...........................12
Factory Reset ........................................13
Command and Stream Mode ...............13
GPIO Configuration & Usage ................13
7
Regulatory Certification .......................................14
7.1
United States ................................................14
Ordering Information ........................................... 23
Revision History & Glossary ................................. 24
10.1
10.2
Revision History ............................................ 24
Glossary ........................................................ 24
ADS-MS00x-107R
•
Preliminary Data Sheet
©2014-2015 ACKme Networks. http://ack.me
Page | iii
September 14, 2015
General Description, Section 1
AMS00x
•
Embedded Bluetooth Low Energy Solution
1 General Description
The family of AMS00x ‘Bobcat’ modules from ACKme
Networks is based on an ultra-low power Bluetooth
Low Energy (Bluetooth Smart) SoC from Broadcom Cor-
poration. All modules incorporate serial-flash memory
and a printed antenna to provide a state-of-the-art ful-
ly-certified Bluetooth 4.1 solution.
An integrated solution avoids difficult RF layout and
enables designers to rapidly embed Bluetooth Low En-
ergy into virtually any device.
The AMS001 (Low Power) version slashes active power
consumption for applications requiring multi-year bat-
tery life, while the AMS002 (Low Cost) version provides
the lowest cost solution suitable for price sensitive ap-
plications. The modules are 100% footprint compatible.
Modules ship with ACKme TruConnect, an easy-to-use
application enabling control and configuration via
UART-serial and remote terminal interfaces. TruCon-
nect virtually eliminates difficult and time-consuming
software development effort and vastly reduces prod-
uct development cycles.
With dimensions of just 17.6 x 11.4 mm, a wide tem-
perature range, and an ultra-low power version, the
module is suitable for integration into any battery-
powered embedded wireless application.
The Bluetooth Low Energy SoC from Broadcom is pur-
pose-designed to support the entire spectrum of Blue-
tooth Smart use cases for medical, home automation,
accessory, sensor, retail and wearable market seg-
ments. Superior receive sensitivity, an integrated RF
transmit power amplifier and transmit/receive switch,
along with the on-board antenna, provide extended
range and full compatibility with all Bluetooth 4.1 de-
vices.
At the heart of all AMS00x modules is a Bluetooth Low
Energy SoC with a high-performance ARM® 32-bit Cor-
tex™-M3 core operating at a frequency of 24 MHz. The
SoC includes is configured to boot applications stored in
the 8 Mbit serial flash memory available on-board the
module.
The Broadcom BLE SoC supports Adaptive Frequency
Hopping.
ADS-MS00x-107R
•
Preliminary Data Sheet
©2014-2015 ACKme Networks. http://ack.me
Each module provides an extensive array of I/O and
peripheral interfaces. The following interfaces are
available, many of which are accessible with I/O multi-
plexing and alternate function capabilities:
7 x A/D converter channels
2 x UART interfaces: 1 x 4-wire, 1 x 2-wire
1 x SPI master, 1 x SPI slave bus
1 x I
2
C interface
Up to 12 x ultra-low power wake input
32kHz crystal interface
The module may be powered directly from a battery
supply in the range 1.8-3.6V including 2xAAA, 2xAA, or
a single Lithium coin cell.
Internal power domains are automatically adjusted to
minimize power dissipation based on user activity. Var-
ious power modes, including an ultra-low power deep
sleep mode, are provided to minimize total average
power consumption and maximize battery life.
Custom factory settings may be saved to a non-erasable
area of static memory to enable out-of-the-box custom
product configuration and the ability to return products
incorporating the module to a known factory reset
state.
The module may be woken from deep sleep mode by a
level transition on the GPIO assigned for stream mode
selection. Other GPIOs may be dynamically allocated for
control and status including a BLE connection indicator,
serial bus mode control and status indicator, audible
alerts and factory reset.
An internal 32kHz low-power oscillator is available by
default for non-critical timing requirements. Applica-
tions requiring an accurate real-time clock may connect
an (optional) external 32kHz crystal.
All versions of the module have Bluetooth BQB SIG cer-
tification, and FCC & IC modular approval for use in the
United States and Canada, and CE approval for use in
Europe and other countries.
Page | 1
September 14, 2015
RF/Wirelessly
京公网安备 11010802033920号
EEWORLD
