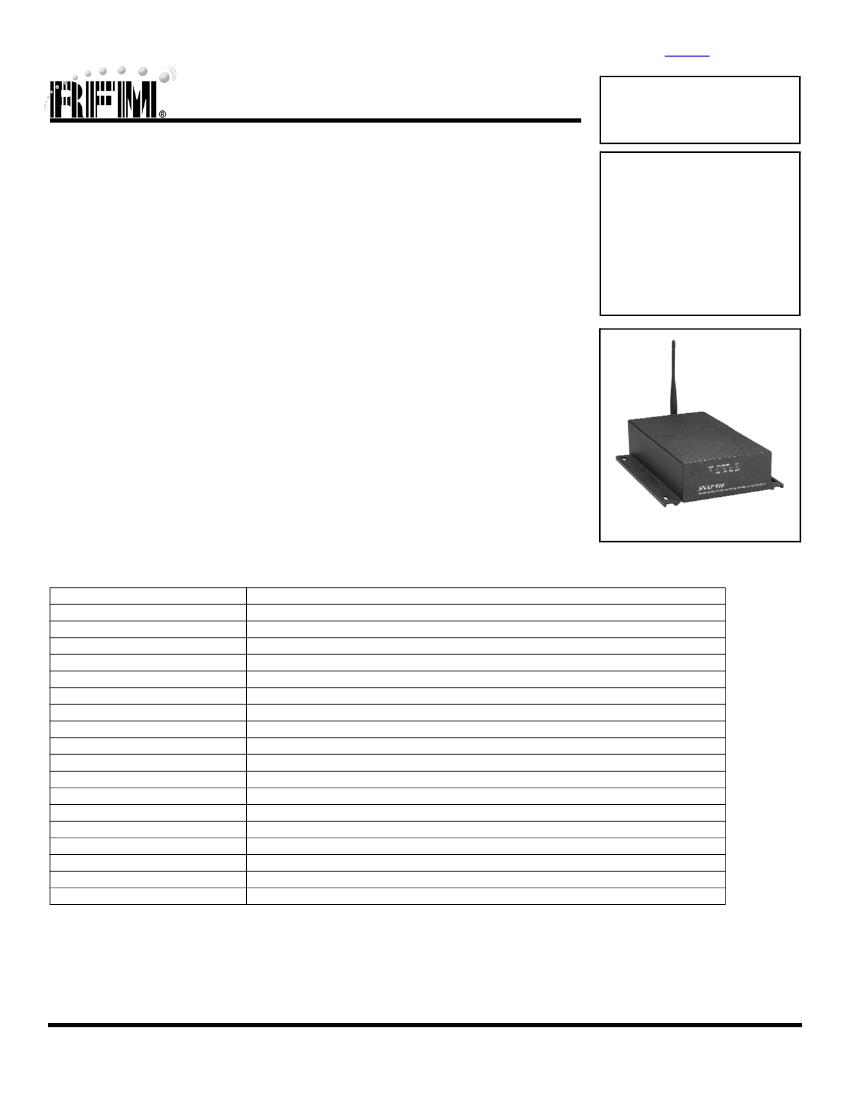

DEVELOPER KIT
(Info:
click here
)
SNAP910
Features:
• 900 MHz frequency hopping spread
spectrum technology
• Serial-to-Ethernet conversion
• Seamless roaming capability
• 172.8Kbps data rate throughput
• 20+ mile range with omni anntenna
• FCC certified
Benefits:
• License-free operation
• Immunity to jamming and multipath
fading
• Allows non-Ethernet devices to connect
to Ethernet network
• Supports far-ranging mobile
applications
• Shortens time to market
• Simple installation
900MHz
High-Speed
Frequency
Hopping
Network Access
Point
Designed for use as a base station for WIT910-based products, the SNAP910 provides seamless Ethernet
connectivity for remote serial devices. The SNAP910 connects up to 15 WIT910 wireless remotes to a 10/
100Base-T Ethernet network. The SNAP910 also is ideal for use as access points for a network of RFM HN-
91 Series modems. Multiple SNAPs can be co-located to support larger numbers of remote devices. Certified
by the FCC, the SNAP910 can be used license-free in the US.
SNAP910
Specifications
RF Frequency
Radio Certification
Operating Range
Radio Network Topology
Radio Network Protocol
Configuration Interface
I/O Data Rate
RF Data Rate
# of Frequency Channels
RF Bandwidth
Transmit Power Output
Receiver Sensitivity
Supply voltage
Power consumption
Size (mm)
Weight
Case Material
Operating Temperature
Humidity
902MHz to 927MHz
Certified under FCC Part 15.247, license free
Indoor: 1000’ outdoor: >20 miles with omni-directional antenna
Star network
Dynamically assigned TDMA with ARQ
Asynchronous (RS-232) up to 115.2 Kbps
10 Mbps Ethernet to the SNAP, 115.2Kbps to each radio
172.8Kbps
54
460 KHz
10 mW, 100 mW or 500mW, software selectable
-103 dBm for 10-5 BER
9vdc
4.5W
201 x 144 x 53
727g
Ruggedized aluminum
-300C to 700C
20% to 90% (non-condensing)
www.RFM.com E-mail: info@rfm.com
©2008 by RF Monolithics, Inc.
Page 1 of 3
SNAP910 - 4/10/08
Ethernet Connectivity
The SNAP910 allows limited intelligence or legacy serial devices to transmit unformatted serial data to an application residing on an Ethernet network. Each
remote device can be treated as an Ethernet device by the application even though the remote device sends and receives unformatted serial data. The
SNAP910 handles all IP or port assignments as well as encapsulating and un-encapsulating unformatted data into and out of Ethernet datagrams.
Scalable
SNAP family members have an integral WIT910 radio module providing 172.8Kbps throughput for up to 15 remotes. Multiple SNAPs can be deployed to
provide communication for more remote devices.
Versatile
Configuration of the SNAP family is through a standard RS-232 serial port using the RFM WinSNAP Windows™-based software. Alternatively, the SNAP
may be configured through a Telnet session. The system designer is given the freedom to choose the wireless communication parameters that provide the
optimum performance for each application. Point-to-point and point-to-multipoint modes are supported using a dynamically assigned TDMA mode.
Long Range
The RFM 900MHz spread spectrum, frequency hopping radios have a demonstrated 20+ mile range using omni-directional antennas, making the SNAP910
ideal for a variety of long range applications. For applications requiring more antenna gain, the SNAP910X replaces the omni-directional antenna with an
external reverse TNC connector.
Reliable
The SNAP910 family provides both reliable communication and reliable operation. With frequency hopping spread spectrum technology, the SNAP
provides immunity to jamming as well as immunity to multipath fading. Using automatic retransmit request (ARQ), transparent error-free communication is
automatic. The built-in data scrambling adds a measure of security. And reliable operation is assured through our stringent QA processes.
www.RFM.com
E-mail: info@rfm.com
©2008 by RF Monolithics, Inc.
Page 3 of 3
SNAP910 - 4/10/08
